Operation Manual
BarFly
100/200/400
Part No. 3100049 Rev A 01-04-2010
®
2

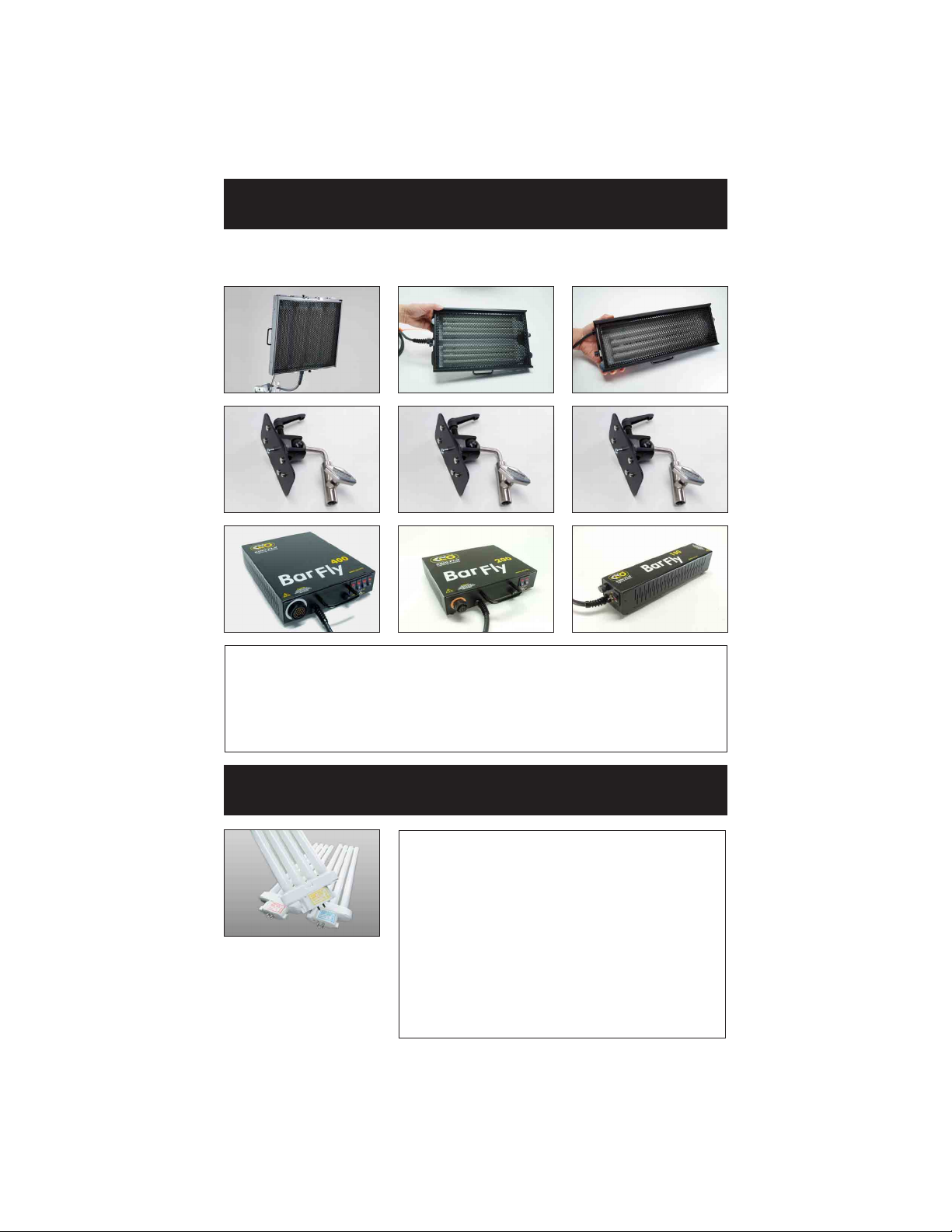

BarFly Systems
True Match Lamps
BarFly 400 BarFly 200 BarFly 100
Each BarFly System Consists of:
1 Fixture
1 Mounting Plate
1 Ballast
55Q-K29
55W Kino KF29 Quad
55Q-K32
55W Kino KF32 Quad
55Q-K55
55W Kino KF55 Quad
®
3
BarFly 400 Kits
BarFly 400 Kit
KIT-B41-G120
BarFly 400 Kit, 120VAC (1-Unit)
KIT-B41-G230
BarFly 400 Kit, 230VAC (1-Unit)
Contents:
1 BarFly 400 Fixture
1 BarFly 400 Ballast
1 Mount
1 BarFly Louver 90°
1 BarFly Louver 60°
1 BarFly Louver / Gel Bag
1 Lamp Case
1 Ship Case
Dimensions: Weight:
31 x 10 x 19.5” 39.5 lb
(79 x 25 x 49.5cm) (18.0kg)
4

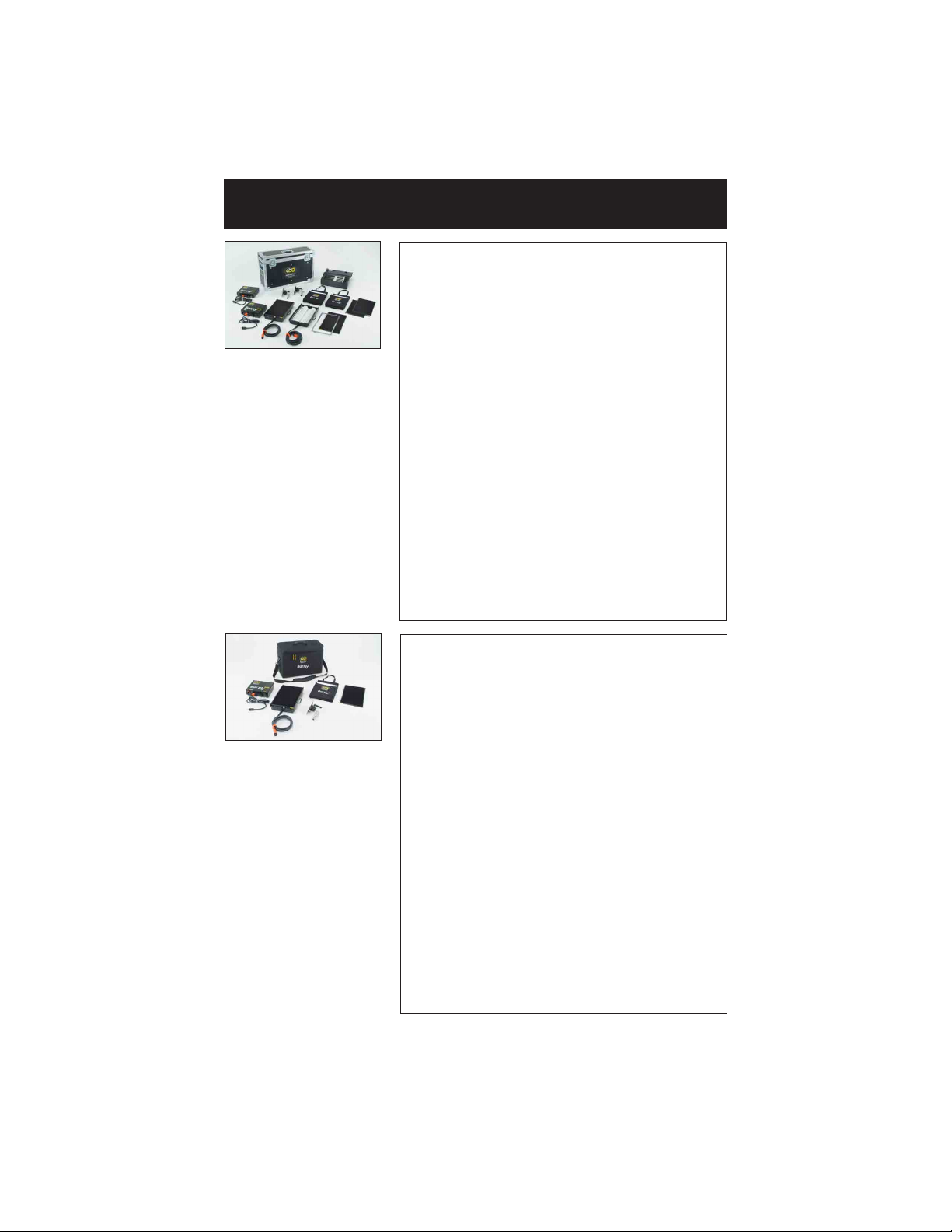

BarFly 200 Kits
BarFly 200 Kit
(2-Unit)
BarFly 200 Kit
KIT-B22-G120
BarFly 200 Kit, 120VAC (2-Unit)
KIT-B22-G230
BarFly 200 Kit, 230VAC (2-Unit)
Contents:
2 BarFly 200 Fixture
2 BarFly 200 Ballast
2 Mount
2 BarFly Louver 90°
2 BarFly Louver 60°
2 BarFly Louver / Gel Bag
1 Lamp Case
1 Ship Case
Dimensions: Weight:
31 x 10.5 x 19.5” 43 lb
(77.5 x 26.5 x 49cm) (19.4kg)
KIT-B200-G120
BarFly 200 Kit, 120VAC (1-Unit)
KIT-B200-G230
BarFly 200 Kit, 230VAC (1-Unit)
Contents:
1 BarFly 200 Fixture
1 BarFly 200 Ballast
1 Mount
1 BarFly Louver 90°
1 BarFly Louver 60°
1 BarFly Louver / Gel Bag
1 Soft Case
Dimensions: Weight:
20.5 x 9.5 x 13.5” 16.6 lb
(52 x 24.1 x 34.3cm) (7.5kg)
5

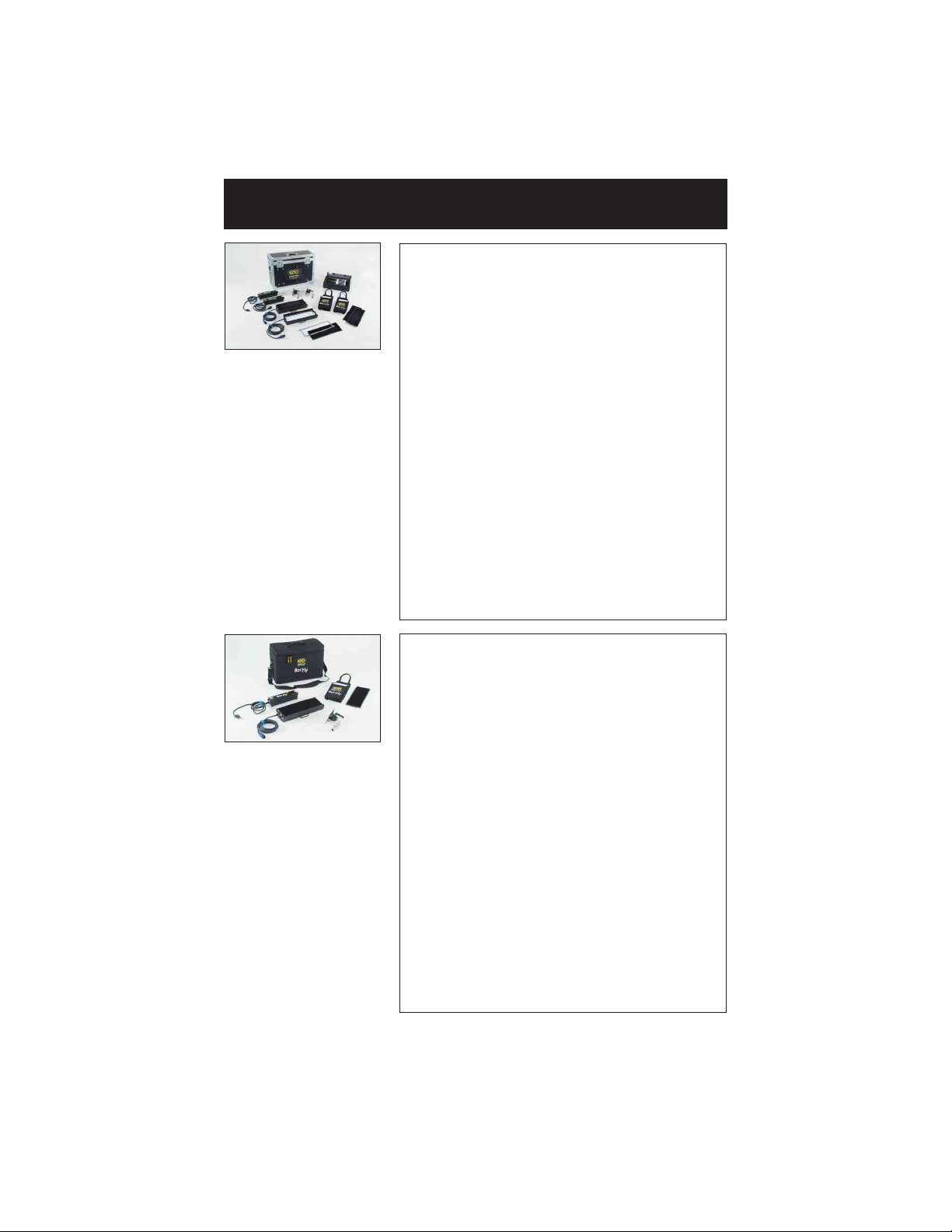

BarFly 100 Kits
BarFly 100 Kit
(2-Unit)
BarFly 100 Kit
KIT-B12-G120
BarFly 100 Kit, 120VAC (2-Unit)
KIT-B12-G230
BarFly 100 Kit, 230VAC (2-Unit)
Contents:
2 BarFly 100 Fixture
2 BarFly 100 Ballast
2 Mount
2 BarFly Louver 90°
2 BarFly Louver 60°
2 BarFly Louver / Gel Bag
1 Lamp Case
1 Ship Case
Dimensions: Weight:
27.5 x 10.5 x 19.5” 35 lb
(69 x 26.5 x 49cm) (15.8kg)
KIT-B100-G120
BarFly 100 Kit, 120VAC (1-Unit)
KIT-B100-G230
BarFly 100 Kit, 230VAC (1-Unit)
Contents:
1 BarFly 100 Fixture
1 BarFly 100 Ballast
1 Mount
1 BarFly Louver 90°
1 BarFly Louver 60°
1 BarFly Louver / Gel Bag
1 Soft Case
Dimensions: Weight:
20.5 x 9.5 x 13.5” 12.8 lb
(52 x 24.1 x 34.3cm) (5.8kg)
6

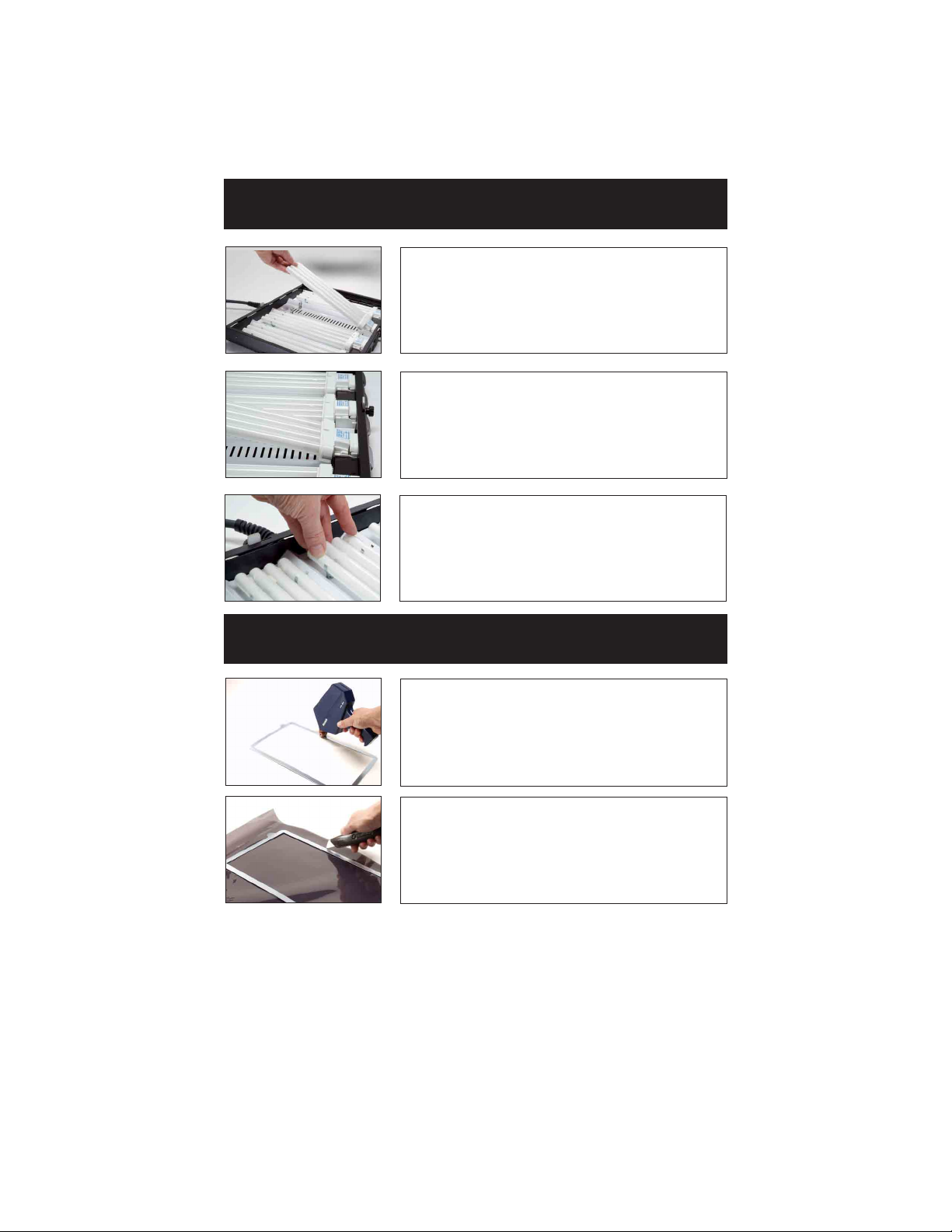

Inserting Lamps
Applying Gel to Gel Frame
Insert lamps at a 45° angle and align pins
with lamp holder.
Gently lay lamp down into xture.
If you feel resistance, the lamp is not
properly aligned. Start again.
Apply adhesive transfer tape to the
gel frame.
Press lamp securely into lamp clip.
Lay the adhesive side on the gel and trim
off excess gel with a matte knife.
7

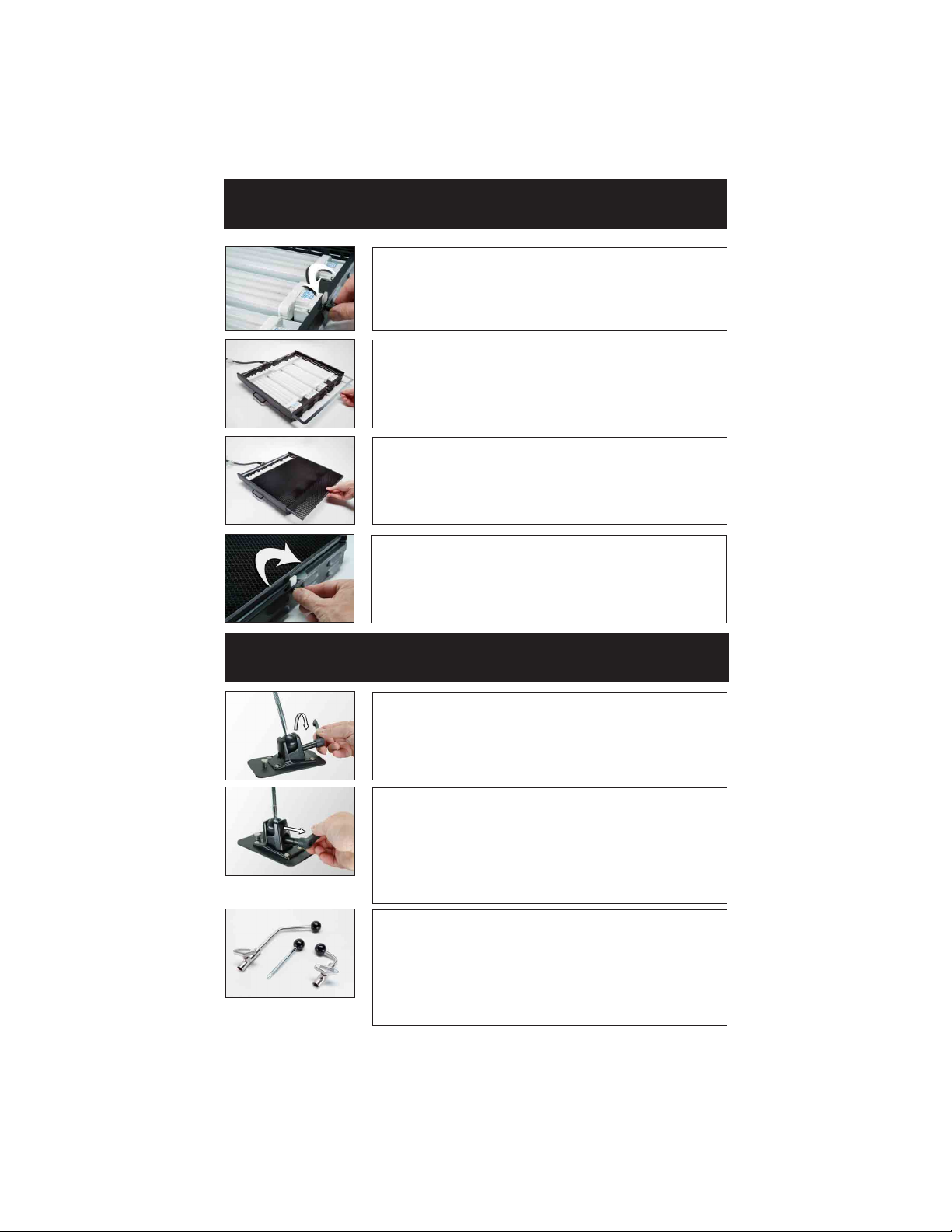

Inserting Louvers & Gel Frames
Rotate accessory locking tab counter clockwise
to open accessory holder.
Gel frame ts into lower accessory channel.
The louver slides into the upper accessory
channel.
Rotate tab clockwise to lock accessories in
place.(Both ends of xture)
A 180° turn loosens the orientation of the
mount. A right turn tightens the mount.
The tension on the lock lever may be
adjusted by pulling the handle away from
the mount. This disengages the handle from
the screw mechanism and allows the lever to be
reoriented.
Lollipops are interchangeable.
MTP-L Kino 41 Lollipop w/ 3/8” Pin
MTP-LB Kino 41 Lollipop w/ Baby Receiver
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short
BarFly Mounting Plate
8
Mounting BarFly 400 & 200
Align center pin with mating receptacle on
xture.
Align locking pin with the yellow arrow.
Rotate mount plate in direction of the small
arrow. The locking pin will snap into place.
The safety wire loop provides an attachment
point for a safety chain.
Mounting BarFly 100
Align center pin with mating receptacle on
xture.
Rotate in a clockwise direction to secure mount-
ing plate. Locking pin will snap into place.
The safety wire loop provides an attachment
point for a safety chain.
Unlock the mounting plate by pulling up on
the locking pin and rotate mount in a counter
clockwise direction.
9
BarFly 200/100 w/ Edge Mount
BarFly Snoot
Correct Lamp Orientation
The BarFly 200/100 Edge Mount (MTP-BFE)
is attached to the edge of the xture with two
thumbscrews.
Note: Due to weight capacity, an edge mount for the
BarFly 400 is currently not available.
Fit the end of the Snoot containing the elastic bands
over the xture.
The tabs of the gel frame will position the Snoot to
the front of the xture.
The Edge Mount can be inserted onto a grip arm or
a standard baby pin.
This type of rigging enhances the xture’s narrow
prole making it easy to hide in the shot.
For stable color rendering, use lamps in either the base up position or the
horizontal position. Do not operate xture in a base down position. Base
down position may result in increased Kelvin and increased green spike.
To secure the Snoot to the xture, loop the elastic
bands over the accessory lock knobs.
10
Ballast Operation
The BarFly xture includes a built-in 12ft head extension.
To insert the extension into the ballast, align the keyways
on the xture plug with the circular receptacle on the ballast.
Rotate the locking ring until it clicks into the lock position.
Additional 25ft head cable can also purchased separately
(part #s X19-G425, X09-G225 or X09-G125).
Fixtures should be operated with the additional 25ft exten-
sion cable for countries outside the U.S.A and Canada.
WARNING!
1) ALWAYS TURN OFF THE BALLAST BEFORE connecting or
disconnecting Lamps, Harnesses or Extension Cables.
2) Use only with Sine wave inverters. Do not operate on SCR dimmers.
3) If powering the ballasts through a Dimmer Pack, set the Dimmer to Non-Dim mode.
The 120VAC Ballast requires 110 to 130 Volts AC 50/60 Hertz on an earth grounded
circuit; the 230VAC Ballast requires 220 to 240 Volts AC on an earth grounded circuit.
The electronic Ballast operates at a high frequency of 25 kHz. It is dead-quiet,
instant-on and lightweight.
Load Considerations
Kino Flo ballasts are not power factor corrected. They will draw double the current on
the neutral from what is being drawn on the two hot legs. On large installations it may
be necessary to double your neutral run so as not to exceed your cable capacity.
Cold Temperature Operation
The BarFly Ballast series is designed to operate at temperatures from 14F to 122F
(-10C to +50C). In cold temperatures, the Ballast may not strike the lamp(s) instantly.
Switch the Ballast to OFF, wait seven seconds and try again. If the Ballast does not
strike after two or three attempts, turn off the Ballast, check that the Extension and
Harness connections are secure and re-strike. Once operating for a few minutes,
the Lamps should re-strike instantly.
It is normal for the lamp to require a few minutes to achieve full light output even at
room temperature.
The BarFly Ballast features individual lamp switching and
an HO/STD switch. The HO/STD is used to adjust light level
without affecting color temperature. In STD mode the light
drops ½ f-stop.
When operating the BarFly in high ambient temperature or
where the units are rigged into place with restricted airow,
the STD setting can be used to lower the color temperature
