KING CANOPY G10208 User manual
10’X20’ Dome Garage
ITEM #: G10208
Dimensions:
10ft. Wide x 20ft. Deep x 8ft. Center Height
WARNING:
Keep all ame and heat
sources away from this tent
fabric. It is not re proof
The fabric will burn if left in
continuous contact with any
ame source.
Distributed by: PIC America, LTD.
8009 Purfoy Road • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
FOOT15PC-T (4) 2-way Corner Foot Pads
FOOT15PC-X (6) 3-way Center Foot Pads
3W13PC-T (10) 3-way Connectors (ends)
4W13PC-X (15) 4-way Connectors (centers)
4X10-15PC (28) 58” Pipe
2X10-15PC (10) 21.5” Pipe
3X9-15PC-C (20) 45” Curved Pipe
BALL (50) Ball Bungee Straps
AC-G1020 (5) Assembly Cables
ROPE60 (60´) Rope for Assembly
STAKE-GAR (10) Stakes
A15-CC (6) Screw-in Ground Anchors
G102008-EWWZ (1) Front Wall with Zippers
G102008-EWWW (1) Back Wall with Window
G10208-C (1) Cover
TB-GAR (4) Corner Turnbuckles
A15-CC
3W13PC-T
4W13PC-X
3X9-15PC-C
TB-GAR
PARTS
FOOT15PC-T FOOT15PC-T
FOOT15PC-X
G102008-EWWZ
G102008-EWWW
BALL
STAKE-GAR
AC-G1020
ROPE60
4X10-15PC
2X10-15PC
G10208-C
3-way Connectors
are for each end
4-way Connectors
are for center
connections
Note: Longest part of 3-way
is used to form the length. Note: The two longest parts
of the 4-way are used to
form the length.
FRAME ASSEMBLY
1)
Start by laying out all of the parts and pieces to your King Canopy. Please refer to the
parts list to ensure that your kit is complete. When all the parts have been accounted for,
begin to layout your frame according to the photo above. The 3X9-15PC-C curved pipes
form the dome part of the canopy. The 4X10-15PC pipes form the length of the canopy.
Each 3-way tting (3W13PC-T) should be placed at all the end connections and the 4-way
(4W13PC-X) ttings are placed in the 3 center sections.
3X9-15PC-C 3X9-15PC-C
3X9-15PC-C
3X9-15PC-C 4X10-15PC 4X10-15PC
4X10-15PC
4X10-15PC 4X10-15PC
4W13PC-X
2X10-15PC
FOOT15PC-T FOOT15PC-T
FOOT15PC-X
FOOT15PC-X
2X10-15PC
FOR FASTER AND EASIER SETUP,
WE RECOMMEND ASSEMBLY BY TWO OR MORE PEOPLE.
4X10-15PC
3W13PC-T
FRAME ASSEMBLY
2) Assemble the center section of frame using the 3X9-15PC-C curved pipe and the
4X10-15PC 58´´ straight pipe. (See photo above) Make sure longest part of the 3-ways and
4-ways are used to form length. Continue assembly until you have four sections complete,
which is the full length of the unit.
2) After assembling the first full length
section of roof, use the rope enclosed to hold
frame together by tying the frame from end
to end down the center (See Photo Above
and on Right).
4) Once you have completely assembled all the curved sections of the canopy, (See Photo
Above) you are now ready to put the cover on. Put the cover on before assembling the last
section with feet. See next step.
3) Continue assembly by completing the next curved section on each side of the top
section. (See Photo Above) Hold frame together by tying frame from end to end like in
step 2 before.
NOTE: PUSH FRAME INWARD FROM EACH SIDE TO KEEP CURVE SHAPE.
FRAME ASSEMBLY
7) Once you have secured the cover to the curved section
of frame, you may now nish frame assembly. Assemble the
remaining frame on each side using the 2X10-15PC pipe,
foot sections, and 4X10-15PC pipe as shown in Diagram
K. Make sure hooks on the feet are on the inside of frame.
Push in on leg sections and make sure the legs are securely
set on ground before assembling nal side and standing
canopy up. This will keep the canopy from sliding.
10.
COVER & LEG ASSEMBLY
5) Remove the cover from plastic bag and unfold. Next fold half
the cover over the other half with the white side out. Match the
corners (See Diagram F) and mark the top center of cover at the
grommet line at both ends. (See Diagram G).
6) Once centers have been marked at both ends, pull cover
over frame with white side down. (See Diagram H) Position the
center mark with the top center pipe of frame. (See Diagram I)
Attach cover to each end of top curved frame by running ball
bungee straps through each grommet hole, around pipe and
hook back over ball. (See Diagrams J and K)
Diagram K
Diagram G
Diagram H
Diagram F
Diagram I
Diagram J
8) Now that you have completed the frame assembly and your
canopy is standing, take the cables provided and hook one end
to each foot (See Diagram L) over to the foot on the opposite
side. You may have to push out or pull in to get cables hooked.
Make sure cables are tight across. These cables keep the canopy
frame with the designed curved shape.
(NOTE: Be careful NOT to trip over cables.)
Diagram L
9) With the canopy standing and cables in place, anchor the canopy using the foot stakes
provided (See Diagram M). Driving the stakes in at an angle will help anchor the canopy
more securely. Once stakes are in place, you may remove the cables.
SEE “ANCHORING YOUR CANOPY”
Diagram M
COVER & LEG ASSEMBLY
10) To complete your canopy, secure the top down each side on the bottom pipe and
around each end with ball bungee straps. (See Diagram N)

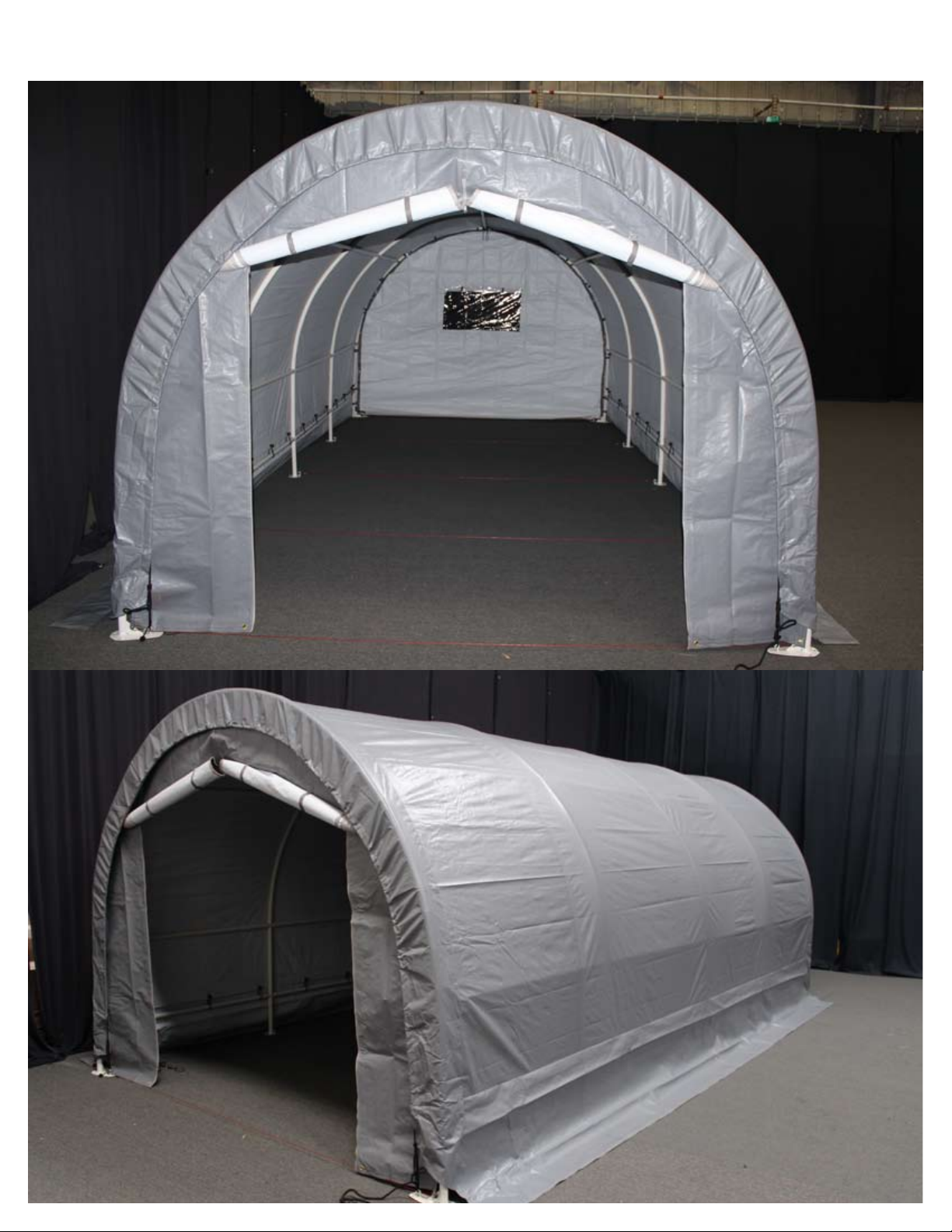

11) Add the canopy endwalls using the hook
& loop straps by attaching around pipe. Next,
tighten and secure the drawstrings at each corner
foot. You have successfully set up your canopy
(See Diagram O). Now that the canopy is set up,
you may remove the ropes used for assembly.
COVER & END WALL ASSEMBLY
Diagram N
Diagram N
COVER & END WALL ASSEMBLY
Diagram O
NOTE: Your canopy sidewalls
and rear endwall are long
enough to be buried in the
ground.This will help prevent
water from running inside.
This canopy is designed for use as a temporary structure. After assembly, the canopy
MUST BE securely anchored to the ground to prevent damage from winds. Your canopy
will act like a kite in the wind if not properly and securely anchored to the ground. Severe
winds will cause the frame to twist and unanchored legs will fall, thereby collapsing the
canopy. If severe winds are expected, you must remove the cover from the frame to
prevent damage.
We recommend anchoring your canopy at each corner
foot and center foot on each side. Screw anchor into
ground next to canopy foot using a large screw driver
as seen in Diagram A. Looping the cable through the
anchor eye will keep it out of the way while turning.
Tilting the anchor slightly will help the anchor to cut into
the ground. Apply downward pressure while turning
the anchor into the ground. Leave approximately three
inches of anchor out of the ground.
Unloop the cable from the anchor eye and slide the
clamp onto cable. Run cable around the pipe, (See
Diagram B) and then back through the clamp as seen
in Diagram C. Pull the cable as tight as possible through
the clamp. Hold the cable and tighten clamp with a 5/8
inch wrench or some type of adjustable wrench.
When you have tightened the clamp and satised that
the cable will not slip, you may tighten the cable more
by turning the anchor further in the ground as seen in
Diagram D.
If you have further questions call our customer service
department toll free at 1-800-800-6296
Diagram A
Diagram B
Diagram C
Diagram D
1.
2.
3.
Parts Enclosed> 6-screw-in anchors with cable and clamp attached
(Tools needed = 5/8 inch wrench and large heavy-duty screw driver)
ANCHORING YOUR UNIT
