Kichler Lighting 39519 Instruction sheet

Français p. 9

Español p. 17

ITEM #1085676

MODEL #39519

OUTDOOR FLUSHMOUNT

CEILING FIXTURE

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.

Pan 1

Mounting Bracket 1

Shade 1

Thumbscrew 3

Socket 2

Hex Nut 3

Threaded Nipple 1

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

HARDWARE CONTENTS

Wire

Connector

AA BB CC

Qty: 3

Qty: 2

Short

Machine

Screw

Qty: 1

Threaded

Cap

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the

product.

WARNING

• IMPORTANT: NEVER attempt any work without shutting off the electricity.

• Place the main power switch in the “OFF” position and unscrew the fuse(s), or switch “OFF” the

circuit breaker switch(es), that control the power to the fixture or room you are working in.

• Place the wall switch in the "OFF" position. If the fixture to be replaced has a switch or pull chain,

place it in the "OFF" position.

• Do not use bulbs with wattage greater than specified on this fixture.

• California Proposition 65

WARNING: This product can expose you to lead, which is known to the State of

California to cause cancer, birth defects or other reproductive harm. For more

information go to www.p65warnings.ca.gov

CAUTION

• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate

completely, please contact a licensed electrical contractor.

• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts

out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate

ETL listing and/or C.S.A. certification of this fixture.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents list. If any part is missing or damaged, do not attempt to

assemble the product.

Estimated assembly time: 30 minutes to 1 hour

Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,

electrical tape, ladder, safety glasses.

ASSEMBLY INSTRUCTIONS

Hardware Used

x 3Wire Connector

2. Wire connection guide:

Ground wire:

•For installation in the United States: Wrap

ground wire from outlet box around ground

screw on mounting bracket (B) no less than 2

in. from wire end. Tighten ground screw. If

fixture is supplied with a ground wire,

connect to outlet ground wire with a wire

connector (AA).

• For installation in Canada: If fixture is

supplied with ground wire, wrap ground wire

around ground screw on mounting bracket

(B). Tighten ground screw.

Supply wires:

• Connect the Neutral (White) supply wire from

the outlet box to the Neutral fixture wire

(White or Parallel Cord “D” shaped and

ribbed).

• Connect the Hot (Black) supply wire from the

outlet box to the Hot fixture wire (Black or

Parallel Cord round and smooth).

NOTE:

Fixture wires will either be:

• Black and White.

• Parallel Cord SPT-1 lamp wire with one

round smooth wire and one “D” shaped

ribbed wire.

BARE COPPER,

OR GREEN

GROUND

SUPPLY WIRE

BARE COPPER,

OR GREEN

GROUND

FIXTURE

WIRE

BLACK FIXTURE

WIRE

WHITE FIXTURE

WIRE

BLACK SUPPLY

WIRE

BLACK SUPPLY

WIRE

OR PARALLEL

FIXTURE CORD

(ROUND AND

SMOOTH)

PARALLEL FIXTURE

CORD (“D” SHAPED

AND RIDGED)

WHITE SUPPLY

WIRE

WHITE SUPPLY

WIRE

Hardware Used

Short Machine

Screw x 2

1. Orient mounting bracket (B) so the raised center

portion protrudes into the outlet box (not included).

Remove top hex nut (F) from threaded nipple (G)

and screw threaded nipple (G) into middle of

mounting bracket (B). Secure threaded nipple (G)

to mounting bracket (B) at the top with the removed

hex nut (F). Temporally pass canopy (A) over the

threaded nipple (G). Adjust threaded nipple (G)

until 1/4th of the threads are exposed past the

canopy (A). Remove the canopy (A) and screw

bottom hex nut (F) up the threaded nipple until it is

against the mounting bracket (B).

Finally, connect mounting bracket (B) to the outlet

box with short machine screws (BB).

Outlet

Box

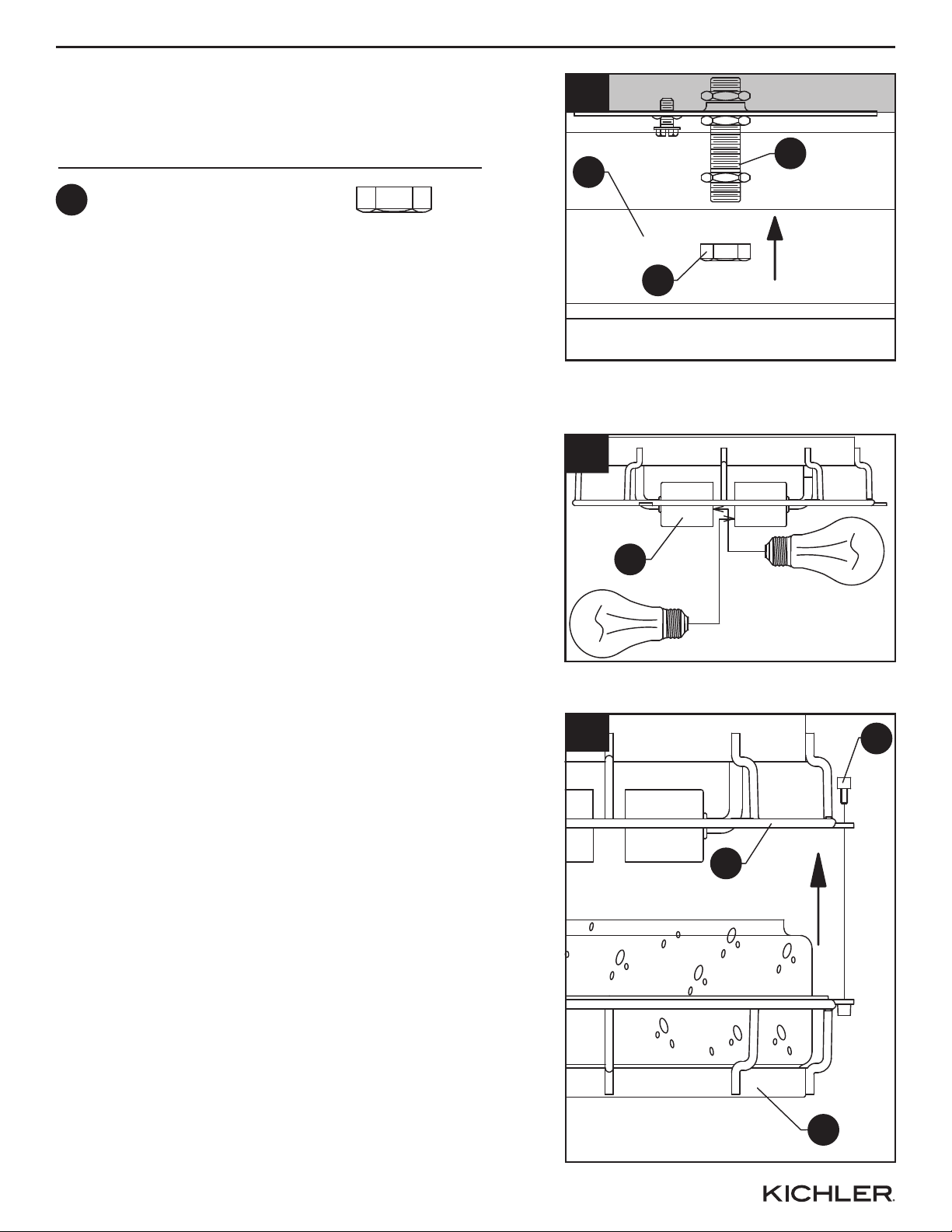

Raise pan (A) to the threaded nipple (G) and

secure with threaded cap (CC).

ASSEMBLY INSTRUCTIONS

Hardware Used

x 1

Threaded

Cap

Insert 40-watt max. medium-base bulb or

CFL/LED equivalent (not included) into

socket (E).

Raise shade (C) to pan (A) and secure with

thumbscrews (D).

Repeat for remaining thumbscrews.

CARE AND MAINTENANCE

WARRANTY

TROUBLESHOOTING

Fixture does not light. 1. Fixture may be wired incorrectly.

1. Check wiring.

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

• Always be certain that electric current is turned off before cleaning this item.

• Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on

fixture, as it will damage the metal finish.

• All glass shades may be washed in a towel-lined sink with warm water and mild soap. Do not

wash shades in an automatic dishwasher.

Kichler Lighting warrants that its products will be free from defects in material and workmanship for

one (1) year from the date of purchase by the Original Purchaser.

To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly

defective parts or products to the authorized Kichler distributor that the product was purchased from

with PROOF OF PURCHASE, Original Purchaser’s name and return address and a description of the

claimed product defect.

If any of the warranted products are found by Kichler, in its sole discretion, to be defective, such

products will, at Kichler’s sole option and cost, be replaced, repaired or refunded less an amount

directly attributable to Original Purchaser’s prior use of the product. Kichler will return the repaired or

replaced product prepaid freight. This warranty does not cover labor or other costs or expenses to

remove or install any defective, repaired or replaced product.

The parties hereto expressly agree that Original Purchaser’s sole and exclusive remedy against

Kichler shall be for the repair, replacement or refund of defective products as provided herein. This

warranty extends only to product ownership by the Original Purchaser; is not transferable whether to

heirs, subsequent owners, or otherwise; and is void if the Original Purchaser ceases to own the

product.

WARRANTY (continued)

This warranty does not apply to any products that have been subjected to misuse, mishandling,

misapplication, connected to voltage at more than 5% above standard North American voltage,

unusual use (including but not limited to use in an environment where the annual average ambient

operating temperature is below 27 or above 95 degrees Fahrenheit), neglect (including but not limited

to improper maintenance), accident, acts of god such as high winds, improper installation or care,

failure to follow the Product’s written instructions for normal use and care, improper packaging of

products returned to Kichler, modification (including but not limited to use of unauthorized parts or

attachments), or adjustment or repair. Significant product exposure to chemicals, harsh cleaners, salt

water or salt air will void any and all warranties on exterior finishes. This warranty only applies when

all components, including transformers, have been provided by Kichler. Substituting another

manufacturer’s product and/or components will render the warranty completely void.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER

RIGHTS, WHICH VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS

ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS

MAY NOT APPLY TO YOU.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR

PURPOSE OR INFRINGEMENT. ORIGINAL PURCHASER SHALL IN NO EVENT BE ENTITLED

TO, AND KICHLER LIGHTING SHALL NOT BE LIABLE FOR, INDIRECT, SPECIAL, INCIDENTAL

OR CONSEQUENTIAL DAMAGES OF ANY NATURE, INCLUDING, BUT NOT LIMITED TO LOSS

OF PROFIT, PROMOTIONAL AND/OR MANUFACTURING EXPENSES, OVERHEAD, INJURY TO

REPUTATION AND/OR LOSS OF CUSTOMERS.

Rev. 08-15-18

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-800-554-6504, 8 a.m. - 4:30 p.m.,

EST, Monday - Friday.

Mounting Bracket XBAR05

Shade G39519

Thumbscrew TS39519

Hex Nut NUT18

Threaded Nipple TN18200

Wire Connector WC001

Short Machine Screw SCR832X050

Threaded Cap TC39519

PART DESCRIPTION PART #

AA BB CC

Printed in China

Distributed by Kichler® LLC.

B C D

ARTICLE #1085676

MODÈLE #39519

PLAFONNIER AFFLEURANT

D’EXTÉRIEUR

JOIGNEZ VOTRE REÇU ICI

Numéro de série Date d’achat

Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article au

détaillant, appelez notre service à la clientèle au 1 800 554-6504, entre 8 h et 16 h 30 (HNE),

du lundi au vendredi.

Pavillon 1

Support de fixation 1

Abat-jour 1

Vis manuelle 3

Douille 2

Écrou hexagonal 3

Raccord fileté 1

CONTENU DE L’EMBALLAGE

PIÈCE DESCRIPTION QUANTITÉ
