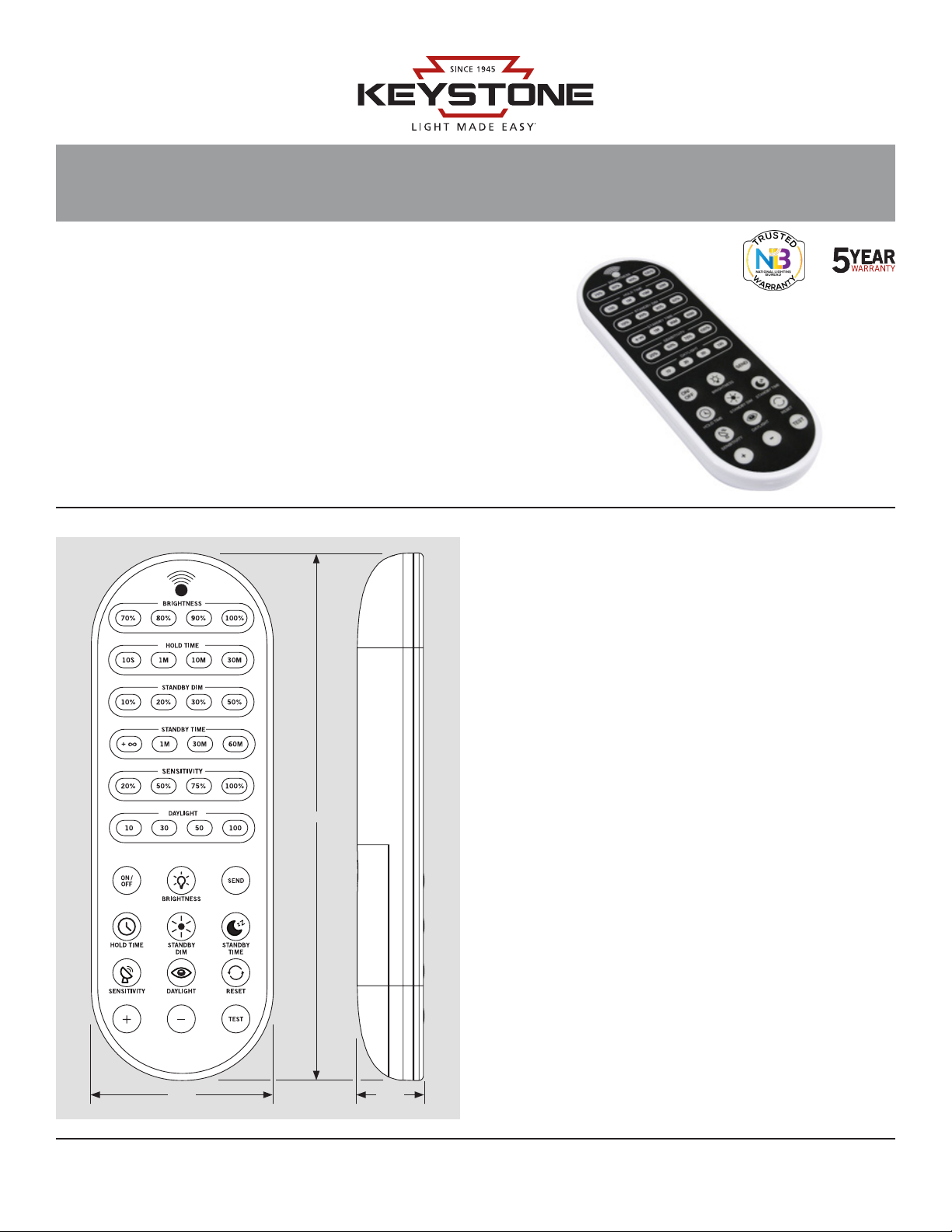

Keystone KTS-MW3-REMOTECONTROL User manual
Page 1 of 3
Keystone Technologies • Philadelphia, PA • Phone (800) 464-2680 • www.keystonetech.com
Specifications subject to change. Last revised on 01.14.22
DESCRIPTION
Remote Control for KTS-MW3-12V-XX and KTS-PIR3-12V-XX Sensors |Used
to adjust sensor settings.
KTS-MW3-REMOTECONTROL
REMOTE CONTROL
DIMENSIONS
0.71"1.97"
5.51"
Page 2 of 3
Keystone Technologies • Philadelphia, PA • Phone (800) 464-2680 • www.keystonetech.com
Specifications subject to change. Last revised on 01.14.22
FUNCTIONALITY AND PROGRAMMING
DISPLAY AREA
BUTTON SETTING AREA
Brightness:
70%, 80%, 90%, 100%
Sensitivity:
20%, 50%, 75%, 100%
Hold Time:
10 sec, 1 min, 10 min, 30 min
Standby Dim:
10%, 20%, 30%, 50%
Daylight:
10 lux, 30 lux, 50 lux, 100 lux
Standby Time:
+∞, 1 min, 30 min, 60 min
PROGRAMMING NOTES
• The remote control is divided into two areas: Display and Button Setting.
• Each press of a setting button on the remote will cycle through the available
options and display all settings on the remote indicators.
• Once desired settings are made and indicators are illuminated, push Send
one time to complete programming.
• When settings are sent from the remote, the transmission indicator at the
top of the remote will blink 3 times. The fixture will pulse briefly to confirm
receipt of new sensor programming.
Note: When programming outdoors, bright sunlight can interfere with the
remote control infrared signals. It is recommended to program sensors when
the sunlight is weak.
BUTTON FUNCTION
On/O
• Press and hold On/Off
button to toggle between
manual and sensor-enable
mode. Also transmits this
setting change to any
sensor within view of the
remote.
• Press On/Off when in
manual mode and pointed
at a sensor to toggle fixture
on/o. Fixture will not
toggle on/o if remote is in
sensor-enable mode.
Brightness
Press Brightness to select
hold level: 70%, 80%, 90%,
100%.
Send
• Aim remote control at
fixture and press send once
to show remote settings,
and again while settings
are illuminated to transmit
them.
• The fixture will pulse briefly
to confirm receipt of new
sensor programming.
Hold Time
Press hOldtime to select time:
10sec, 1 min, 10 min, 30 min.
Daylight
• Press daylight to adjust
level: 10 lux, 30 lux, 50 lux,
100 lux.
• When no motion is
detected after hold time
and standby time elapse,
daylight will turn o fixture
when measured light is
above the set threshold.
A standBy time of + ∞will
allow daylight to turn o
the fixture after 8 seconds
into the standby time.
• Press and hold daylight to
toggle daylight function
on/o.
Sensitivity
Press sensitivity to adjust
motion detection level: 20%,
50%, 75%, 100%.
Standby Dim
Press standBy dim to adjust
standby level: 10%, 20%,
30%, 50%.
Standby Time
Press standBy time to adjust
time: + ∞, 1 min, 30 min,
60 min.
• When no motion is
detected after hold time
and standby time, sensor
will turn light o.
Reset
Press reset to return
remote to default settiings:
Brightness: 70%; hOld time:
10 sec; standBy dim: 10%,
standBy time: + ∞;sensitivity:
20%; daylight: O.
Test
• Press test to display
current remote settings
and send programming to
sensors within view.
• Press test while remote
settings are illuminated
to toggle sensitivity test
mode and send to sensors
within view. Only sensitivity
setting will be illuminated
on remote.
• In sensitivity test mode,
light will turn on for 3
seconds when motion is
detected. It is used to help
choose an appropriate
sensitivity level.
Press +or –to manually adjust brightness in smaller
increments.
–+
KTS-MW3-REMOTECONTROL
REMOTE CONTROL
Page 3 of 3
Keystone Technologies • Philadelphia, PA • Phone (800) 464-2680 • www.keystonetech.com
Specifications subject to change. Last revised on 01.14.22
CATALOG NUMBER BREAKDOWN
KTS-MW3-REMOTECONTROL
1 2 3 4 5
4Style/Design Designation
3Series 3
1 Keystone Technologies
2 Sensor
3 Microwave
4 Style/Design Designation
5 Remote Control
ORDERING INFORMATION
ORDER CODE PACK QTY. UPC Easy Code
KTS-MW3-REMOTECONTROL 1 843654132020 XSR-61
KTS-MW3-REMOTECONTROL
REMOTE CONTROL
