Kett HB-610 User manual
Operating Manual
Thank you for purchasing this product.
Please read the operating manual carefully and use this product properly.
Grain Moisture Tester
HB-610
Safety Precautions
If the safety precautions for the Grain Moisture Tester are not observed, injuries or damage to property may
result. While the safety of the product has been given considerable attention, please read the precautions
in the operating manual and use the instrument properly.
• Please observe the safety precautions.
Please read the precautions noted in the operating manual.
• Do not use if broken.
If the tester breaks or malfunctions, please consult our repair service.
• Meaning of warning symbols.
In order to prevent damage resulting from erroneously operating the equipment, the following symbols are
indicated in the operating manual and on the product. The following are their meanings.
Note Items which the user should be aware of in order to use the unit safely.
CONTENTS
1. Features............................................................................................... 7
2. Specications...................................................................................... 8
3. Calibration Curve List.......................................................................... 9
4. Part Names.......................................................................................... 10
5. Display................................................................................................. 11
6. Description of Keypad......................................................................... 12
7. Directions ............................................................................................ 13
7-1. Before Measurement................................................................... 13
7-2. Measurement Method................................................................. 14
7-3. Displaying the Average Value...................................................... 17
7-4. Setting the Measurement Mode ................................................. 18
7-5. How to make Bias (oset) Adjustment........................................ 19
7-6. Setting the Alarm ........................................................................ 20
7-7. Printer Output.............................................................................. 21
7-8. Data Storage ............................................................................... 22
7-9. Date and Time Display ................................................................ 23
7-10-1. Inputting a company name ......................................... 26
7-10-2. Displaying company name...........................................28
7-10-3. Deleting company name..............................................28
8. Preparing a Calibration Curve ........................................................ 29
8-1. What is a Calibration Curve?.................................................... 29
8-2. Precautions when Preparing a Calibration Curve ................... 30
8-3. How to Prepare a Calibration Curve.........................................31
8-4. Inputting a Calibration Curve................................................... 32
8-5. Inputting a Name for the Calibration Curve............................. 36
8-6. Display of the Input Moisture Value
when Preparing a Calibration Curve....................................... 38
8-7. Erasing a Calibration Curve...................................................... 39
9. Error Display.....................................................................................41
6
7
This unit is a grain moisture tester that applies electric resistance of an object to be measured.
Only putting the bar sensor into bag displays their moisture content (%). This moisture
tester needs only simple operation for quick measurement without selecting an operator or
measurement environment.
• Bias adjustment for moisture values
Bias adjustment for moisture values in the range from -9.9 to +9.9% with respect to each
calibration curve.
• Can create a maximum of 10 user calibration curves (scaled)
Users can record their own calibration curves to support various types of jute.
• Auto power o
If no measurement is made or key is operated for approximately 5 minutes, the power is
automatically shut o and avoids wasting the batteries.
• Other functions
Average value, upper limit setting, data storage (max. 250), company name setting, date and time
setting are available. An optional printer and PC software for data logging are also available.
1. Features
8
2. Specications
Measurement Principle :Electrical resistance
Applications :Raw cashew nut / Cashew kernel / Cashew kernel testa
Calibration Curves*1 : See 3."Calibration Curve List"
Measurement Range : See 3."Calibration Curve List"
Accuracy : See 3."Calibration Curve List"
Standard Method : See 3."Calibration Curve List"
Display :Digital (LCD)
Resolution :0.1%
Operating Temperature Range
:0 to 40˚C
Functions :Moisture value bias adjustment (–9.9 to +9.9%), Average value, Upper limit alarm,
Auto power o (automatically turns o after approximately 5 minutes), Data storage
(approximately 250 data), Company name setting, Data output (printer / PC)
Power Supply :1.5 V batteries (AA alkaline) (6)
Power Consumption : Approximately 0.45 W
Dimensions :110 mm (W) x 210 mm (D) x 50 mm (H)
Weight :0.5 kg
Included sensors :Bar sensor (UB-1000)
Accessories :Shoulder strap, 1.5 V batteries (AA alkaline) (6), Carrying case, Operating manual
Options :Printer VZ-390, Printer cable VZC70, Data Logger Software HDL-03
9
3. Calibration Curve List
#Applications Calibration
curve name
Method Measuring
range
Accuracy* Standard method
01 Raw cashew (in a bag) RCA Bag 7 - 35% 1.5% ISO665
02 Raw cashew (in a bucket) RCB Bucket 7 - 35% 2.5% ISO665
03 Cashew kernel CK Bag 3 - 11% 0.8% UNECE STANDARD
DDP-17
04 Cashew kernel with testa CKT Bag 3 - 14% 0.8% UNECE STANDARD
DDP-17
20 Count mode HB6 -10 - 990
(Display range) - -
21 - 30 User calibration curve - - 1 - 99 %
(Display range) - -
* Standard error of calibration (in the range moisture 20% or lower)
10
Main unit
Control panel
Battery cover (back)
Connector
Display

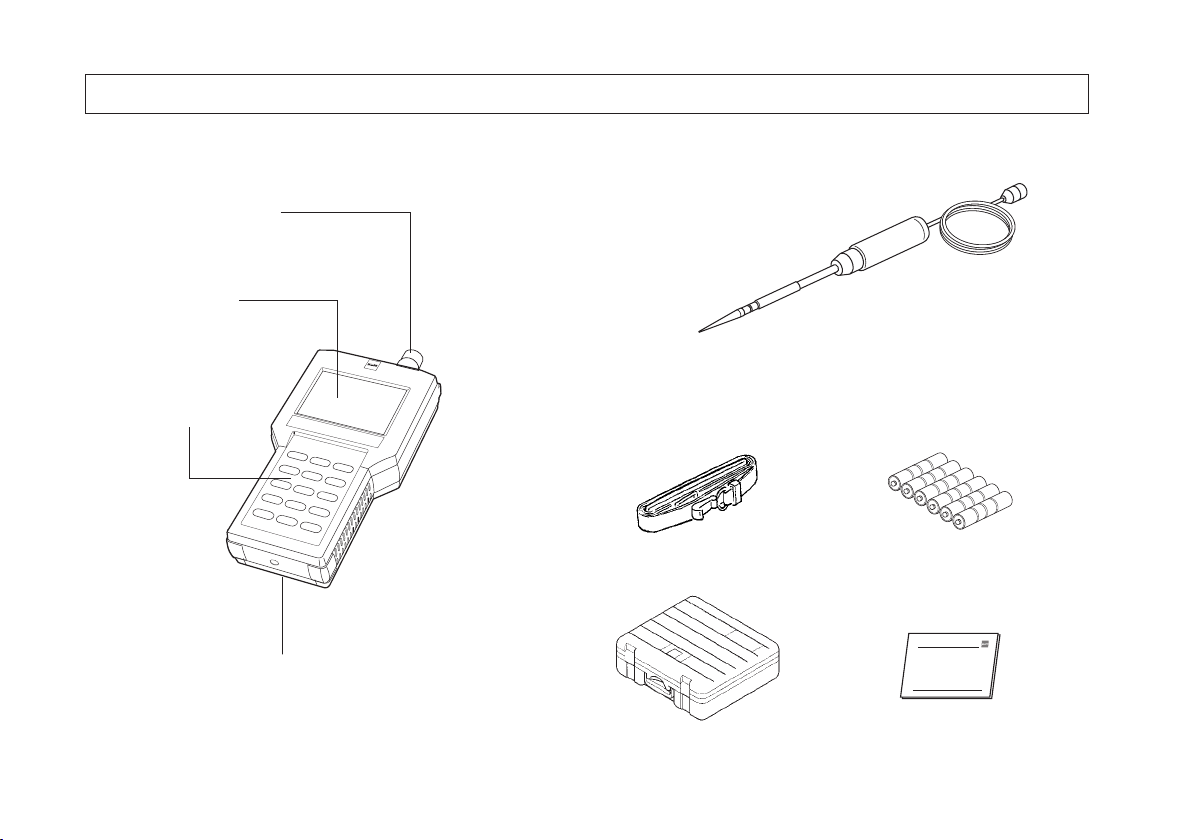

4. Part Names
Shoulder strap 1.5 V battery (AA) (6)
<Accessories>
Carrying case Operating manual
<Accessories sensor>
Bar sensor (UB-1000)
