Kenwood KDC-X997 User manual

Important information

Before using the this unit for the first time

KDC-X997, KDC-BT955HD, KDC-X897, KDC-BT855U, KDC-X697, and KDC-655U are factory-set to operate

in the Demonstration mode initially.

When using this unit for the first time, cancel the Demonstration mode. Refer to <Cancel the Demonstration

mode>.

Cleaning the connector

The unit may not function properly if the connectors between the unit and faceplate are dirty. Detach the

faceplate and clean the connector with a cotton swab gently, being careful not to damage the connector.

Condensation

When the car is air-conditioned, moisture may collect on the laser lens. This may cause disc read errors. In

this case, remove the disc and wait for the moisture to evaporate.

How to reset your unit

If the unit fails to operate properly, press the Reset button. The unit returns to the factory settings when the

Reset button is pressed.

Notes

When you purchase optional accessories, check with your Kenwood dealer to make sure that they can

work with your model and in your area.

Characters that conform to ISO 8859-1 can be displayed.

The illustrations of the display and panel appearing in this manual are examples used to explain more

clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ

from what appears on the display on the actual equipment, and some of the images on the display may

be inapplicable.

Specifications

FM tuner section

Frequency range (200 kHz step)

: 87.9 MHz – 107.9 MHz

Usable sensitivity (S/N = 30dB)

: 9.3dBf (0.8 μV/75 Ω)

Quieting Sensitivity (S/N = 46dB)

: 10.2 dBf (1.13 μV/75 Ω)

Frequency response (±3 dB)

: 30 Hz – 15 kHz

Signal to Noise ratio

: 75 dB (MONO)

Stereo separation

: 45 dB (1 kHz)

Digital FM tuner section (KDC-X997/ KDC-BT955HD)

Frequency range (200 kHz step)

: 87.9 MHz – 107.9 MHz

Frequency response (±3 dB)

: 20 Hz – 20 kHz

Signal to Noise ratio (STEREO)

: 75 dB

AM tuner section

Frequency range (10 kHz step)

: 530 kHz – 1700 kHz

Usable sensitivity (S/N = 20dB)

: 28 dBµ(25 µV)

Digital AM tuner section (KDC-X997/ KDC-BT955HD)

Frequency range (10 kHz step)

: 530 kHz – 1700 kHz

Frequency response (±3 dB)

: 40 Hz – 15 kHz

Signal to Noise ratio (STEREO)

: 70 dB

CD player section

Laser diode

: GaAlAs

Digital filter (D/A)

: 8 Times Over Sampling

D/A Converter

: 24 Bit

Spindle speed (Audio files)

: 500 – 200 rpm (CLV)

Wow & Flutter

: Below Measurable Limit

Frequency response (±1 dB)

: 10 Hz – 20 kHz

Total harmonic distortion (1 kHz)

KDC-X997 KDC-X897 KDC-X697

: 0.008 %

KDC-BT955HD KDC-BT855U KDC-655U KMR-555U

: 0.010 %

Signal to Noise ratio (1 kHz)

KDC-X997 KDC-X897 KDC-X697

: 110 dB

KDC-BT955HD KDC-BT855U KDC-655U KMR-555U

: 105 dB

Dynamic range

: 93 dB

MP3 decode

: Compliant with MPEG-1/2 Audio Layer-3

WMA decode

: Compliant with Windows Media Audio

AAC decode

: AAC-LC ".m4a" files

USB interface

USB Standard

: USB1.1/ 2.0 (Full speed)

File System

: FAT12/16/ 32

Maximum Supply current

: DC 5 V =1 A

Decode

: MP3, WMA, AAC, WAV

Audio section

Maximum output power

: 50 W x 4

Full Bandwidth Power (at less than 1% THD)

: 22 W x 4

Preout level/ Load (CD)

KDC-X997 KDC-BT955HD KDC-X897 KDC-BT855U

KDC-X697

: 4000 mV/10 kΩ

KDC-655U KMR-555U

: 2500 mV/10 kΩ

Preout impedance

: ≤600 Ω

Speaker Impedance

: 4 – 8 Ω

Tone

KDC-X997

Band1 : 62.5 Hz ±9 dB

Band2 : 100 Hz ±9 dB

Band3 : 160 Hz ±9 dB

Band4 : 250 Hz ±9 dB

Band5 : 400 Hz ±9 dB

Band6 : 630 Hz ±9 dB

Band7 : 1 kHz ±9 dB

Band8 : 1.6 kHz ±9 dB

Band9 : 2.5 kHz ±9 dB

Band10 : 4 kHz ±9 dB

Band11 : 6.3 kHz ±9 dB

Band12 : 10 kHz ±9 dB

Band13 : 16 kHz ±9 dB

KDC-BT955HD

Band1 : 62.5 Hz ±9 dB

Band2 : 160 Hz ±9 dB

Band3 : 400 Hz ±9 dB

Band4 : 1 kHz ±9 dB

Band5 : 2.5 kHz ±9 dB

Band6 : 6.3 kHz ±9 dB

Band7 : 16 kHz ±9 dB

KDC-X897 KDC-BT855U KDC-X697 KDC-655U

KMR-555U

Bass : 100 Hz ±8 dB

Middle : 1 kHz ±8 dB

Treble : 12.5 kHz ±8 dB

Bluetooth section (KDC-X997/ KDC-BT955HD/ KDC-X897/ KDC-BT855U)

Version

: Bluetooth Ver. 2.1+EDR Certified

Frequency range

: 2.402 – 2.480 GHz

Output Power

: +4dBm (MAX), 0dBm (AVE) Power Class 2

Maximum Communication range

: Line of sight approx.10m (32.8 ft)

Profiles

: HFP (Hands Free Profile)

: SPP (Serial Port Profile)

: PBAP (Phonebook Access Profile)

: OPP (Object Push Profile)

: A2DP (Advanced Audio Distribution Profile)

: AVRCP (Audio/Video Remote Control Profile)

Auxiliary input

Frequency response (±3 dB)

: 20 Hz – 20 kHz

Input Maximum Voltage

: 1200 mV

Input Impedance

: 10 kΩ

General

Operating voltage

KDC-X997 KDC-BT955HD KDC-X897 KDC-BT855U

: 14.4 V (10.5 – 16V allowable)

KDC-X697 KDC-655U KMR-555U

: 14.4 V (11 – 16V allowable)

Maximum Current consumption

: 10 A

Installation Size (W x H x D)

: 182 x 53 x 159 mm

7-3/16 x 2-1/16 x 6-1/4 inch

Weight

KDC-X997 KDC-BT955HD KDC-X897 KDC-BT855U

: 2.9 lbs (1.3 kg)

KDC-X697 KDC-655U KMR-555U

: 2.7 lbs (1.2 kg)

Specifications subject to change without notice.

Trademarks

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by

JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their

respective owners.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect

specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple

performance standards. Apple is not responsible for the operation of this device or its compliance with

safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may

affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S.

and other countries.

iTunes and Safari are trademark of Apple Inc.

HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign

Patents. HD Radio™ and the HD, HD Radio, and "Arc" logos are proprietary trademarks of

iBiquity Digital Corp.

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of

Pandora Media, Inc., used with permission.

aha, the Aha logo, and the Aha trade dress are trademarks or registered trademarks of HARMAN

International Industries, used with permission.

Android and Chrome are trademark of Google Inc.

BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of

Research In Motion Limited and are registered and/or used in the U.S. and countries around the world.

Used under license from Research In Motion Limited.

Internet Explorer and Windows Media are registered trademark of Microsoft Corporation in the United

States and other countries.

The "AAC" logo is a trademark of Dolby Laboratories.

Component names

1. [1/6] button

When listening to the iPod, audio file, CD, or radio, press this button to enter the search mode.

In each of the selected modes, press the button to return to the previous item.

2. [SRC] button

Press this button to enter source select mode. Refer to <Source selection>.

3. [Control] knob (Volume knob)

In the normal mode, turn the knob to adjust the volume or press the knob to enter the Function setting

mode.

In the Function mode, turn the knob to select an item or press the knob to determine the selection.

4. [R]/ [S] button

Press the button to select an audio file folder or use it as a Likes/ Dislikes button on Aha etc.

The [R] button can be used to select broadcast band as well.

5. [G] button

Press the button to eject the disc.

6. Disc slot cover

When this cover opens upward, the disc insertion slot appears.

7. USB terminal (inside of the cover)

Connect an iPod or USB device.

8. Auxiliary input (inside of the cover)

Connect the output of an external device using a stereo mini-jack.

9. REAR USB indicator

When a USB device or iPod is connected to the USB terminal of the rear, this indicator stays lit. During

playback of the connected device, this indicator blinks.

10. [E]/ [F] button

Press the button to select a song or station.

11. Release button

Press the button to detach the faceplate.

12. KDC-X997 KDC-BT955HD KDC-X897 KDC-BT855U [Ú] button

Press the button to make, answer, or disconnect a hands-free call.

13. KDC-X697 KDC-655U KMR-555U [A~Z] button

Press any of (A to Z) button during the Music search mode to enter the alphabet search mode.

Preparations

Cancel the Demonstration mode

KDC-X997 KDC-BT955HD KDC-X897 KDC-BT855U KDC-X697

KDC-655U

Cancel the Demonstration mode when you use the unit for the first time after installation.

1. Press [Control] knob to cancel the Demonstration mode when the message "To cancel DEMO

Press the volume knob" appears (approx. 15 seconds).

2. Turn [Control] knob to select the "YES", and then press [Control] knob.

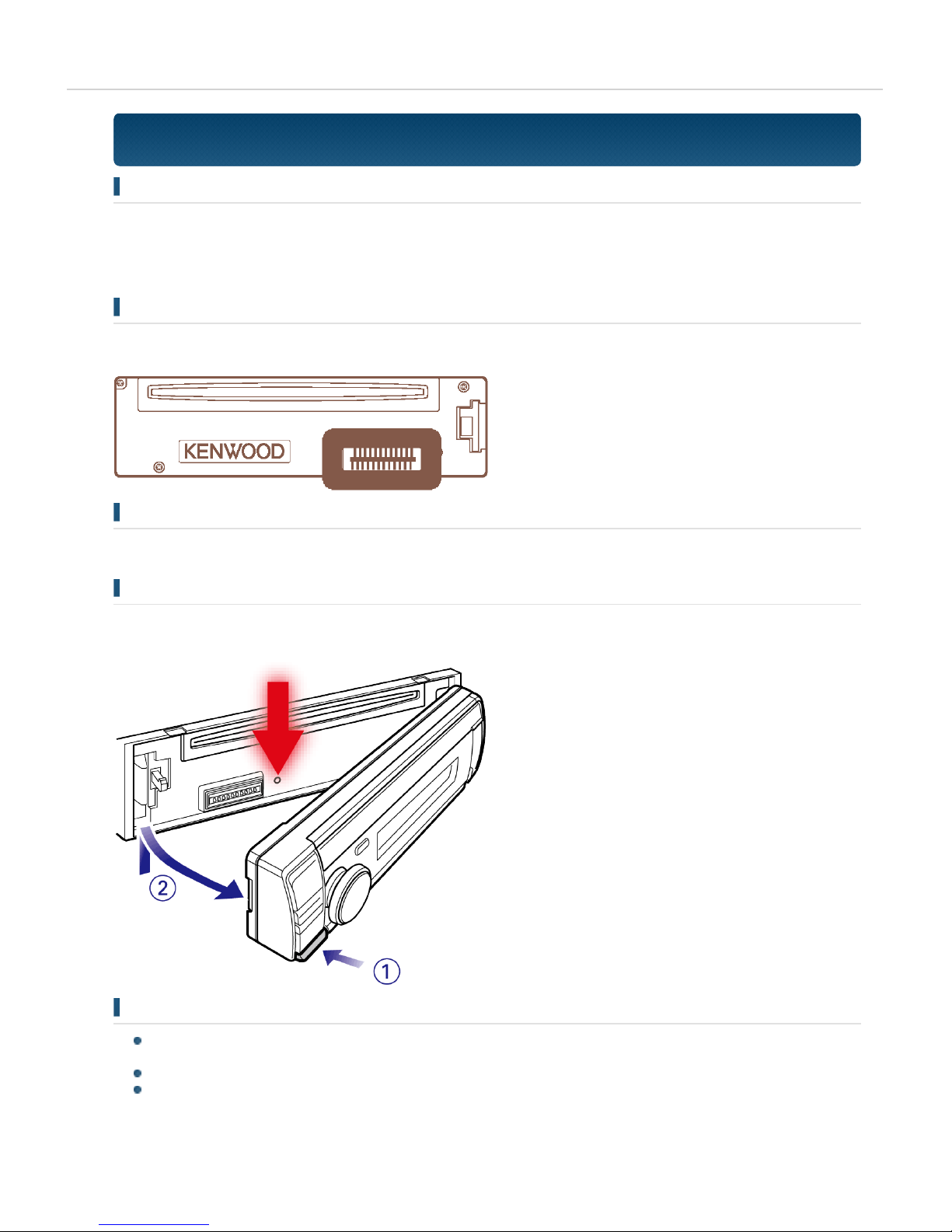

Detaching/ Attaching the faceplate

Remove the faceplate at once after pressing the Release button; otherwise it can fall down due to

vibration.

The faceplate is a precision component of the unit and can be damaged by shocks or jolts.

Keep the faceplate in its case while detached.

Do not place the faceplate (and case) in areas exposed to direct sunlight, excessive heat or humidity.

Also avoid places with too much dust or the possibility of water splashing.

How to select the item

For how to select setting items such as a function setting item, see the following example:

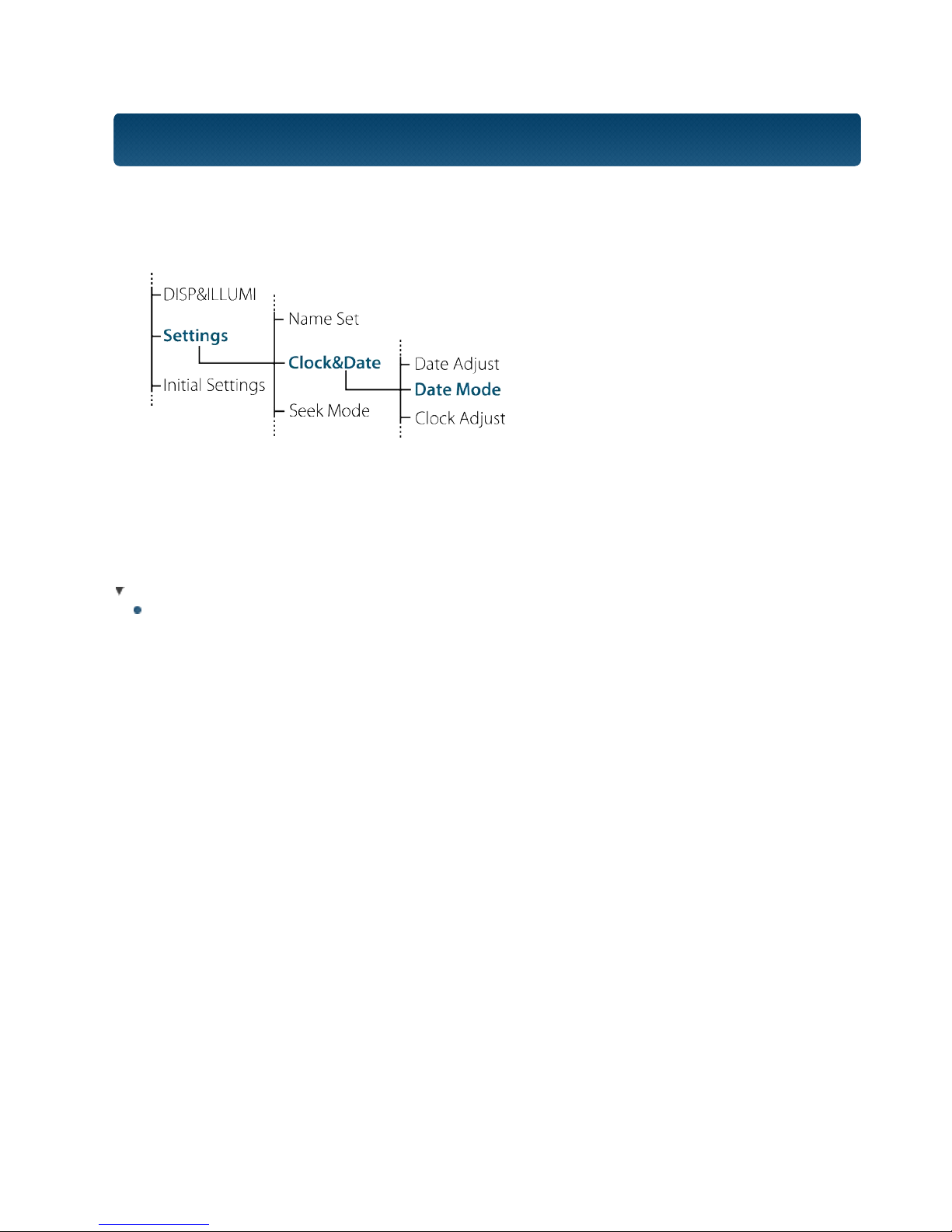

Example: Setting the Date format of the display

1. Press [Control] knob.

"Function" appears and enters the Function setting mode.

2. Select the Date Mode function item

Turn [Control] knob to select "Settings", and then press [Control] knob.

Next, turn [Control] knob to select "Clock&Date", and then press [Control] knob.

Finally, turn [Control] knob to select "Date Mode", and then press [Control] knob.

To cancel and return to the previous item, press [1/6].

3. Turn [Control] knob to select a format (7 types), and then press [Control] knob.

Returns to the previous item.

4. Press and hold [1/6].

Exits the Function setting mode.

About the description in this manual

In this manual, operations performed in steps 2 and 3 are described as follows:

2. Select "Settings" >"Clock&Date" >"Date Mode" using [Control] knob.

3. Select a format (7 types) using [Control] knob.

3-4. Adjusting the clock

1. Press [Control] knob.

Enters the Function setting mode.

2. Select "Settings" >"Clock&Date" >"Clock Adjust" using [Control] knob.

3. Set the hour using [Control] knob.

4. Set the minute using [Control] knob.

Exiting from the Function setting mode

Press and hold [1/6].

Other manuals for KDC-X997

This manual suits for next models

Table of contents

Other Kenwood Car Receiver manuals

Kenwood

Kenwood KRC-603C User manual

Kenwood

Kenwood DPX-302 User manual

Kenwood

Kenwood KDC-9026R User manual

Kenwood

Kenwood KRC-165 User manual

Kenwood

Kenwood KDC-W4544U User manual

Kenwood

Kenwood KRC-X957 User manual

Kenwood

Kenwood DMX7022S User manual

Kenwood

Kenwood KMR-D382BT User manual

Kenwood

Kenwood KDC-BT652U User manual

Kenwood

Kenwood DDX7015BT User manual

Kenwood

Kenwood KDV-MP6433 User manual

Kenwood

Kenwood KDC-MP4036U User manual

Kenwood

Kenwood KRC-259R User manual

Kenwood

Kenwood KRC-360 User manual

Kenwood

Kenwood DDX6902S User manual

Kenwood

Kenwood KDC-BT47SD User manual

Kenwood

Kenwood KDC-MP2032 - AAC/WMA/MP3/CD Receiver With External Media... User manual

Kenwood

Kenwood KDC-X7100DAB User manual

Kenwood

Kenwood KDC-X702 User manual

Kenwood

Kenwood KDC-208U User manual

Kenwood

Kenwood KDC-BT73DAB User manual

Kenwood

Kenwood KDC-W3534 User manual

Kenwood

Kenwood DNR8035BTIJ4 User manual

Kenwood

Kenwood 86120-YZA59 User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
