Kenwood DDX7025 User manual

2-DIN CAW-1142-02

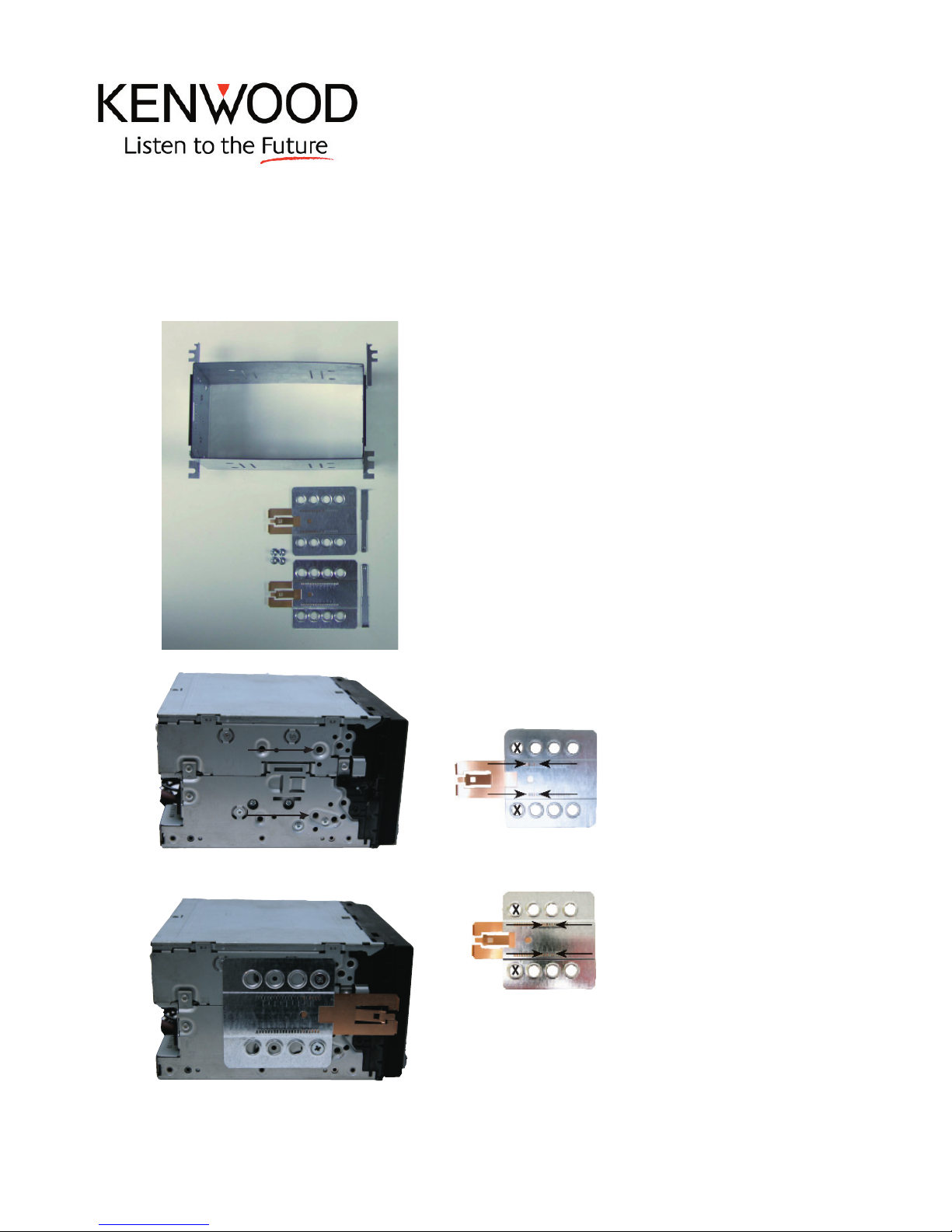

Installation kit includes the following items:

* 1X 2-ISO 100 mm. metal bracket

* 2X Mounting plates

* 2X Mounting spacers

* 2X Radio removal keys

* 4X Screws

* 2X Cushion

Installation manual for:

Hyundai Tucson

* Mount the plates.

Use this hole

Use this hole

Kenwood DDX6029

We advice to use the following positions.

Other positions are also possible.

Use position 1 marked with a cross.

Use position 6 & 8 marked with an arrow.

Measured from left to right.

Kenwood DDX 7025

We advice to use the following positions.

Other positions are also possible.

Use position 1 marked with a cross.

Use position 14 & 16 marked with an arrow

Measured from left to right.

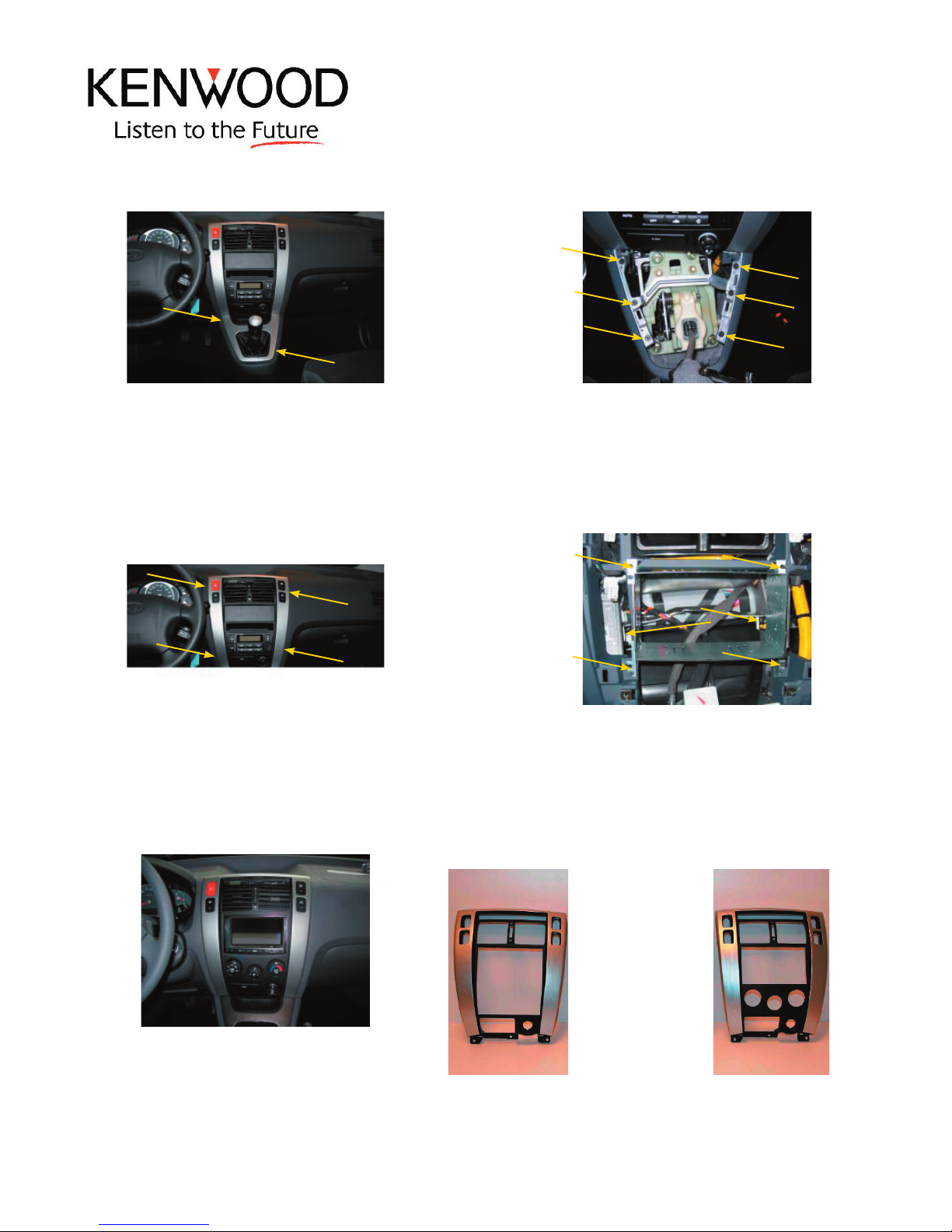

2-DIN 12.301142-02

Use a plastic wig te remove the panel

surrounding the gear lever.

Gently remove the silver trim. This is

tighten by a click system

Place the headunit

Remove the screws at the location of the

arrows. Remove the metal ring.

Place the metal bracket and tighten the

four screws. Remove the orginal bracket

which is indicated at the middle arrows

Connect all of the needed wiring harnesses and check all the connections carefully.

12

34

5

You need to order one of the below mentioned

panels. This can be ordered at the Hyundai dealer.

Order this panel when to car is

equipped with a climatic control.

Article number: 847612E211X9

Order this panel when to car is

equipped with a manual airco.

Article number: 847612e201x9

2-DIN CAW-1142-02

Other manuals for DDX7025

3

This manual suits for next models

2
