Kensington MD120U4 User manual

Register your dock at kensington.com/register

Kensington MD120U4 USB4 Portable Docking Station.

1. Plug the docking station cable into an available USB-C port on your host device. The selected USB-C port needs to support both Alt Mode and Power Delivery.

2. To setup pass-through power, plug the host device’s USB-C power adapter into the USB-C 3.2 Gen2 10Gbps port.

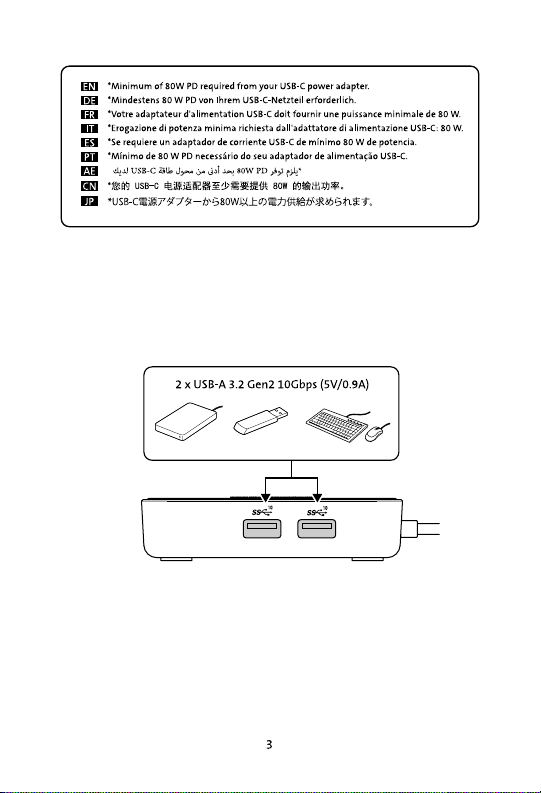

The USB-C power adapter must supply at least 80W of Power Delivery. Plug the power adapter into the wall outlet to begin supplying power to the host device and connected accessories.

Connect hard drives, thumb drives, mice, and keyboards using the two USB-A 3.2 Gen 2 ports on the front of the dock.

Plug the ethernet cable into the 2.5Gbps Ethernet port on the side of the dock.

Use the two HDMI 2.1 ports on the side of the dock to connect your monitors. The dock will deliver up to 8K @ 60Hz for a single monitor and up to 4K @ 120Hz for dual monitors.

The additional products powered by this docking station shall have a ﬁre enclosure complying with IEC 60950-1 or IEC 62368-1. Please contact your host device manufacturer to conﬁrm the above compliance.

For support, visit kensington.com/support
