KBL MegaSun P9 User manual

01/2022

The rights to technical and design alterations are reserved. KBL GmbH · Ringstraße 24-26 · 56307 Dernbach · Germany

fon +49 (0) 26 89.94 26-0 · fax 94 26-66 · eMail [email protected] · www.kbl.de

Service information: SI00094 1/3

Service information

Topic: Retrot lter capacitors in the canopy

Subject: P9/P9S (5018) devices

This operating manual is intended for use by

• qualied, trained and authorized service technician.

• qualied electrician.

DANGER

Live parts

Risk of death or fatal injury due to electric

shock when touching live parts.

• Switch neutral

• Secure against reconnection

• Check for neutrality

• Ground and short-circuit

• Cover or shield any adjacent live parts or

components

SAFETY ADVICE

Before carrying out any maintenance work, the tanning device must be disconnected from

the mains voltage and secured against being switched on again.

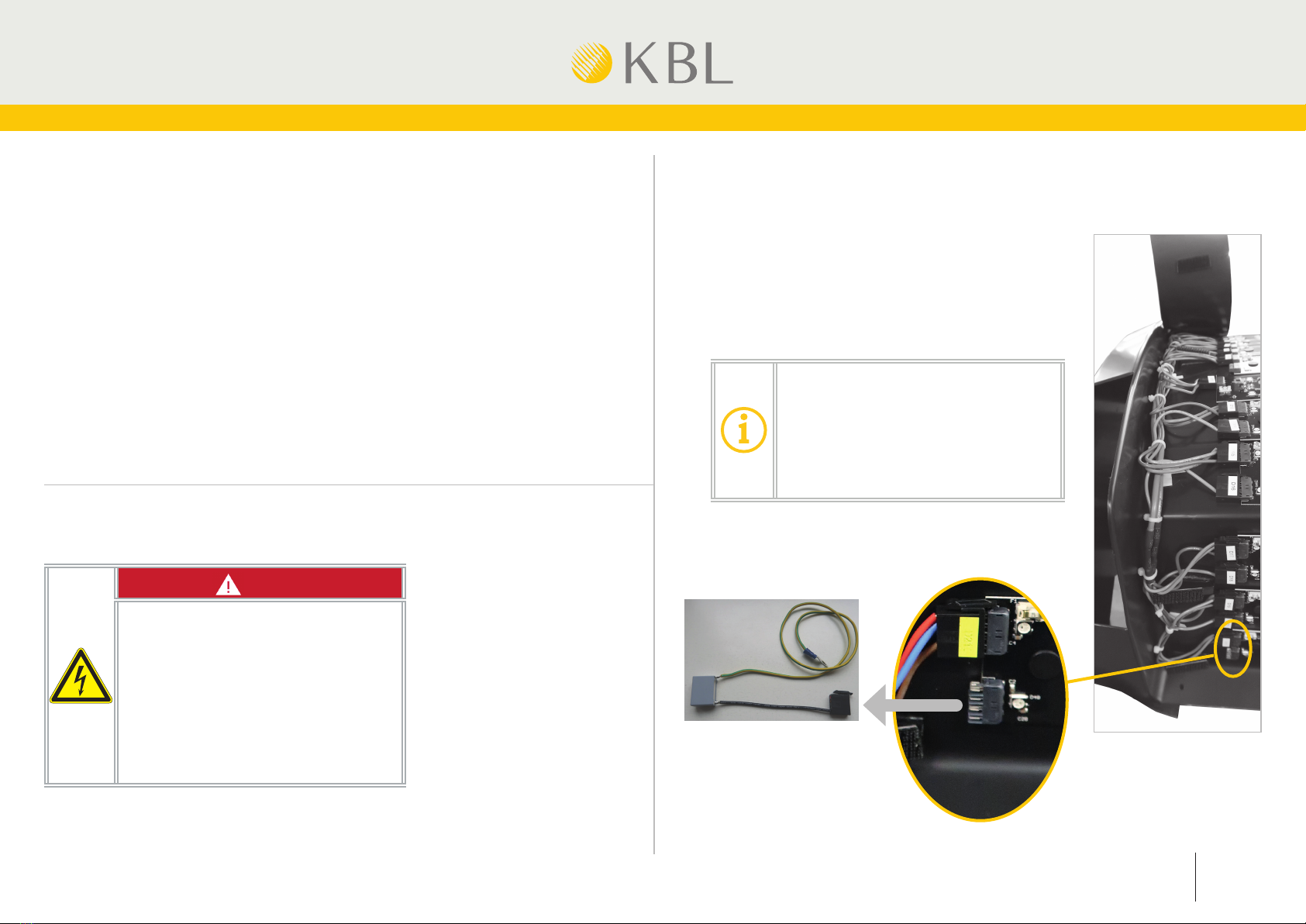

❶

Remove the old lter capacitor.

• Disconnect the old capacitor at the plug

connector (as shown in the image).

• Loosen the cable ties.

• Disconnect ground connection.

Depending on the delivery status, one or

two capacitors are installed.

• Only remove the capacitor at the lower

LED panel.

01/2022

The rights to technical and design alterations are reserved. KBL GmbH · Ringstraße 24-26 · 56307 Dernbach · Germany

fon +49 (0) 26 89.94 26-0 · fax 94 26-66 · eMail [email protected] · www.kbl.de

Service information: SI00094 2/3

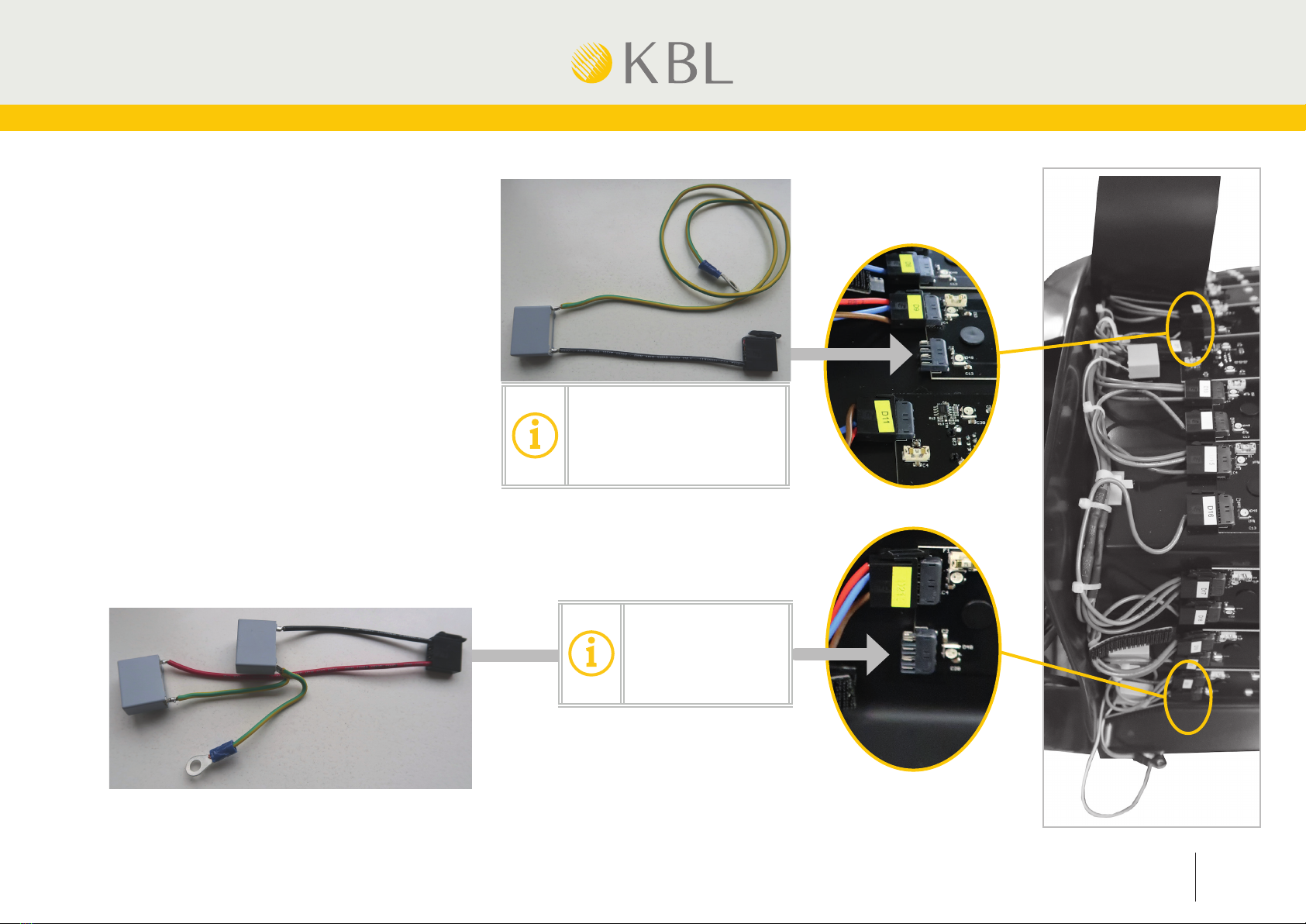

❷

Install new lter capacitors.

• Connect new capacitor (as shown in

the image).

• Fixate loose cables with cable ties.

Connect wiring harness

with two capacitors to

the lower LED panel.

If capacitor is missing, connect

wiring harness with one capaci-

tor to the upper LED panel.

01/2022

The rights to technical and design alterations are reserved. KBL GmbH · Ringstraße 24-26 · 56307 Dernbach · Germany

fon +49 (0) 26 89.94 26-0 · fax 94 26-66 · eMail [email protected] · www.kbl.de

Service information: SI00094 3/3

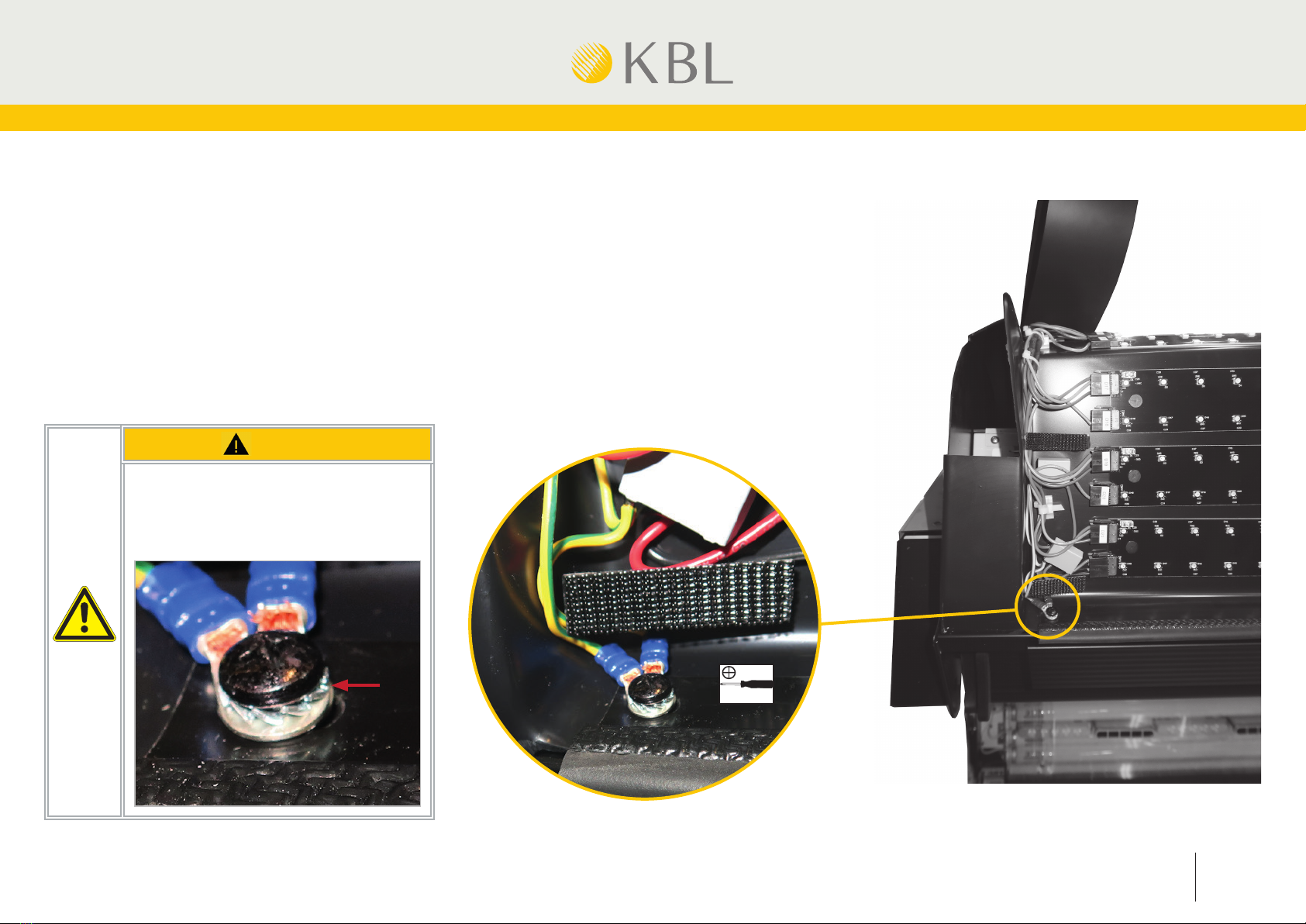

Connect ground wires.

PH2

❸

ATTENTION

In order to ensure the effectiveness, insert

the tooth lock washer between the screw

head and the ring lug contact of the con-

necting cable.
