Kathrein OSC 100 micro User manual

1 / 16

Optical Sat Distribution

Optical Transmitter

Optical Distribution Receivers

Premium optical CLIK! connector

Use standard universal quatro LNB

(UAS 584) to feed in signals to the

transmitter (OSC 100 micro).

Easy system planning using the

“CLIKulator”.

Address: http://clikulator.com/kathrein

Transmission of the entire digital

terrestrial frequency range

AGC (no adjustment required)

Optical budget up to 21 dB

For indoor installation

Features optical transmitter

OSC 100 micro

Premium optical CLIK! connector

Easy system planning using the

“CLIKulator”:

http://clikulator.com/kathrein

Transmission of the entire digital

terrestrial frequency range

For indoor installation

Features optical distribution recei-

vers OEC 40 micro/OEC 44 micro

OEC 40 micro - Optical receiver

quatro (ﬁ xed outputs for multi-switch

operation)

OEC 44 micro - Optical receiver

quad (switchable outputs for direct

connection of receiver)

Variants

Product description

The optical transmitter (OSC 100 micro) and the optical receiver (OEC 40 micro and OEC

44 micro) can be used to distribute satellite and digital terrestrial signals (FM/DAB+/digital

TV) through a single-mode bre optic cable.

The RF signal fed into the OSC 100 micro is converted into an optical signal. This optical

signal is fed through the bre optic cable to an optical network (tap/splitter/attenuator)

and thus nds the optical receiver OEC 40 micro/OEC 44 micro. The receivers will then

convert the received optical signal back into an RF signal.

The transmitter (OSC 100 micro) is equipped with loop-through outputs. Several transmit-

ters are cascaded.

The optical transmitter is also equipped with AGC (Automatic Gain Control) providing for

an automatically controlled optical output level. Therefore, no adjustment is required on

the transmitter.

The receiver (OEC 40 micro) converts the incoming optical signal into the four outputs

with xed satellite polarisation planes and an output for digital terrestrial signals thus

allowing direct connection of a multi-switch on the outputs.

OSC 100 micro 205500005

OEC 40 micro 205500002

OEC 44 micro 205500003

2 / 16

The receiver OEC 44 micro converts the incoming optical signal into the four switchable

universal outputs thus allowing the digital terrestrial and the satellite signal to be made

available for four different receivers or TV sets.

Installation and safety instructions

• The equipment described is designed solely for installation in satellite

receiver systems. Any other use or failure to comply with these instruc-

tions will void the warranty or guarantee.

• The equipment may only be installed in dry areas indoors. Do not

install on or against highly combustible materials, near or over heat

sources or in contact with/near corrosive substances.

• The units must be connected to the equipotential bonding rail

(Cu, at least 4 mm2).

• The unit must be installed by qualied personnel in compliance with

the local security standards and regulations. The unit complies to

protection class II and thus need not be connected to the protective

earthing of the mains supply.

• The safety regulations set out in the current EN 60728-11 and

EN 62368-1 standards must be complied with.

• The units are intended for on-wall installation only. Do not install the

device lying at or on its top, or operate it in this position.

• RF connectors 75 Ω (F series) compliant with EN 61169-24.

• Optical connectors: CLIK!

• Unused optical outputs are to be terminated with OTC 1.

• Unused coaxial connectors are to be terminated with EMK 03, with

the exception of the 4 SAT inputs of OSC 100 micro, which due to DC

voltage must be terminated with EMK 05.

• Do not place any liquid-lled items or items with naked ames (e.g.

candles) on top of the unit.

• There must be free circulation of air to discharge the heat emitted by

the unit. Danger of overheating! Clearance all around at least 5 cm!

• Permissible ambient temperature: +5 to +45°C

3 / 16

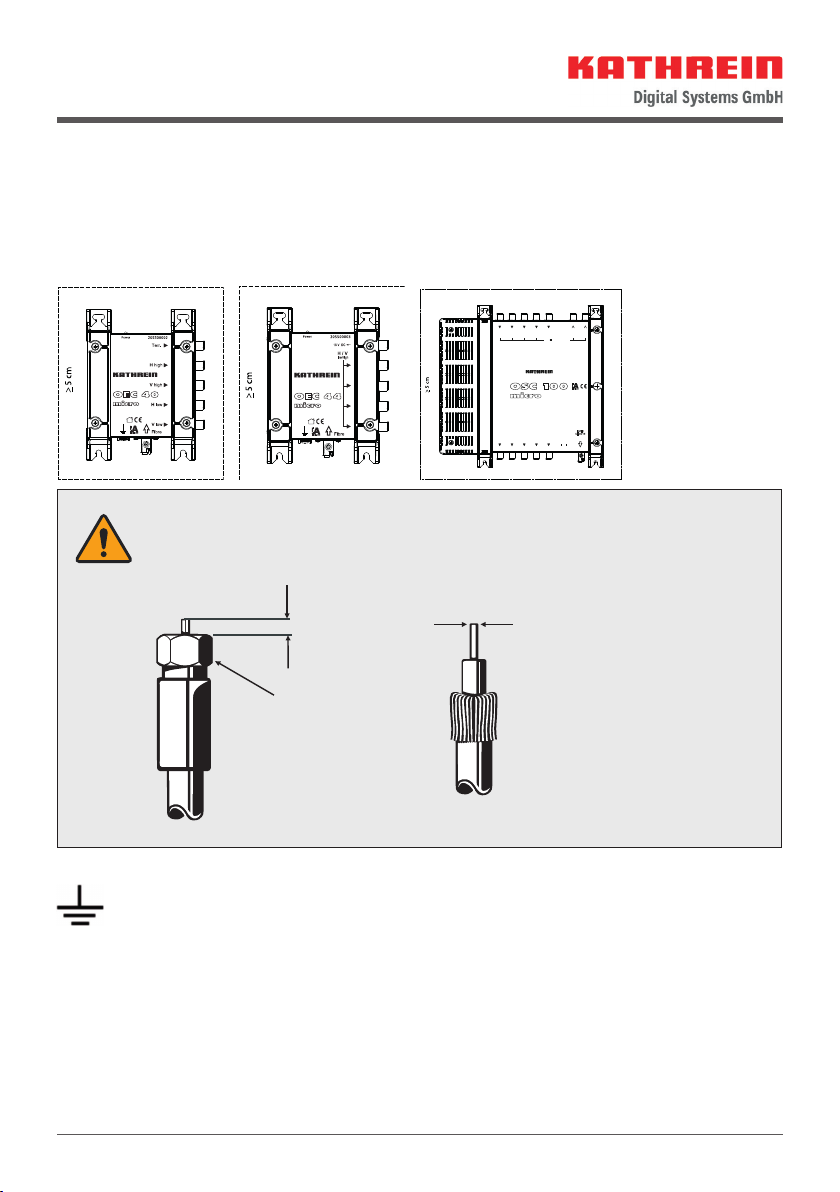

Mounting

Transmitter (OSC 100 micro) and receiver (OEC 40 micro or OEC 44 micro) can be mount-

ed using 4 wood screws, self-tapping screws or plug screws (thread diameter 4.5 ... 5

mm; head diameter ≥ 9 mm; screw length ≥ 20 mm; round or cylinder head). The screws

required for mounting are not included.

H lowVlow H highV high Terr. opton Fibre

H lowVlow H highV high Terr.

14V

max.200mA

Terr.

Hhigh

Test

205500005

LASER

CLASS 1M

Risk of material damage to the device!

If the inner cable conductor diameter is more than 1.2 mm, or if burring is

present, the device sockets may be destroyed.

Max. 2 mm

excess length

Clamping torque

max. 3.4 Nm

(danger of over-

winding)

Diameter

0.6 - 1.2 mm free of burrs

Equipotential bonding terminal

The devices must be connected to the equipotential bonding of the antenna installation as

per EN 60728-11.

4 / 16

Current-carrying device

• The supply voltage of the units (OSC 100 micro and OEC 44 micro) is

220-240 VAC which can be fatal if touched directly.

• When working on the system, always unplug the mains plug from the

wall socket!

• The units may only be installed and deinstalled in the voltage-free

condition.

• Only use the supplied power cable (adapter). The mains plug must be

easily accessible and operable.

• The only reliable method of disconnecting the unit from the mains is to

unplug it.

• Do not place any liquid-lled items on top of the power supply unit.

• The power supply unit must not be exposed to dripping or splashing

water.

• Humidity and condensation may damage the unit. In case of conden-

sation, wait until the device is dry prior to operation.

• When performing work on the optical distribution network, make sure

that the lasers of the connected transmitter have been switched off by

disconnecting the mains plug.

• Do not open the unit or tamper with it! Under no circumstances should

you look inside the optical connectors either with the naked eye and/

or optical instruments! This can prove seriously harmful to your health.

Laser radiation is invisible to the human eye.

• This unit may be only be operated by personnel who have received

the necessary training in handling optical and electrical devices

and have been instructed in the safety rules for handling lasers.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, KATHREIN Digital Systems GmbH declares that the radio equipment types

OEC 40 micro, order no.: 205500002,

OEC 44 micro, order no.: 205500003 and

OSC 100 micro, order no.: 205500005

are in compliance with Directive 2014/53/EU. The full text of the EU declaration of con-

formity is available at the following internet address: www.kathrein-ds.com

5 / 16

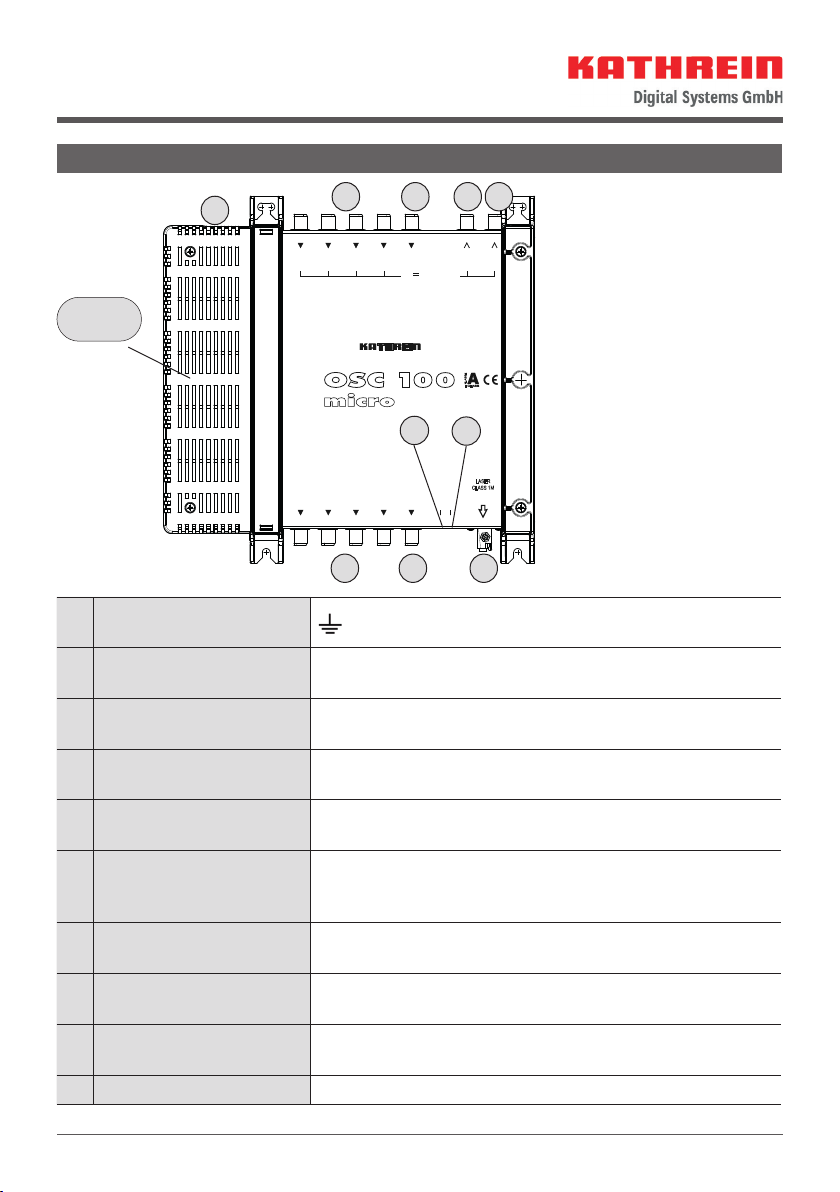

Connections optical transmitter OSC 100 micro

H lowVlow H highV high Terr. opton Fibre

H lowVlow H highV high Terr.

14V

max.200mA

Terr.

Hhigh

Test

205500005

LASER

CLASS 1M

Power

supply unit

6 7

12 3 4 5

Equipotential bonding

terminal: Equipotential bonding (as per EN 60728-11)

2SAT inputs:F-type connectors for the four Sat-IF polarities

(950-2,150 MHz) with LNB remote feeding

3Terrestrial

input:

F-type connector for FM/DAB+/digital TV signals

(87.5-862 MHz)

4 Test output SAT: F-type connector for the SAT test signal, HH polarity

(RF level: 60 dBμV per transponder).

5 Test output TV: F-type connector for the digital terrestrial signal

87.5-862 MHz (RF level: 74 dBμV total power)

6 SAT outputs:

F-type connectors for the four Sat-IF polarities

(950-2,150 MHz) for cascade applications to other trans-

mitters or multi-switches

7Terrestrial

output:

F-type connector for the FM/DAB+/digital TV signals

(87.5-862 MHz).

8LED operational

display:

“On” (LED lights up green) shows that the device is

switched on

9 LED alarm laser: The alarm LED shows that the transmitter’s laser is not

functioning properly

10 Optical output: CLIK! connector for optical ﬁ bre connection

6 / 16

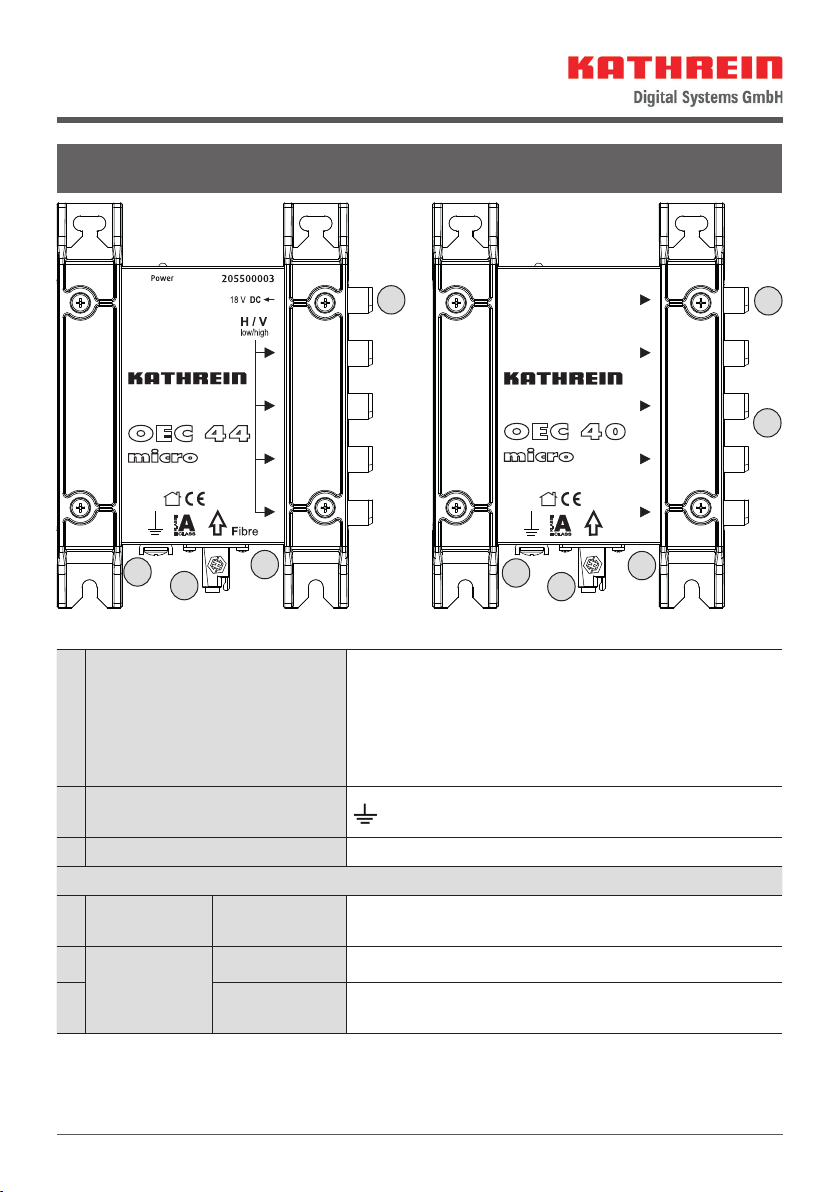

Connections optical receiver

OEC 44 micro OEC 40 micro

Hlow

Vlow

Hhigh

Vhigh

Terr.

205500002

Fibre

Power

1 Operational display:

LED lights up:

Unit is on, opt. level in target range

LED ﬂ ashes slowly:

Opt. level out of target range

LED ﬂ ashes fast:

Hardware fault exists

2Equipotential bonding

terminal: Equipotential bonding (as per EN 60728-11).

3 Optical input: CLIK! input Used for optical ﬁ bre connection

Outputs (F-type connectors):

4OEC 44

micro

Terrestrial*/

Sat:

Four combined outputs for FM/DAB+/digital TV

(87.5-862 MHz) and SAT (950-2,150 MHz)

4OEC 40

micro

Terrestrial:* One output for FM/DAB+/digital TV (87.5-862 MHz)

5 Sat: Four outputs for the ﬁ xed assigned Sat polarities

VL/VH/HL/HH (950-2,150 MHz)

* Optional supply with 18 volts DC via the Kathrein NCF 18 for operation without receiver supply for terrestrial

reception

7 / 16

System functions

Digital terrestrial and satellite signals are fed to the optical transmitter (OSC 100 micro)

which converts the electrical signals into optical signals, thus allowing distribution over

long paths using a bre-optic infrastructure.

Suitable splitters (OVC xxx) and taps (OAC xxxx) are available for distribution of the opti-

cal output signal.

Notes on planning the ﬁ bre optic system

When designing a bre optic system, it is important to consider the optical input levels to

the receiver (OEC 40 micro or OEC 44 micro). To ensure that the system fulls the required

parameters, appropriate attenuation must be calculated at each point. The optical output

power from the transmitter (OSC 100 micro) is typically +7 dBm. The input level of the op-

tical receiver (OEC 40 micro and OEC 44 micro) lies between -8 dBm and -14 dBm. This

results in an allowable attenuation of the optical network of 15 to 21 dB.

The catalogue contains a whole range of optical attenuators and taps/splitters which have

different attenuation values and enable the optimisation of the system. Please use the

Kathrein CLIKulator to plan and adjust your optical distribution network

(http://clikulator.com/kathrein).

• If directly connected without splitters or taps, attenuators must be used

between the OSC 100 micro and OEC 40 micro/OEC 44 micro. To avoid

overload, the input power on the receiver must not surpass -8 dB.

• If the quality of an input signal is not optimal or if a multi-carrier signal

must be distributed over a large coaxial distribution network, the optical

budget should be decreased.

• The level difference of a satellite transponder polarity (VL/VH/HL/HH)

should not exceed 4 dB. If the transponders have a gain slope on the

inputs of the OSC 100 micro and the level is high enough, you can use

the passive equalizer ERZ 60 in certain circumstances to adjust the

level (use one ERZ 60 for each satellite polarisation). If a long coaxial

cable is used between the LNB and the OSC 100 micro, you can adjust

the level and the gain slope (for each satellite polarisation) with the VWS

2500. If several transmitters (OSC 100 micro) are cascaded, a VWS

2500 satellite distribution amplier must be connected between the

third and the fourth OSC 100 micro and also between the fth and sixth

in the cascade. The maximum quantity is seven in the OSC 100 micro

cascade.

8 / 16

Before connecting to the receiver (OEC 40 micro or OEC 44 micro),

check the optical level of the signal on the optical ﬁbre using an opti-

cal power meter.

If the optical input signal is higher than 0 dBm, damage may be done

to the device.

Handling optical components

The OSC 100 micro transmitter and the receivers OEC 40 micro and OEC

44 micro are all tted with an optical CLIK! connector. The taps and split-

ters of the OAC and OVC series are equipped with connections for CLIK!

connectors (male).

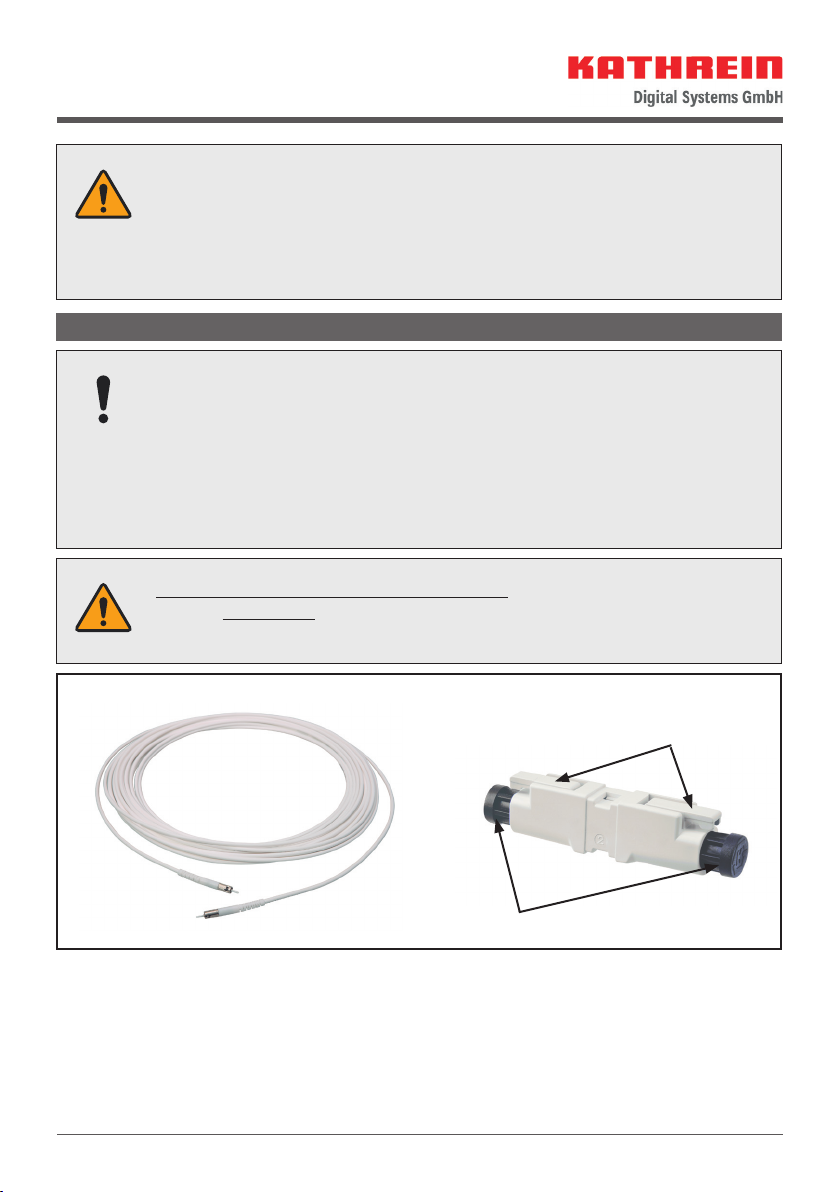

Kathrein provides optical patch cables with CLIK! connectors in various

lengths to connect passive OAC and OVC units as well as the suitable

optical connectors ODC xxx.

Unused coaxial outputs must be terminated with an optical termination

(OTC 1) without fail. Otherwise, the proper functioning of the optical distri-

bution network cannot be guaranteed.

CLIK! Optical ﬁ bre connector ODC 2

Protective cap

CLIK! Patch cable

Latch lock

When dealing with optical waveguides:

Installation and disconnection of the bre optic cable to the equipment:

1. Only remove the protective cover from the connection if you want to create a new

optical link - Do not touch the front face of the connector!

2. Pay attention to the orientation (input/output) and push the connector in until it clicks

(as described in the instructions)

3. Remove the bre optic cable by pressing the latch lock and pulling the cable out.

9 / 16

4. Save the protective caps to protect the connectors of the cables/devices when

removing or remodelling.

5. The minimum allowed bend radius for the bre optic cable is 15 mm during the instal-

lation and 10 mm during use. A smaller radius signicantly increases the attenuation

and may cause damage to the bre optic cable. Fibre optic cables must always be

handled carefully - especially during installation.

Cleaning optical connections:

If an optical connector (male) has been repeatedly inserted and unplugged or if failure

occurs, it may be necessary to clean the optical connector pins or sockets.

For cleaning purposes please use the optical cleaning set ORS 1 or the optical cleaning

tool ORW 1.

Input level optical transmitter OSC 100 micro

To ensure that the signals are transmitted through the bre optic cables, the RF signals

must meet the following requirements:

TV (DTT/CATV) DVB-T, Cable TV

To ensure that the digital television signals are transmitted and received, the digital signals

to the transmitter should be set to the same high level, especially when multiple digital

channels are transmitted.

As a guide, the input signals should meet the following requirements:

1. With QAM64, a maximum of 40 TV channels can be transmitted, with QAM256, a

maximum of 20 TV channels. With limitations on signal quality, up to 25 QAM256

TV channels can be transmitted. Wherever possible, a TV channel grid in the lower

frequency range should be preferred.

2. Total input power: -19 dBm (90 dBμV)

3. Depending on the number of digital TV channels, the following levels must be met at

the optical transmitter’s (OSC 100 micro) TV input:

All levels are stated per digital TV channel

• 40 TV channels with a maximum of 74 dBμV

• 20 TV channels with a maximum of 77 dBμV

• 16 TV channels with a maximum of 78 dBμV

• 10 TV channels with a maximum of 80 dBμV

• 8 TV channels with a maximum of 81 dBμV

The minimum input level (per digital channel) should be at least 74 dBμV.

If the quality of the TV input signal is not optimal or when the digital TV channels cannot

be equally levelled, the system should be adapted so that the optical attenuation of less

than 21 dB is reached to ensure correct signal reception at the outlet (especially when

many digital channels are transmitted).

10 / 16

FM and DAB+

FM and DAB+ signal level should be at least 10 dB lower than the digital TV signals.

SAT

1. Input level:

At OSC 100 micro there must be a level of 69 and 86 dBμV per transponder, so that

the AGC functions properly.

2. Differing levels within a satellite level:

The level difference of a satellite transponder level (VL/VH/HL/HH) should not exceed 4

dB. If the transponders have a gain slope on the inputs of the OSC 100 micro and the

level is high enough, you can, in certain circumstances, use the passive equalizer ERZ

60 to adjust the level (use one ERZ 60 for each satellite polarisation). If a long coaxial

cable is used between the LNB and the OSC 100 micro, you can adjust the level and

the gain slope (for each satellite polarisation) with the VWS 2500. If several transmit-

ters (OSC 100 micro) are cascaded, a VWS 2500 satellite distribution amplier must be

connected between the third and the fourth OSC 100 micro and also between the fth

and sixth in the cascade.

The maximum quantity is seven in the OSC 100 micro cascade. All unused F-type

connectors must be terminated with EMK 03, with the exception of the 4 SAT-inputs

of the OSC 100 micro, which due to DC voltage must be terminated with EMK 05. All

unused optical connectors of the optical network must also be terminated with the

OTC 1.

Input level optical receivers OEC 40 micro/OEC 44 micro

To ensure reception using the OEC 40 micro or OEC 44 micro receiver, the optimal level

must lie between -14 dBm and -8 dBm. Therefore the attenuation of the distribution sys-

tem should lie between 15-21 dB.

Output level optical receiver OEC 40 micro/OEC 44 micro

Please note that 1 dB of attenuation in the optical transmission path corre-

sponds to 2 dB less signal level in the electrical path (RF).

The output level of the optical receiver OEC 40 micro and OEC 44 micro is dependent on

the number of signals transmitted through the optical bre and the optical attenuation of

the section. The following are reference values for the signals at the receiver:

TV (DTT/CATV) DVB-T, Cable TV

The total output power of the OEC 40 micro is -27 dBm (82 dBμV) and -32 dBm (77 dBμV)

for the OEC 44 micro with 21 dB of optical attenuation. That means, that the fewer the

digital television channels transmitted, the higher the output level (per digital channel) and

the quality.

This manual suits for next models

Table of contents

Other Kathrein Transmitter manuals

Kathrein

Kathrein ARU 3 Series User manual

Popular Transmitter manuals by other brands

NIVELCO

NIVELCO EasyTREK SCA-300 Series Programming manual

Honeywell

Honeywell 5816WMBR installation instructions

Kamstrup

Kamstrup READy MTU Installation and operation guide

Omega

Omega ZW Series user guide

ABB

ABB Field 264H Instructions for installation

Alinco

Alinco DJ-V17T Service manual

Dejero

Dejero EnGo 3x manual

Rosemount

Rosemount 4600 Reference manual

Speaka Professional

Speaka Professional 2342740 operating instructions

trubomat

trubomat GAB 1000 instruction manual

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 instructions

Rondish

Rondish UT-11 quick start guide

MG 10JRE instruction manual

Burkert

Burkert 8177 operating instructions

Firetide

Firetide HotPort 3203 Hardware installation guide

Tele Radio

Tele Radio T9-02 User instructions

Rotronic

Rotronic HygroFlex HF3 Series user guide

Jamara

Jamara FCX6 Pro Tel Instruction
