JVC AV-H323115A User manual

AV-H323115A 32" Class

RM-C3416

Warning and precautions…………….…………….....…………………...………..……2

Important safety instructions ……………………………….....…….........………..……3

Warnings and cautions…………………………………………………………….…..….5

Technical specifcations…………………………………………………….……...……....6

Installation………………………………………………………………………....….…….7

Remote control………………………………………………………………….…...……12

Operation………………………………………………………………………...……..…13

Troubleshooting ………………………………………………………………..……...…25

Table of Contents

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing Administrator, Inc.

-2-

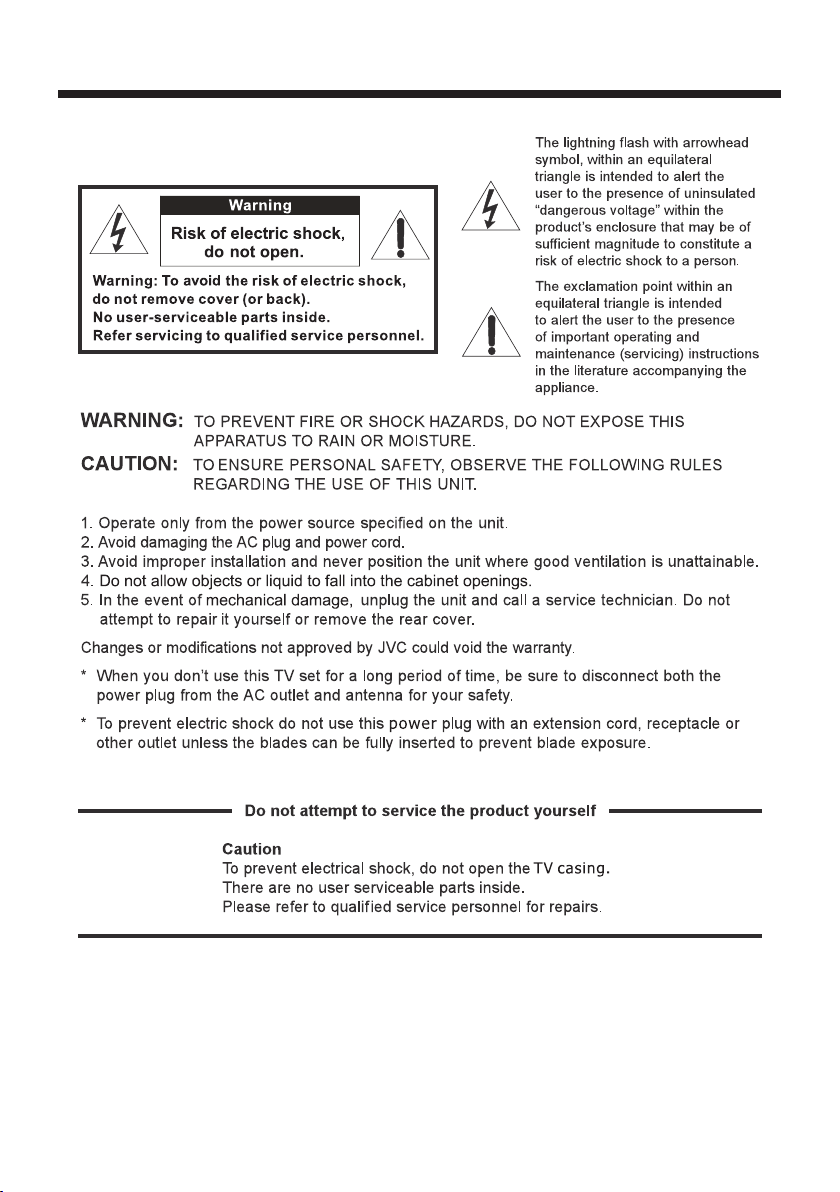

WARNING AND PRECAUTIONS

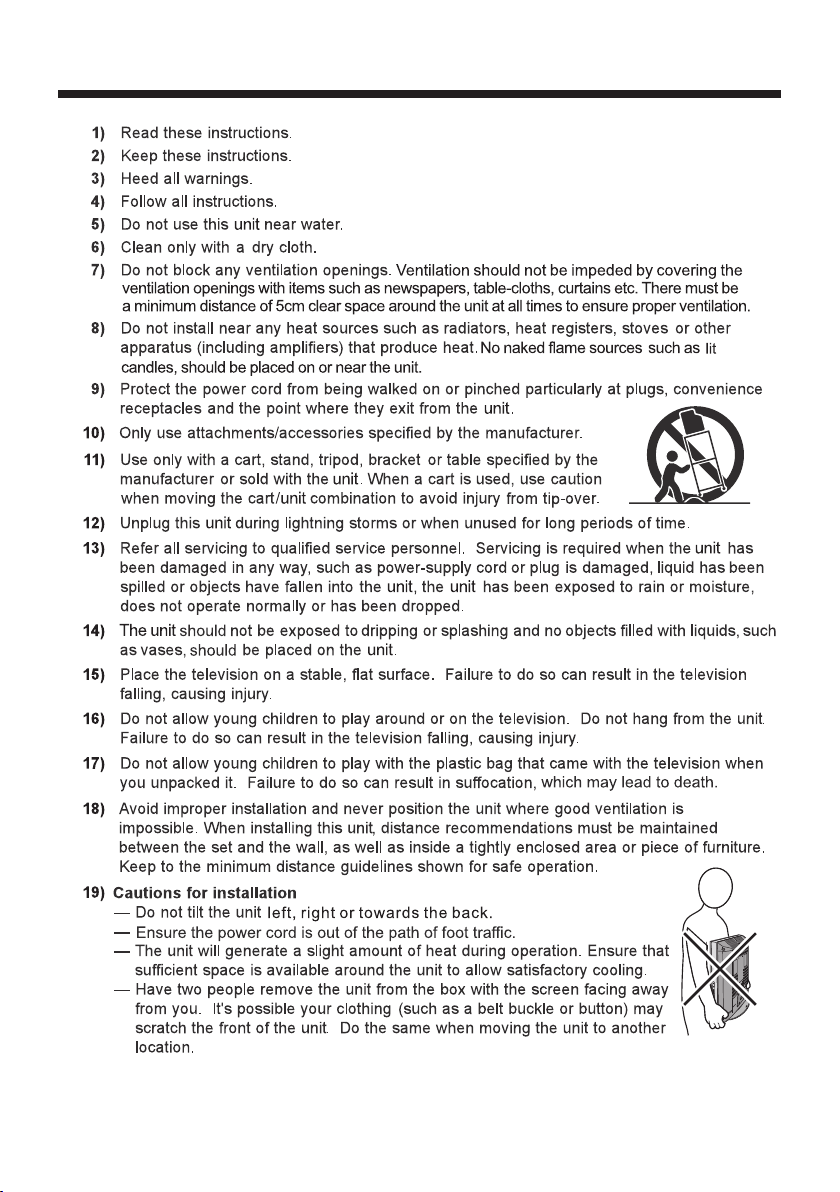

IMPORTANT SAFETY INSTRUCTIONS

-3-

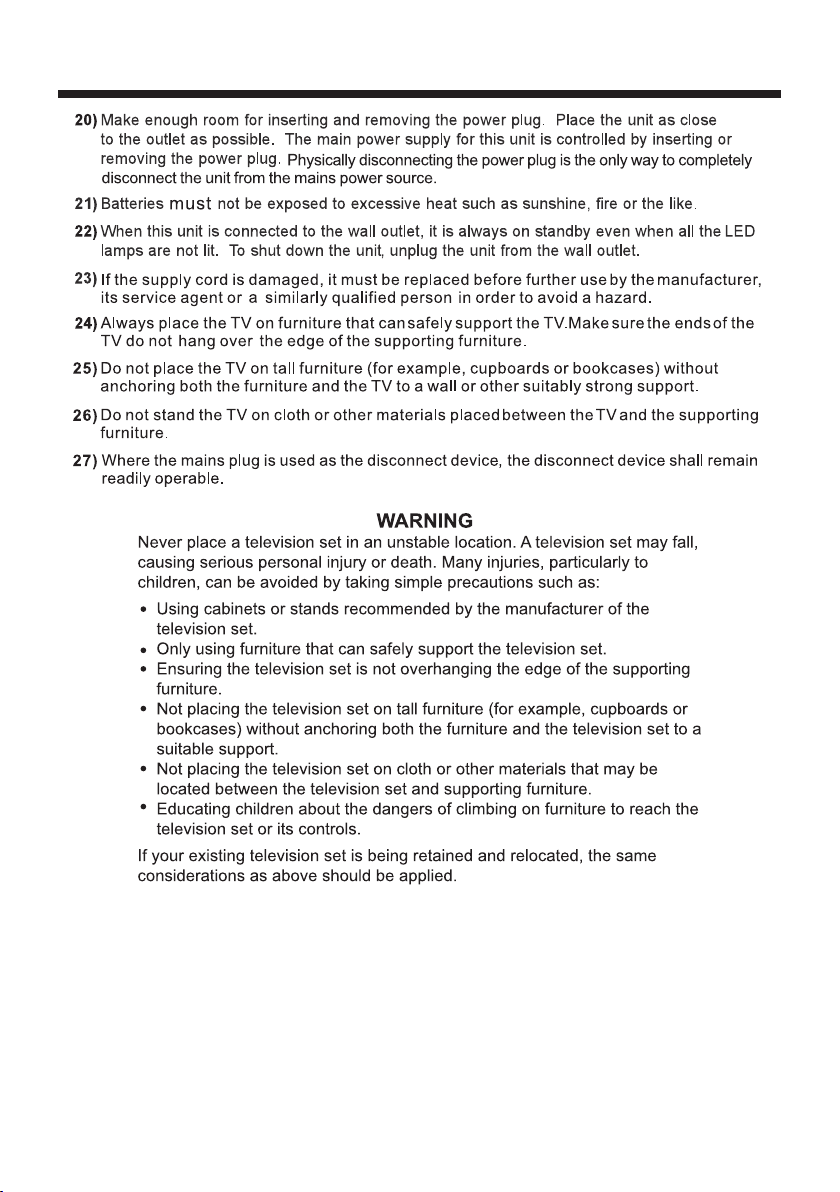

IMPORTANT SAFETY INSTRUCTIONS

-4-

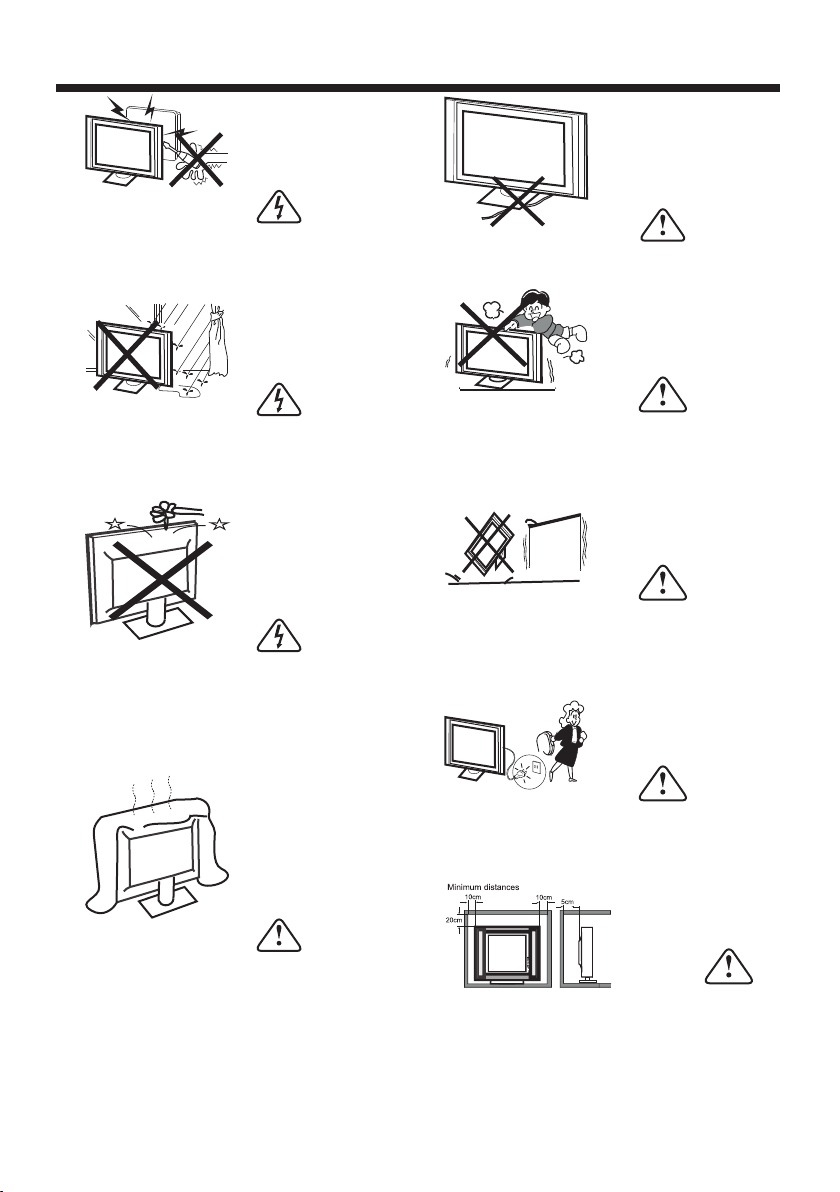

WARNINGS AND CAUTIONS

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

Warning

To prevent fire or electrical shock

hazard, do not expose the television

receiver to rain or moisture.

Warning

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Do not block the ventilation holes in the

back cover. Adequate ventilation is

essential to prevent failure of electrical

components.

Caution

Do not trap the power supply cord under

the television receiver.

Caution

Never stand on, lean on, or suddenly push

the television or its stand. You should pay

special attention to children. Serious injury

may result if it should fall.

Caution

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual , and damage to the

television, may result if it should fall.

Caution

When the television receiver is not

used for an extended period of time, it

is advisable to disconnect the AC power

cord from the AC outlet.

Caution

If the television is to be built into a

compartment or similar enclosure, the

minimum distances must be maintained.

Heat build-up can reduce the service life of

your television, and can also be

dangerous.

-5-

TECHNICAL SPECIFICATIONS

32"

Viewing Picture Size (Diagonal)

Resolution

Aspect Ratio

TV System

Power Consumption

Signal Input

Input Power Voltage

1366 x 768

16 : 9

Brightness 200cd/m²

Contrast Ratio 3000:1

Unit Size 722x180x468mm

Unit Size (Without Stand) 722x62x426mm

Net Weight 4.2KG

Audio Output Power

（THD 10%）2x8W

High-Definition Multimedia Interface (HDMI) x 3

AV IN x 1

RJ45 x 1

USB x 2

ANT x 1

48W

AC 100-240V 50/60Hz

PAL-B/G,I, D/K

SECAM-B/G , D/K , L

DVB-T, DVB-T2

Signal Output

HEADPHONE x 1

OPTICAL x 1

-6-

INSTALLATION

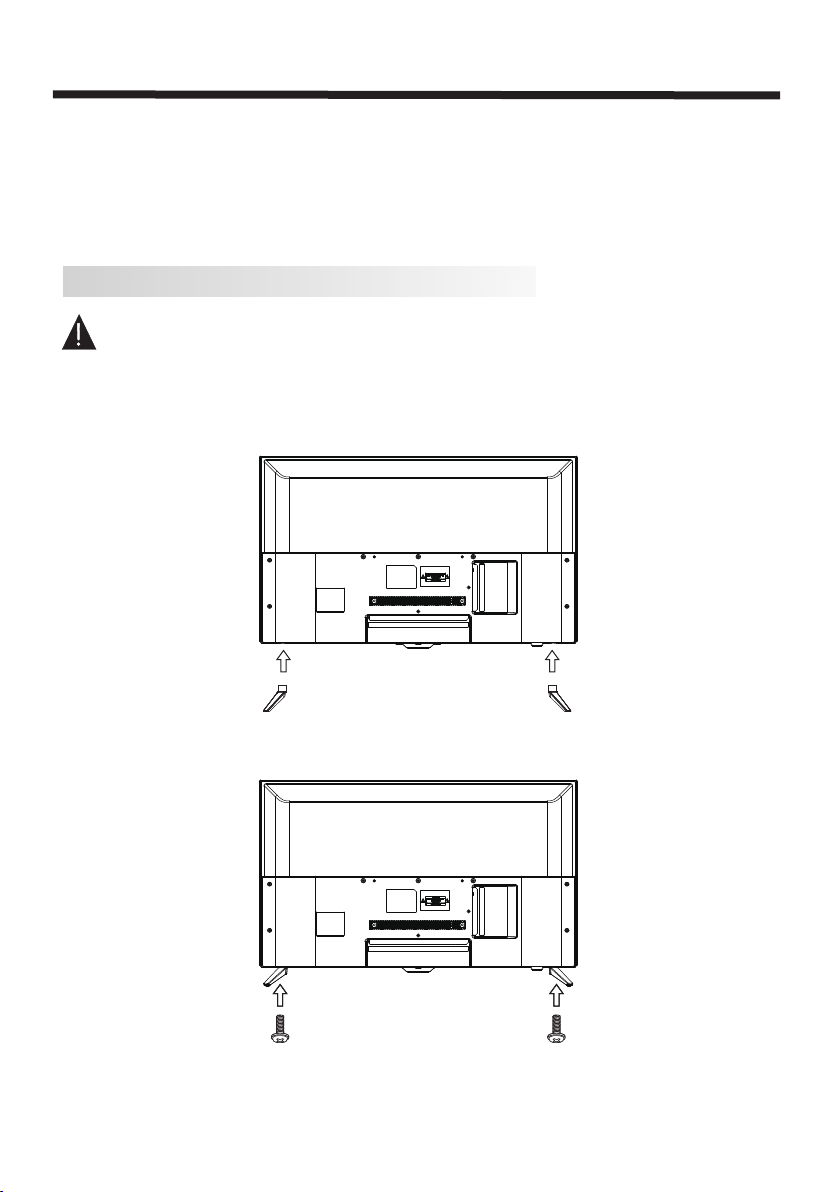

BASE STAND ASSEMBLY INSTRUCTION

Place the TV with the display side down on a flat surface. Ensure the table or desk you use

provides a flat, totally clean surface and use a soft cloth between the face of the TV and the table to

protect the TV's screen.

M4X12MMM4X12MM

1. Place the TV face down on a cloth or towel on a flat surface. Insert the stands into the grooves

on the bottom of the TV, then align the screw holes on the bottom of the TV and the stands.

2. Use the 4 provided screws to attach the stands to the TV.

-7-

INSTALLATION

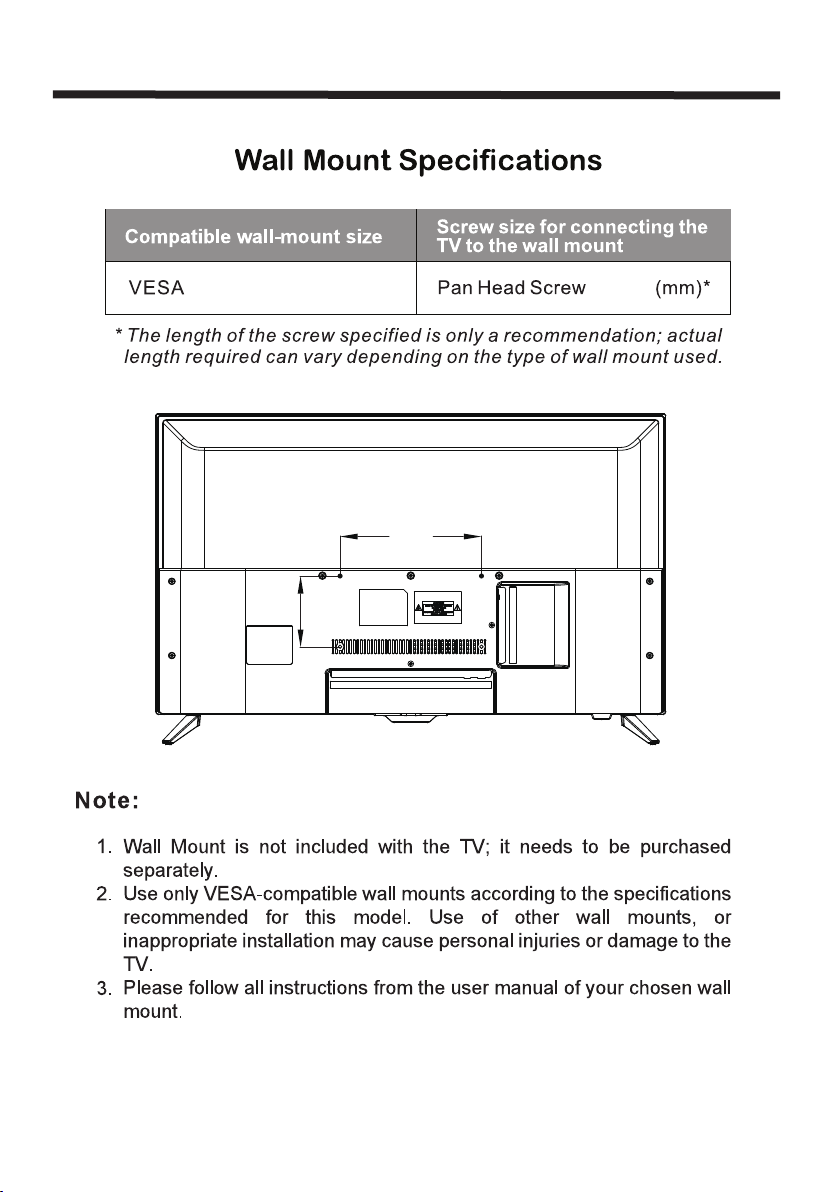

* Locate the TV where light does not shine onto the screen.

* Total darkness or reflection on the screen can cause eyestrain. A soft lighting environment is recommended for

comfortable viewing.

* Allow ample space between the TV and wall for proper ventilation.

* Do not locate the TV in a damp or hot environment to prevent damage.

* To prevent damage whilst in use, do not cover ventilation openings.

INSTALLATION

-8-

200

100

M4 x 6200 * 100

INSTALLATION

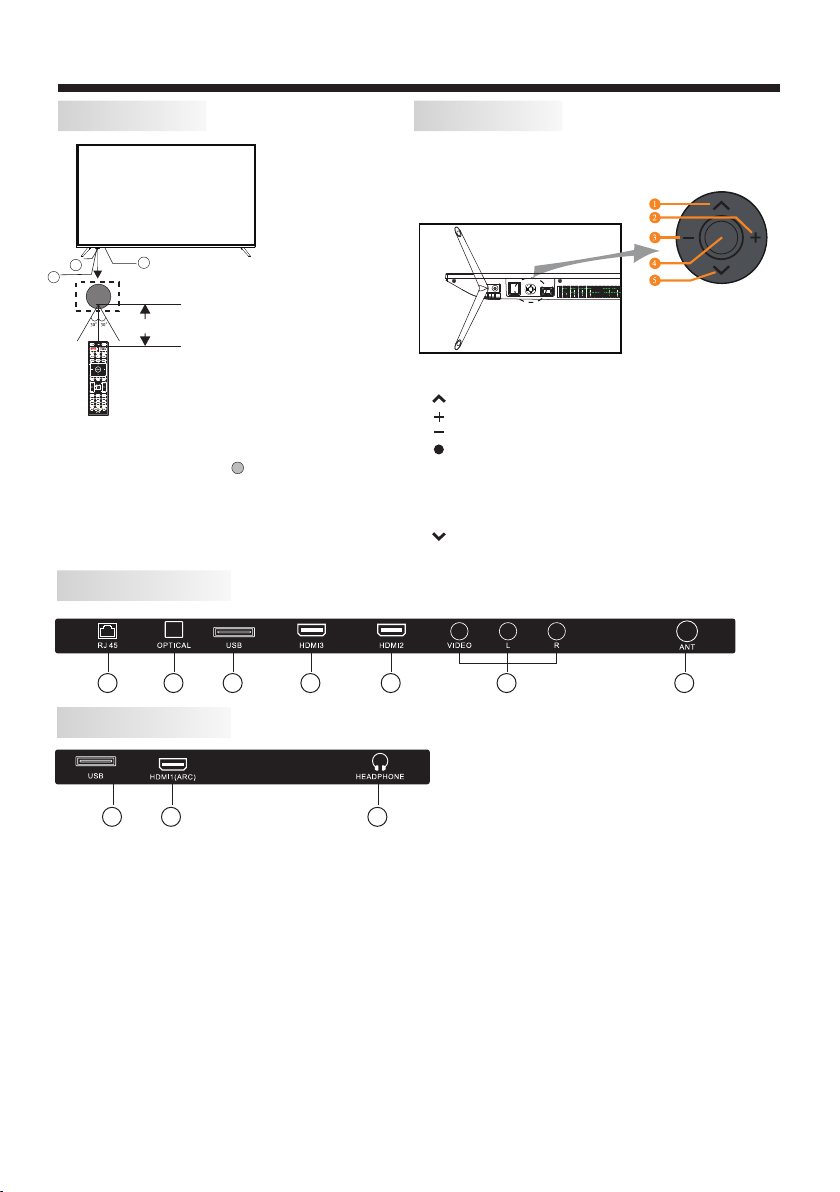

FRONT PANEL

REAR AV CONNECTIONS

REAR AV CONNECTIONS (SIDE)

1: Remote control sensor

1, RJ45: Connect the Network Interface.

2, OPTICAL: Optical Digital Audio ouput.

3, USB: Plug in your USB memory device (eg. USB stick) to play compatible files that are stored in it.

4, HDMI: Connect to the HDMI ouput jack of up to 4 external video sources (eg. DVD player / games console /

bluray player).

5, AV IN: Connect to the AV OUT jack of your external video source device(eg. DVD player)

6, ANT: Connect the antenna or 75 Ohm coaxial cable to receive TV signal.

7, HEADPHONE: Connect headphones here. Note that connecting headphones will mute the sound from

the TVs built-in speakers.

2: Indicator LED: RED STANDBY

3: Keyboard

≤8m

-9-

RM-C3416

The control buttons on the TV are located on the bottom

of the TV near the LED indicator.

KEYBOARD

Bottom

Control　Key

1. : Select the next channel or move up.

2. :　Increase the volume level or move right.

3. :　Decrease the volume level or move left.

5. :　Select the previous channel or move down.

4. :　When TV is on standby, press to turn on.

When TV is on, press to enter the menu.

Use the joystick to navigate around the interface

and press to enter the highlighted item.

When TV is on, press and hold to put TV on standby.

3 4 7

2 3 4 4 5 6
