JVC AV-21MS30 User manual

INSTRUCTIONS

GGT0097-001A-H

AV-21MS30

Contents

Knowing your TV’s features ....................................................... 3

Remote control buttons and basic functions .............................. 4

TV buttons and functions ........................................................... 6

Setting up your TV ..................................................................... 7

Basic setting for picture .............................................................. 9

Advanced setting for picture ..................................................... 11

Original features for picture ...................................................... 12

Basic setting for sound ............................................................. 13

Advanced setting for sound ..................................................... 14

DVD function ............................................................................ 15

Customized setting .................................................................. 16

TV channel presetting .............................................................. 18

Additional preparation .............................................................. 21

Troubleshooting ....................................................................... 22

Specifications ........................................................................... 23

COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT

GGT0097-001A-H-EN 19/05/2005, 9:00 AM1

15 cm

10 cm 10 cm 15 cm

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the

TV, grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

When installing this TV, leave spaces for ventilation around the TV of

more than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician. Do

not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled, wipe it

with a soft dry cloth. Never rub it forcefully. Never use any cleaner or

detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

8 The apparatus shall not be exposed to dripping or splashing and that

no objects filled with liquids, such as vases, shall be placed on the

apparatus.

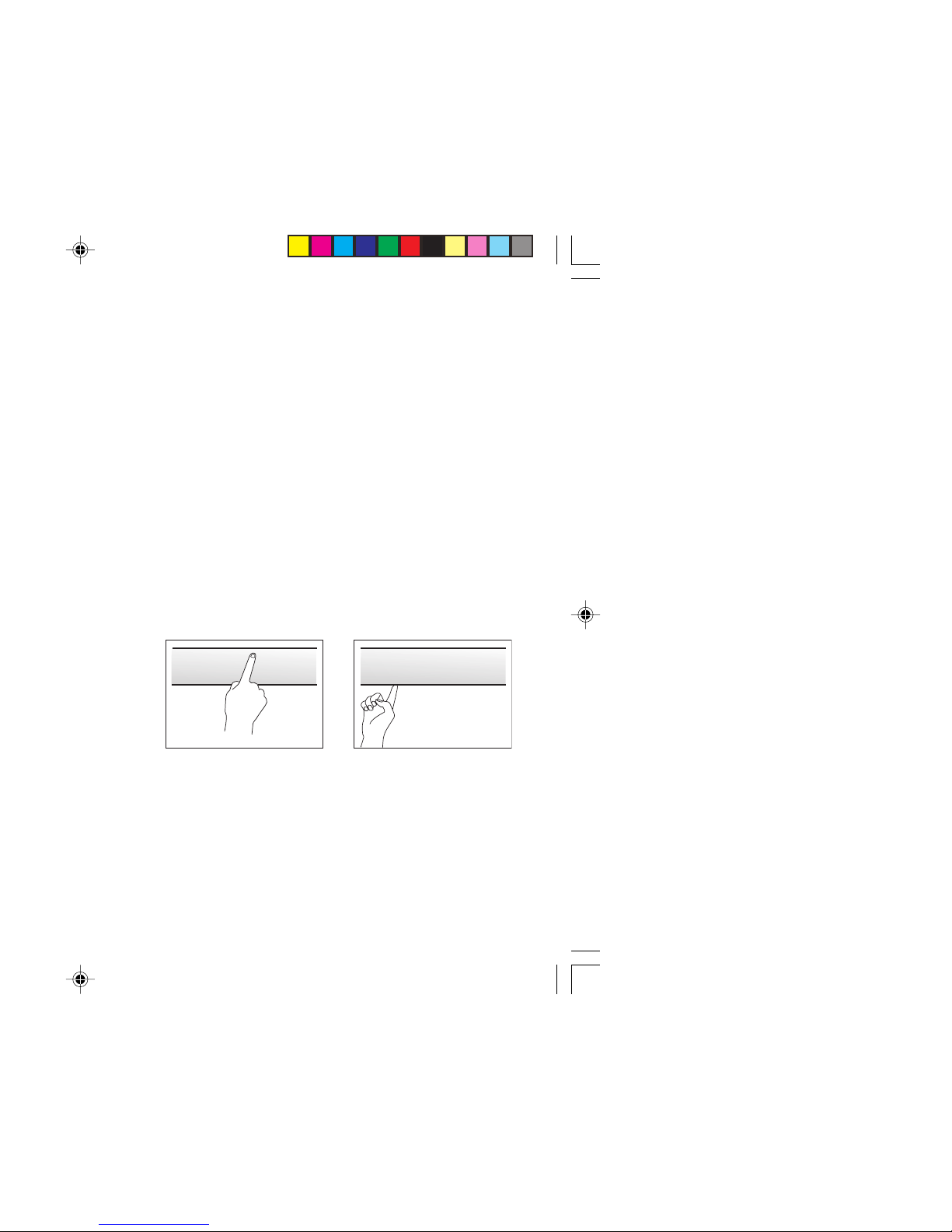

WARNING: <AV-21M Series>

YOU CAN DETACH THE PROTECT SHEET ON THE TOP

AND BOTTOM OF FRONT FRAME IF YOU NEEDED.

THE FRONT BUTTON DOOR OF THE TV SHOULD BE

PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE

UPPER PART, OR YOUR FINGER MAY BE PINCHED.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

✘✓

PULL PULL

GGT0097-001A-H-EN 19/05/2005, 9:00 AM2

Knowing your TV’s features

EXIT

RM-C1286

Confirm your TV’s functions

AV-21MS30 doesn't have PICTURE BOOSTER function and SUPER BASS function.

So when you press a button concerned to a function that is not available for your TV,

it does not work and the logo “Ø” appears on the screen.

Main features

DVD FUNCTION Just connect DVD player to the television. The television will detect DVD signal and display

picture on the screen automatically and you can adjust pictures and sound while you are

watching DVD as your desire.

A2/NICAM You can listen to the stereo sound or bilingual sound from TV programme broadcasting by A2

(STEREO / I■II)or NICAM Sound-multiplex system.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO TV detects the brightness of your room and automatically adjust the picture brightness to a

suitable level for a better eye care.

AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden

change of the volume when selecting different TV channel or selecting Video Mode.

TELETEXT You can view teletext programmes which are broadcasted by some TV channels. Teletext

programme is an information in text form.

WHITE BALANCE You can choose one of three tones of white to match to the video source such as movie,

sport, etc. Changing White balance affects the appearance of all other colours on the

screen.

GGT0097-001A-H-EN 19/05/2005, 9:00 AM3

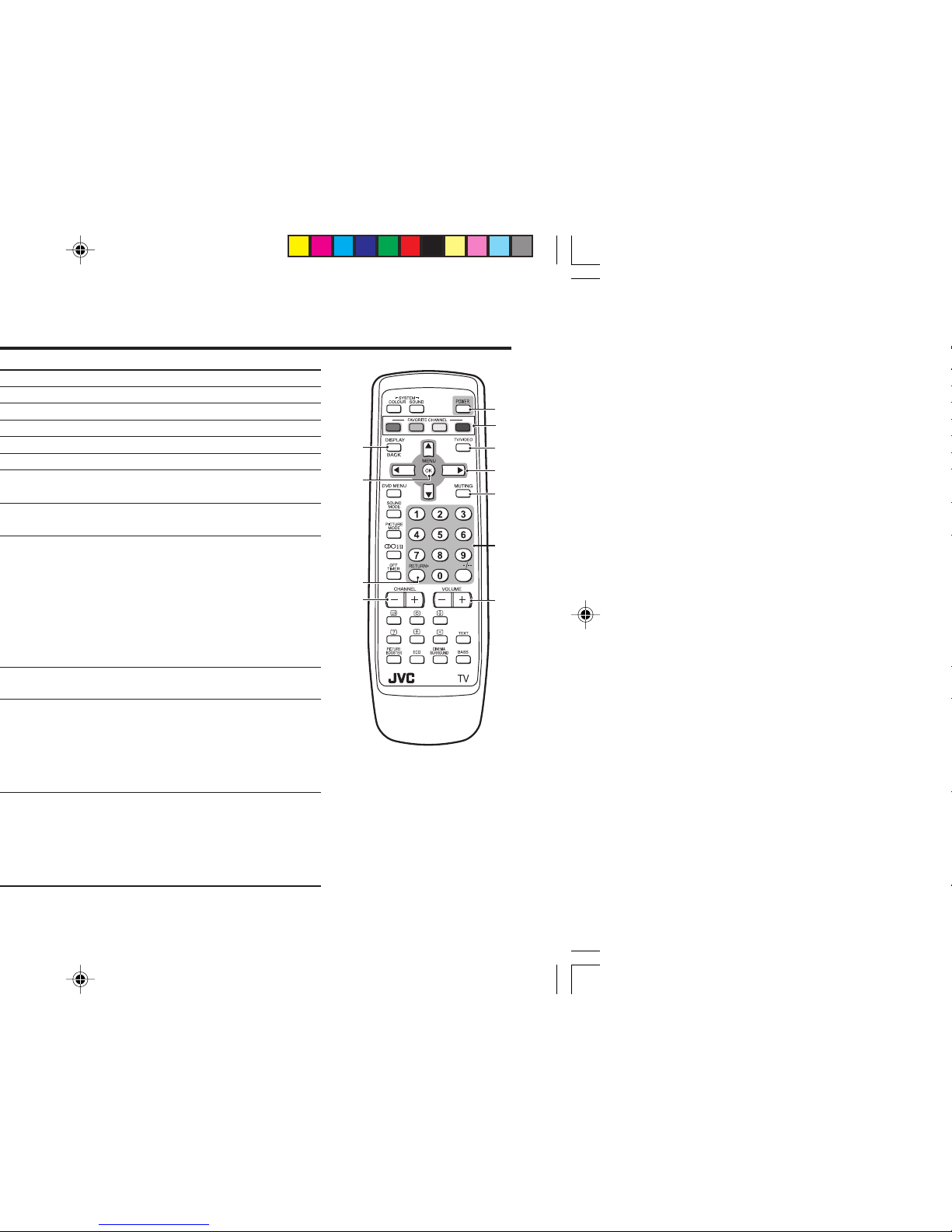

Remote control buttons and basic functions

EXIT

RM-C1286

No. Press To

1POWER Turn on or off the TV from standby mode.

2MENU/OK Display menu and confirm selected function.

35/ ∞/ 2/ 3Select and adjust menu function.

4CHANNEL -/+ Select the desired channel number.

5VOLUME -/+ Adjust the volume level.

6TV/VIDEO Select TV or video terminal input.

EXIT On the other hand, you can use this button to EXIT from the menu.

7MUTING Turn off the volume.

Press this button again to resume the volume.

8DISPLAY Display the programme number or video terminal number, stereo/bilingual broadcast system

/BACK and PR list (channel list) on the screen.

You can select the channel using the PR list.

1Press the DISPLAY button once to display the PR list.

2Press 5/ ∞/ 2/ 3buttons to choose a channel, then press the MENU/OK button.

You can confirm the favorite channels in the PR list. The channels set to favorite channels are

indicated with coloured mark.

On the other hand, you can use this button to return to the previous menu.

90~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the

number button.

!RETURN+a) Return to the frequently view channel with one touch.

1Choose the channel you want to register.

2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!”appears.

To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!”appears.

b) Return to the previously viewed channel, if you have not set or have cancelled the Return

channel as above.

"FAVORITE Register and recall 4 favorite channels.

CHANNEL 1. Choose the TV channel you want to register then press and hold a colour button until

"FAVORITE CHANNEL ■PROGRAMMED!" appears.

2. To register other favorite channels, repeat step 1.

To recall the favorite channel, press the colour button.

When the TV is in Text function or menu mode, the favorite channel function is not available.

(colour buttons:

red, green,

yellow, blue)

GGT0097-001A-H-EN 19/05/2005, 9:00 AM4

Remote control buttons and basic functions (continued)

The following chart shows locations of functions in menus. In this manual,

location of a function is described as follows:

Note: Some functions have the 4th menus as the sub-menus.

Display the MENU

Display the top

Display the 2nd

Display the 3rd

Return to the

previous menu

Choose the setting

of a function

Adjust the effect

level of a function

Display the sub

menu of a function.

Operation

Press the MENU/OK button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press 5/∞buttons 3to choose a

menu title. Then press MENU/OK

button 2.

Press the DISPLAY/BACK button

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to change the setting.

Press 5/∞buttons 3to choose

a function. Then press the 2/3

buttons 3to adjust the effect

level.

Press the 5/∞buttons 3to

choose a function. Then press

MENU/OK button 2to display

the sub menu.

Note

To exit the MENU,

press the DISPLAY/

BACK button 8or

choose EXIT menu

or TV/VIDEO/EXIT

button 6.

Press ∞button 3to

display the next page

for more functions.

–

Press the TV/VIDEO/

EXIT button 6to

exit from the menu.

–

Top menu 2nd menu Location 3rd menu Location

MENU PICTURE PICTURE MODE P.9 – –

PICTURE SETTING P.10 CONTRAST P.10

BRIGHT P.10

SHARP P.10

COLOUR P.10

TINT P.10

WHITE BALANCE P.10 – –

VNR P.16 – –

SOUND STEREO/

■

P.14 – –

AI VOLUME P.14 – –

SOUND MODE P.13 – –

EQUALIZER P.14 – –

BALANCE P.13 – –

CINEMA SURROUND

P.14 – –

EATURES DVD MENU P.15

AUTO SIGNAL DETECT

P.15

DVD PICTURE MODE

P.15

TINT COLOUR

P.15

WHITE BALANCE

P.15

SOUND MODE

P.15

CINEMA SURROUND

P.15

O TIMER P.16 – –

CHILD LOCK P.16 – –

COMPRESS (16:9)

P.11 – –

AI ECO SENSOR P.11 – –

INSTALL SETUP TOUR P.17 – –

AUTO PROGRAM P.18 – –

EDIT/MANUAL P.18 DELETE, MOVE, P.18-

MANUAL, INSERT P.19

COLOUR SYSTEM P.9 – –

LANGUAGE P.16 LANGUAGE P.16

TEXT LANGUAGE P.12 TEXT LANGUAGE P.12

VIDEO-2 SETTING P.17 – –

BLUE BACK P.11 – –

EXIT – – – –

How to operate menus and menus locations

MENU Top menu 2nd menu

Top menu 3rd menu

MENU 2nd menu

GGT0097-001A-H-EN 19/05/2005, 9:00 AM5

TV buttons and functions

Front of the TV

AV-21MS30

Rear of the TV

AV-21MS30

IN (VIDEO-3)

L / MONO

CHANNEL

VOLUM E

POWER

243 1

76 5

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1 COMPONENT

(VIDEO-2)

INPUT

$#" !

No. Button/terminal Description Page

1L(main power) Press to turn on or turn off the TV’s main power. –

2POWER lamp Indicate the TV is being turned on or off. –

No colour : TV’s main power is being turned off.

Red : TV’s main power is being turned on.

Note: When you turn off the power switch while TV is in standby

mode, the light of power lamp will be off in 10 -15 seconds.

3ECO sensor –

4Remote control sensor –

5VOLUME -/+ Press to adjust the volume level. –

6CHANNEL -/+ Press to select the desired channel. –

7MENU Press to display the menu. –

8IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 21

9Headphone jack. 21

!Aerial socket. 7

"OUTPUT Video and audio output jacks. (The component video 21

signal cannot be output.)

#COMPONENT Video or component video, and audio input jacks for 21

(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting

the “VIDEO-2 SETTING”function (see page 17).

$VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1 7

mode

How to operate the menus with the TV button

TV button Work as same as the button on the Note

remote control unit

MENU MENU/OK button To display main menu and exit

menu after finish setting.

CHANNEL -/+ ∞/5button To select menu function.

VOLUME -/+ 2/3button To adjust the desired function.

GGT0097-001A-H-EN 19/05/2005, 9:00 AM6

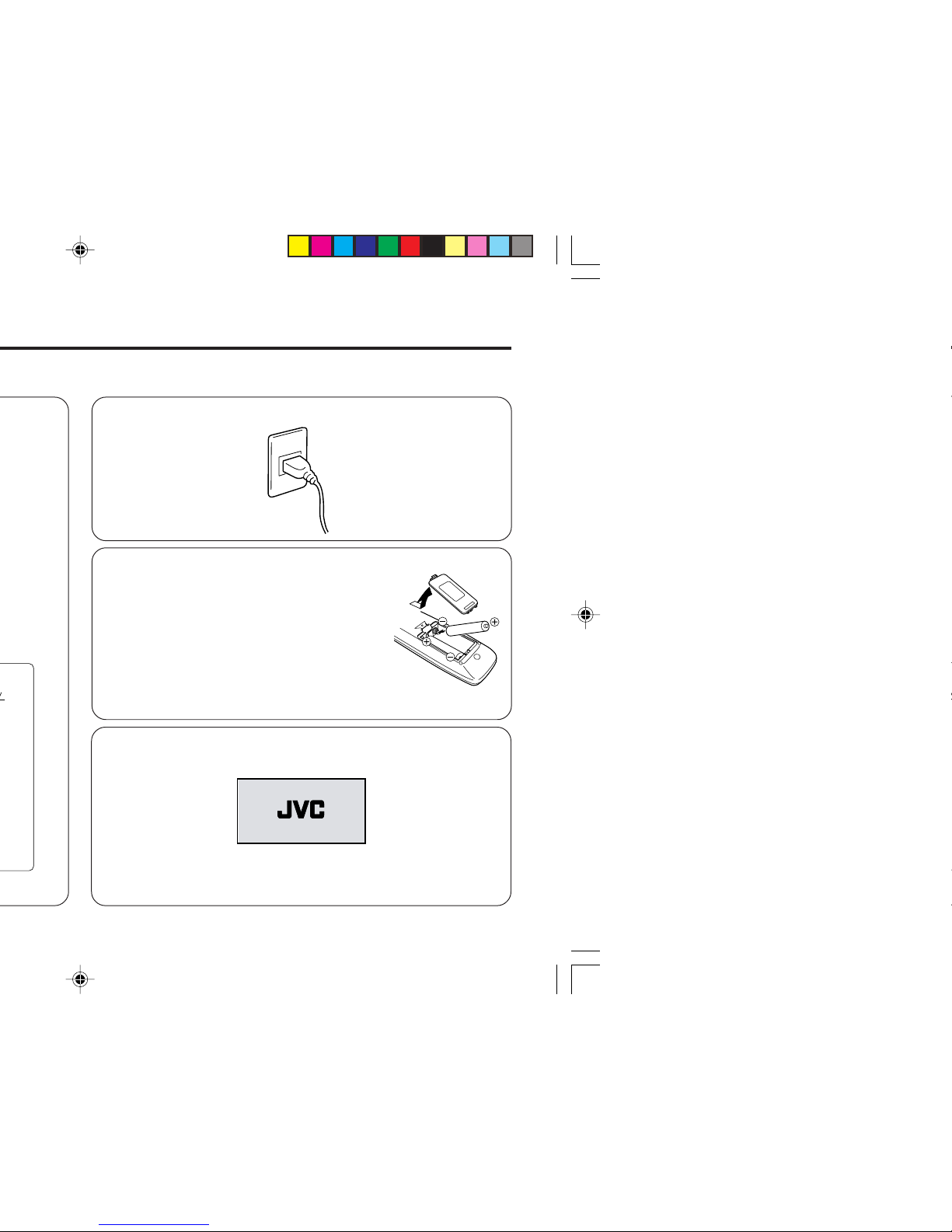

2Connecting the compatible main plug to the AC outlet.

Setting up your TV

CAUTION

•Turn off the equipment including the TV before connecting.

1Connecting the aerial cable.

3Inserting batteries into the remote control.

Insert two batteries by following the +and -

polarities and inserting the -end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly, fit new

batteries. The supplied batteries are for testing, not

regular use.

4Turn on the TV by pressing the main power button.

JVC logo appears on the screen.

L/MONO

OVER

/MONO

OUTPUT

VIDEO-1

INPUT

COMPONENT

(VIDEO-2)

INPUT

Rear of TV

AV-21MS30

VHF/UHF outdoor aerial

VCR

If you connect a VCR, connect the aerial output jack of your VCR

and the aerial jack on the TV with aerial cable. Then connect the

output jacks of your VCR and the VIDEO-1 input jacks of the TV

with the video cable (or S-VIDEO cable if available) and audio

cables. For details, see the manual of your VCR.

JVC logo will appear on the screen again at the phase of “SETUP

TOUR RESTART?”function. Then the initial setting can be

performed according to page 8.

To video

output

To audio

output

To RF

output

To S-video

output To aerial input

VHF/UHF outdoor aerial

75-ohm coaxial cable (not supplied)

GGT0097-001A-H-EN 19/05/2005, 9:00 AM7

5Making the initial settings

Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate the TV by following the steps as below:

•Press 5/∞button to

select your desired

language.

•TV will start searching

for the channels.

To stop AUTO

PROGRAM, press

MENU/OK button.

Setting up your TV (continued)

•To complete the initial

setting, press the

MENU/OK button. To

edit the channel list,

see page 20.

•After that, when turn on

the TV at the next time.

“SETUP TOUR

RESTART?”will be

displayed.

Press the MENU/OK

button to cancel the

SETUP TOUR

RESTART function.

If you want to make

initial settings again

when the next time you

turn on the TV, press the

Red button to activate

the SETUP TOUR

RESTART function.

TEXT LANGUAGE

CC 12

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

AUTO PROGRAM

MENU : OK

22%

EDIT

MENU : OK

MOVE

■

INSERT

■

DELETE

■

MANUAL

■

PR CH/CC

1 CH 04

2 CH 76

3 CH 78

4 CH 05

5 CH 28

6 CH 10

AUTO PROGRAM

MENU : NO

SETUP TOUR RESTART?

■

: YES

GROUP-1

GROUP-2

GROUP-3

LANGUAGE

MENU : OK

DISPLAY : BACK

TV/VIDEO : EXIT

ENGLISH

PУCCKИЙ

MELAYU

INDONESIA

•Press 5/∞button to

select your desired

Teletext language

group. For details,

see page 12.

GGT0097-001A-H-EN 19/05/2005, 9:00 AM8

COLOUR SYSTEM

You can select the appropriate colour system when the picture is

not clear or no colour appears.

Press the COLOUR SYSTEM button to select a setting.

To operate this function with a menu:

For the colour system in each country or region, see the table

below:

PICTURE MODE

You can choose the desired picture setting with one-touch.

Press the PICTURE MODE button to select a setting.

SOFT Softens contrast and sharpness.

BRIGHT Heightens contrast and sharpness.

STANDARD Standard picture setting.

USER You can change this picture setting as you like.

Select USER and adjust following items in the

PICTURE SETTING menu. (CONTRAST, BRIGHT,

SHARP, COLOUR, TINT*)

When you select to VIDEO-2 Mode. You cannot adjust SHARP

and TINT.

*TINT can only be adjusted in NTSC system.

To operate this function with a menu:

To return the USER setting to the default, press the blue button

when the PICTURE SETTING menu appears.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations”on page 5.

Basic setting for picture

AUTO PAL SECAM NTSC3.58

NTSC4.43

MENU INSTALL menu COLOUR SYSTEM

Area Country or Region System

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,

Yemen, etc. PAL

Indonesia, Malaysia, Singapore, Thailand, India, etc.

Asia, Middle China, Vietnam, etc. PAL

East Hong Kong, etc. PAL

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM

Philippines, Taiwan, Myanmar, etc. NTSC

Russia, etc. SECAM

Europe Czech Republic, Poland, etc. PAL

Germany, Holland, Belgium, etc. PAL

UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Republic of South Africa, etc. PAL

Africa Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

MENU PICTURE menu PICTURE MODE

❇

GGT0097-001A-H-EN 19/05/2005, 9:00 AM9

PICTURE SETTING

You can adjust the desired picture setting when selecting USER

in PICTURE MODE.

1Select the USER in PICTURE MODE under PICTURE menu.

2Select the PICTURE SETTING in PICTURE menu, then adjust

the setting.

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT* 2: Reddish 3: Greenish

When you select to VIDEO-2 Mode. You cannot adjust SHARP

and TINT.

* TINT can only be adjusted in NTSC system.

Basic setting for picture (continued)

WHITE BALANCE

You can change the white balance of the picture to better match

the type of video being viewed.

Select the WHITE BALANCE in the PICTURE menu, then choose

the desired setting.

NORMAL Normal white balance.

COOL Bluish white.

WARM Reddish white.

When you select to VIDEO-2. You cannot adjust WHITE BALANCE.

You can adjust it in DVD Menu.

❇About the basic operations of the menu, please see the “How

to operate menus and menus locations”on page 5.

MENU PICTURE menu WHITE BALANCE

MENU PICTURE menu PICTURE MODE

USER

MENU PICTURE menu PICTURE SETTING

❇

GGT0097-001A-H-EN 19/05/2005, 9:00 AM10

Other manuals for AV-21MS30

Table of contents

Other JVC CRT TV manuals

JVC

JVC AV-27D800 User manual

JVC

JVC Natural Vision T-V Link AV28CT1EP User manual

JVC

JVC LT-32EX17, LT-37EX17, LT-42EX17 User manual

JVC

JVC AV-21LS, AV-25LS, AV-29LS, AV-34LS, AV-21LX, AV-25LX, AV-29LX, AV-29LX1, AV-34LX, AV-21LXB, AV-25LXB,... User manual

JVC

JVC InteriArt NaturalVision T-V Link AV32L2EU User manual

JVC

JVC AV-14FB116, AV-21B116, AV-21C1 User manual

JVC

JVC AV-32T5SP User manual

JVC

JVC I' Art Pro AV-34WP84 User manual

JVC

JVC AV-28ED5BN, AV-28ED5SN User manual

JVC

JVC AV-28E88SK User manual

JVC

JVC InteriArt 0204-T-CR-JMUK User manual

JVC

JVC AV-21L83, AV-21W83, AV-25L83, User manual

JVC

JVC AV21BT70EP, AV28BT70EP User manual

JVC

JVC AV 27050 User manual

JVC

JVC I'Art 0604TNH-II-IM User manual

JVC

JVC I' Art Pro AV-32P903 User manual

JVC

JVC AV-21RT4BN User manual

JVC

JVC AV-21YG11, AV-21YG21, AV-21WM1 User manual

JVC

JVC AV-2108TEE, AV-2508TEE, AV-290 User manual

JVC

JVC AV-21W111 User manual

JVC

JVC I'Art 1204JGI-II-IM User manual

JVC

JVC AV 27D200 User manual

JVC

JVC AV-21MS1SN User manual

JVC

JVC InteriArt AV28S2EI User manual

Popular CRT TV manuals by other brands

Philips

Philips COLOR TV 25 INCH TABLE TR2517C owner's manual

Hitachi

Hitachi 27CX01B user manual

LG 30FZ1DC Specification sheet

Sony

Sony FD TRINITON WEGA KV-24FS120 operating instructions

RCA

RCA F19442 user guide

Samsung

Samsung CS761 Owner's instructions

Philips

Philips 29PT4973 Instructions for use

Panasonic

Panasonic TC-29P100 Series operating instructions

RCA

RCA F19422 user guide

Sony

Sony WEGA KV 32HS20 operating instructions

Samsung

Samsung SlimFit TX R3079WH Owner's instructions

Palsonic

Palsonic MODEL 5179G owner's manual

Toshiba

Toshiba CF13H22 owner's manual

Magnavox

Magnavox MS3650C - 36" Smart Ctv Directions for use

Toshiba

Toshiba 14AF41 owner's manual

Philips

Philips 21PT9469 user manual

Mitsubishi

Mitsubishi CS-35305 owner's guide

Hitachi

Hitachi 35UX60B, 35TX10B operating guide
