CD RECEIVER KD-G285
ALAT PENERIMA CD KD-G285
For canceling the display demonstration, see page 5.
Untuk membatalkan tampilan demonstrasi, lihat halaman 5.
For installation and connections, refer to the separate manual.
Untuk instalasi dan penyambungan, lihat buku pedoman terpisah.
INSTRUCTIONS
BUKU PETUNJUK
GET0345-004A
[UN]
Cover_KD-G285[U]1.indd 2Cover_KD-G285[U]1.indd 2 11/17/05 6:03:08 PM11/17/05 6:03:08 PM
ENGLISH
2
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.

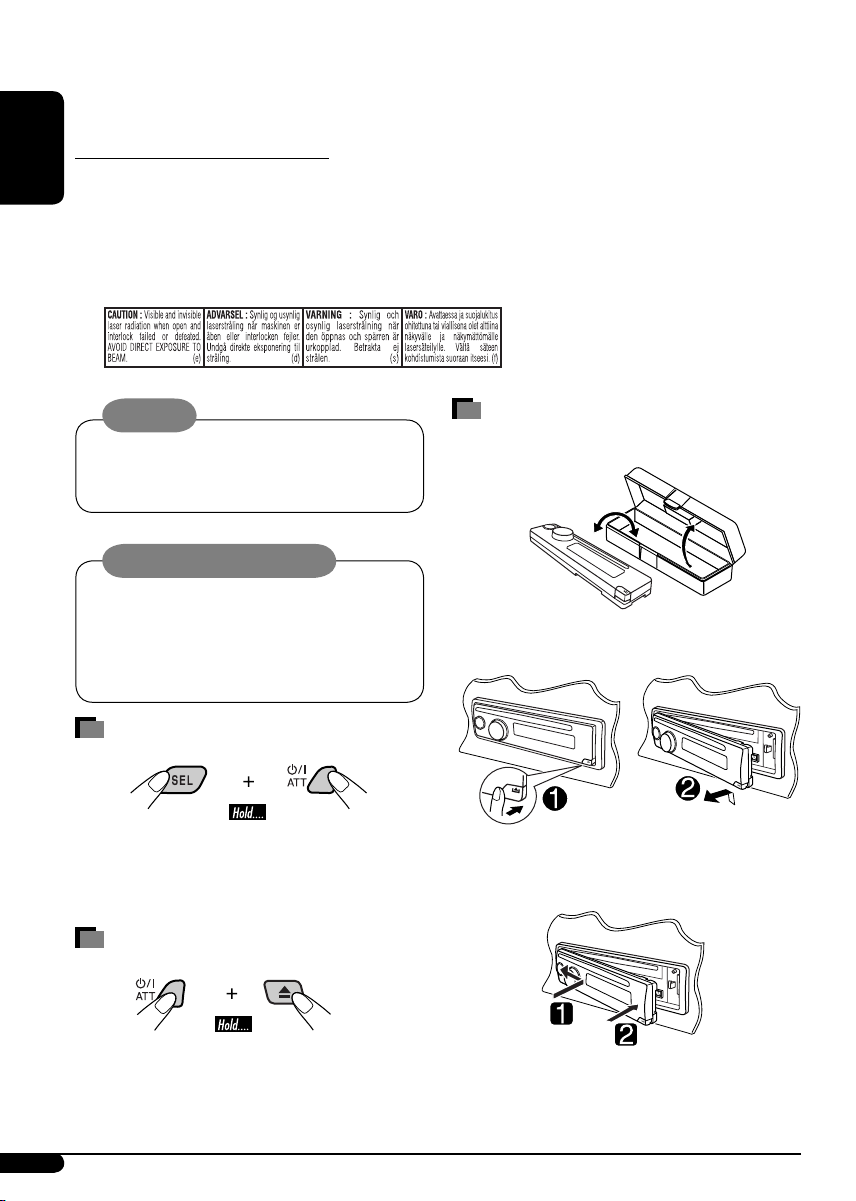

How to detach/attach the control
panel
Detaching...
Attaching...
Warn ng:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may be
involved in a traffic accident.
Caut on on volume sett ng:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
How to reset your un t
• Your preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful not to
drop the disc.
How to forc bly eject a d sc
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
EN02-05_KD-G285[U]1.indd 2EN02-05_KD-G285[U]1.indd 2 11/28/05 2:50:00 PM11/28/05 2:50:00 PM
ENGLISH
3
How to read th s manual
• Button operations are mainly explained with
the illustrations in the tabel below.
• ome related tips and notes are explained in
“More about this unit” (see pages 14 and 15).
Press briefly.
Press repeatedly.
Press either
one.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
:
Indicator displayed for the
corresponding operation.
How to use the MODE button
If you press MODE, the unit goes into functions
mode, then the number buttons and 5/∞
buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
To use these buttons for their original
functions again after pressing MODE, wait for
5 seconds without pressing any of these buttons
until the functions mode is cleared or press
MODE again.
CONTENTS
Control panel ................................... 4
Gett ng started ................................. 5
Basic operations .................................................... 5
Rad o operat ons .............................. 6
D sc operat ons ................................. 7
Playing a disc in the unit ...................................... 7
Playing discs in the CD changer ............................ 7
Sound adjustments ........................... 10
General sett ngs — PSM ................... 11
External component operat ons
............. 12
Remote controller — RM-RK60 .............. 12
Ma ntenance .................................... 13
More about th s un t ......................... 14
Troubleshoot ng ............................... 16
Spec f cat ons ................................... 17
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• top the car before performing any
complicated operations.
Temperature ns de the car...
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
Time countdown indicator
EN02-05_KD-G285[U]1.indd 3EN02-05_KD-G285[U]1.indd 3 10/26/05 11:04:13 AM10/26/05 11:04:13 AM
ENGLISH
4
Control panel
Parts identification
Display window
1 4 /¢ buttons
2 (standby/on attenuator) button
3 5 (up) / ∞ (down) buttons
4 Loading slot
5 Display window
6 0 (eject) button
7 EQ (equalizer) button
8 Remote sensor
• You can control this unit with an
optionally purchased remote controller.
For details, see pages 12 and 13.
• DO NOT expose the remote sensor to
strong light direct sunlight or artificial
lighting).
9 SR (source) button
p BAND button
q ontrol dial
w SEL (select) button
e MO (monaural) button
r SSM (Strong-station Sequential Memory)
button
t Number buttons
y RPT (repeat) button
u RND (random) button
i MODE button
o DISP (display) button
; (control panel release) button
Display window
a MP3 indicator: Lights up only when
playback an MP3 disc in the CD changer.
s Playback source indicators—
H: Lights up only when CD-CH is selected
as the playback source.
DIS : Lights up for the built-in CD player.
d Playback mode / item indicators—
RND (random), (disc), RPT (repeat)
f LOUD (loudness) indicator
g EQ (equalizer) indicator
h Sound mode ( -EQ: custom equalizer)
indicators—JAZZ, LASSI , HIP HOP,
POPS, RO K, USER
j Tr (track) indicator
k Source display / Volume level indicator /
Time countdown indicator
l Main display
/ Tuner reception indicators— ST (stereo),
MO (monaural)
EN02-05_KD-G285[U]1.indd 4EN02-05_KD-G285[U]1.indd 4 10/26/05 12:26:45 PM10/26/05 12:26:45 PM
ENGLISH
5
Basic settings
• See also “General settings — PSM” on page
11.
1
2
1 Canceling the display
demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “ LO K H” (hour), then adjust
the hour.
Select “ LO K M” (minute), then
adjust the minute.
3 Finish the procedure.
To check the current clock
time while the power is
turned off
To check the other
information while
listening to the radio
Clock Ô Frequency
Getting started
Basic operations
~ Turn on the power.
* You cannot select these sources i they
are not ready or not connected.
! For FM/AM tuner
⁄ Adjust the volume.
@ Adjust the sound as you want.
(See page 0.)
To drop the volume in a
moment (ATT
To restore the sound, press
it again.
To turn off the power
Volume level appears.
Volume level indicator
EN02-05_KD-G285[U]1.indd 5EN02-05_KD-G285[U]1.indd 5 10/26/05 11:15:35 AM10/26/05 11:15:35 AM
ENGLISH
6
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same button
again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be
lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
ant to store into.
2
3
“SSM flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
Lights up when monaural mode is activated.
EN06-11_KD-G285[U]1.indd 6EN06-11_KD-G285[U]1.indd 6 10/26/05 11:02:21 AM10/26/05 11:02:21 AM
ENGLISH
7
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and e ect the disc
Playing discs in the CD changer
All discs in the magazine will be played
repeatedly until you change the source.
• Ejecting the magazine will also stop playing.
~
* If you have changed the external input
setting to “EXT IN” (see page 11), you
cannot select the D changer.
Ÿ Select a disc.
For disc number from 01 – 06:
For disc number from 07 – 12:
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you
ant.
or
Preset number flashes for a while.
To be continued...
EN06-11_KD-G285[U]1.indd 7EN06-11_KD-G285[U]1.indd 7 10/26/05 11:02:23 AM10/26/05 11:02:23 AM
ENGLISH
8
About the CD changer
It is recommended to use a JVC
MP3-compatible CD changer with your unit.
• ou can also connect MP3-incompatible
CD changers. However, these units are not
compatible with MP3 discs.
• ou cannot use the CH-X99, CH-X100, and
KD-MK series CD changers with this unit.
• ou cannot play any WMA disc in the CD
changer.
• For connection, see Installation/Connection
Manual (separate volume).
To fast-forward or reverse the track
To go to the next or previous tracks
To go to the next or previous folders (only for
MP discs)
To locate a particular track for CD directly
To select a number from 01 – 06:
To select a number from 07 – 12:
Other main functions
Skipping tracks quickly during play
Only possible on JVC
MP -compatible CD changer
• While playing an MP3 disc in the CD
changer, you can skip tracks within the same
folder.
Ex.: To select track 32 while playing a track
whose number is a single digit (1 to 9)
1
2
Each time you press the button, you can
skip 10 tracks.
• After the last track, the first track will be
selected and vice versa.
3
EN06-11_KD-G285[U]1.indd 8EN06-11_KD-G285[U]1.indd 8 11/17/05 9:33:53 AM11/17/05 9:33:53 AM
ENGLISH
9
Selecting the playback modes
You can use only one of the following playback
modes at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track.
DISC RPT* : All tracks of the current disc.
RPT OFF : Cancels.
7 Random play
Mode Plays at random
DISC RND : All tracks of the current disc.
MAG RND* : All tracks of the inserted
discs.
RND OFF : Cancels.
* Only while playing discs in the CD
changer.
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same
procedure.
Changing the display information
While playing an audio CD
While playing an MP3 disc
EN06-11_KD-G285[U]1.indd 9EN06-11_KD-G285[U]1.indd 9 11/2/05 5:44:08 PM11/2/05 5:44:08 PM
ENGLISH
10
Sound adjustments
You can select a preset sound mode suitable to
the music genre (C-EQ: custom equalizer).
BAS
(bass)
TRE
(treble)
LOUD
(loudness)
USER
(Flat sound) 00 00 FF
ROCK
(Rock or disco music) +03 +01 N
CLASSIC
(Classical music) +01 –02 FF
POPS
(Light music) +04 +01 FF
HIP HOP
(Funk or rap music) +02 00 N
JAZZ
(Jazz music) +02 +03 FF
Preset values
Indication (For)
Ex.: When “ROCK” is selected
Adjusting t e sound
You can adjust the sound characteristics to your
preference.
1
2
Indication, [Range]
BAS*1 (bass), [–06 to +06]
Adjust the bass.
TRE*1 (treble), [–06 to +06]
Adjust the treble.
FAD*2 (fader), [R06 to F06]
Adjust the front and rear speaker balance.
BAL (balance), [L06 to R06]
Adjust the left and right speaker balance.
LOUD*1 (loudness), [L UD N or
L UD FF]
Boost low and high frequencies to produce a
well-balanced sound at low volume level.
VOL (volume), [00 to 30 or 50*3]
Adjust the volume.
*1 When you adjust the bass, treble, or loudness,
the adjustment you have made is stored for
the currently selected sound mode (C-EQ)
including “U ER.”
*2 If you are using a two-speaker system, set the
fader level to “00.”
*3 Depending on the amplifier gain control
setting. ( ee page 11 for details.)
EN06-11_KD-G285[U]1.indd 10EN06-11_KD-G285[U]1.indd 10 11/16/05 6:34:43 PM11/16/05 6:34:43 PM
Other manuals for KD-G285
1
Table of contents
Languages:
Other JVC Car Receiver manuals
