JVC WR-MG77U Guide

LYT1795-001A

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTE.ESP.

ITALIANO

PORTUGUÊS

DANSK

SUOMI

SVENSKA

NORSK

POLSKI

MAGYAR

РУССКИЙ

ČEŠTINA

WR-MG77U

Procedures for Using the

Supplied Maintenance

Kit

Vorgehensweise bei der

Anwendung des

mitgelieferten Wartungssets

Procédures pour

l’utilisation de l’ensemble

d’entretien fourni

Procedures voor het

gebruik van de bijgeleverde

onderhoudskit

Procedimientos para utilizar

el kit de mantenimiento

suministrado

Procedure per l’utilizzo

del Kit di manutenzione

in dotazione

Procedimentos para a

utilização do kit de

manutenção fornecido

Procedurer ved anvendelse

af det medfølgende

vedligeholdelsessæt

Mukana toimitetun

huoltopakkauksen

käytön menettelytavat

Hur man använder den

medföljande

underhållsutrustningen

Prosedyrer for bruk av

det medfølgende

vedlikeholdssettet

Návod k používání sady

na údržbu

Procedury używania

dostarczonego zestawu

do konserwacji

A mellékelt szerelési

készlet használata

Порядок

использования

комплекта для ухода

使用隨附之維修工具組的

步驟

附带维护用具的使用程序

WR-MG77_EN_A5_EN.book Page 0 Thursday, May 3, 2007 9:34 AM

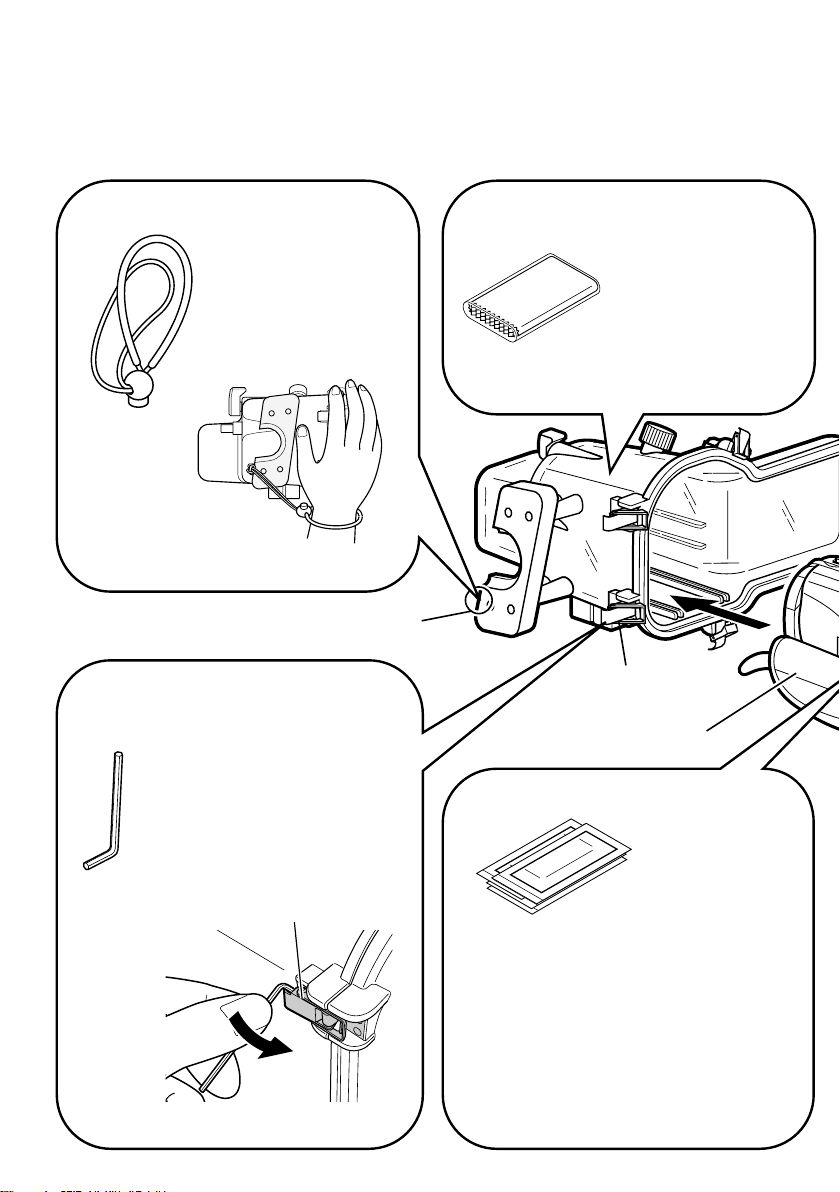

Strap

Pass the strap

through the strap

attachment hole

before using the

marine case to

maintain a firm grip

in water.

START/STOP

Buckle opener

(Hexagonal wrench)

For use when you have

difficulty opening the buckle.

Hook the wrench to the

buckle and pull towards you.

Buckle

Silicon cloth

Wash the marine

case with fresh

water, and wipe

the outer side with

the silicon cloth

after drying.

Silica gel

(anti-fogging agent)

Prevents fogging

inside the marine

case.

Insert it between

the camera and the

camera grip belt

before inserting the camera into the

marine case.

Caution: The moisture absorption

ability of silica gel that has previously

been used may deteriorate depending

on the conditions of use. As such, we

recommend that the silica gel be

replaced each time.

Strap attachment hole

Buckle

Grip belt of camera

Procedures for Using the

WR-MG77_EN_A5_EN.book Page 2 Thursday, May 3, 2007 9:34 AM

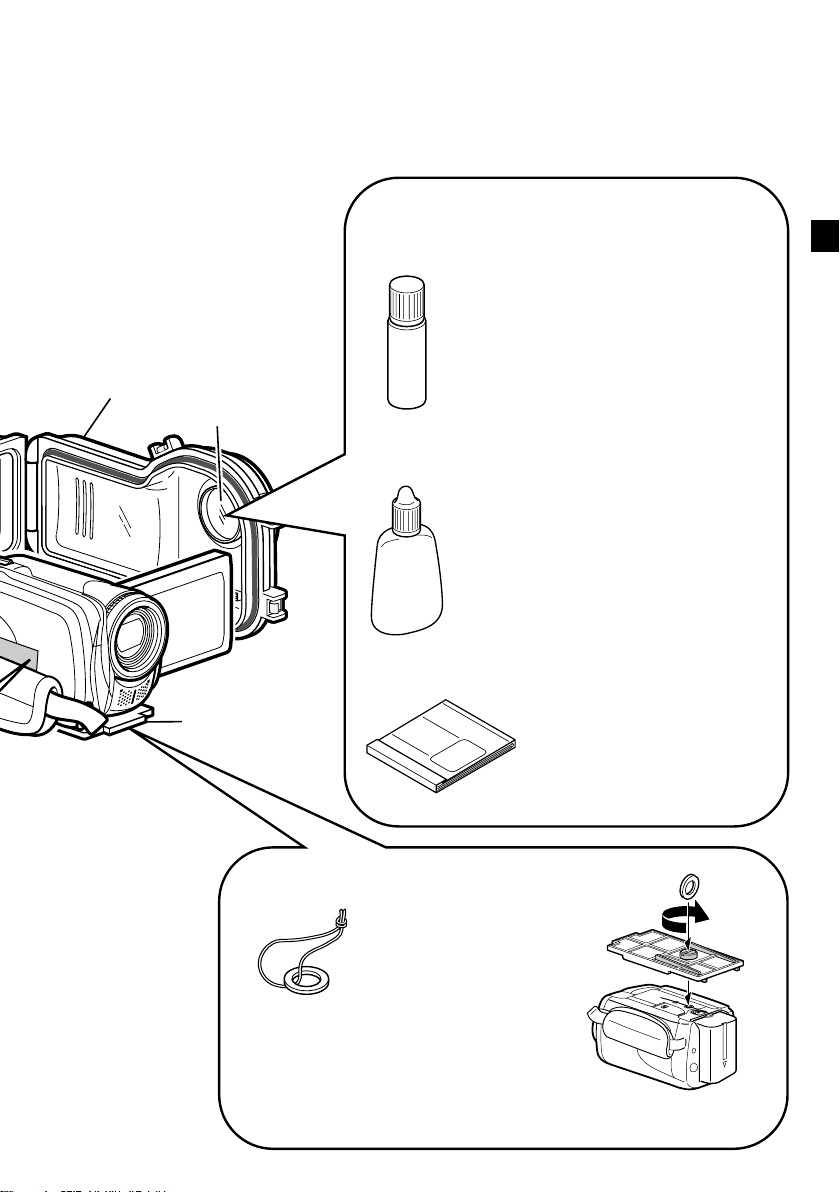

Screw key

Use the key to tighten

the screw of the

camera base.

Glass cleaner agent

(to prevent fogging)

Apply the glass cleaner on the

front glass before using the marine

case.

Add two to three drops of the

cleaner on a lens tissue paper,

and wipe the inner side of the front

glass.

Cleaner agent

For removing dirt from the front

glass after using the marine case.

Add two to three drops of the

cleaner on a lens tissue paper,

and wipe the inner side of the front

glass.

Lens tissue paper

Use the lens tissue paper

when applying the antifog

liquid on or removing dirt

from the front glass.

Marine case

Front glass

Camera base

Supplied Maintenance Kit

WR-MG77_EN_A5_EN.book Page 3 Thursday, May 3, 2007 9:34 AM

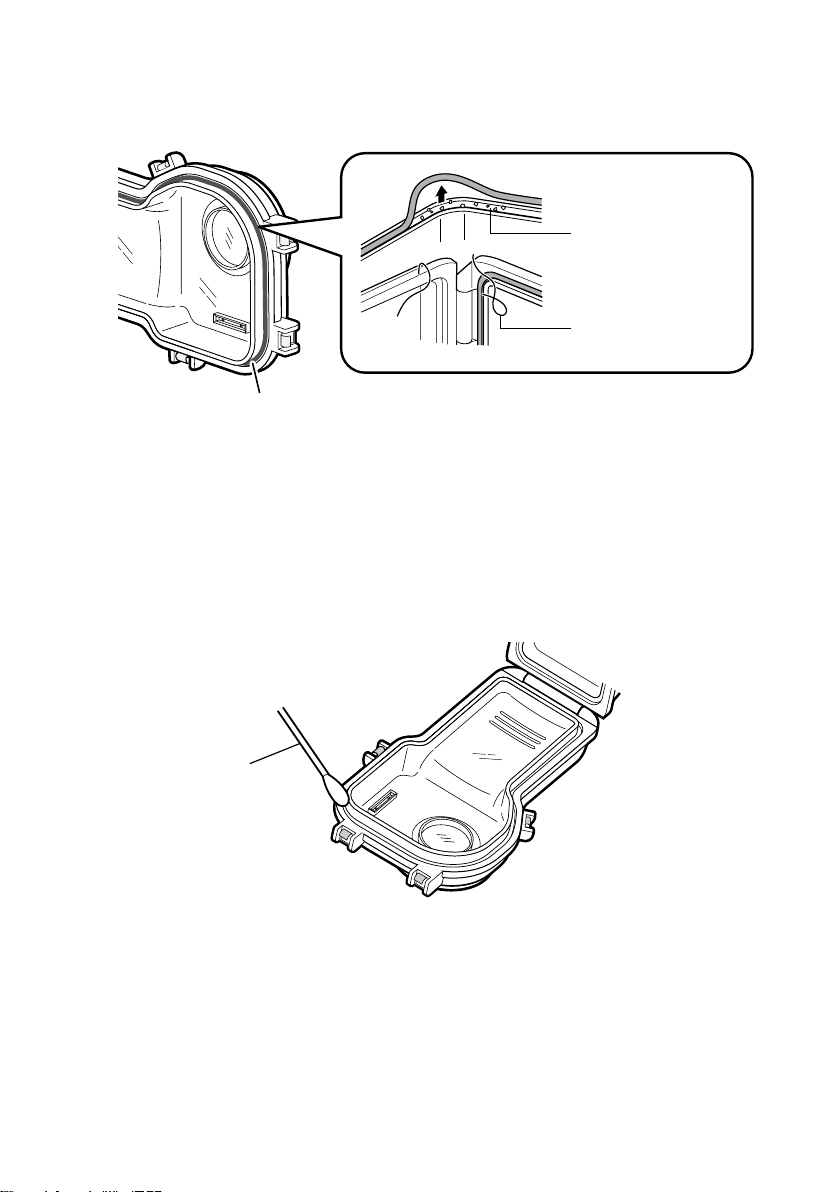

O-ring

Rubber ring for waterproofing.

Check to ensure that the ring is not twisted and foreign materials are not

attached, followed by attaching it to the designated position.

Cotton swab

For cleaning the O-ring groove.

Press it lightly against the O-ring groove and move it around the circumference

of the groove.

Dirt, sand, salt

crystals, etc.

Hair, thread, etc.

O-ring

Cotton swab

WR-MG77_EN_A5_EN.book Page 4 Thursday, May 3, 2007 9:34 AM

Plectrum

For removing the O-ring.

To remove the O-ring, insert the plectrum between the O-ring and the O-ring

groove.

Silicon grease

For protecting the O-rings and preventing water leakage.

Check to ensure that there is no foreign substance on the O-ring before

applying the grease.

Squeeze about 1 cm of the grease onto your finger, and apply it on the

O-ring by holding the O-ring with your fingers.

* Do not pull the O-ring with force.

Precautions

O-ring is important as it keeps the marine case airtight. Failure to

attach it correctly may cause water to enter the marine case and

the camera inside to malfunction as a result. Pay careful attention

when attaching the O-ring.

Plectrum

O-ring

O-ring groove

About 1 cm O-ring

Grease

WR-MG77_EN_A5_EN.book Page 5 Thursday, May 3, 2007 9:34 AM

Make sure to perform maintenance on the marine case.

Salt crystal or dirt will accumulate inside the marine case if maintenance is not

performed, and this may cause water leakage.

A Prepare a container that contains fresh water that is five times more

than the volume of the marine case.

• If only small containers are available, pour in fresh water that is equivalent to at

least five times the volume of the marine case over a few times, followed by

performing salt removal in G.

• The container must be big enough to allow the marine case to submerge fully.

• Perform salt removal for the grip as well.

B After diving, submerge the marine case in fresh water for 30 minutes

without removing the camera.

C Temporary salt removal

Shake the marine case in the upward, downward, left and right

directions for at least 10 times, followed by rinsing it.

• If you do not need to take out the camera immediately, proceed to Gfor the

actual salt removal.

D Remove the marine case and wipe off water droplets on the case

surface using a dry cloth.

E Face the front glass of the marine case upwards, and open the

buckles to remove the camera, while paying attention not to let water

droplets at the O-ring or buckles enter the case.

Example: Container with volume

equivalent to 1 marine case JPour in water over 5 times

After shooting (sea salt removal)

Front glass

WR-MG77_EN_A5_EN.fm Page 6 Wednesday, May 9, 2007 1:23 PM

F Upon removing the camera, close the marine case again while paying

attention not to allow water droplets enter the case, followed by

tightening all the buckles.

G Final salt removal

Submerge the marine case in fresh water for at least 1 hour to

remove salt.

• Shaking the case body in the upward and downward directions and rinsing it

helps to remove salt more effectively.

• Make sure the marine case is fully submerged in the fresh water.

H Remove the marine case and wipe off water droplets on the case

surface using a dry cloth. Then open the buckles to allow the inside

and outside of the case to dry thoroughly.

• Temperature, humidity, water temperature, salinity and other conditions

vary according to the environment of use.

Memo

䡵When the Start/Stop button does not function

• The Start/Stop button may be disabled when the zoom lever is fixed at the

T or W end.

• In this case, restore the zoom lever to the center position.

䡵To prevent the zoom lever from being jammed at a position

• Attachment of salt or sand to the zoom lever may cause it to jam, and

therefore cause the Start/Stop button to stop functioning.

• After use, submerge it in fresh water for at least 1 hour to remove any salt

deposit. Move the lever and button in the water to wash off salt deposited

in the spaces in between.

Note

WR-MG77_EN_A5_EN.fm Page 7 Monday, May 14, 2007 9:23 AM

Gurt

Führen Sie den Gurt

durch das Gurtbefesti-

gungsloch bevor Sie

das Unterwasserge-

häuse verwenden, um

sicheren Halt im Was-

ser zu gewährleisten.

STAR T / STOP

Schlossöffner

(Sechskantschlüssel)

Zur Verwendung, wenn sich

das Schloss schwer öffnen

lässt.

Führen Sie den Schlüssel in

das Schloss ein, und ziehen

Sie ihn zu sich.

Schloss

Silikontuch

Säubern Sie das

Unterwassergehäuse

mit frischem Wasser,

und wischen Sie die

Außenseite nach

dem Trocknen mit

dem Silikontuch ab.

Silica-Gel (Anti-Beschlagmittel)

Verhindert das

Beschlagen im

Unterwasserge-

häuse.

Bringen Sie es

zwischen der

Kamera und dem

Kameragriffgurt an, bevor Sie die

Kamera in das Unterwassergehäuse

einsetzen.

Achtung: Die Feuchtigkeitsaufnahme-

fähigkeit des Silica-Gels, das zuvor

verwendet wurde, kann sich je nach

Nutzungsbedingungen verschlech-

tern. Aus diesem Grund empfehlen

wir Ihnen, das Silica-Gel jedes Mal

auszutauschen.

Gurtbefestigungsloch

Schloss

Kameragriffgurt

Vorgehensweise bei der Anwendung

WR-MG77_GE_A5.fm Page 8 Tuesday, May 8, 2007 9:38 AM

Schraubschlüssel

Verwenden Sie den

Schlüssel, um die

Bodenplattenschraube

festzuziehen.

Antibeschlagsflüssigkeit

(um das Beschlagen zu verhindern)

Reinigen Sie das Frontglas mit

dem Glasreiniger, bevor Sie das

Unterwassergehäuse verwenden.

Geben Sie zwei bis drei Tropfen

des Reinigers auf ein Blatt des

Objektivseidenpapiers, und

wischen Sie damit die Innenseite

des Frontglases ab.

Reinigungsflüssigkeit

Zum Entfernen von Schmutz vom

Frontglas nach Verwendung des

Unterwassergehäuses.

Geben Sie zwei bis drei Tropfen

des Reinigers auf ein Blatt des

Objektivseidenpapiers, und

wischen Sie damit die Innenseite

des Frontglases ab.

Objektivseidenpapier

Verwenden Sie das

Objektivseidenpapier zum

Auftragen des Anti-

Beschlagmittels oder zum

Entfernen von Schmutz

vom Frontglas.

Unterwassergehäuse

Frontglas

Kamerabodenplatte

des mitgelieferten Wartungssets

WR-MG77_GE_A5.fm Page 9 Tuesday, May 8, 2007 9:38 AM

O-Ring

Gummiring zum Schutz vor Wassereindringen.

Überprüfen Sie den Ring auf Verkrümmungen und Fremdkörper, und bringen

Sie ihn anschließend in die vorgesehene Position.

Wattestäbchen

Zum Reinigen der O-Ring-Fuge.

Drücken Sie ihn leicht gegen die O-Ring-Fuge und wischen Sie sie ab.

Schmutz, Sand,

Salzkristalle etc.

Haare, Fäden etc.

O-Ring

Wattestäbchen

WR-MG77_GE_A5.fm Page 10 Tuesday, May 8, 2007 9:38 AM

Table of contents

Languages:

Other JVC Camcorder manuals

JVC

JVC GR-AX710 User manual

JVC

JVC GZ-MG26EK User manual

JVC

JVC Everio GZ-HD520 Instructions for use

JVC

JVC GZMG40US - Everio Camcorder - 1.33 MP User manual

JVC

JVC Everio GZ-E200 Operating and maintenance manual

JVC

JVC GR-D250 User manual

JVC

JVC GZ-MG505AG User manual

JVC

JVC GR-D70EK Administrator Guide

JVC

JVC GR-DVL9000U User manual

JVC

JVC LYT0002-0N4B User manual

JVC

JVC GZ-RX515 Operating and maintenance manual

JVC

JVC GZX900US - Everio Camcorder - 1080i Instructions for use

JVC

JVC GY-DV700WUCL - Cineline Dv Camcorder User manual

JVC

JVC GR-D850U User manual

JVC

JVC GZ-VX855 Operating and maintenance manual

JVC

JVC GR-DF565 User manual

JVC

JVC GR-DVM801 User manual

JVC

JVC UGZ-X900 Manual

JVC

JVC GY-X2B User manual

JVC

JVC GZ-MG40E/EK User manual

JVC

JVC GZ-MG760 Operating and maintenance manual

JVC

JVC GR-DVP5 System manual

JVC

JVC Everio GZ-E200 User guide

JVC

JVC GY-HM250ESB Parts list manual

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Panasonic

Panasonic NV-VS40B operating instructions

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

Panasonic

Panasonic AG-HMC152EN operating instructions

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Panasonic

Panasonic HDC-SD100 operating instructions

Sharper Image

Sharper Image U-VIDEO instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

Panasonic

Panasonic NVM40 Service manual

ATIK Cameras

ATIK Cameras Horizon manual

Sony

Sony Handycam HDR-CX580V owner's manual
