JVC VN-S200U/S100U User manual

VN-S200U/S100U

INSTRUCTIONS

For Customer Use:

Enter below the Serial No. which is

located on the body. Retain this

information for future reference.

Model No. VN-S200U/S100U

Serial No.

This instruction book is made from

100% recycled paper.

V.NETWOKS MULTI CAMERA BROWSER

SS961541-002

CUATION

•It is strictly prohibited to duplicate or copy any part or whole of this document.

•The information in this document is subject to changes without prior notice.

•

Bear in mind not to violate the copyright when using either the product or this document.

•

We cannot assume any liability for the consequences of any errors or mistakes occurring

in this document.

TRADEMARKS

Microsoft and Windows are registered trademarks of the Microsoft Corporation operating

both in the United States and in other countries.

This document omits symbols such as ™, ©, ® with trademarks.

Other corporate names and product names mentioned in this document are trademarks

or registered trademarks of their respective owners.

BEFORE RECORDING OR SAVING IMAGES

•Copyright law prohibits the use without authorization of the copyright owners of images

reproduced from TV broadcasting or video recording and the recording of images of

published materials such as posters, except for the purpose of personal entertainment.

•When recording or saving an important image, always be sure to perform test recording

in order to ensure correct recording and reproduction. Also take care of the available

hard disk capacity.

•We cannot assume any liability for damages which may be incurred in a case where

correct recording or reproduction is not available due to a problem with the present

application or with the computer software.

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . 7

VIEWING V.NETWORKS IMAGES . . . . . . . 9

CONTROLLING THE V.NETWORKS . . . . 12

RECORDING V.NETWORKS IMAGES. . . 14

DELETING RECORDING FILES. . . . . . . . 15

TIMER RECORDING . . . . . . . . . . . . . . . . . 16

PLAYING RECORDING IMAGES . . . . . . . 17

SNAPSHOT RECORDING . . . . . . . . . . . . 19

MANAGEMENT EXPLORER . . . . . . . . . . 20

CONTENTS

CHANGING THE VIEW WINDOW SETUP. .

SETTING ACCENT FRAME OF VIEW WINDOW . .

CHANGING THE V.NETWORKS SETUP . . .

SETTING THE POSITION MEMORY . . . . 34

ALARM SETTING . . . . . . . . . . . . . . . . . . . 35

ARRANGING THE WINDOWS . . . . . . . . . 38

RIGHT-CLICK MENU. . . . . . . . . . . . . . . . . 39

UNINSTALLATION . . . . . . . . . . . . . . . . . . 40

TROUBLE SHOOTING . . . . . . . . . . . . . . . 41

This application entitled "MULTI CAMERA BROWSER" (VN-S100U, VN-S200U)

is used to display images from multiple V.NETWORKS units on the operator

terminal equipment.

(The V.NETWORKS series products include the VN-C1U, VN-C2U and VN-

C3U. Verify that your V.NETWORKS unit is the VN-C1U, VN-C2U or VN-C3U.

INTRODUCTION

Operating Environment

The following environment is required to run this application.

Basic software:

Microsoft Windows 95, 98 or NT (Service Pack 4 or higher)

2000(Service Pack 1 or higher)

Computer:

A PC incorporating Pentium 333 MHz or faster CPU.

(Pentium 500 MHz or more is recommended.)

Memory

Available memory space of 64 MB or more.

(128 MB or more is recommended.)

Hard disk free capacity (before installation)

10 MB or more (Free space of at least 50 MB is required for recording.)

Disk device

CD-ROM drive is indispensable.

Display, video card

Resolution 640

480 or better. High Color (16-bit) display is indispensable.

(Resolution of 1024x768 or better and True Color (32-bit) display are

recommended)

Other

Microsoft Internet Explorer 4.01 Service Pack 1 or higher indispensable.

(Internet Explorer 5.0 or more is recommended.)

The MULTI CAMERA BROWSER is compatible only with JVC camera models

VN-C1U, VN-C2U and VM-C3U.

Main Functions

1. Multi-browsing

•Simultaneous connections to multiple V.NETWORKS units.

•Simultaneous browsing of up to 16 units (With the VN-S100U, up to 4

cameras can be browsed.)

2. Recording

•The displayed V.NETWORKS images can be saved as successive still

images.

•Variable saving interval.

•Timer recording. (This function is for exclusive use with the VN-S200U.)

3. PLAY BACK

•Playback of recording by simply specifying the time and date.

•Simultaneous display of saved time.

4. Pop-up

•Ctrl + double clicking on a window showing a V.NETWORKS image, displays

a magnified image in another window.

5. Snapshot

•Saving of still images in desired folders (up to 16 images).

6. Auto dial-up

•When a V.NETWORKS unit on WAN is registered, it can be connected by

automatic dial-up.

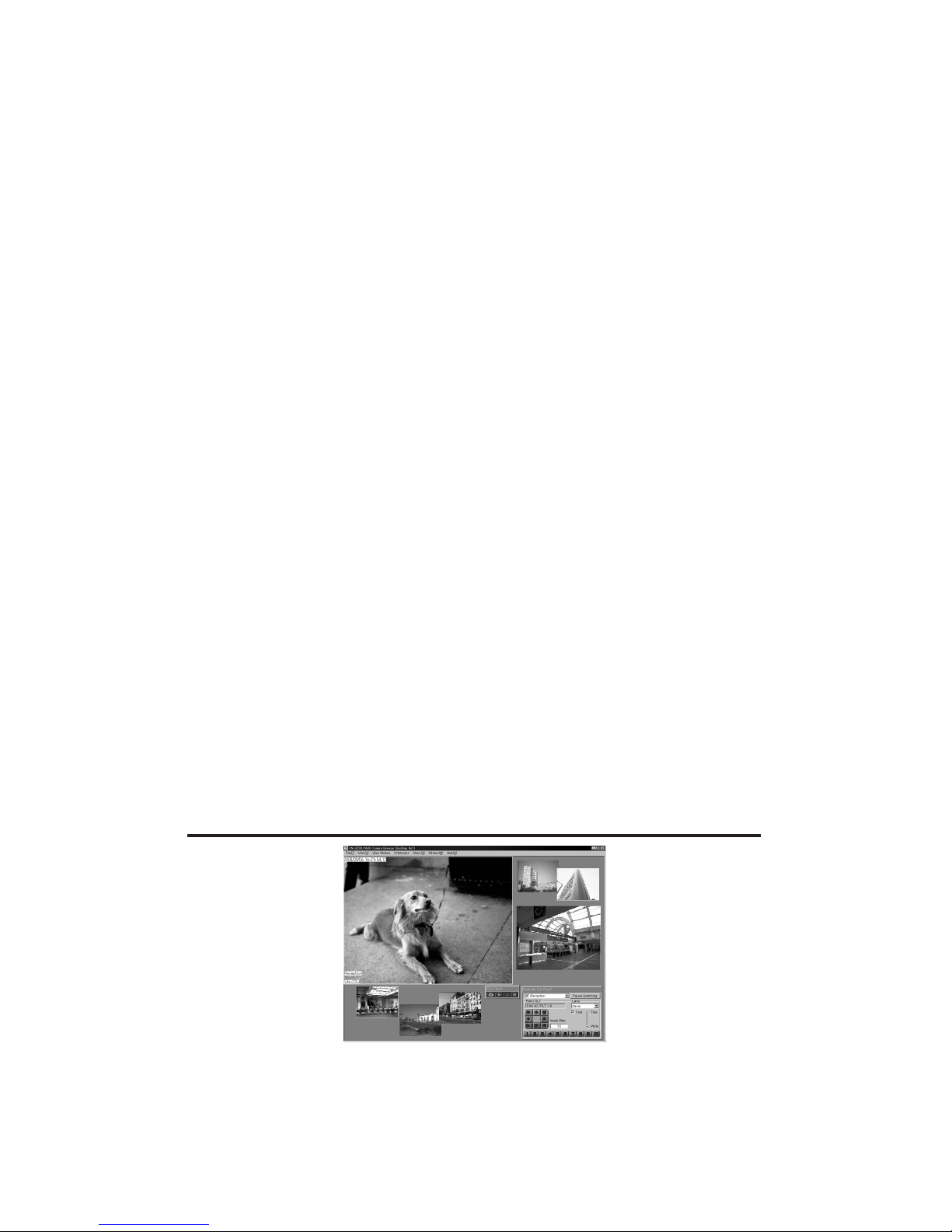

Overall View of MULTI CAMERA BROWSER Screen

Figure 1

NOTE) Fig. 1 shows the overall view with the VN-S200U.

With the VN-S100U, up to four images can be displayed in the View window.

Menu Function List

Pull-Down Item Outline

File

View

window

V.Networks

Alarm

Window

Help

New Work space

Open Work space

Save Work space

Save Work space as

Close Work space

(History)

Exit

Controller

REC/Play Controller

Tool Tip

Management Explorer

New View Window

Add View Window

Delete View Window

Start Recording

Stop Recording

Timer Recording

Start Playback

Stop Playback

Properties

Accent Frame

Delete V.Networks

Properties

Position Memory

Alarm Setting

Arrange view

Window

Align With Grid

Show All

Hide All

(Window List)

About

Creates a new work space.

Opens an existing work space.

Saves a work space by overwriting.

Saves a work space by assigning a new name.

Close the currently open work space.

Opens the last used workspace.

Exits from the browser.

Toggles the display of the V.NETWORKS

controller on and off.

Toggles the display of the recording,

playback and snapshot controller.

Toggles the display of the tool tip.

Show or hide the Management Explorer.

Creates a new View window.

Opens an existing View window.

Deletes the registration of a View window.

Saves the images in the View window as

successive images.

Stops recording.

Starts and stops recording automatically

at the set time of day.

Plays the recorded images successively.

Stops Playback.

Sets up the View window.

Sets up Accent Frame.

Registers a V.NETWORKS in the View window.

Deletes a V.NETWORKS from the View window.

Sets up a V.NETWORKS.

Sets up the position memory.

Sets up Alarm.

Arranges windows in a tile in the order

they were registered.

Arranges windows in a tile in the

alphabetical order of names

Aligns the windows with grid automatically.

Shows all View windows.

Hides all View windows.

Checks the View windows being displayed.

Shows the browser version.

Menu Item

Registration

by Name

V.NETWORKS No.1

V.NETWORKS No.2

V.NETWORKS No.16

V.NETWORKS No.17

V.NETWORKS No.18

V.NETWORKS No.32

V.NETWORKS No.241

V.NETWORKS No.242

V.NETWORKS No.256

Construction of MULTI CAMERA BROWSER

Work space (*.vnw)

View window No.1

View window No.2

View window No.16

*The figure above shows the construction of the VN-S200U.

With the VN-S100U, the following restrictions are applied.

•Number of View windows . . . . . . . . . . . . . . 4

•Number of cameras per View windows . . . . 4

This section describes the installation procedure of the application.

1. Insert the "VN_S200U" CD-ROM in the CD-ROM drive (* with the VN-S200U).

2. Double-click \Jvc\setup.exe of the CD-ROM in order to run it.

INSTALLATION

In advance, set the IP addresses of the VN-C1U/C2U/C3U cameras to

be used sing the provided setup tool. For the operating procedure of

the setup tool, refer to the cameras' instruction manuals.

Installation has completed

3. Perform operations in accordance with the displayed instructions.

Click here to change the installation

destination.

* Enter the "SERIAL NUMBER"

shown on the sticker attached to

the back of the CD-ROM case.

VIEWING V.NETWORKS IMAGES

This section describes the operations procedure for displaying V.NETWORKS

images on your PC.

1. Start the Multi Camera Browser.

1-1. From "Start" on the taskbar, select [Programs] - [V.NETWORKS] - [vn-

s200u Multi Camera Browser] to start it.

2. Create a workspace

2-1. On the menu bar, select [File] - [New Workspace] to create a new

workspace.

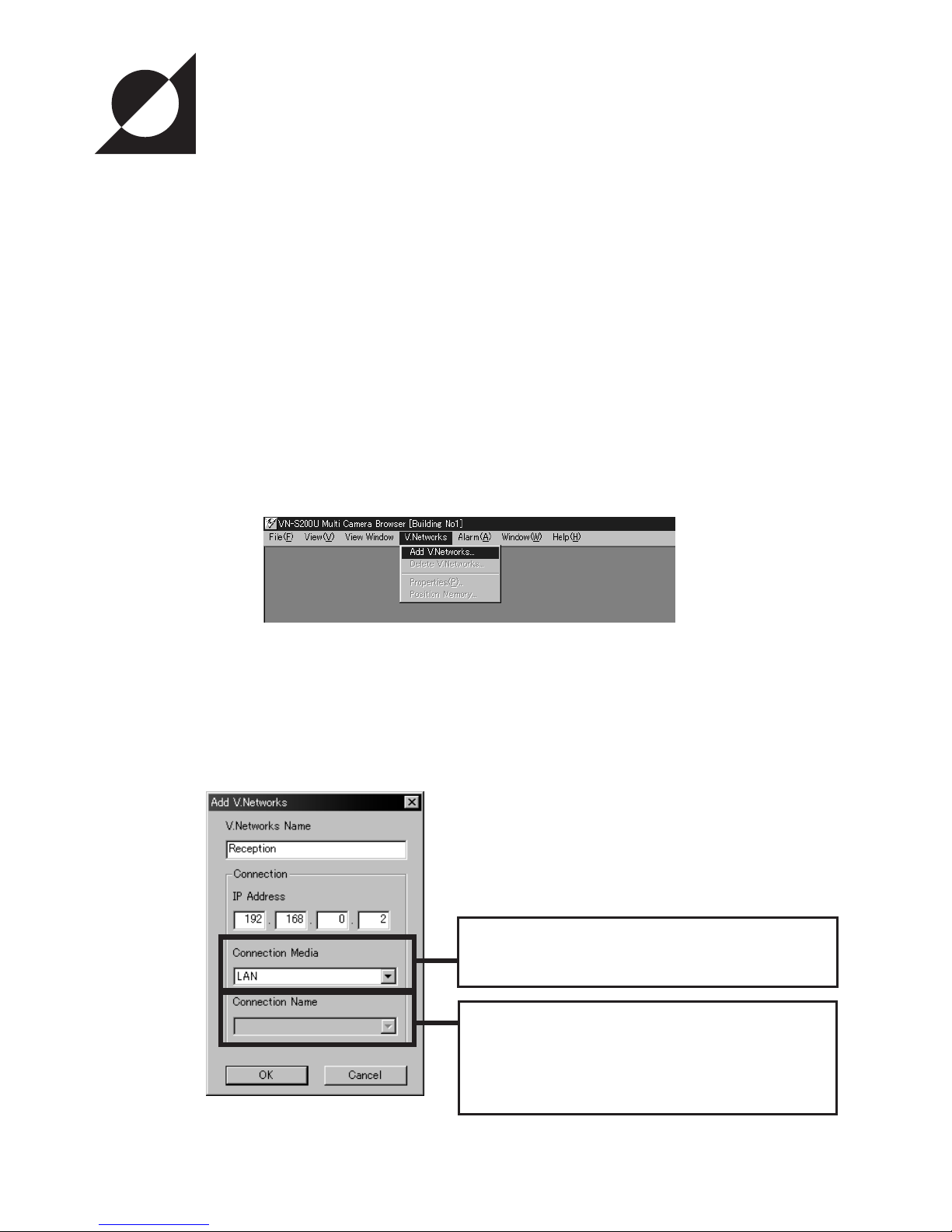

3. Register V.NETWORKS in the workspace

3-1. On the menu bar, select [V.Networks] - [Add V.Networks]

3-2.

Enter the V.NETWORKS name, IP address, connection mode and

connection destination(only when 'WAN' is selected as the connection

mode).

LAN : Connected through LAN

WAN : Dial-up connection

When WAN is used, it is necessary to

set the connection destination in

advance. For the procedure, refer to the

Windows manual and other documents.

4. Create a View window

4-1. On the menu bar, select [View Window] - [New View Window].

4-2. When a window is displayed, enter the View window name in it.

4-3.

On the "View Window Setup" item, select the View window where you

want to add the V.NETWORKS and click the <Add> button.

4-4. When the "Add V.Networks" window is displayed, click the displayed

contents in order to display all the V.NETWORKS units registered for

the workspace. Select the

V.NETWORKS to be added to the View

window and click the <OK> button.
