JVC GR-SXM57 User manual

1000MKV*UN*PJ

VICTOR COMPANY OF JAPAN, LIMITED

COMPACT

VHS CAMCORDER

INSTRUCTIONS

GR-SXM607

GR-SXM57

GR-SXM47

GR-SX202

GR-SX22

GR-FXM 37

GR-FX12

GR-SX M 607

GR-SX M 57

GR-SX M 47

GR-SX 202

GR-SX 22

GR-FX M 37

GR-FX 12

VHS

PAL

625

ENGLISH

CONTENTS

SAFETY PRECAUTIO NS

2 – 3

AU TOM ATIC DEM O N STRATIO N

PRO VIDED ACCESSO RIES

GETTIN G STARTED

6 – 13

RECORD IN G

14 – 29

Basic Recording .......................... 14

Basic Features ........................... 16

Zooming, 5-Sec. Recording, Picture Stabilizer,

Quick Review , Video Light, Retake

Advanced Features ...................... 18

Snapshot, Night-Scope, Fade/ Wipe Effects,

Program AE w ith Special Effects,

Digital Effects, Using Menu For Detailed

Adjustment, Date/ Time Insert, Instant Titles,

Animation, Time-Lapse, Exposure Control,

Focusing, White Balance Adjustment,

Manual W hite Balance Operation

PLAYBACK

30 – 34

Basic Playback ........................... 30

Features .................................. 31

Connections ............................... 32

Using The Cassette Adapter ........... 34

USIN G THE REM OTE CON TRO L

UNIT (GR-SXM 607/ SXM 57/

SX202 only)

35 – 43

Playback Zoom .......................... 37

Animation And Time-Lapse ............. 37

Insert Editing .............................38

Audio Dubbing ........................... 39

Random Assembly Editing.............. 40

DETAILS

44 – 45

TROUBLESHOO TING

46 – 47

IND EX

48 – 51

Controls, Connectors

And Indicators ......................... 48

Indications ................................ 50

CAUTIONS

52 – 54

SPECIFICATIO NS

S-VHS is compatible with

GR-SXM607/SXM57/SXM47/

SX202/SX22 only.

Downloaded from: https://www.usersmanualguide.com/

2EN

U sing This Instruction M anual

• All major sections and subsections are listed in the Table Of Contents on the cover.

• Notes appear after most subsections. Be sure to read these as well.

• Basic and advanced features/operation are separated for easier reference.

It is recommended that you . . .

.... refer to the Index (pgs. 48 – 51) and familiarize yourself with button locations, etc. before use.

.... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe

use of this product.

SAFETY PRECAUTIO N S

You are recommended to carefully read the cautions on pages 52 – 54 before use.

WARN IN G:

TO PREVENT FIRE O R SHO CK

HAZARD, DO N OT EXPO SE

THIS U N IT TO RAIN O R

M O ISTURE.

Dear Customer,

Thank you for purchasi ng the JVC Compact VH S camcorder. Before use, please read the safety information

and precautions contained in the following pages to ensure safe use of this product.

Cassettes marked “ ” and “ ” can be used with this camcorder.

However, S-VHS recordings are possible* only with cassettes marked “ ” .

* GR-SXM607/SXM57/SXM47/SX202/SX22 only.

625

CAUTIO N S:

To prevent shock, do not open the cabinet. No

user serviceable parts inside. Refer servicing to

qualified personnel.

When you are not using the AC Adapter for a

long period of time, it is recommended that

you disconnect the power cord from AC outlet.

N OTES:

●

The rating plate (serial number plate) and safety

caution are on the bottom and/or the back of

the main unit.

●

The rating information and safety caution of the

AC Adapter are on its bottom.

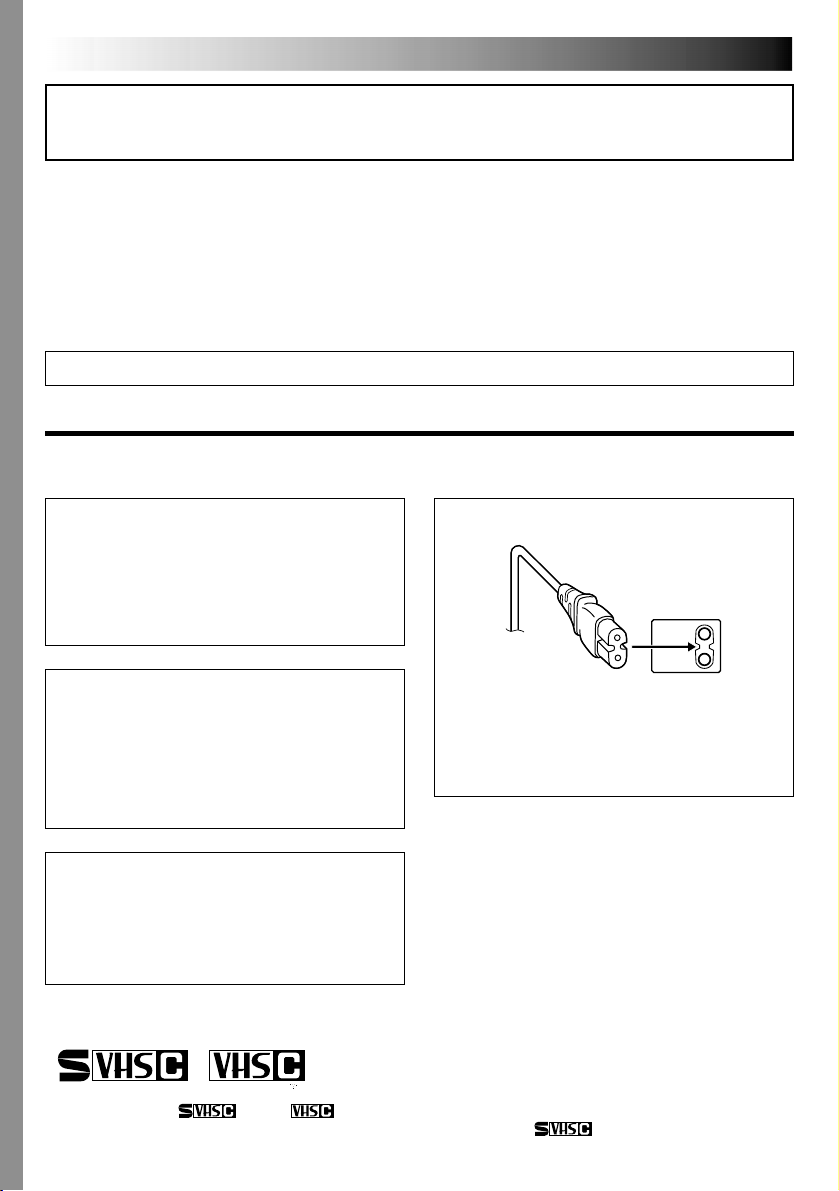

CAUTIO N :

To avoid electric shock or damage to the unit,

first firmly insert the small end of the power

cord into the AC Adapter until it is no longer

wobbly, and then plug the larger end of the

power cord into an AC outlet.

Downloaded from: https://www.usersmanualguide.com/

EN3

When the equipment is installed in a cabinet or

on a shelf, make sure that it has sufficient space

on all sides to allow for ventilation (10 cm or

more on both sides, on top and at the rear).

Do not block the ventilation holes.

(If the ventilation holes are blocked by a

newspaper, or cloth etc. heat may not be able to

get out.)

No naked flame sources, such as lighted candles,

should be placed on the apparatus.

When discarding batteries, environmental

problems must be considered and local rules or

laws governing the disposal of these batteries

must be followed strictly.

The apparatus shall not be exposed to dripping

or splashing.

Do not use this equipment in a bathroom or

places with water.

Also do not place any containers filled with

water or liquids (such as cosmetics or medicines,

flower vases, potted plants, cups etc.) on top of

this unit.

(If water or liquid is allowed to enter this

equipment, fire or electric shock may be

caused.)

This camcorder is designed to be used with

PAL-type colour television signals. It cannot be

used for playback with a television of a different

standard. However, live recording and LCD

monitor*/viewfinder playback are possible

anywhere. Use the JVC BN-V11U**/V12U/

V20U/V400U battery packs and, to recharge

them or to supply power to the camcorder from

an AC outlet, use the provided multi-voltage AC

Adapter. (An appropriate conversion adapter

may be necessary to accommodate different

designs of AC outlets in different countries.)

* Models equipped with LCD monitor only.

** GR-FXM37/FX12 only.

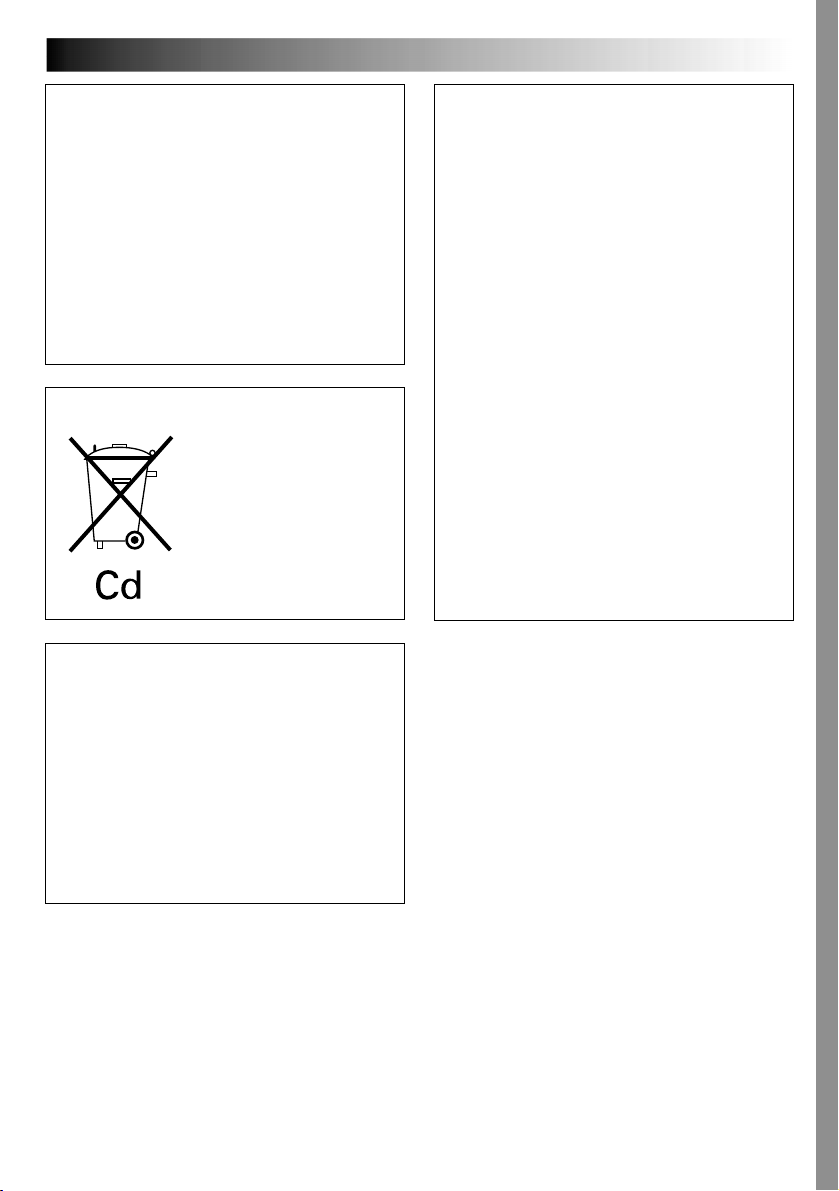

Crossed Out D ust Bin M ark

The Crossed Out Dust Bin

Mark on the battery pack

indicates that the product

complies with Directives

91/157/EEC and 93/86/EEC.

Nickel-Cadmium (Ni-Cd)

battery pack must be

recycled or disposed of

properly.

Caution on Replaceable lithium battery

The battery used in this device may present a fire

or chemical burn hazard if mistreated.

Do not recharge, disassemble, heat above 100°C

or incinerate.

Replace battery with Panasonic (Matsushita

Electric), Sanyo, Sony or Maxell CR2025.

Danger of explosion or Risk of fire if the battery

is incorrectly replaced.

Dispose of used battery promptly.

Keep away from children.

Do not disassemble and do not dispose of in

fire.

Downloaded from: https://www.usersmanualguide.com/

4EN

• AC Adapter

AP-V10EG

• Remote Control U nit RM -V715U

(GR-SXM 607/ SXM 57/ SX202

only)

• Shoulder Strap

• Battery Pack

BN -V11U (GR-FXM 37/ FX12)

BN -V20U (GR-SXM 607/ SXM 57/

SXM 47/ SX202/ SX22)

• Cable Adapter

(with an -IN connector)

(GR-SXM 607/ SXM 57/ SXM 47/

SX202/ SX22 only)

• A/ V (Audio/ Video) Cable• AAA (R03) Battery x 2

(for Remote Control U nit,

GR-SXM 607/ SXM 57/ SX202 only)

• S-Video Cable

(GR-SXM 607/ SXM 57/

SXM 47/ SX202/ SX22

only)

• Core Filter x 3

(for provided A/ V Cable

and AC Adapter,

GR-FXM 37/ FX12 only)

• Core Filter x 4

(for provided A/ V Cable,

S-Video Cable and AC Adapter,

GR-SXM 607/ SXM 57/ SXM 47/

SX202/ SX22 only)

• Cable Adapter

(without an -IN connector)

(GR-FXM 37/ FX12 only)

• Lens Cap

• Power Cord

AUTOM ATIC DEM ON STRATIO N

Automatic D emonstration takes place when ”D EM O M O D E” is set to ”O N ”

(factory-preset).



Available when the Power Switch is set to ””or ””.



Operating the Power Zoom Lever during the demonstration stops the

demonstration temporarily. If the Power Zoom Lever is not moved for

more than 1 minute after that, the demonstration will resume.



“DEMO MODE”remains ”ON”even if the camcorder power is turned

off.



To cancel Automatic Demonstration, set the Power Switch to “”and

press M EN U while the demo is in progress. This takes you directly to the

demo mode’s Setting Menu (so you will not have to go through the main

Menu Screen). Rotate M EN U to select “OFF”and press it.

N OTE:

When a tape whose Erase Protection tab is in the position that allows recording is loaded in the

camcorder, demonstration is not available.

DEMO MODE

Setting M enu

PROVIDED ACCESSO RIES

Downloaded from: https://www.usersmanualguide.com/

EN5

How To Attach The Core Filter

Attach the provided Core Filter to the provided A/V Cable, S-Video Cable and AC Adapter.

The Core Filter reduces interference.

Release the stoppers on both ends of the Core

Filter.

Run the cable through the Core Filter, leaving

approx. 5 cm of cable between the cable plug

and the Core Filter. Wind the cable around the

outside of the Core Filter as shown in the

illustration.

•Wind the cable so that it is not slack.

N OTE:

Take care not to damage the cable.

Close the Core Filter until it clicks shut.

Connect the end of the cable with the Core

Filter to the camcorder.

5 cm

Stopper

132

How To Attach The Lens Cap

To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.

With the provided AC Adapter, attach Core Filters to both ends of the cable as shown below.

5 cm 5 cm

Downloaded from: https://www.usersmanualguide.com/

6EN

GETTING STARTED

Pow er

This camcorder’s 2-way power supply system lets you

choose the most appropriate source of power. Do not use

provided power supply units with other equipment.

CHARGING THE BATTERY PACK

Make sure the battery pack is attached to the

camcorder. Hook its end to the camcorder 1and

push the battery in until it locks in place 2.

•If the battery pack is attached in the wrong position,

a malfunction may occur.

Set the Power Switch to “OFF”. Connect the AC

Adapter to the camcorder 3, then connect the Power

Cord to the AC Adapter 4.

Plug the Power Cord into an AC outlet 5.

The CHARGE lamp on the camcorder bli nks to

indicate charging has started.

When the CHARGE lamp stops blinking but stays li t,

charging is finished. Unplug the Power Cord from the

AC outlet. Disconnect the AC Adapter from the

camcorder.

To Detach The Battery Pack . . .

.... slide BATTERY RELEASE and pull out the battery pack.

N OTES:

●

During charging or discharging, the camcorder cannot

be operated.

●

Charging and discharging is not possible if the wrong

type of battery is used.

●

When charging the battery pack for the first time or after

a long storage period, the CHARGE lamp may not light.

In this case, remove the battery pack from the

camcorder, then try charging again.

●

If the battery operation time remains extremely short

even after having been fully charged, the battery is worn

out and needs to be replaced. Please purchase a new

one.

●

Using the optional AA-V15EG AC Power Adapter/

Charger, you can charge the BN-V11U/V12U/V20U/

V400U battery pack without the camcorder. However, it

cannot be used as an AC adapter.

To AC outlet

Battery pack

AC Adapter

CHARGE Lamp

REFRESH:

Charging a battery with some charge remaining reduces that battery’s capacity. Perform the procedure

below to fully discharge the battery pack before recharging.

1. Perform steps 1through 3of “CHARGING THE BATTERY PACK”.

2. Press REFRESH on the camcorder for over 2 seconds. The REFRESH lamp on the camcorder blinks to

indicate discharging has started.

3. When discharging is finished, charging automatically starts and the CHARGE l amp blinks.

When you are not using a battery pack for a long period of time, be sure to fully discharge it before storing

because leaving a battery with some charge left over also reduces performance.

* GR-FXM37/FX12 only.

** Provided w ith GR-SXM607/SXM57/SXM47/

SX202/SX22 only.

To D C IN

connector

For other notes, pg. 44

Hook on.

Push in.

BATTERY RELEASE Switch

REFRESH Button

REFRESH Lamp

Power Switch

Battery pack

BN-V11U*

BN-V12U (optional)

BN-V20U ** (optional)

BN-V400U (optional)

Charging time

approx. 1 hr. 10 min.

approx. 1 hr. 50 min.

approx. 3 hr. 40 min.

Downloaded from: https://www.usersmanualguide.com/

EN7

U SIN G AC PO W ER

Use the AC Adapter (connect as shown in the illustration).

N OTES:

●

The provided AC Adapter features automatic voltage

selection in the AC range from 110 V to 240 V.

●

For other notes,



pg. 44.

To DC IN

connector

To AC outlet

AC Adapter

Charge marker

A charge marker is provided on

the battery pack to help you

remember whether it has been

charged or not. Two colours are

provided (red and black)—you

choose which one means

charged and which means

discharged.

ATTEN TION :

Before detaching the power source, make

sure that the camcorder’s power is turned

off. Failure to do so can result in a

camcorder malfunction.

N OTES:

●

Recording time is reduced significantly under the

following conditions:

•

Zoom or Record-Standby mode is engaged repeatedly.

•

The LCD monitor is used repeatedly (models equipped

with LCD monitor only).

●

Before extended use, it is recommended that you

prepare enough battery packs to cover 3 times the

planned shooting time.

USIN G THE BATTERY PACK

Perform step 1of “CHARGIN G THE BATTERY PACK”

(pg. 6).

Approximate recording time (unit: min.)

1When using models equipped with LCD monitor

2When using GR-SX202/SX22/FX12

( ) : when the video light is on

(GR-SXM607/SXM57/SXM47/SX202/SX22 only)

Battery pack

BN-V11U

BN-V12U

(optional)

BN-V20U

(optional)

BN-V400U

(optional)

LCD monitor off/

Viewfinder on

95 100

(50) (50)

95 100

(50) (50)

150 165

(85) (90)

360 385

(205) (210)

LCD monitor on/

Viewfinder off

(45)

135

(75)

315

(190)

Downloaded from: https://www.usersmanualguide.com/

8EN

GETTING STARTED

(cont.)

PAUSE

180

Power Zoom

Lever

Recording

Start/ Stop

Button

Set to “”or

“”.

Shoulder Strap Attachment

Following the illustration, thread the strap through the

eyelet 1, then fold it back and thread it through the

buckle 2. Repeat the procedure to attach the other

end of the strap to the other eyelet 3, making sure

the strap is not twisted.

Adjust as shown in the illustration 4.

CAUTIO N :

When using a tripod, be sure to open and extend

its legs fully to Stabilize the camcorder. To

prevent damage to the unit caused by falling

over, do not use a small-sized tripod.

Tripod Mounting

Align the screw and camera direction stud on the

tripod with the camera’s mounting socket and stud

hole. Then tighten the screw.

Grip Adjustment

Separate the Velcro strip.

Pass your right hand through the loop and grasp the

grip.

Adjust so that your thumb and fingers can easily

operate the Recording Start/Stop Button and Power

Zoom Lever. Refasten the Velcro strip.

View finder Adjustment

Set the Power Switch to “”or “”.

Adjust the viewfinder manually for best viewability.

Turn the Dioptre Adjustment Control until the

indications in the viewfinder are clearly focused.

Downloaded from: https://www.usersmanualguide.com/

EN9

VIDEO OUT



TEM ME

DATE / T I ME

024-hour

indication

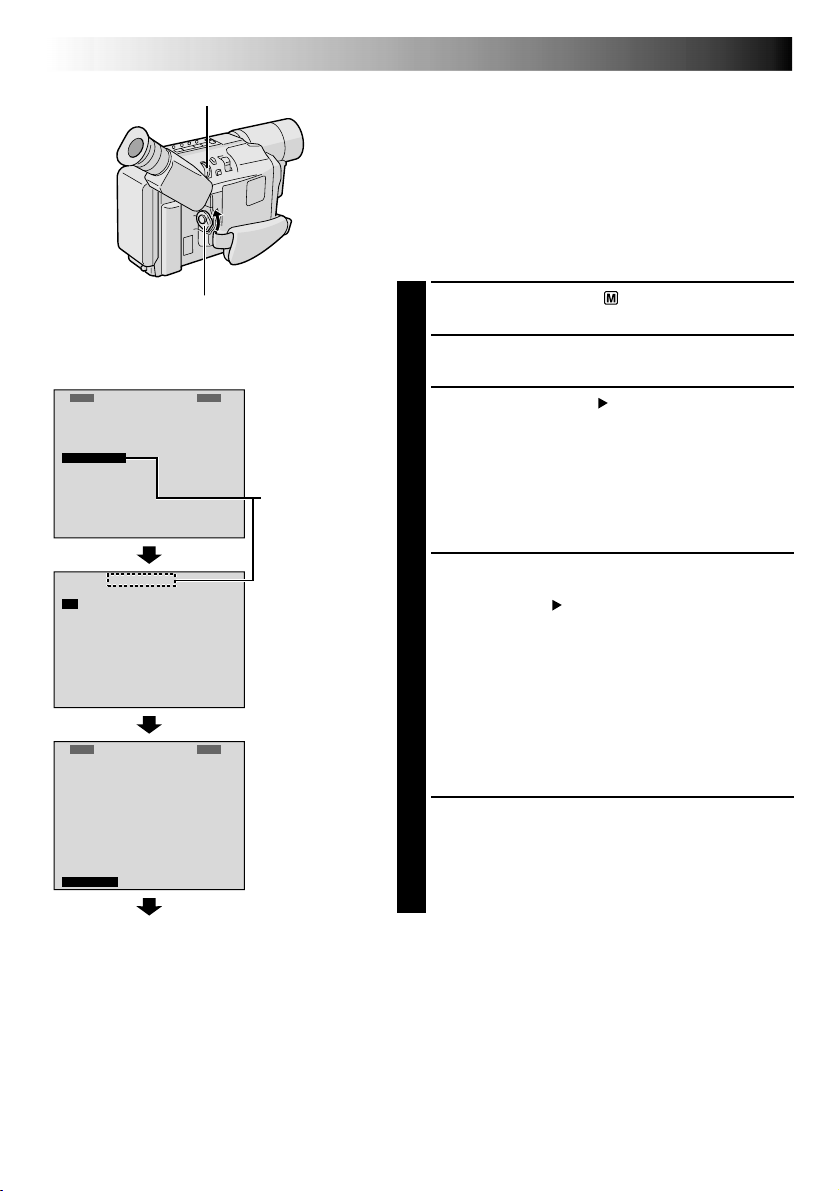

M enu Screen

D ATE/ TI M E M enu

M EN U W heel

Power Switch

Display

Date/ Time Settings

Set the Power Switch to “”. The power lamp

comes on.

Press M EN U. The Menu Screen appears.

Rotate M EN U to select “TO SYSTEM MENU”and

press it to display SYSTEM MENU. Rotate M EN U to

select “NEXT”and press it to display the next page.

Rotate M EN U to select “DATE/TIME”and press it.

The DATE/TIM E Menu appears.

To set “YEAR”, “MONTH”, “DAY”or “TIME”(hour/

minute), rotate M EN U to select the desired item, and

press it. When the setting begins blinking, rotate

M EN U until the correct setting appears and then

press it. The setting stops blinking.

When none of these settings (“YEAR”, “MONTH”,

“DAY”, “TIME”) blinks, rotate M EN U to select “EXIT”,

and press it. The Menu Screen reappears with the

highlight bar on “RETURN”.

Press M EN U to close the Menu Screen.

N OTE:

To display the date and time in the camcorder’s display and

on a connected TV, see “Date/Time Insert”(



pg. 25).

VID EO OU T

M enu

Video Out Setting

(GR-SXM607/ SXM 57/ SXM47/ SX202/ SX22 only)

Set to “PA L”or “SECAM”according to the system of the

TV or VCR you will be using.

N OTE:

If you change the PAL/SECAM setting during playback, the

playback picture colour may be affected. Be sure to

choose the correct setting before you start shooting.

Perform steps 1through 3above.

Rotate M EN U to select “VIDEO OUT”and press it.

The VIDEO OUT Menu appears.

Rotate M EN U to select the desired mode, then press

it. The desired mode is activated.

The Menu Screen reappears with the highlight bar on

“RETURN”. Press M EN U to close the Menu Screen.

N OTE:

Recordings are made in PAL with this

camcorder. If you wish to play back recorded

tapes on a VCR or camcorder other than this

unit, be sure to use a PAL VCR or camcorder.

For other notes, pg. 44

Downloaded from: https://www.usersmanualguide.com/

10 EN



–



–

S–VHS ET

Normal Screen

M EN U W heel

Power Switch

Setting M enu

Display: when a VH S cassette is loaded.

M enu Screen

Recording Format Setting

(GR-SXM607/ SXM 57/ SXM47/ SX202/ SX22 only)

Set the recording format according to the format of the

tape used or type of recording you wish to perform.

N OTE:

S-VHS ET recording is not possible when the recording

mode is set to “LP” .

Before performing the following steps, make sure that the

recording mode is set to “SP”(



pg. 12).

Set the Power Switch to “”. The power lamp

comes on.

Press M EN U. The Menu Screen appears.

Rotate M EN U to select “TO SYSTEM MENU”and

press it to display SYSTEM MENU.

If a VH S cassette is loaded . . .

.... rotate M EN U to select “S-VH S ET”, then press it.

The S-VHS ET Setting Menu appears.

If an S-VHS cassette is loaded . . .

.... rotate M EN U to “S-VHS”, then press it.

The S-VHS Setting Menu appears.

Rotate M EN U to set to either of the parameters, then

press it. The Menu Screen reappears with the

highlight bar on “RETURN” .

In the S-VH S ET Setting M enu,

ON : Records with S-VHS picture quality on a VHS

cassette (factory-preset). This is called Super

VH S ET (Expansion Technology).

OFF: Records in VHS.

In the S-VH S Setting M enu,

ON : Records in S-VHS on an S-VHS cassette

(factory-preset).

OFF: Records in VHSon an S-VHS cassette.

Press M EN U to close the Menu Screen.

•When the S-VH S ET mode is engaged, “S-ET”is

displayed.

•During S-VHS record mode, “ S“ is displayed.

•When S-VH S ET or S-VHS recording starts,

“S-VHS REC”is displayed for approx. 3 seconds.

N OTE:

If a cassette is not loaded, “S-VHS”will be displayed in the

Menu Screen.

W hen an S-VHS

cassette is

loaded: S-VH S

GETTING STARTED

(cont.)

Downloaded from: https://www.usersmanualguide.com/

This manual suits for next models

Table of contents

Other JVC Camcorder manuals

JVC

JVC GR-D750AS User manual

JVC

JVC GR-DVX44 User manual

JVC

JVC GC-FM2 Operating and maintenance manual

JVC

JVC GR-SXM547 User manual

JVC

JVC GR-D347U User manual

JVC

JVC GZ-HD520BEK User manual

JVC

JVC GR-DF540 User manual

JVC

JVC GR-AX940 User manual

JVC

JVC GZ HD5 - Everio Camcorder - 1080i User manual

JVC

JVC Everio GZ-MS150S Operating and maintenance manual

JVC

JVC GY-HM100U - Camcorder - 1080p User manual

JVC

JVC GR-D51AG User manual

JVC

JVC GZ-MG340U User manual

JVC

JVC GR-D340E/EK User manual

JVC

JVC LYT0216-001B User manual

JVC

JVC Everio GZ-E10 User guide

JVC

JVC KY-F550 User manual

JVC

JVC GZ-MG77EK User manual

JVC

JVC GZMG27US - Everio Camcorder - 680 KP User manual

JVC

JVC GY-HM70E Operating and maintenance manual

JVC

JVC GZ HD5 - Everio Camcorder - 1080i User manual

JVC

JVC GR-DX97 User manual

JVC

JVC UGZ-X900 Manual

JVC

JVC GZMC100 - Everio 2MP 4 GB Microdrive... Quick start guide

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Panasonic

Panasonic NV-VS40B operating instructions

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

Panasonic

Panasonic AG-HMC152EN operating instructions

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Panasonic

Panasonic HDC-SD100 operating instructions

Sharper Image

Sharper Image U-VIDEO instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

Panasonic

Panasonic NVM40 Service manual

ATIK Cameras

ATIK Cameras Horizon manual

Sony

Sony Handycam HDR-CX580V owner's manual
