JVC AA-V50EG User manual
AA-V50EG/EK
INSTRUCTIONS
LYT0389-001A
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
GEBRUIKSAANWIJZING
MANUAL DE INSTRUCCIONES
MANUALE DI INSTRUZIONI
INSTRUKTIOSNBOG
KÄYTTÖOHJEET
BRUKSANVISNING
BRUKSANVISNING
AC POWER ADAPTER/CHARGER
NETZADAPTER/LADEGERÄT NÄTTILLSATS/BATTERILADDARE
ADAPTATEUR SECTEUR/CHARGEUR DE BATTERIE
AC SPENNINGSADAPTER/BATTERILADER
LICHTNETADAPTER/ACCULADER
ADAPTADOR/CARGADOR DE CA
CARICABATTERIE/ALIMENTATORE CA
LYSNETADAPTER/OPLADER
VERKKOLAITE/AKUN LATAAJA
ENGLISH
DEUTSCH
FRANÇAIS
NEDERLANDS
CASTELLANO
ITALIANO
DANSK
SUOMI
SVENSKA
NORSK
EN-2
Thank you for purchasing the JVC AC Power Adapter/Charger. This unit provides DC power for the JVC
Digital Video Camera from a household AC outlet. It can be used to recharge the JVC battery pack for
exclusive use with the JVC Digital Video Camera, and is capable of charging two battery packs
consecutively. To avoid problems and obtain the best results, please read this instruction booklet carefully
before use. Before using as a power adapter, make sure that this unit's model number is the same as that of
the power supply unit specified in the instruction manual of the equipment you wish to power.
WARNING—
DANGEROUS
VOLTAGE INSIDE
CAUTION:
When you are not using this unit for a long
period of time, it is recommended that you
disconnect the power cord from AC outlet.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
This unit should be used with AC 110 – 240 V``
``
`,
50/60 Hz only.
CAUTION:
To prevent electric shocks and fire hazards, do
NOT use any other power source.
CAUTION:
To prevent electric shock, do not open the
cabinet. No user serviceable parts inside. Refer
servicing to qualified service personnel.
NOTE:
The rating plate (Serial number plate) is on the
bottom of the unit.
EN-3
This AC Power Adapter/Charge is for use
exclusively with JVC Digital Camcorders.
CAUTIONS:
•If used near a radio, this unit may interfere
with reception.
•Prevent inflammables, water and metallic
objects from entering the unit.
•Do not disassemble or modify the unit.
•Do not apply shocks to the unit.
•Do not subject the unit to direct sunlight.
•Avoid using the unit in extremely hot or humid
places.
•Avoid using the unit in places subject to
vibrations.
A WORD ON THE EXCLUSIVE BATTERY PACKS
The battery packs are lithium-ion.
Give attention to the following to make the most
of their characteristics.
For charging: 10°C to 35°C
For operating: 0°C to 40°C
For storing: –10°C to 30°C
IMPORTANT
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved
extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted, and to replace the
fuse cover.
If nonetheless the mains plug is cut off ensure to
remove the fuse and dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent
connection to the mains supply.
If this product is not supplied fitted with a mains plug
then follow the instructions given below:
DO NOT make any connection to the Larger Terminal
coded E or Green. The wires in the mains lead are
coloured in accordance with the following code:
Blue to N (Neutral) or Black
Brown to L (Live) or Red
If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured
black.
Brown wire to terminal coded L (Live) or coloured
Red.
If in doubt — consult a competent electrician.
EN-4

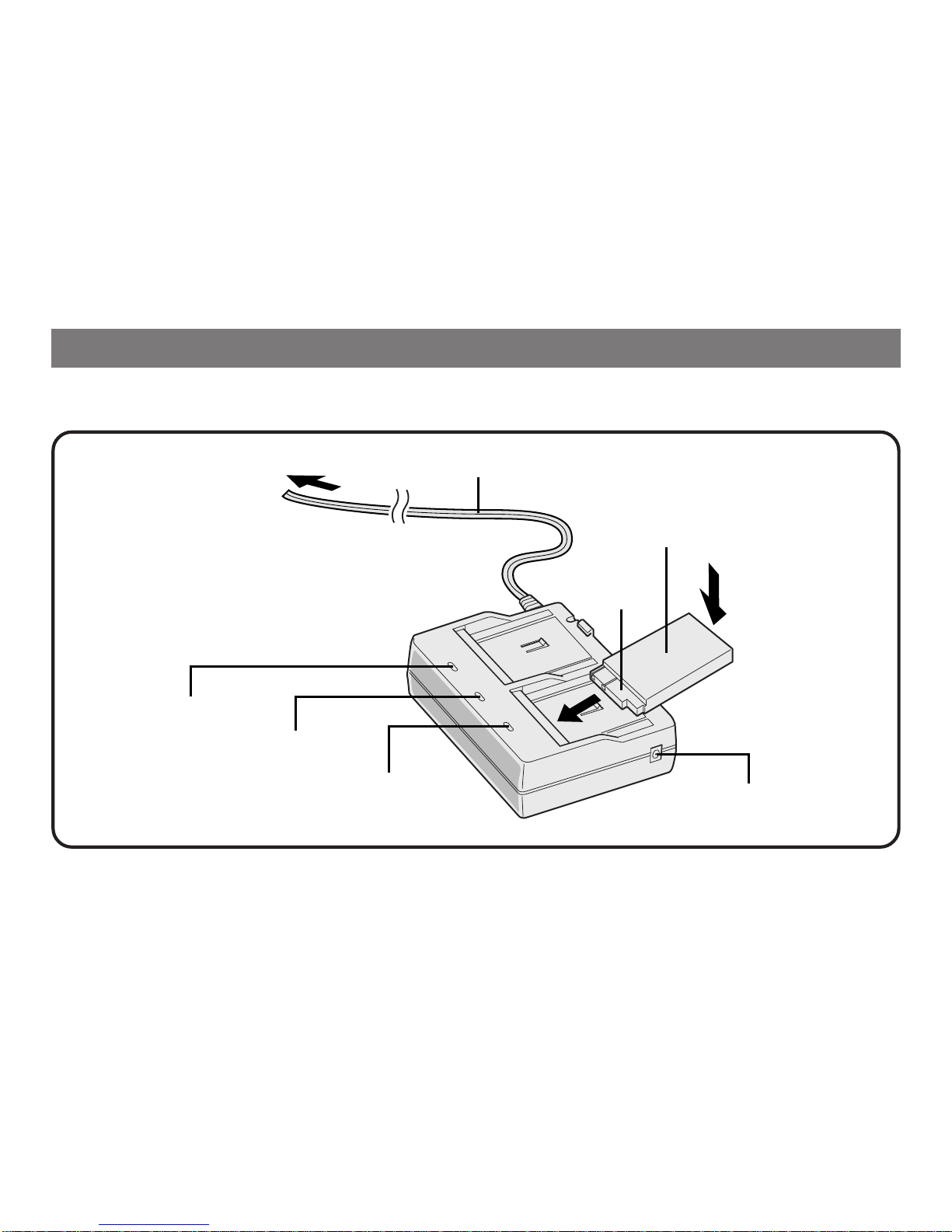

CHARGING THE BATTERY PACK
You can charge one battery pack at a time, or two consecutively.
1
To AC outlet
Battery pack
BN-V507U or
BN-V514U
Power cord
Charger
indicator 2 DC OUT terminal
Power lamp
Charger
indicator 1
AC Power
Adapter/Charger
EN-5
4
DETACH BATTERY/BATTERIES
Slide the battery or batteries in the
opposite direction of the arrow and lift
off. Remember to unplug the AC Adapter/
Charger’s power cord from an AC outlet.
NOTE:
Perform charging where the temperature is
between 10° and 35°C. (20°–25°C is the ideal
temperature range for charging.) If the
environment is too cold, charging may be
incomplete.
Battery pack ONE TWO
BN-V507U approx. 1 hr. approx. 3 hrs.*
30 min.*
BN-V514U approx. 3 hrs.* approx. 6 hrs.*
* When charged at temperatures between 20°
and 25°C.
•When charging Battery Packs after a long
storage period, charging time will be longer
than the time indicated above.
BATTERY PACK CHARGING TIME
1
SUPPLY POWER TO CHARGER
Make sure you unplug the camcorder’s
DC cord from the AC Power Adapter/
Charger.
Plug the AC Adapter/Charger’s power
cord into an AC outlet. The power lamp
comes on.
2
ATTACH BATTERY/BATTERIES
Attach the battery pack while making sure
its terminal side 1is in contact with the
indicator side of the battery pack mount
on the AC Power Adapter/Charger.
• The Charger Indicator (1 or 2) begins
blinking to indicate charging has started.
3
CONFIRM STATUS
When the charger indicator stops blinking
but stays lit, charging is finished.
• If two batteries are attached to the
charger, they will be charged in the
order that they were attached.
EN-6
SUPPLYING POWER
You can connect the camcorder to an AC
outlet using the AC Power Adapter/Charger.
1
SUPPLY POWER TO ADAPTER
Plug the AC Adapter/Charger's power
cord in to an AC outlet.
2
SUPPLY POWER TO CAMCORDER
Connect the AC Adapter to the
camcorder.
NOTE:
When using the provided DC cord, make sure
you connect the end of the cable with the core
filter to the camcorder. The core filter improves
performance of equipment.
Core Filter
To battery
pack mount
Power cord
AC Power
Adapter/Charger
DC cord
To AC outlet
To DC OUT
terminal
EN-7
●The AC Power Adapter/Charger is specifically
designed to charge BN-V507U and/or BN-V514U
Battery Packs.
●When charging a brand new Battery Pack, or one
that’s been in storage for an extended period, the
Charging Indicator may not come on. In this case,
remove the Battery Pack, then reattach and try
charging again.
●If you connect the DC Cord to the DC Connector
while a Battery Pack is being charged, power will
be supplied to the camcorder and charging will
end incomplete.
●Vibration noise can sometimes be heard coming
from the inside of the AC Power Adapter/Charger.
This is normal.
●The AC Power Adapter/Charger processes
electricity internally, and will become warm
during use. This is normal. Make sure to use the
AC Power Adapter/Charger in well-ventilated
areas only.
●If the battery operation time remains extremely
short even after having been fully charged, the
battery is worn out and needs to be replaced.
Please purchase a new one.
DURING USE . . . SPECIFICATIONS
Power
Power
consumption
Output
Operating
temperature
Charging
temperature
Dimensions
Weight
AC 110 — 240 V, 50/60 Hz
20 W
DC 7.2 V }, 0.63 A
(When charging)
DC 6.3 V }, 1.8 A
(When supplying power)
0°C — 40°C
10°C — 35°C
122 (W) x 39 (H) x 92 (D) mm
AA-V50EG : Approx. 310 g
AA-V50EK : Approx. 380 g
DE-2
Vielen Dank für den Kauf dieses JVC Netz-/Ladegeräts. Sie können damit Ihren JVC Digital-Camcorder mit
Gleichspannung versorgen und den für Ihren JVC Digital-Camcorder verwendeten Batteriesatz aufladen
(max. 2 Batteriesätze in Folge). Bitte lesen Sie diese Bedienungsanleitung vor der Ingebrauchnahme durch,
um einwandfreien Gebrauch und eine lange Nutzungsdauer zu gewährleisten. Bei Gebrauch als
Netzadapter vergewissern Sie sich bitte, daß die Modellnummer dieses Geräts mit der des Netzteils identisch
ist, das in der Bedienungsanleitung des zu speisenden Geräts vorgeschrieben ist.
ACHTUNG:
SCHÜTZEN SIE DIESES GERÄT VOR
NÄSSE UND FEUCHTIGKEIT, DAMIT ES
NICHT IN BRAND GERÄT UND KEIN
KURZSCHLUSS ENTSTEHT.
Dieser Netzadapter kann nur mit 110 – 240 V``
``
`,
50/60 Hz betrieben werden.
VORSICHT:
Zur Vermeidung von elektrischen Schlägen und
Feuergefahr keine andere Spannung
verwenden!
VORSICHT:
Bei Nichtgebrauch über einen längeren
Zeitraum wird empfohlen, das Netzkabel von
der Netzsteckdose abzuziehen.
ACHTUNG!
GEFÄHRLICHE SPANNUNG
IM INNERN
VORSICHT:
Zur Vermeidung von elektrischen Schlägen nicht
das Gehäuse öffnen. Das Gerät enthält keinerlei
Teile, die vom Benutzer gewartet werden
können. Überlassen Sie Wartungsarbeiten bitte
qualifizierten Service-Fachleuten.
HINWEIS:
Das Typenschild (mit der Seriennummer)
befindet sich am Geräteboden.
DE-3
Dieses Netz-/Ladegerät ist ausschließlich für den
JVC Digital-Camcorder vorgesehen. HINWEISE ZU DEN BATTERIESÄTZEN
Zur Erzielung optimaler Batterieleistung die
folgenden Umgebungstemperaturbereiche für
die Lithium-Ion-Batteriesätze beachten.
Bei Ladebetrieb: 10°C bis 35°C.
Bei Gebrauch: 0°C bis 40°C.
Bei Lagerung: –10°C bis 30°C.
SICHERHEITSHINWEISE:
•Bei zu geringem Abstand zu einem
Rundfunkempfänger kann dieses Gerät
Empfangsstörungen verursachen.
•Niemals Flüssigkeit oder brennbare bzw.
metallische Gegenstände in das Geräteinnere
gelangen lassen.
•Das Gerät niemals zerlegen oder umbauen.
•Das Gerät niemals heftigen Erschütterungen
aussetzen.
•Das Gerät niemals direkter Sonneneinstrahlung
aussetzen.
•Das Gerät nicht extrem hohen Temperaturen
oder extrem hoher Luftfeuchtigkeit aussetzen.
•Das Gerät nicht Vibrationseinwirkungen
aussetzen.
DE-4
AUFLADEN DES BATTERIESATZES
Es kann jeweils ein Batteriesatz (max. 2 Batteriesätze in Folge) geladen werden.
1
An Netzsteckdose
Ladeanzeige 1
Betriebsanzeige
Ladeanzeige 2
Batteriesatz
BN-V507U oder
BN-V514U
Netzkabel
Gleichspannungsausgang
Netz-/Ladegerät
