Jura Impre a XF50
Operating & cleaning
In truction

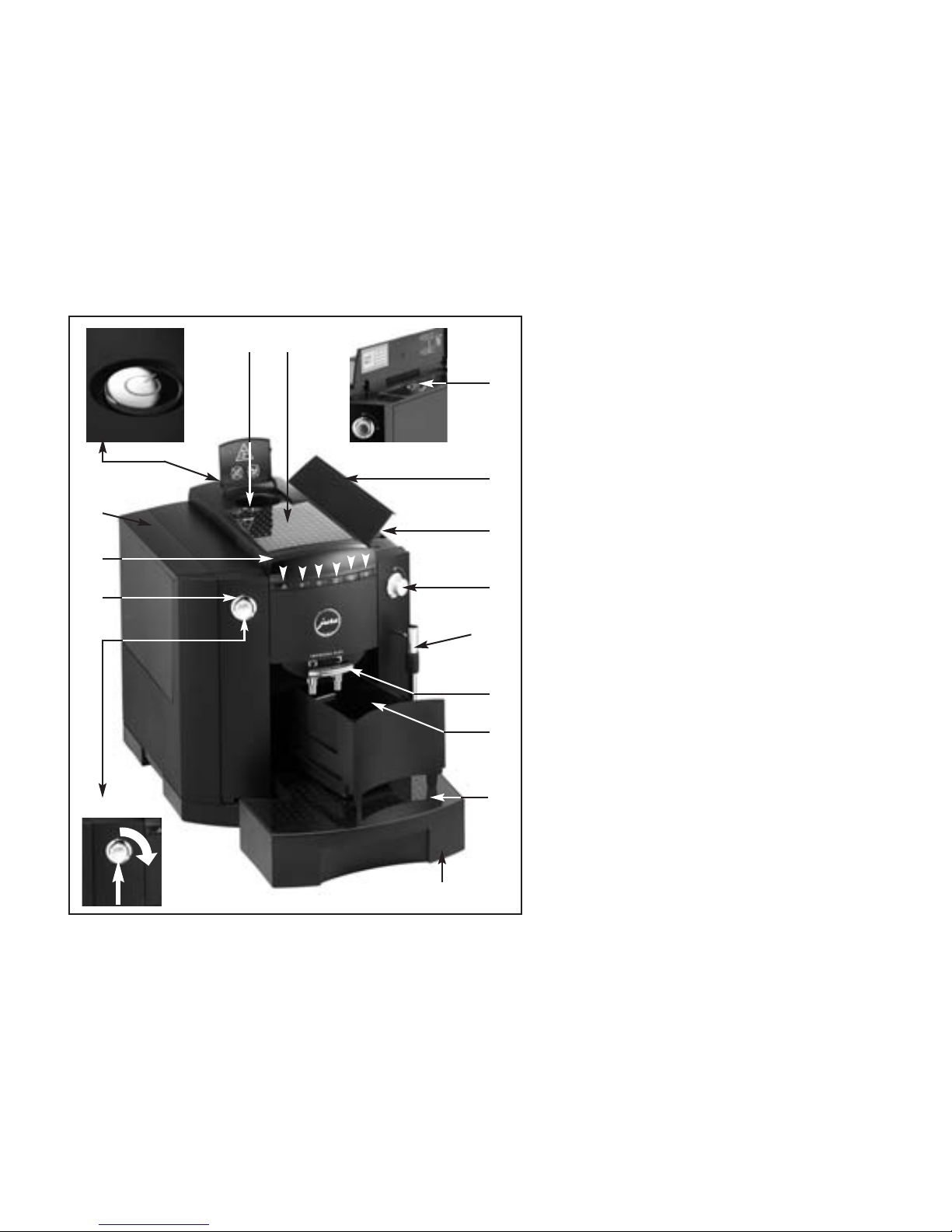

Control elements
1. Rotary Switch
2. Illuminated ring
3. Maintenance button
4. Preparation button, 1 espresso
5. Preparation button, 2 espressi
6. Preparation button, 1 coffee
7. Preparation button, 2 coffees
8. Steam preselection button
9. Display dialogue system
10. Water tank with handle
11. Filler funnel for preground coffee
12. Bean container cover
13. Aroma preservation cover
14. Steam / hot water draw-off tap
15. Removable Professional Cappuccino Frother with milk pipe
16. Removable hot-water nozzle (see Fig. 5)
17. Height-adjustable coffee spout
18. Coffee grounds container
19. Cup grille
20. Drip tray
21. On/Off button (= Zero-Energy Switch)
22. Metal shelf
10
9
13
14
17
18
11
3
1
2
12
20
478
56
15/16
19
Rotary Switch
13
21
22
Operating Instructions – Jura XF50 fine foam
My Coffee Shop Pty Ltd
CN 102 850 037
9 Hall St
Hawthorn East VIC 3123
ph: 03 9946 4160
fax: 03 9822 6269
Shop 93,1-5 Harwood Street
Pyrmont NSW 2009
ph: 02 9034 6580
fax: 02 9034 6586
clientservices@mycoffeeshop.com.au 1300 365 487 www.mycoffeeshop.com.au
Cappuccino
1. Place your cup / mug under the milk / coffee spout on the right.
2. Turn the milk selector to the foam milk position – See diagram below.
3. Press the cappuccino key. Your cappuccino will now be poured
Flat white
1. Place your cup/mug under the spout on the right.
2. Turn the milk selector to the flat milk position – See diagram below.
3. Press the Latte macchiato key. Your flat white will now be poured
Café Latte
1. Follow the procedure for making a cappuccino.
2. When your cup or glass 1/3 full of foam milk, turn the milk selector to the flat milk position.
Espresso or Long Black
1. Place your cup / mug under the middle spouts and press espresso or coffee key. Your drink
will now be poured. Press the button twice for a double espresso or two long blacks.
Note: Each key is fully programmed however you can stop the milk and coffee flow short by pressing
any key while it is pouring. djustments to suit personal preference can also be made using
the rotary dial. These changes do not affect the programmed settings.
My Coffee Shop Pty Ltd
ACN 102 850 037
Warehouse 4
41 Rose Street
Richmond Vic 3121
ph: 03 9946 4160
fax: 03 9429 0055
Level 26
44 Market Street
Sydney NSW 2000
ph: 02 9034 6580
fax: 02 9034 6586
clientservices@mycoffeeshop.com.au 1300 365 487 www.mycoffeeshop.com.au
Jura Impressa Xf50 – End of Day cleaning
1. Fill a cleaning jug with 250 ml of cold water and add 15ml of cappuccino
cleaning solution.
2.Lift the milk pipe up out of the cooler and place it into the cleaning jug. Place the second
cleaning jug under the steam outlet.
3.
Select steam. The machine will heat for 20 sec and then display ready.
4. Open the steam tap. Draw half of the cleaning solution through the milk frother in the froth milk
position and half in the flat milk position.
5.Rinse the cleaning container jug and fill it with 250 ml of cold water. Repeat step 4to rinse
the auto frother.
Weekly cleaning proceedure – Milk system
My Coffee Shop Pty Ltd
ACN 102 850 037
9 Hall Street
Hawthorn Ea t Vic 3123
ph: 03 9946 4160
fax: 03 9822 6269
93/1-5 Harwood Street
Pyrmont NSW 20009
ph: 02 9034 6580
fax: 02 9034 6586
servicecentre@mycoffeeshop.com.au
1300 365 87
www.mycoffeeshop.com.au
Complete thi procedure once a week after the daily milk y tem clean.
1. Remove the automatic milk frother from the machine. (Fig 1 - 2)
2. Separate the automatic milk frother into 4 part . (Fig 3)
3. Soak the part in 250ml of warm water (not hot) and 15ml of Jura cappuccino cleaner for 15 – 20 min
(max).
4. Remove the part from the olution and rin e them under cold tap water.
5. Re-a emble the auto frother and refit onto the machine.
Figure 1
Figure 2
Figure 3
IMPRESSA XF50 Classic
Precondition: READY / CLEAN
1
EMPTY TRAY
2
3
4
5
6
PRESS RINSE
7
CLEANING
ADD TABLET
8
9
10
PRESS RINSE
11
CLEANING
EMPTY TRAY
12
13
14
HEATING
READY
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
Cleaning the machine
Approximate duration 15 min.
J
These short instructions do not replace
the ‘IMPRESSA XF50 Instructions for Use’.
Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
2-phase cleaning tablets
Tub of 25 (Art. 62535)
Pack of 6(Art. 62715)
IMPRESSA XF50 Classic
Precondition: READY /
DE-SCALE
1
EMPTY TRAY
2
3
4
5
AGENT IN TANK
6
8
9
OPEN TAP
AGENT IN TANK
3x
10
11
DE-SCALING
CLOSE TAP
12
DE-SCALING
EMPTY TRAY
13
14
15
FILL WATER TANK
16
17
OPEN TAP
c
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
Descaling the machine
Approximate duration 40 min.
J
These short instructions do not replace
the ‘IMPRESSA XF50 Instructions for Use’.
Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
Descaling tablets
Tub of 36 (Art. 70751)
Pack of 3 (Art. 61848)
18
DE-SCALING
CLOSE TAP
19
DE-SCALING
EMPTY TRAY
20
21
22
READY
IMPRESSA XF50 Classic
Precondition: READY /FILTER
1
CHANGE
OPEN TAP
2
3
4
5
6
7
8
FILTER RINSING
CLOSE TAP
9
HEATING
READY
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
Changing the filter
J
These short instructions do not replace
the ‘IMPRESSA XF50 Instructions for Use’.
Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
CLARIS Pro Blue filter cartridge
Pack of 4 (Art. 69670)
Trouble shooting:
Milk not frothing
No milk flow
Milk spluttering
Not filling cups
Milk not hot enough
Froth milk is flat & cool
Note: If there is no steam or the steam pressure is low, follow the steam trouble shooting procedure first.
My Coffee Shop Pty Ltd
ACN 102 850 0 7
9 Hall Street
Hawthorn East Vic 12
ph: 0 9946 4160
fax: 0 9822 6269
9 /1-5 Harwood Street
Pyrmont NSW 20009
ph: 02 90 4 6580
fax: 02 90 4 6586
servicecentre@m coffeeshop.com.au
1300 365 487
www.m coffeeshop.com.au
Solution:
1. Remove the air suction. (Fig 1)
2. Check the valve on the tip of the air suction is clean and is able to open and close freely. Squeeze the valve
between your figures, it should open, release it and it should close. (Fig 2)
. Refit the air suction. Turn the milk selector to the froth position (Fig ), and test the milk. If the milk is still
cool and flat, replace the air suction and test again. If the problem has been resolved, order in a spare air
suction (part no. 71210) otherwise go to step 4.
4. Remove the auto frother from the machine. (Fig 4)
5. Separate the auto frother into 4 parts. (Fig 5)
6. Soak the parts in 250ml of warm water and 15ml of Jura cappuccino cleaner for 15 – 20 min.
7. Remove the parts from the solution and rinse them under tap water.
8. Clean the milk and air paths with the cleaning brush (part no. 71161) (Fig 6 – 9)
9. Re-assemble the auto frother and refit onto the machine.
10. Test the milk function. If the problem has not been resolved contact customer support on 1 00 65 487 to
arrange the repair of your machine.
Figure 1
Figure 2
Figure 3 – Froth
Figure 4
Figure 5
Figure 6 - Milk
Figure 7 - Milk
Figure 8 - Air
Figure 9 - Milk
