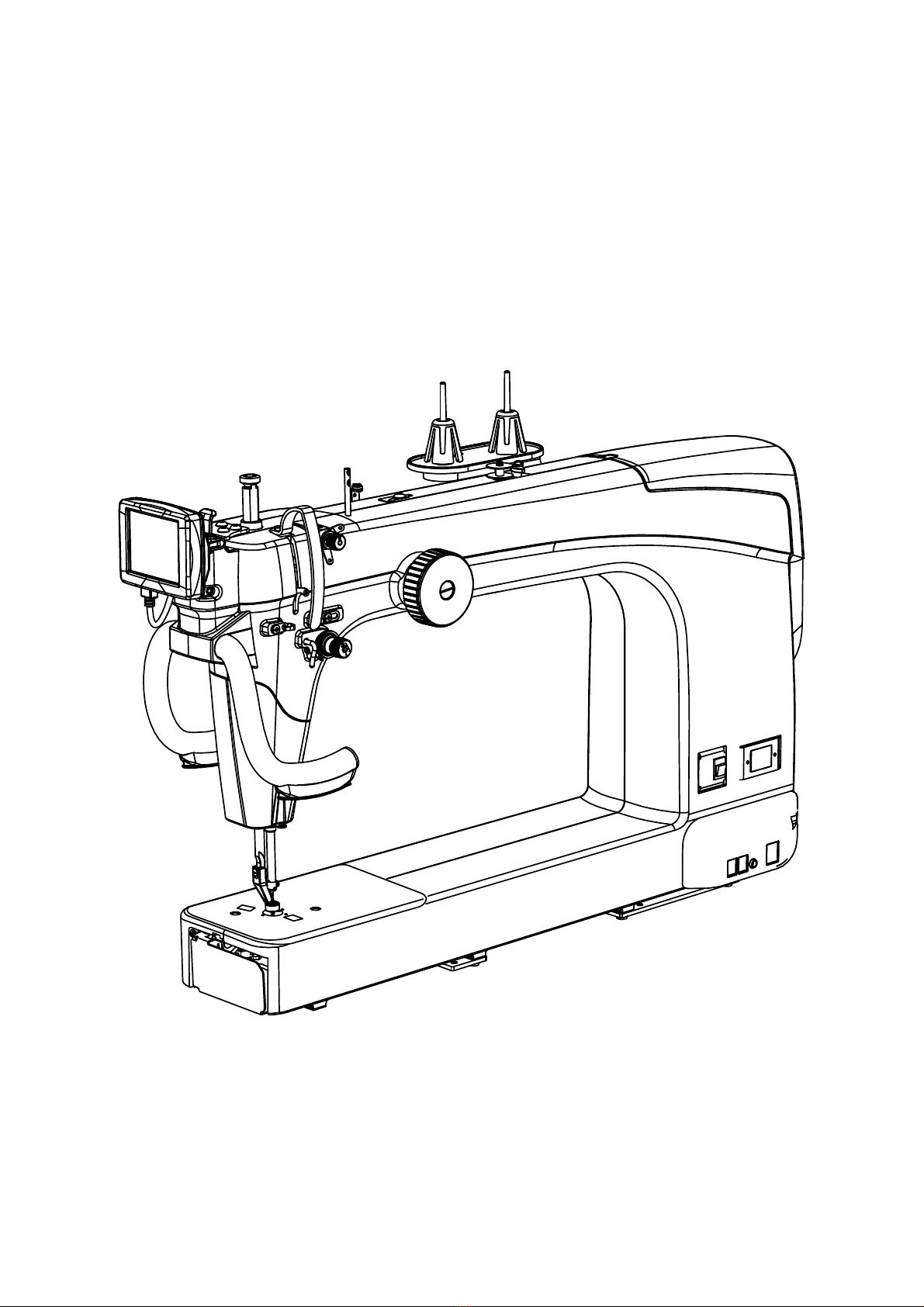

JUKI J-350QVP User manual
Juki Sit Down LCD, Lighting,
and Surestitch Installation
Copyright June 7, 2018
The Grace Company(Reproduction Prohibited)
Version 12.2
Table of Contents
4 Parts List
6 Front LCD Orientation Instructions
10 Side LCD Orientation Instructions
12 Juki HDMI Cable Static Protection
13 Needle Plate Optical Sure Stitch Cable
4
Side LCD
Mount Bracket
HDMI Cable
Parts List
LCD Screen
Sure Stitch Box Lighting Mount
5
M6 x 12mm
SBHC screws
(3)
Ziptie
Ziptie Mount
M3 x 16mm
SBHC Screw
(1)
M4 x 16mm
SBHC Screw
(1)
4mm Allen Wrench
2.5mm Allen Wrench
2mm Allen Wrench
Insulating Sheet
6
Front LCD
Orientation
Instructions
1Take the HDMI cable end
(HDMI connector Type A
see Fig. 1) and plug it into the
Lighting Mount as Shown in Fig.
1.2. Pass the cable behind the
LCD from the bottom.
Fig. 1
Fig. 1.2
HDMI
Connector
Type A
HDMI
Connector
Type D
Lighting
Mount
HDMI
Cable
7
2Clip the LCD into the
Lighting Mount 3Tilt the LCD Screen back
and plug the other HDMI
cable end (HDMI connector
Type D, see Fig. 1) into the
LCD.
Lighting
Mount
8
Front LCD Orientation Instructions
continued from page 7...
Data Cable
M6 x 12mm
SBHC Screws
4mm Allen
Wrench
2.5mm Allen
Wrench
M4 x 16mm
SBHC Screw
Zip Tie and Mount
Fig. 2
Lighting
Mount
Casing
Groove
Plastic Machine
Casing Grooves
9
4
Install the LCD and Lighting Mount using the 4mm Allen
Wrench and (3) M6 x 12mm SBHC Screws. Be sure not to
pinch the LCD Data Cable and that it falls in the groove on the
LCD Mount Bracket Casing.
5
Remove the (2) screws holding the Plastic Machine Casing
to the side of the machine using a phillips head screw driver.
6
Plug in the Data Cable into the left side of the machine and
secure it in place using the 2.5mm Allen Wrench and M4
x 16mm SBHC Screw. Secure the Cord to the machine using
the Zip Tie and Zip Tie Mount as shown in Fig. 2.
7
Reinstall the Plastic Machine Casing to the side of the
machine. Be sure to cover the Data Cable without pinching
it by placing it in the grooves on the Plastic Machine Casing.
8 Plug in the Surestitch Box to the back right corner of
the machine. Remove the 5.5mm Barrel Connector Plug
and plug in the foot pedal into the back connector of the
Surestitch Box. Secure the Surestitch Box in place using the
2mm Allen Wrench and the M3 x 16mm SBHC Screw.
Surestitch Box
Model JC-001
M3 x 16mm SBHC Screw
2mm Allen Wrench
5.5mm Barrel
Connector Plug
Fig. 3
10
3
Push LCD Clips onto rod
ends of Side LCD Mount
Bracket.
4
Push LCD Screen onto
LCD Clips. Continue to
page 11...
Side LCD
Orientation
Instructions
1
Pull LCD Screen o LCD
Clips. 2
Pull LCD Clips o LCD
Mount.
