JONATHAN Y Marfa JYL7563A User manual

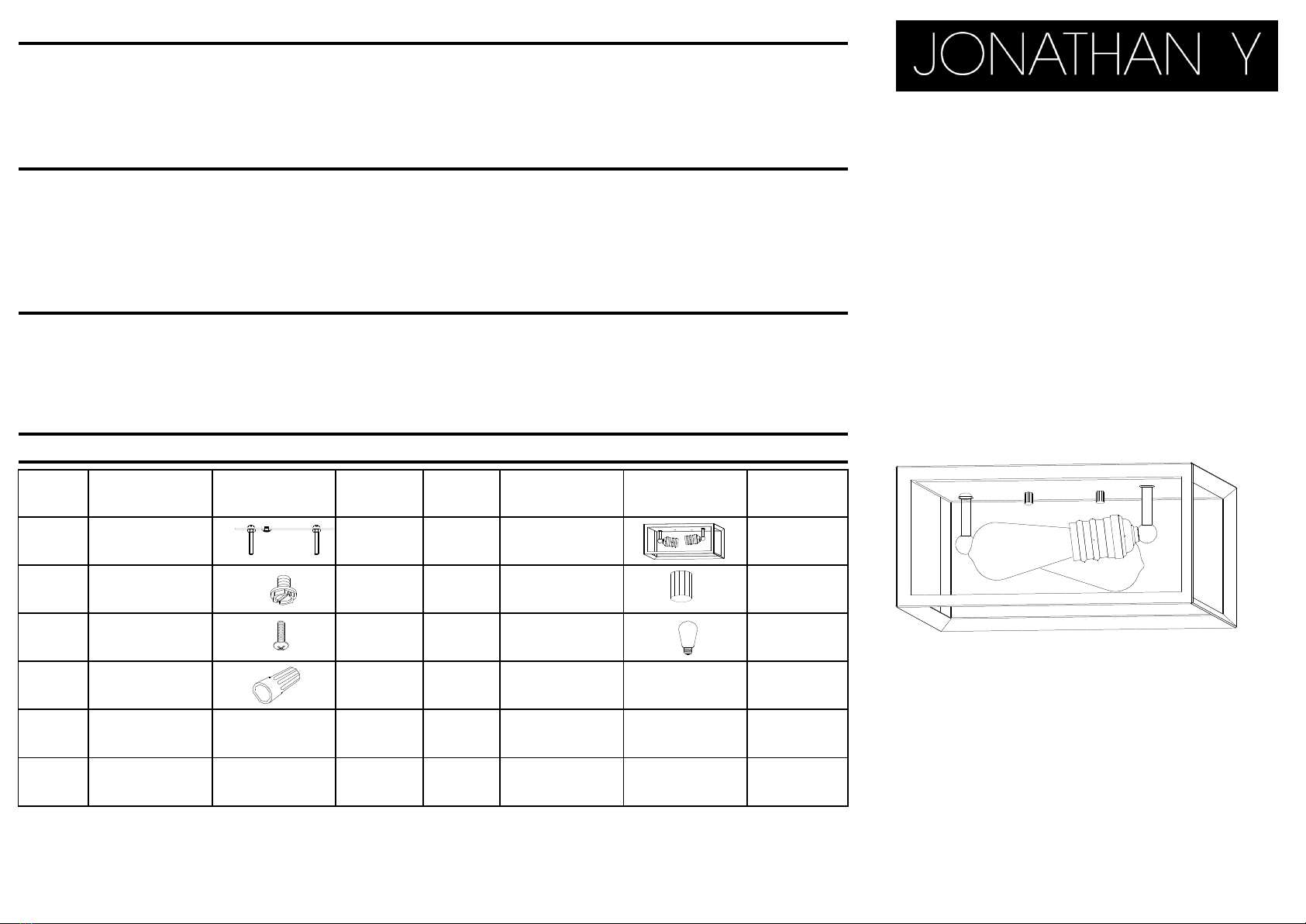

PIECE DESCRIPTION PICTURE

QUANTITY

PIECE DESCRIPTION PICTURE QUANTITY

Amounting

bracket 1X E fixture body 1X

Bgreen ground

screw 1X F knurled nut 2X

C machine screw 2X G bulb 2X

D wire connector 3X

Model#: JYL7563A

Product Dimensions: 13"X 6.5"H

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below for safe use

and installation

*The external flexible cable or cord of this lamp cannot be replaced

If the cord is damaged, the lamp shall be destroyed

Part List and Hardware List

WARNING

WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT

BREAKER BEFORE INSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe

the surface of the fixture.

To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing the

fuse at the fuse box. Next, use a dry or slightly dampened clean clorth (use clean water, never a solvent) to wipe the

interior surface of the fixture.

Do not use any cleaners with chemical, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

1/2

1. Attach the mounting bracket (A) to the junction box with machine screw (C).

2. Connect the wire with wire connector (D).

*Note: When parallel wire ( SPT I & SPT II ) is used. The neutral wire is square shaped

and ridged and the hot wire will be round in shape and smooth. ( See Illustration on left. )

Grounding Instructions:

a) For installation in the United States: Wrap ground wire from outlet box around green

ground screw(B) on mounting bracket, no less than 2" from wire end. Tighten ground screw. If

fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector.

b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire

around green grounding screw on mounting bracket. Tighten ground screw.

3. Thread the mounting bracket (A) through fixture body (E), secure with knurled nut (F).

4. Place the bulb (G) to the socket.

ENJOY YOUR LAMP

Clear, Brown, Gold or Black without Tracer (colored stripes) Clear, Brown, Gold or Black with Tracer (colored stripes)

Insulated Wire (not green) with copper metal conductor Insulated Wire (not green) with Silver metal conductor.

PLEASE USE TYPE"A" BULB MAX 40-WATT OR CFL BULB MAX 13-WATT OR LED BULB MAX 9-

WATT, THERE IS LED 4-WATT BULB IN THE BOX

Black White

* Parallel Cord (round & smooth) * Parallel Cord (square & ridged)

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and

hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 20 minutes.

Connect, Hot, Black or Red Outlet Supply Wire to: Connect, Neutral, White Outlet Supply Wire to:

2/2
