JONATHAN Y JYL7579A User manual

WARNING

WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT

BREAKER BEFORE INSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

Model#: JYL7579A

Product Dimensions: 27"W X 21.5"H

To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe

the surface of the fixture.

To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing the

fuse at the fuse box. Next, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the

interior surface of the fixture.

Do not use any cleaners with chemical, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below for safe use

and installation

*The external flexible cable or cord of this luminaire cannot be replaced

If the cord is damaged, the luminaire shall be destroyed

Part List and Hardware List

PIECE DESCRIPTION PICTURE QUANTITY PIECE DESCRIPTION PICTURE QUANTITY

A mounting screw 2X G screwed ball 2X

B mounting plate 1X H tube 12“ - 2X

6" - 2X

C machine screw 2X I body 1X

D ground screw 1X J shade 5X

E wire connector 3X K socket ring 5X

F canopy 1X L bulb 5X

1/2

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and

hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 20 minutes.

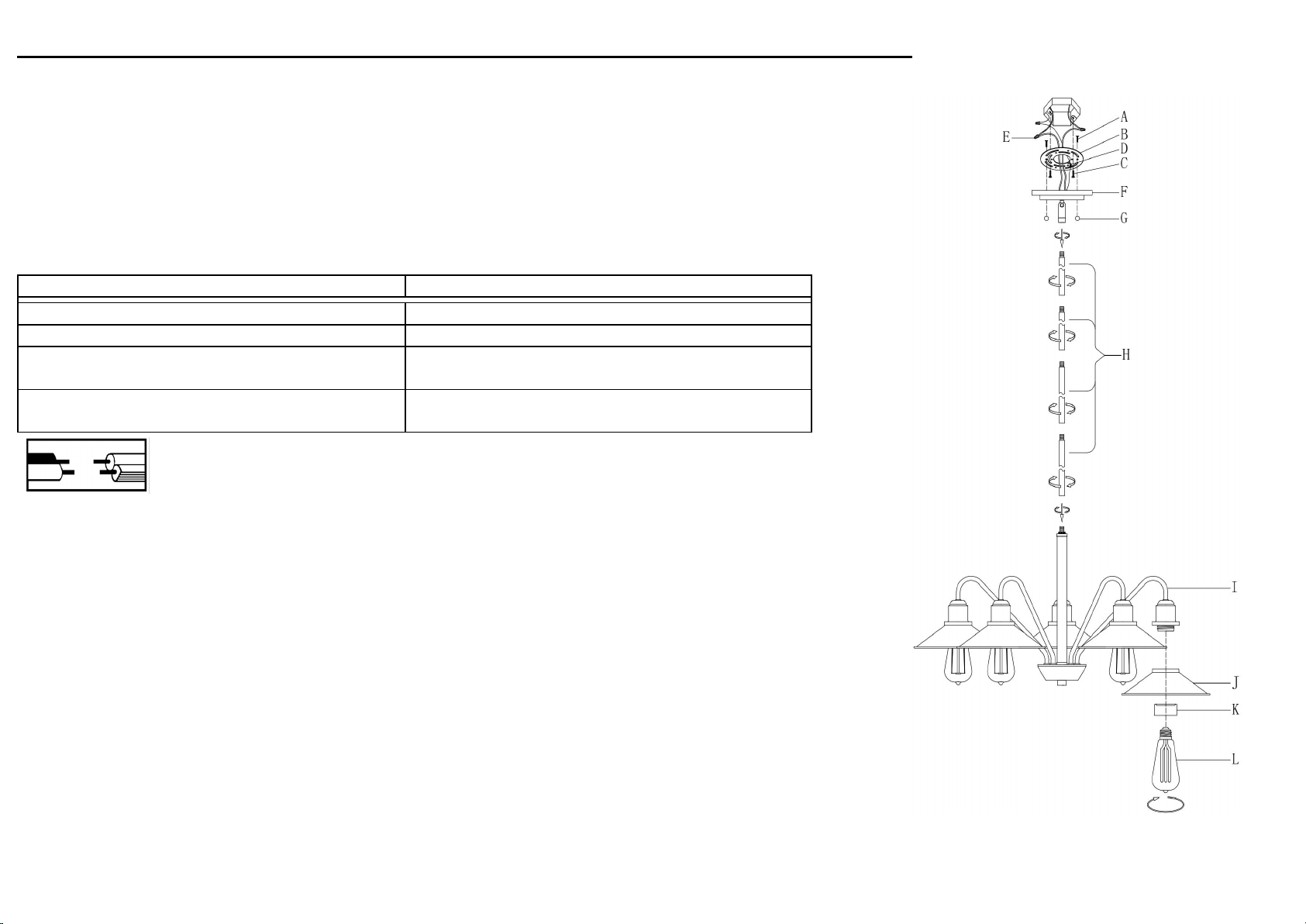

1. Thread mounting screws (A) into the mattch holes of the mounting plate(B),

then fix the mounting plate(B) to the outlet box with machine screw(C).

2. connect the tubes(H) together to get desired length and fix the bottom end to nipple of the body (I),

the top end to the swivel of the canopy (F).

3. Make wire connections, with wire connectors(E), following the reference chart listed below.

Connect, Hot, Black or Red Outlet Supply Wire to:

Connect, Neutral, White Outlet Supply Wire to:

Black

White

* Parallel Cord (round & smooth)

* Parallel Cord (square & ridged)

Clear, Brown, Gold or Black without Tracer (colored

stripes)

Clear, Brown, Gold or Black with Tracer (colored stripes)

Insulated Wire (not green) with copper metal conductor

Insulated Wire (not green) with Silver metal conductor.

*Note: When parallel wire ( SPT I & SPT II ) is used. The neutral wire is square shaped

and ridged and the hot wire will be round in shape and smooth. ( See Illustration on left. )

Grounding Instructions:

a) For installation in the United States: Wrap ground wire from outlet box around green

ground screw(D) on mounting plate, no less than 2" from wire end. Tighten ground screw. If

fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector.

b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire

around green grounding screw on mounting plate. Tighten ground screw.

4. Orient the ceiling canopy(F) so that the mounting screws(A) protruding from the mounting plate (B) go into

the holes in the canopy (F), then secure it with the provided screwed balls(G).

5. Put the shade(J) on socket,then fasten it by socket ring(K)

6. Install bulb(L). Be sure to use light bulb(s) with wattage no greater than specified on this

fixture. Always make sure that electrical current is turned off before changing bulbs.

PLEASE USE ON/OFF TYPE"A" BULB MAX 40-WATT OR LED BULB MAX 9 -WATT

THERE ARE LED 5PCS 4WATT BULB IN THE BOX

ENJOY YOUR LAMP

2/2
