JONATHAN Y JYL7533A User manual

WARNING

WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT

BREAKER BEFORE INSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe

the surface of the fixture.

To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing the

fuse at the fuse box. Next, use a dry or slighly damperned clean clorth (use clean water, never a solvent) to wipe the

interior surface of the fixture.

Do not use any cleaners with chemical, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

Model#: JYL7533A

Product Dimensions: 30.75''W X 10.25"H X 6"E

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below for safe use

and installation

*The external flexible cable or cord of this lamp cannot be replaced

If the cord is damaged, the lamp shall be destroyed

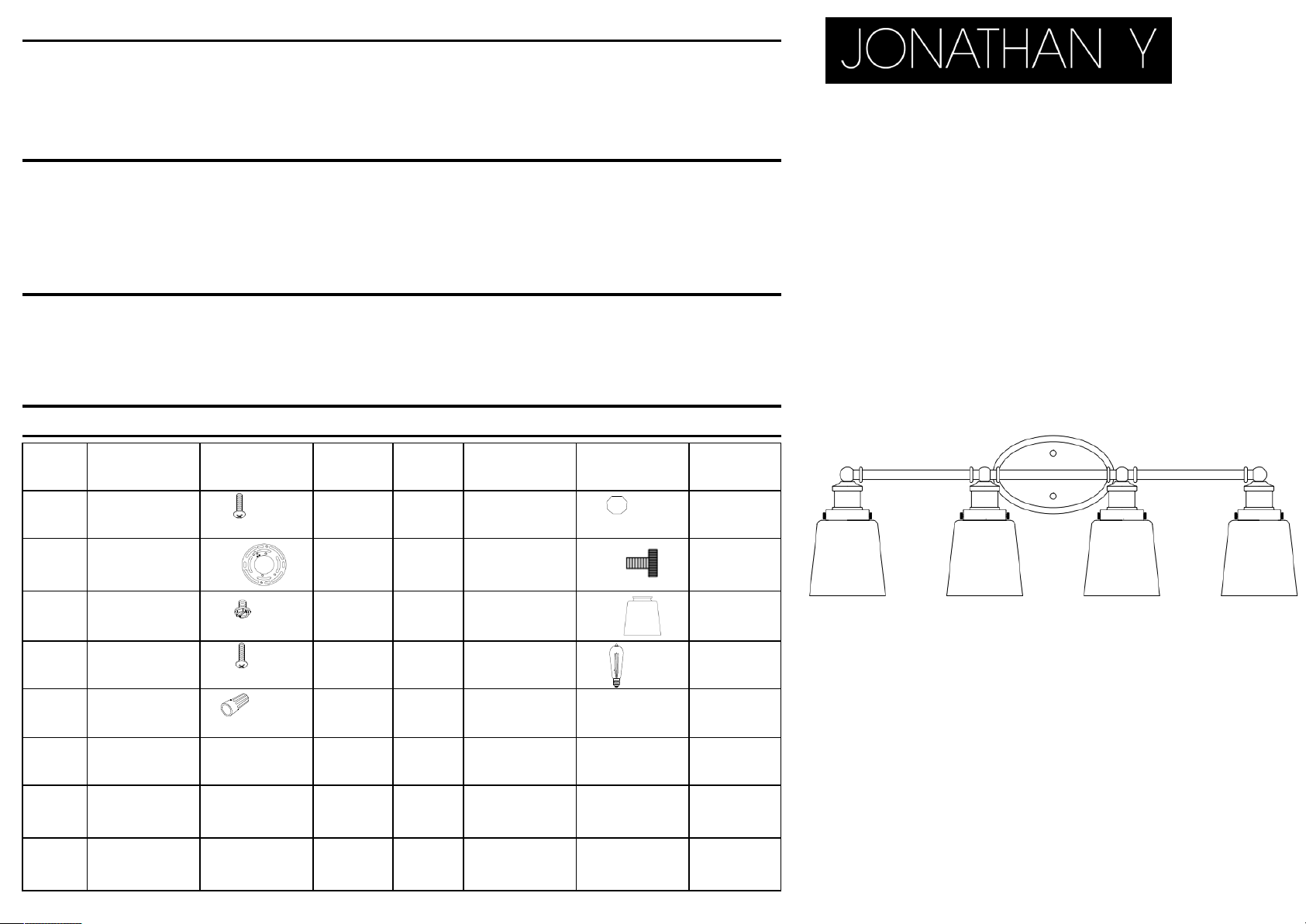

Part List and Hardware List

1/2

PIECE DESCRIPTION PICTURE

QUANTITY

PIECE DESCRIPTION PICTURE QUANTITY

Amounting

screw 2X G Screwed Ball 2X

B mounting plate 1X I Screws 12X

C ground screw 1X J Glass 4X

D Machine Screw 2X K bulb 4X

E wire connector 3X

Part List and Hardware List

1/2

1. Fix the mounting plate(B) to the outlet box with machine screw(D).

2. Make wire connections, with wire connectors(E), following the reference chart listed below.

*Note: When parallel wire ( SPT I & SPT II ) is used. The neutral wire is square shaped

and ridged and the hot wire will be round in shape and smooth. ( See Illustration on left. )

Grounding Instructions:

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and

hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 20 minutes.

Connect, Hot, Black or Red Outlet Supply Wire to: Connect, Neutral, White Outlet Supply Wire to:

Clear, Brown, Gold or Black without Tracer (colored stripes) Clear, Brown, Gold or Black with Tracer (colored stripes)

Insulated Wire (not green) with copper metal conductor Insulated Wire (not green) with Silver metal conductor.

Black White

* Parallel Cord (round & smooth) * Parallel Cord (square & ridged)

2/2

Grounding Instructions:

a) For installation in the United States: Wrap ground wire from outlet box around green

ground screw(C) on mounting plate, no less than 2" from wire end. Tighten ground screw. If

fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector.

b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire

around green grounding screw on mounting bracket. Tighten ground screw.

3. Orient the back plate(F) so that the mounting screw(A) protruding from the mounting plate (B) go into

the holes in the back plate (F), then secure it with the screwed ball (G)

4. Put the glass shade(K) into socket cap(H), then place the screws (I) into the holes in the socket cap (H)

and gently tighten the screws (I) to secure the glass (J).

5. Install bulbs(K). Be sure to use light bulb(s) with wattage no greater than specified on this

fixture. Always make sure that electrical current is turned off before changing bulbs.

ENJOY YOUR LAMP

PLEASE USE ON/OFF TYPE"A" BULB MAX 40-WATT OR CFL BULB MAX 13-WATT OR LED BULB 9-WATT

THERE ARE 4PCS 4-WATT LED BULB IN THE BOX

2/2
