JONATHAN Y JYL3004A User manual

PIECE DESCRIPTION PICTURE

QUANTITY

PIECE DESCRIPTION PICTURE QUANTITY

A Lamp base 1X E Harp 1X

B Neck 1X F Shade 1X

C Saddle 1X G Finial 1X

D Socket 1X H Bulb 1X

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce

the risk of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in the

outlet, reverse the plug, if it still does not fit, contact a qualified electrician. Never use with an extension cord

unless the plug can be fully inserted. do not attempt to defeat this safety feature.

WARNING

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

Model# JYL3004A

Product Dimensions: 12"Lx 12"W x 23"H

CARE AND MAINTENANCE

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below

for safe use and installation

*The external flexible cable or cord of this luminaire cannot be replaced;

If the cord is damaged, the luminaire shall be destroyed

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to

the material. Avoid the use of chemicals and household cleaners as they may damage the finish.

WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT

BREAKER BEFORE INSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

Part List and Hardware List

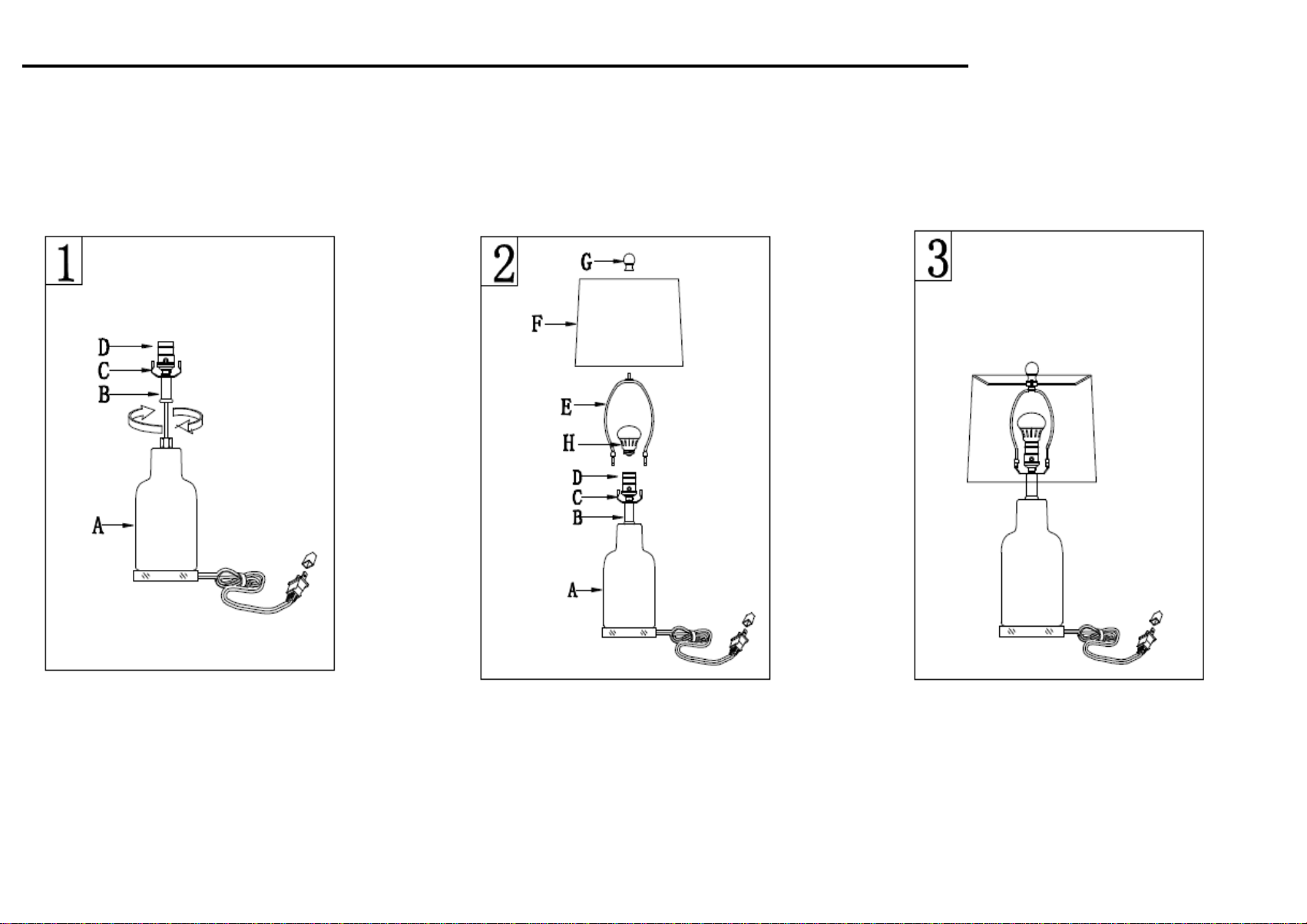

Step 1 Step2 Step3

Pull power cord to connect the Neck (B) to the Base (A). Insert the Harp (E) into the Saddle (C). Put the light on a level surface to check

Screw the Neck (B) onto the Lamp base (A) Put the shade(F) on the Harp(E),then if everything is stable.

Be careful not to twist the power cord and tighten securely tighten the Finial (G)into the Harp (E)

Insert the bulb(H) into the socket(D).

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents

list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 6 minutes.

ENJOY YOUR LAMP

PLEASE USE ON/OFF TYPE"A" BULB MAX 60-WATT OR CFL BULB MAX 13-WATT OR LED BULB MAX 9-WATT

THERE IS LED 9-WATT BULB IN THE BOX
