JohnnyPag Pro Street User manual
P
P
P
R
R
R
O
O
O
S
S
S
T
T
T
R
R
R
E
E
E
E
E
E
T
T
T
S
S
SE
E
ER
R
RV
V
VI
I
IC
C
CE
E
E
M
M
MA
A
AN
N
NU
U
UA
A
AL
L
L
Page 2
Table of Contents
Preface……………………………………………………….……3
General safety Warnings……………………………..………..4-7
Parts Locations………………………………………...…………8
Left Side of ProStreet …………………………………………….9
Right Side of ProStreet ……………………….…………………10
Parts Functions…………………………………………………..11
Ignition Switch………………………………………………...…12
Left Handlebar Controls…………………………………..…….13
Right Handlebar Controls………………………………………14
Rear Shock Absorber………………………………………..…..15
Fuel Tank and Cap…………………………………..………..…16
Petcock Instructions…………………………….………….……17
Tires………………………………………………………...…….18
Pre-ride Inspection……………………………..…………….….18
Maintenance……………………………………….…………19-25
Service Schedule…………………………………………………26
Page 3
Preface
This manual introduces you to the basic operations and methods of maintenance for
your motorcycle. Please read this manual carefully before driving your motorcycle. Proper
operation and maintenance of your motorcycle will ensure less troubles and optimum
performance and service life. Johnny Pag Motorcycles authorized service dealers in
various locations will provide you with more technical consultation and after-sales
services.
The data, instructions, specifications, and pictures demonstrated in the manual are
based on the latest design information available at the time of approval for printing.
Johnny Pag Motorcyles reserves the right to make changes at any time without notice of
changed parameters and other information.
Thank you for purchasing your Johnny Pag Motorcycle. We wish you a
comfortable, pleasant, and safe ride in the future.
Special Attention
If you operate your Johnny Pag Motorcycle without following traffic laws and
instructions in the manual, under abnormal conditions such as driving on off road terrain
or overloaded weight capacity, safety or equipment damage may occur.
This service manual should be considered a permanent part of the motorcycle and
should remain with the motorcycle when resold.
Johnny Pag Motorcycles reserves all the rights of this manual. No part of this
publication may be reproduced without written permission of Johnny Pag Motorcycles,
and any violators will be prosecuted to full extent of the law.
Page 4
IMPORTANT NOTICE
The engine for your Johnny Pag Motorcycle rotates at a high rate of speed. In order
to make sure that the engine can run normally, and to prolong its service life, please
operate your motorcycle according to the following regulations:
1. During the first 600 miles, avoid full throttle and never labor the engine. The
rotating speed of the engine should be restricted to no more than 4000 rpm’s.
2. Your Johnny Pag Motorcycle must have its first service after 100 miles (please
refer to maintenance schedule page??) to ensure validity of your warranty.
General Safety
WARNING
When riding your Johnny Pag Motorcycle, you must always pay close attention to
your local traffic safety laws. You should always inspect your motorcycle before riding.
Warning Warning
If the engine must be running to The battery electrolyte contains
do some work, make sure the area sulfuric acid. Protect your eyes,
is well-ventilated. Never run the engine skin and clothing. In case of
in a closed are. The exhaust contains contact, flush eyes thoroughly
poisonous carbon monoxide gas that with water and call a doctor if
may cause loss of consciousness and electrolytes get in your eyes.
lead to death.
Warning Warning
Gasoline is extremely flammable and The battery generates hydrogen
is explosive under certain conditions. gas which can be highly
Do not smoke or allow flames or sparks explosive. Do not smoke or
In your working area allow flames or sparks near
the battery while charging it.
Page 5
Service rules
1. Use genuine Johnny Pag Motorcycles or JPM recommended parts and lubricants or
their equivalents. Parts that don’t meet Johnny Pag Motorcycles design
specifications may damage the motorcycle.
2. Use the special tools designed for this product.
3. Install new gaskets, O-rings, cotter pins, lock plates, etc. When reassembling.
4. When torquing a series of bolts or nuts, begin with larger-diameter or inner bolt
first, and tighten to the specified torque diagonally in 2-3 steps, unless a particular
sequence is specified.
5. Clean parts in non-flammable or high flash point solvent upon disassembly.
Lubricate any sliding surfaces before reassembly.
6. After reassembly, check all parts for proper installation and operation.
7. Use only metric tools when servicing this motorcycle. Metric bolts, nuts, and screws
are not interchangeable with English fasteners. The use of incorrect tools and
fasteners may damage the motorcycle.
WARNING
When riding your Johnny Pag Motorcycle, you must always pay attention to traffic
safety laws.
SAFE RIDING RULES
Before you start your engine, you must always check your motorcycle to prevent
accidents or equipment damage.
PROTECTIVE APPAREL
A motorcycle rider usually has his/her head injured in an accident. In order to ensure
personal safety, the rider should always wear a helmet, goggles, boots, gloves etc. The
passenger should always wear the same safety gear as the driver.
Page 6
CAUTION
The temperature of your motorcycles exhaust is very hot! When ridden. The
passenger should always wear boots or shoes high enough to cover his/her ankles to
prevent burn related injuries. The rider should wear close-fitting clothes to prevent
loose clothing from being caught on the handlebars, kick starter, foot pegs, and tires.
MODIFICATIONS
WARNING
Modification to your motorcycle or any changes to its original equipment may render
your motorcycle unsafe or illegal. Modifications to your motorcycle may also void your
warranty. Please refer to JPM warranty policy for more information.
LOADING
WARNING
Motorcycles are sensitive to changes in weight distribution. Improper loading of cargo
can impair your motorcycles performance and stability.
Keep cargo low and close to the center of the motor cycle. Load weight equally on
both sides of your motorcycle to minimize imbalance. The further weight is located from
your motorcycles center of gravity, handling can be greatly affected.
You should always properly adjust the tire pressure and the spring rate of the rear
shock absorber according to the load weight and road conditions.
Firmly mount all cargo on your motorcycle in order to ensure stable handling. Also
avoid fastening large or heavy loads to the handlebars, front forks or dashboard; otherwise
it can adversely affect your stability and handling. NEVER exceed the maximum weight
limit of 350lbs.
Page 7
Accessories produced by our company have undergone special design and testing.
Users will take responsibility for their selection, installation and use of accessories not
produced by our company. Please obey safe riding rules and follow the next points:
•Carefully check your accessories, make them out of sight line, reduce distance
between them and the ground and side dip angle, and keep suspension or
steering devices from moving or affecting handling.
•Avoid attaching any electrical equipment. Otherwise it can bring trouble to
the electrical system.
•Accessories not installed by an authorized JPM dealer will void the warranty.
**ALL SERVICE WORK
MUST BE PERFORMED BY
AN AUTHORIZED JPM
DEALER**
7
Page 8

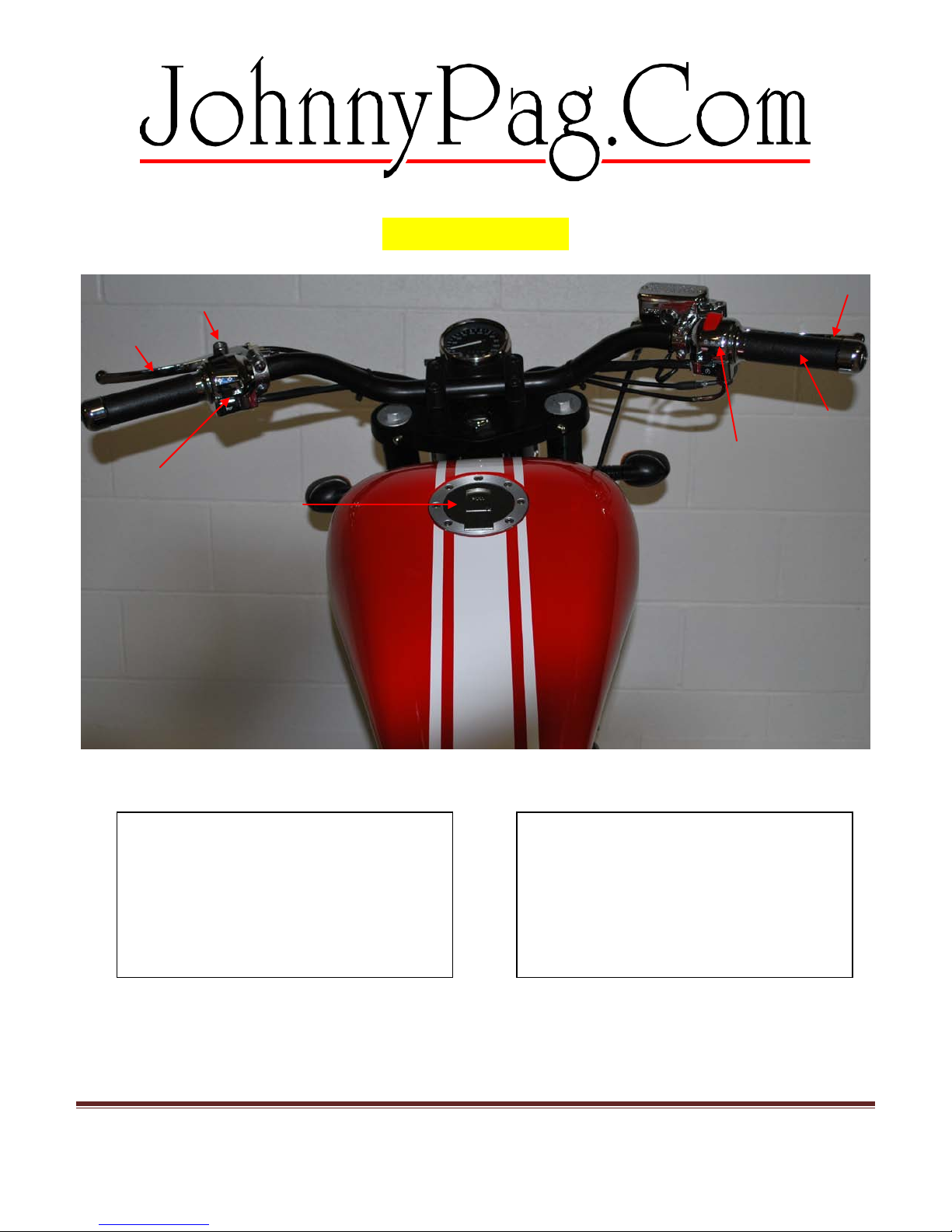

Parts Locations
1. Mirrors (mounting location )
2. Clutch lever
3. Left handlebar control (horn
button, Headlight high beam
switch, turn signal switch)
4. Fuel Cap
5. Front brake lever
6. Throttle grip
7. Right handlebar control (starter
button, headlight switch, engine
cut-off switch)
3
4
6
7
6
1
2
5
Page 9

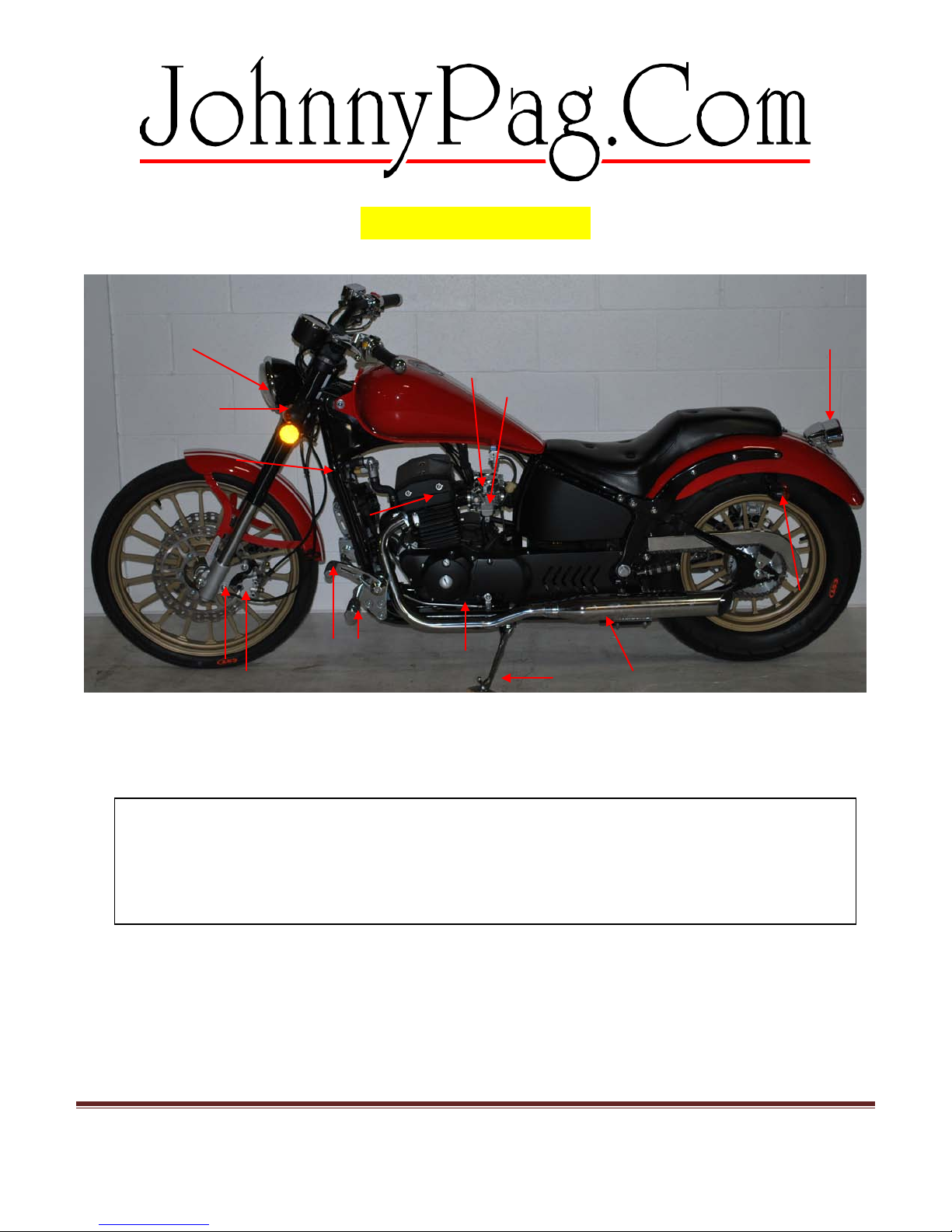

Left Side ProStreet
1. Front rotor (left) 2. Front brake caliper (left) 3. Front Headlight 4. Front left
turn signal 5. Gearshift lever 6. Foot peg 7. Engine 8. Choke valve 9. Petcock
10. Kickstand 11. Engine serial number 12. Left side exhaust 13. Rear left turn
signal 14. Taillight
6
5
8
11
12
13
16
14
7
9
10
4
1
2
3
Page 10

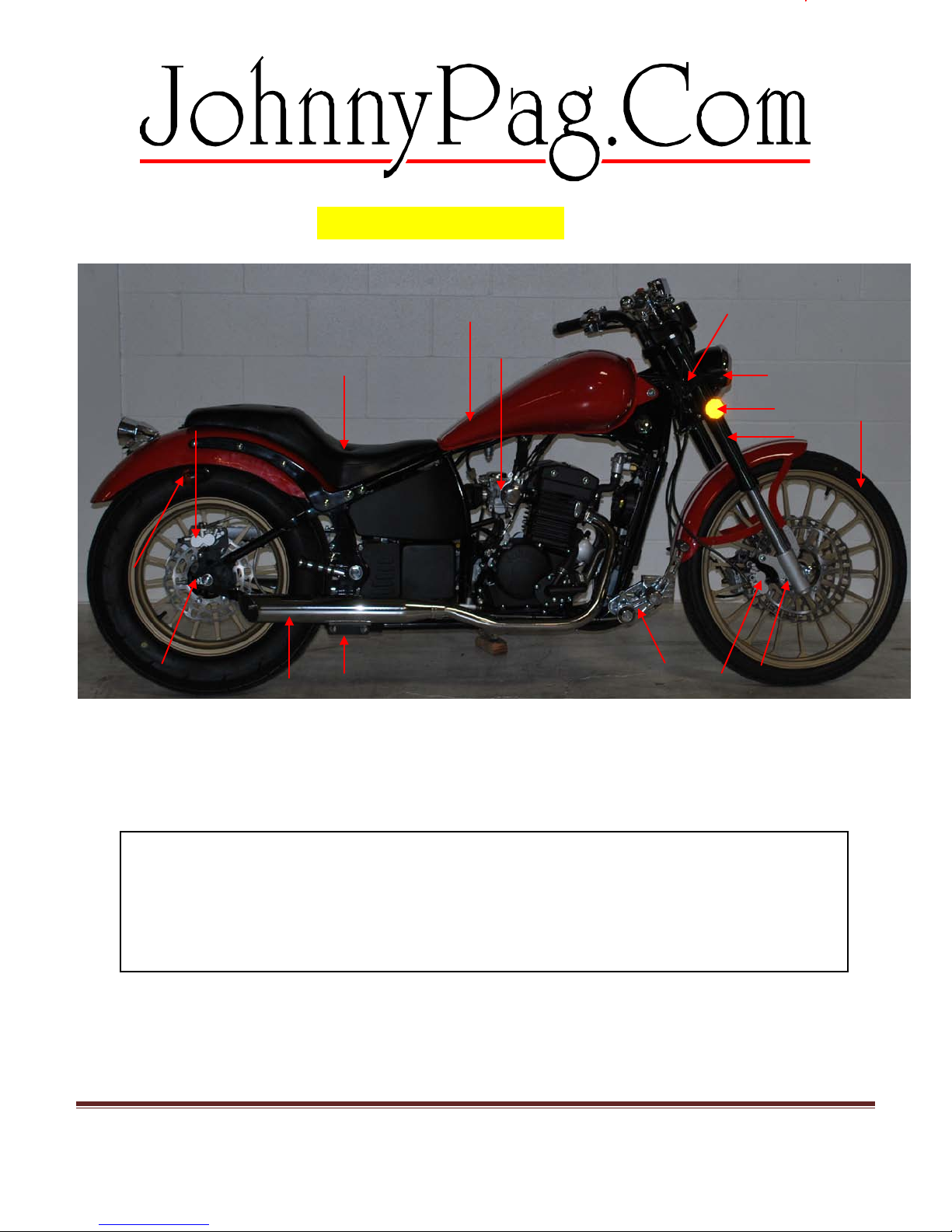

Right Side ProStreet
1. Rear right turn signal 2. Rear brake caliper 3. Rear rotor 4. Right side
exhaust 5. Rear shock 6. Seat 7. Carburator 8. Fuel tank 9. Rear brake pedal
10. Vin number 11. Front brake caliper (right) 12. Front rotor (right) 13. front
wheel 14. Front fork 15. Front right turn signal 16. Front Reflector
7
1
2
9
11
15
10
5 (under bike)
8
6
7
13
14
12
16
3
4
