JessEm 05150 User manual
Steel Router Stand
User Manual
Model #05150
324 Desbrisay Avenue
Moncton, New Brunswick,
E1E 0G8, Canada
Toll Free: 800-436-6799
Local Phone: 705-726-8233
Fax: 705-327-0295
Email: Jessem@Jessem.com
Website: www. JessEm.com
Tools Required: 3/16” Hex Key (Provided)
Thank you for choosing this product from JessEm
Tool Company. We appreciate your support and
hope that our product serves you well. This product
is designed to provide many years of reliable service
provided it is used as intended and taken care of.
This user manual will assist you in assembly and
general operaon of this product. It is not our intent
to teach you about woodworking. It is assumed that
you are an experienced woodworker with the basic
skills and experience necessary to use this product
safely. If aer reading the following instrucons you
are unsure or uncomfortable about safely using this
product, we urge you to seek addional informaon
through widely available woodworking books or
classes.
As part of our Connuous Product Improvement
Policy, JessEm products are always advancing in
design and funcon. Therefore, there may be
dierences between what is shown in our catalogs,
website or at retail display and what is sold at me
of purchase. We reserve the right to make posive
changes to our products at our discreon.
Assembly Instrucons
1. Place two legs (part #5) on a at surface with the
castor holes facing out on either side (see Figure #3)
and the leveling feet closest to you. Take the front
lower brace (Part #8) and align it with the
corresponding holes as seen in gure #3, ensuring the
ange is oriented correctly. Using four ¼” Washers
and four ¼”-20 x 3/8” Stainless steel Cap Screws (parts
#2 and #4), loosely aach this brace to both legs. Do
not fully ghten the screws at this point. All screws
will be le loose unl the enre stand is built.
Repeat this procedure to mount an upper brace to
both legs (part #3), using the same mounng
hardware as before. At this point you should have one
side assembled, as seen in gure #3.
2. Take the two remaining legs and again lay them in
front of you as done in Step 1. Build the rear leg and
brace assembly the same way as done in Step 1, again
leaving the screws slightly loose.
3. Next, take out the front assembly from Step 1,
and the le and right top braces (Part #1). Using
four ¼” washers and four ¼”-20 x 3/8” Stainless
Steel Cap Screws, mount the upper side braces to
the front assembly. The anges on each brace
should be mounted facing up and inward.
Repeat this process for the le and right boom
braces (part #7), again using four of the 1/4”-20 x
3/8” stainless steel cap screws (part #4) and four
1/4” stainless steel washers (part #2).
All screws should sll be slightly loose at this point.
4. Take the rear leg and brace assembly from Step 2
and use the remaining eight 1/4”- 20 x 3/8”
stainless steel cap screws (part #4) and eight 1/4”
stainless steel washers (part #2) to enclose the
stand. Once this is complete all bolts on the stand
can be ghtened securely with a 3/16” hex key. Do
not over ghten the screws.
5. If mounng a table top to the stand, leave the
top screws loose unl the table top has been
mounted. Then ghten all screws.

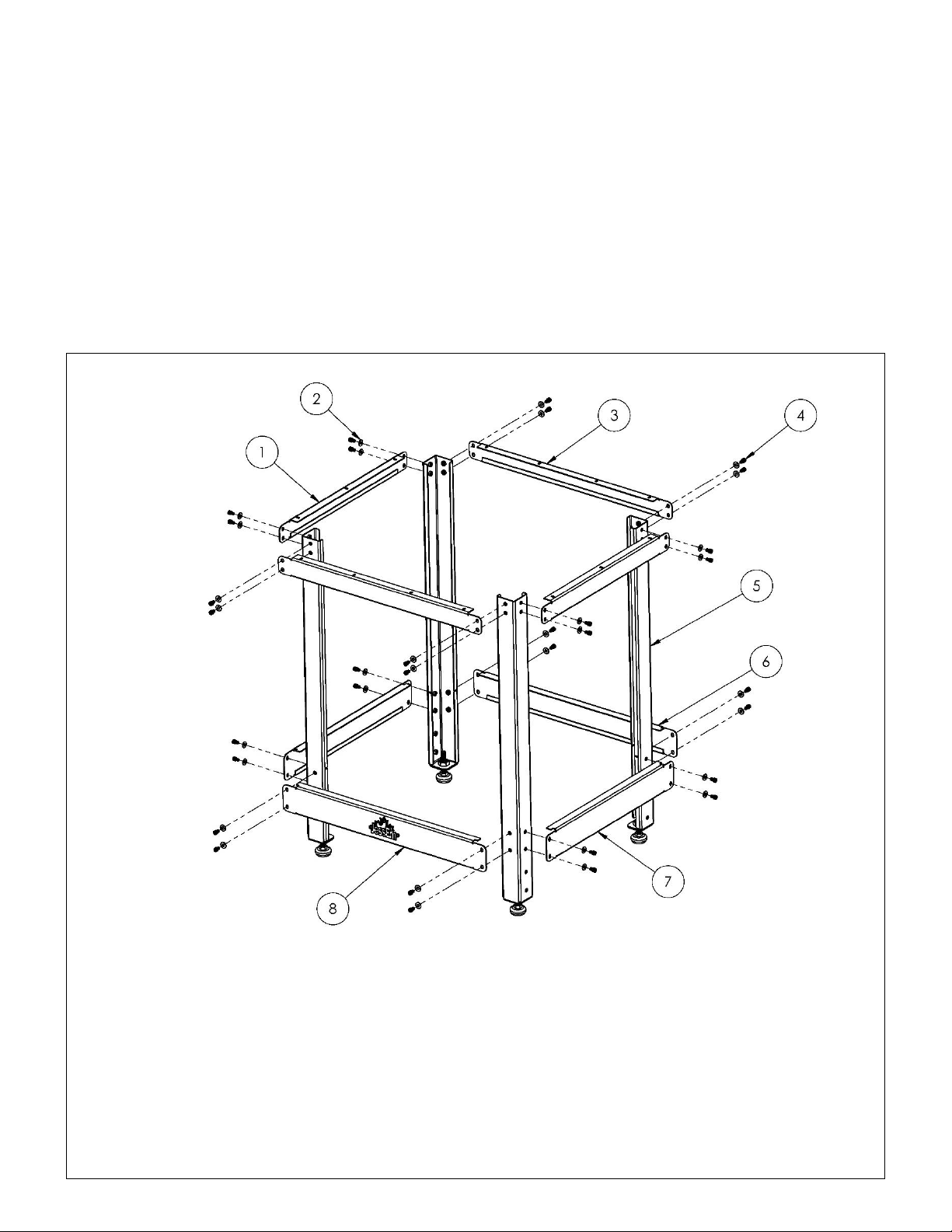

Figure #1
Item #
Part #
Descripon
QTY.
1
S0090-1-C
Upper Side Brace
2
2
F0348
1/4” O.D. x 5/8” I.D. Stainless Steel Washer
32
3
S0090-1-C
Upper Front and Back Braces
2
4
F0559
¼”-20 x 3/8” Stainless Steel Cap Screws
32
5
S0090-1-C
Legs
4
6
S0090-1-C
Lower Back Brace
1
7
S0090-1-C
Lower Side Braces
2
8
S0090-1-C
Lower Front Brace (With JessEm Logo)
1
INDIVIDUAL LEG ASSEMBLY BREAK DOWN
Each Leg comes fully assembled with levellers
Figure #2
Item #
Part #
Descripon
QTY.
9
F0572
5/8”- 18 x 3/8” thick Hex Nut
4
10
S0087-2-C
Leveling Foot Threaded Insert
4
11
M0310
Leveling Foot Assembly
4
Figure #3
OPTIONAL ACCESSORIES (Sold Separately)
Castors
The 05150 Steel Router Stand was designed to be used with the 05151 Steel castor set.
Table Top
The 05150 Steel Router Stand will allow both the JessEm Mast-R Top (le) and Mast-R-Li Excel II (right)
to be mounted with factory predrilled holes (see circled holes below).
JESSEM TOOL LIMITED WARRANTY
All JessEm products are warranted to be free
from defects in material and workmanship. JessEm
will repair or replace any product which upon
inspecon proves to be defecve for a period of (1)
year from dated receipt and proof of purchase. All
warranty claims should be made direct to JessEm
Tool Company. Contact JessEm for a warranty claim
return authorizaon and instrucons to proceed.
The consumer is responsible for shipping costs to
return product to JessEm Tool Company. We will
repair or replace the product at our discreon and
JessEm Tool will return shipment to you at no
charge.
WARRANTY LIMITATIONS
This warranty does not cover:
• Repairs or alteraons made or aempted by anyone
other than JessEm Tool Company or an authorized
JessEm service professional.
• Normal wear and tear
• Abuse, misuse or neglect.
• Improper care or maintenance.
• Connued use aer paral failure.
• Products that have been modied in any way.
• Products used with improper accessories.
