Jensen JENHR1D Installation and operating instructions

JENHR1D

7” LCD MONITOR

WITH BUILT-IN DVD PLAYER FOR

REAR SEAT ENTERTAINMENT

PUSH

OPERATION MANUAL/ INSTALLATION GUIDE

128-9095A

Important Notice

Installation of headrest products require careful planning and preparation.

Be extremely careful of seats that have airbags built into them. Keep wiring

away from sides of seats. If you have any questions regarding wire routing or

installation in a vehicle, please contact Audiovox Technical Support at 1-800-

225-6074.

Do not bypass the fuse built into the accessory plug. Bypassing the fuse can

result in damage to the vehicle if a short circuit develops between the vehicle

connection point and the mobile video product.

An LCD panel and/or video monitor may be installed in a motor vehicle and

visible to the driver if the LCD panel or video monitor is used for vehicle

information, system control, rear or side observation or navigation. If the LCD

panel or video monitor is used for television reception, video or DVD play, the

LCD panel or video monitor must be installed so that these features will only

function when the vehicle is in “park” or when the vehicle’s parking brake is

applied.

An LCD panel or video monitor used for television reception, video or DVD play

that operates when the vehicle is in gear or when the parking is not applied

must be installed to the rear of the driver’s seat where it will not be visible,

directly or indirectly, to be operator of the motor vehicle.

Licensed under one or more of the following patents:

Patent NOS. 7,245,274 , 6,899,365 and 6,678,892

FEATURES

• 7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD)

Monitor

• Built-in DVD Player

• Last position memory for DVD player

• Three Audio / Video Source inputs (DVD, AV and AUX)• USB 2.0 port / SD Card

Reader input

• Screen mode selection (4:3, 16:9)• On Screen Display (OSD) for control of picture

quality and functions

• Full function remote control

• Plays DVD, CD and MP3 discs

• IR headphone (optional)

SPECIFICATIONS

Type TFT Active Matrix LCD

Resolution 480x234

Pixels 336,960

Operation Temperature 32 ~113º F (0 ~ 45º C)

Storage Temperature -4 ~ 149º F (-20 ~ 65º C)

Backlit life 20,000 Hours

Video Display System NTSC/PAL/AUTO

Headphone Audio Output 0.03W @ 32 ohms

Video Output 1.0Vp-p @ 75 ohms

Power Source 12 VDC

Dimension (L x W x H) 147mm x 275mm x 200mm

5.7in x 10.8in x 7.8in

Specications subject to change without notice.

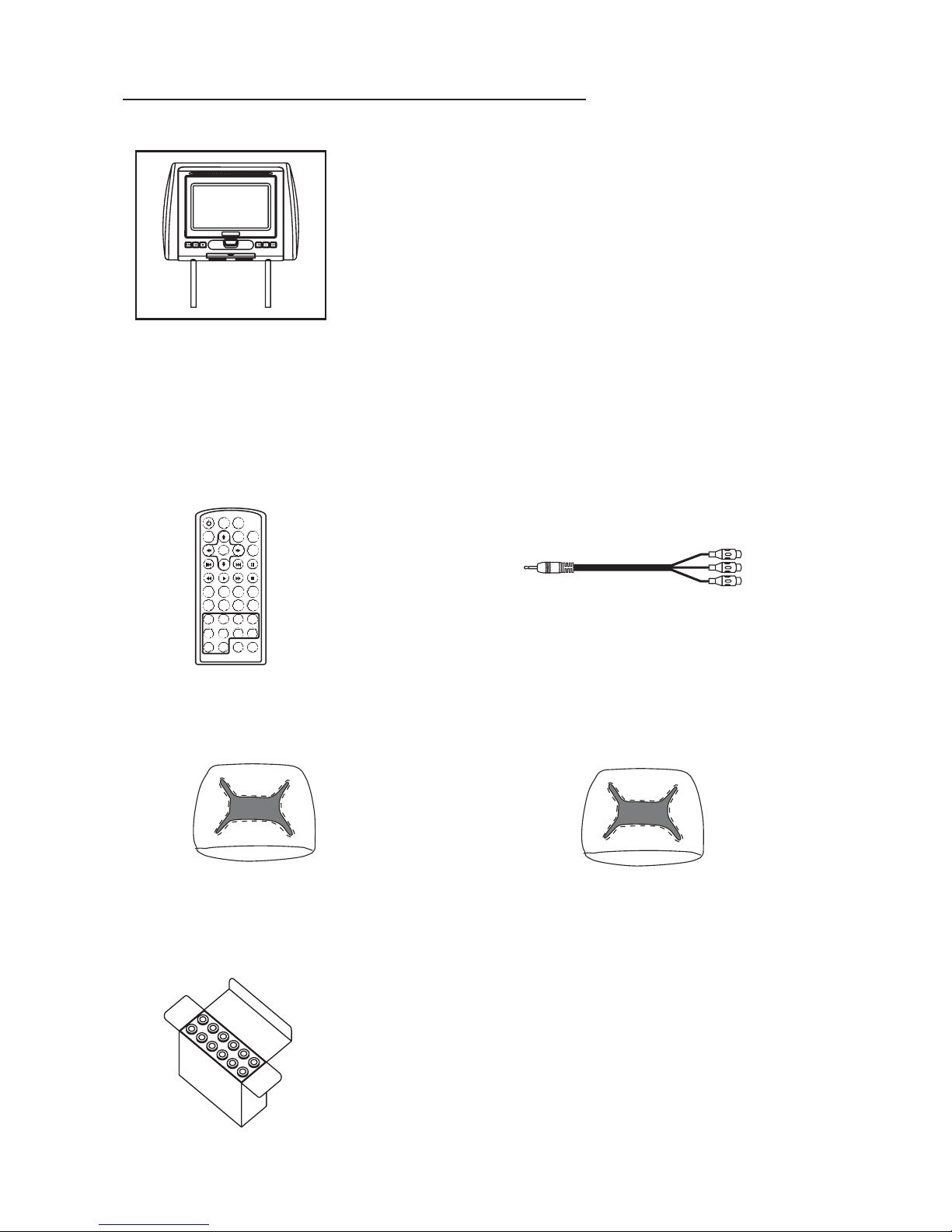

MATERIAL TO USE IN THIS PACKAGE:

1) JENHR1D System Monitor with DVD Player (JENHR1D) (1pc)

NOTE: Headrest cables are included with the headrest DVD player and the headrest

monitor.

PUSH

POWE R SOURCE

VOLU ME

MUTE

ENTE R

PIX

PREV NEXT PAUS E

STOPFFPL AYFR

AUDI OSUBT ITLEREPEATSETU P

ZOOM

DVD SO URCE

DISC ME NU

DISPLAY

1 2 3 4

5 6 7 8

9 0

FMM ON/O FF CHANNEL SELE CT

SYST EM MENU

1) Remote Control

P/N 136-5150) - (1pc)

2) AV Adapter Cable

P/N 112B3227 - (1pc)

3) Black Vinyl Headrest Cover

(P/N 126-1377)-(1pc)

4) Pewter Vinyl Headrest Cover

(P/N 126-1378)-(1pc)

5) Support Tube Adaptor Box

(P/N 170-0161)-(1box)

NOTE: The JENHR1D monitor has been designed to be

interchangeable from one headrest to the other. The

headrests will still have the Cigarette Lighter Adaptor

cables and 3 RCA Jack (AV Input) on them and should

be connected to their respective connectors. The

headrest cover from the manufacturer is covered with

shale colored vinyl.

HEADREST COVER REPLACEMENT:

NOTE: Choose the best color match for your vehicle.

1. Lay the headrest on a at surface, screen facing up. Using a Philips screwdriver,

unscrew the two Philips screws and lift the bottom edge of the monitor up-

ward.

2. Carefully tilt the bottom edge of the DVD player upward and pull towards you

to detach it from the top of the headrest.

3. Carefully unplug the wire from the back of the DVD player and set aside in a

safe place.

4. Detach the velcro tabs securing the headrest cover and slip the cover o.

5. Replace the headrest cover with the desired color and secure the headrest

cover by re-attaching the velcro tabs. Slide the posts through the rectangular

cutouts rst.

6. Carefully plug the harness back into the back of the DVD player.

Unscrew Philips Screws

Figure A

Detach Velcro Tabs

Figure B

Figure C

RED WIRE

7. Replace the player into the headrest.

a. Slide the top of the DVD player into the top of the headrest.

b. When lowering the bottom of the DVD player make sure the cable is not

trapped between the DVD player and the headrest inside the shell.

c. Press down on the DVD player to align the Philips head screws with the

holes in the headrest.

d. Secure the DVD player with two screws. Do not over tighten the screws.

8. Tighten screws.

Tighten Philips Screws

Push

Figure D

Figure E

VEHICLE PREPARATION

1. Read the manual and get familiar with the product requirements and

connections.

2. Install the headrests.

a. Remove vehicle’s original headrests and store in a safe place.

b. Locate the box of tube adapters and nd the tubes that match the

diameter of your factory headrest post. There are six dierent sizes:

12mm, 12.5mm, 12.7mm, 13.8mm, 14mm, and 16mm

The chart lists standard post sizes for dierent vehicle makes. Insert

appropriate support tube adaptors in vehicle post guides. (if needed).

Vehicle Factory Post

Option Sizes

Ford/Lincoln 10 mm, 12 mm and 12.7 mm

Nissan/Inniti 12.7mm

Toyota/Lexus 12 mm and 13.88 mm

Honda/Acura 10 mm and 12.7 mm

Chrysler/Dodge 10 mm, 12 mm, and 12.7 mm

GM/Chevrolet 10 mm, 11 mm, 12 mm and 14 mm

Locate an accessory power source (+12VDC present when the ignition key is in the

accessory and run positions. 0VDC should be present when the ignition key is in the

OFF position). (Refer to the Wiring Diagrams on page 9. Be sure, that all the wiring

is protected from sharp edges and is routed in such a manner that it will not be

pinched, when it is fully installed.

3. Plug the power adapter into the accessory socket.

Wireless Headphones

The JENHR1D is equipped with a dual channel IR (Infrared) transmitter for use with

wireless IR headphones (not supplied with the JENHR1D) which are available at

many electronics stores.

If two JENHR1D’s are installed in a vehicle the rst JENHR1D has to be set to

transmit on channel A (1) and the second JENHR1D has to be set to transmit on

channel B (2). See page 17 for details on setting the IR transmitter channel.

If wireless headphones are not used standard wired headphones or ear buds can be

used.

NOTE: A single channel headphone is required when only one JENHR1D is installed. If

2 JENHR1Ds are installed a 2 channel headphone is required for the second headrest.

Wireless FM Modulator

The JENHR1D is equipped with a built-in wireless FM Modulator, that allows you

to listen to the DVD audio signal by tuning your vehicle’s radio to the selected

frequency, (CH1 87.7MHz, ( 88.1MHz, 88.5MHz, 88.9MHz, CH5 106.7.1MHz, CH6

107.1MHz, CH7 107.5MHz, CH8 107.9MHz. This feature is accessed by using the FM

transmitter buttons on the remote (FMM ON/OFF, and CHANNEL SELECT).

Whenever the FM Modulator is on, broadcast reception on the vehicles radio will be

poor. Switching the FM Modulator o will allow normal radio reception.

NOTE 1: In certain areas where there are a large number of FM radio stations (e.g.

large cities, urban areas), the reception of the FM signal may not be satisfactory,

resulting in static, distorted sound or signal bleed thru from strong local radio

stations. This is not a defect in the product, but the result of a stronger local radio

station overpowering the wireless FM transmitter in your headrest monitor.

NOTE 2: If two JENHR1D’s are installed in the vehicle do not use both FM Modulators

at the same time.

JENHR1D WIRING DIAGRAM

1. Connect the cigarette lighter adaptor to the car.

Headrest Monitor

PUSH

Cigarette Lighter Adaptor

RCA Jack (AV Input)

JENHR1D CONTROLS AND INDICATORS DIAGRAM

(Front View)

PUSH

POWER/SOURCE

SCREEN RELEASE

PULL DOWN

PLAY/PAUSE

STOP

VOLUME /NEXT

SYSTEM MENU

VOLUME /PREVIOUS

IR SENSOR

IR HEADPHONE

TRANSMITTER LENS

AUX IN SD USB PHONE

AUX IN JACK

USB PORT

SD CARD READER

COVER

LCD PANEL

PUSH

DVD DISC

(FRONT VIEW MONITOR OPEN)

(BOTTOM VIEW)

HEADPHONE JACK
