Jensen VX7020N Operating instructions

INSTALLATION &

OWNER'S MANUAL

6.2" Double DIN Multimedia Receiver

AM-FM / DVD / Pandora / Bluetooth / iPhone® - iPod®/

USB / AV In / Rear Camera In / SiriusXM Ready / Navigation

VX7020N

VX7020N INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit.

• Remove 2 transit screws located on top of the unit.

• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting

sleeve.

• Install mounting sleeve into opening, bending tabs to secure.

• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.

• Certain vehicles may require an installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide into mounting sleeve to secure.

• Snap trim ring into place.

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

Trim Ring

Main Unit

Taptite Truss

Head 5x6mm

Taptite Binding

Head 5x6mm

VX7020N INSTALLATION

Wiring Diagram

Note:

When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause

damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.

Wiring Notes:

Rear camera input

A rear view camera (not included) can be used with the Camera input.

SiriusXM

For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included

with the tuner (SiriusXM connect tuner and subscription sold separately).

SiriusXM Tuner Input

(SiriusXM Tuner and

subscription sold separately)

VIOLET

VIOLET/BLACK

GREY (RED CAP)

VX7020N OPERATION

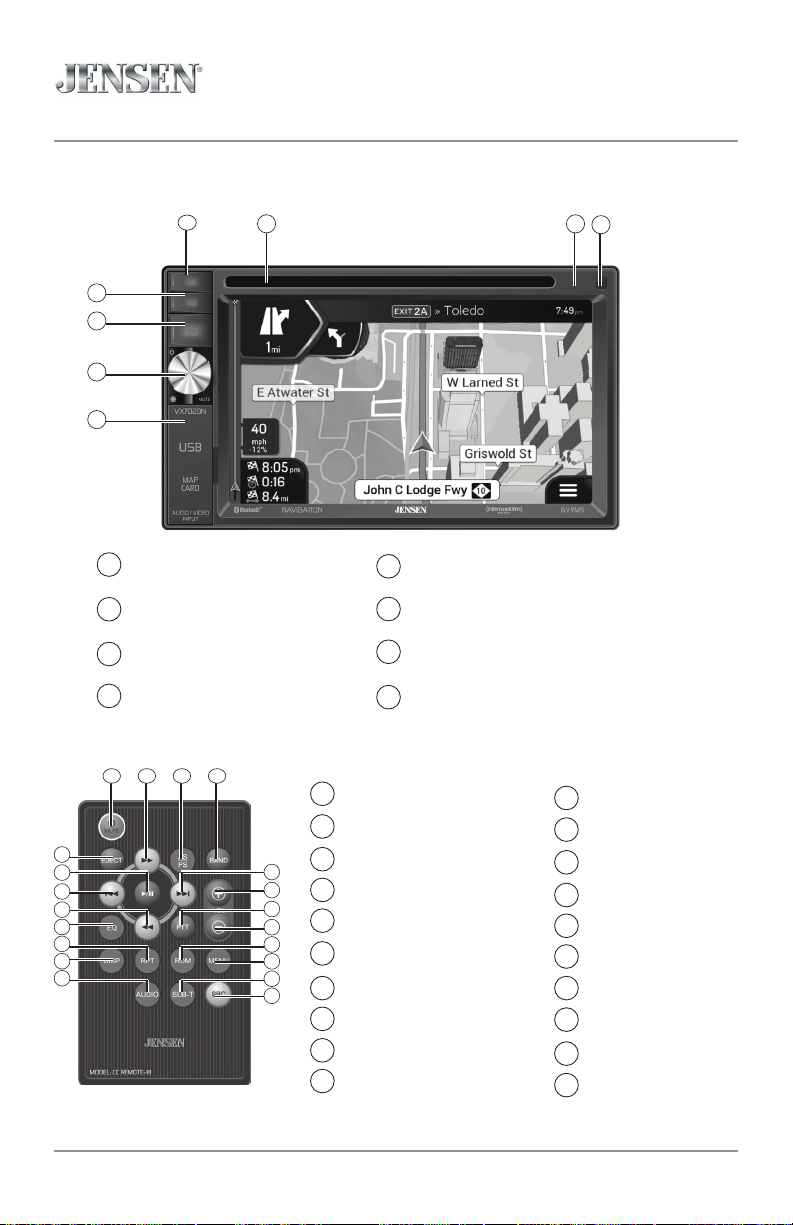

Control Locations

Eject

Source / Navigation

Power / Volume / Mute

Additional Inputs (USB, AV)

IR Remote Sensor

Reset Button

Disc Slot

120 19 18

Power / Mute

Eject

Play / Pause

Tune / Track Down

Repeat

Display

Audio

Source

Subtitle

Random

Volume Down

PTT

Volume Up

Tune / Track Up

Band

AS/PS

VX7020N OPERATION

Power On/Off

Source

Volume

Mute

Auxiliary Input

USB Port

Main Menu

Press or any other button (except Eject) to turn the unit on. Press

and hold to turn the unit off.

Press SRC to access available input modes: Radio, Disc, Pandora, USB,

Bluetooth Phone, Bluetooth Audio, SiriusXM, AV In 1, AV In 2, Camera,

Navigation and Settings. Disc or USB device must be connected/

inserted to appear in the mode selection string.

Rotate the volume knob to increase or decrease the volume level.

Momentarily press to silence the audio. Momentarily press again

to return to the previously selected volume. Rotating the volume knob

while the muted will also cancel the mute function.

Connect external audio devices to the 3.5mm auxiliary input on the

front panel.

Connect a USB device to the USB port on the front panel to play MP3

files or view AVI, MP4 video files or JPG photos.

From any operational mode, press the arrow icon in the top left corner

to access the Main Menu screen. Use the right and left arrows in the

bottom corners to navigate between the two Main Menu screens, and

touch any icon to directy access the corresponding mode.

General Operation

VX7020N OPERATION

From the Main Menu screen, press Settings in the bottom right corner to

access the Setup Menu and select from the following categories: General,

Time, Display, Panel, Disc, Radio, General, Illumination, Wallpaper and

Version.

After accessing the desired category, press the up/down arrows to navigate

all the category options and use the touch screen to adjust each option.

General:

• OSD Language - Select English as the language for the on-screen

display.

• SRC - Select to choose the desired source for each option: SRC1, SRC2,

SRC3 and SRC4.

• Beep - Select to turn the audible beep On or Off.

• Camera - Select to turn the camera On or Off.

• Parking Guideline - Select to turn parking guidelines On or Off.

Time:

• Set the year, month and day, select between a 12-hour and 24-hour

clock display and set the hour and minute for the clock display.

Display:

• Adjust the following display options (-20 to 20): Brightness, Contrast,

Hue, Saturation and Sharpness.

Panel:

• Dimmer - Turn the dimmer On or Off.

• Dimmer Level - Select between Level 1, Level 2 or Level 3.

• Panel Adjust - Press and follow the prompts to calibrate the touch

screen.

Disc:

• Audio Language - Select desired language for audio.

• Subtitle Language - Select desired language for subtitles.

• Menu Language - Select desired language for the menus.

• Aspect Ratio - Select from the following ratios: 4:3PS, 4:3LB and 16:9.

• Change Password - Select and follow the prompts to change password.

• Rating - Select specific parental control rating, if desired.

General Operation

Setup Menu

VX7020N OPERATION

Radio:

• Dual - Select between Stereo and Mono operation.

• Local - Select between Local and Distance tuning

• Areea - Select between Europe, USA, American1 American 2 and OIRT.

• RDS - Select On or Off.

• RDS Region - Select On or Off.

• PI - Select Sound or Mute.

• TA - Select to turn traffic announcements On or Off.

• AF - Select to turn alternative frequencies On or Off.

• Radio Text - Select to turn radio text On or Off.

• Clock Sync - Select to turn clock sync On or Off.

• Traffic Volume - Select to turn traffic volume On or Off.

Bluetooth:

• Bluetooth - Turn Bluetooth On or Off.

• Auto Connect - Select On to program the unit to automatically connect to

available Bluetooth devices.

• Auto Answer - Select On to program the unit to automatically answer

incoming calls using Bluetooth.

• Auto Load Record - Turn auto load record On or Off.

• Auto Load Phonebook - Select On to automatically load the phonebook

from your phone.

• Change PIN - Select to change the PIN.

SXM:

• Change Password - Press and follow the prompts to change the unit's

password.

Illumination:

• Press to adjust color settings for illumination.

Wallpaper:

• Press to select a wallpaper for the on-screen display.

Version:

• Press to display version numbers or to restore the unit to factory default

settings.

General Operation

Setup Menu

VX7020N OPERATION

Select the Radio icon from the Main Menu screen.

Press to return to Main Menu screen.

Displays current mode of operation.

Displays current frequency.

Press to view and select available sources.

Press to select between 3 FM and 2 AM bands.

Press to tune down by seeking the next strong station.

Press to automatically store the six strongest stations in the current

band as presets.

Press momentarily to tune the unit down one step at a time.

Press to tune up by seeking the next strong station.

Press momentarily to tune the unit up one step at a time.

Press to view additional options.

To store a preset station, tune unit to desired station, then press and

hold the desired preset button to store the current station in that

preset spot. Up to 18 FM and 12 AM stations can be stored in memory.

Momentarily press any preset station to play it instantly.

Radio Operation

Main Menu 1

Current Mode Indicator 2

Current Frequency 3

Source 4

Band 5

Seek Tune Down 6

Auto Store 7

Manually Tune Down 8

Seek Tune Up 9

Manually Tune Up 10

Additional Options 11

Preset Stations 12

Radio Operation

458 10

6 7 9 11

VX7020N OPERATION

13 14 15 16 17 18 19

Radio Operation

Press to select between Local or Distance tuning.

Press to select Stereo or Mono operation.

Press to view and select a station category, and the unit will

automatically seek stations with that type of programming.

Press to directly enter the desired station number and begin playback

of that station.

Press to enter the Audio Settings menu and adjust the following

audio options:

• EQ - Use the touch screen to adjust equalization curvesn to

suit individual listening preferences. The following equalizer

frequencies are available for adjustment: 80Hz, 160Hz, 320Hz,

600Hz, 1kHz, 3kHz, 8kHz and16kHz. An adjustment range of

+16dB to -16dB is available for each frequency band.

• Fader-Balance - Use the touch screen to adjust the balance of

the audio output levels throughout the vehicle. The fader adjusts

levels front to back, and the balance adjust from left to right.

• Audio - Use the touch screen to adjust the following options:

Subwoofer (On or Off), Subwoofer Frequency (80Hz, 120Hz or

160Hz), Loudness (On or Off) and Loudness Center Frequency

(400Hz, 800Hz or 2400Hz).

• SRC Level - Adjust audio levels for each audio source (Disc,

USB, etc.)

Press to turn the Traffic Announcements feature On or Off.

Press to turn the Alternative Frequencies feature On or Off.

Local / Distance 13

Mono / Stereo 14

Program Type 15

Direct Entry 16

EQ 17

Traffic Announcements 18

Alternative Frequencies 19

VX7020N OPERATION

Insert a disc (label facing up), and playback will begin automatically.

To switch to CD mode from another mode of operation when a disc is

already inserted, select the Disc icon from the Main Menu screen.

Press to return to Main Menu screen.

Displays current mode of operation.

Displays information about the current track, including track number,

song title, artist name and album name.

Press to view and select available sources.

Press to view a list of files on the disc, Use the up/down arrows

to scroll through the list, then press the file name twice to begin

playback of that track. When searching all tracks, Order will appear

on the right side of the screen. Press this button to switch to viewing

tracks by Folder, then press the desired folder name twice to view

only the tracks contained in that folder.

When viewing file lists, the unit will show music lists by default, To

view lists of photo or video files, press the corresponding icon on the

bottom of the screen.

Press to return to the previous track. Press and hold to skip to the

beginning of the current track.

Displays the elapsed time and time remaining for the current track.

Press to stop or restart playback.

Press to advance to the next track.

Press to display additional options.

CD Operation

Main Menu 1

Current Mode Indicator 2

File Information 3

Source 4

List 5

Previous Track 6

Elapsed Time 7

Play/Pause 8

Next Track 9

Additional Options 10

CD Operation

457 10

6 8 9

Table of contents

Other Jensen Car Receiver manuals

Jensen

Jensen VM9311TS - DVD Player With LCD Monitor User manual

Jensen

Jensen VM9224BT User manual

Jensen

Jensen JHD3630BT User manual

Jensen

Jensen Heavy Duty JHD3620 User manual

Jensen

Jensen VM8113 User manual

Jensen

Jensen JWM452 Installation instructions

Jensen

Jensen MP6312I - Ipod/Mp3/Wma Receiver User manual

Jensen

Jensen cd3010x User manual

Jensen

Jensen CD510K Instruction Manual

Jensen

Jensen MSR4050G - Radio / CD Player User manual

Jensen

Jensen CD3720XM User manual

Jensen

Jensen MP1524 User manual

Jensen

Jensen VR209TP User manual

Jensen

Jensen AWM975 User manual

Jensen

Jensen VX7024 User manual

Jensen

Jensen MP5720XM User manual

Jensen

Jensen CD6112 - CD Receiver User manual

Jensen

Jensen VM8013 User manual

Jensen

Jensen VM9411 User manual

Jensen

Jensen VX4010 User manual

Jensen

Jensen VM9412 - In-dash DVD Receiver User manual

Jensen

Jensen Heavy Duty JHD1620 User manual

Jensen

Jensen VX3010 User manual

Jensen

Jensen VM9216BT User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
