Jenn-Air JS42SEDUDB00 User manual
1
CABINET PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
01−08 Litho In U.S.A. (mat) Part No. W10180976 Rev. A
42" BUILT IN
REFRIGERATOR
2
CABINET PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10151251
Use & Care Guide
W10164077
Energy Guide
W10159832
Service & Wiring
Sheet
2306424 Icemaker and
Ingredient Care
Center Service
Sheet
2318069 Main Control
Service Sheet
W10151249
Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2260503B Button, Filter
4
W10138054
Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2318194 Refrigerator Side
2318193 Freezer Side
8 Cap, Water Filter
2260518B Black
9 2307640 Mounting Stud,
Grille
10 2307584 Grommet, Crossover
Tube
11 2005783 Cam, Door Closer
12 2260526 Housing, Water
Filter
13 2318189 Tray, Drip Filter
14 3400525 Screw
15 4396841 Filter, Water
16 489399 Screw
17 3400230 Screw, Door Stop
18 2257644 Hinge (Top)
19 2318190 Bracket, Mtg
(Water Filter)
20 489464 Screw
21 2004994 Lock, Adjustable
Bushing
22 2300082 Bushing
24 Spring, Door
Closure
2221242 Right Side
2004517 Left Side
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27
W10129069
Wire Clip (5)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2302876 Bushing,
Adjustable
31 8533913 Screw 1/4−20 x 5/8
32 Skirt−Grille,
Bottom
2209025B Black
33 Extension Arm,
Door Closer
2266882 Right
2266881 Left
34 Grille Bottom, Front
2325185B Black
35 2005921 Screw
36 Bracket, Support
Base (Front)
2006616 Left
2006556 Right
37 1157158 Screw
38 2006617 Bracket, Support
Base (Rear) (2)
39 2006346 Washer
40 2266880 Bushing,
Extension Arm
41 1163283 Screw
42 Connector, Water
Tube
2209709 5/16−1/4"
2300868 1/4"
43 8281163 Screw
44 Switch, Rocker Arm
1118894 Refrigerator Door
Side
1115373 Freezer Door Side
45 2215938 Cover, Switch (2)
46 487415 Screw (2)
47 Bracket, Switch
2221097 Right
2221096 Left
48 2215612 Cover, Rear
3
CABINET TRIM PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1 Cabinet, Trim
(Right Side)
W10132472
Stainless Steel
3 Screw
1163283 Stainless Steel
4 2316687 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2314017 Cabinet, Trim Top
7
W10132541
Cabinet Trim
(Left Side)
8
W10121451
Nutsert (4)
9 2005925 Seal−Trim, Side
10 489464 Screw
4

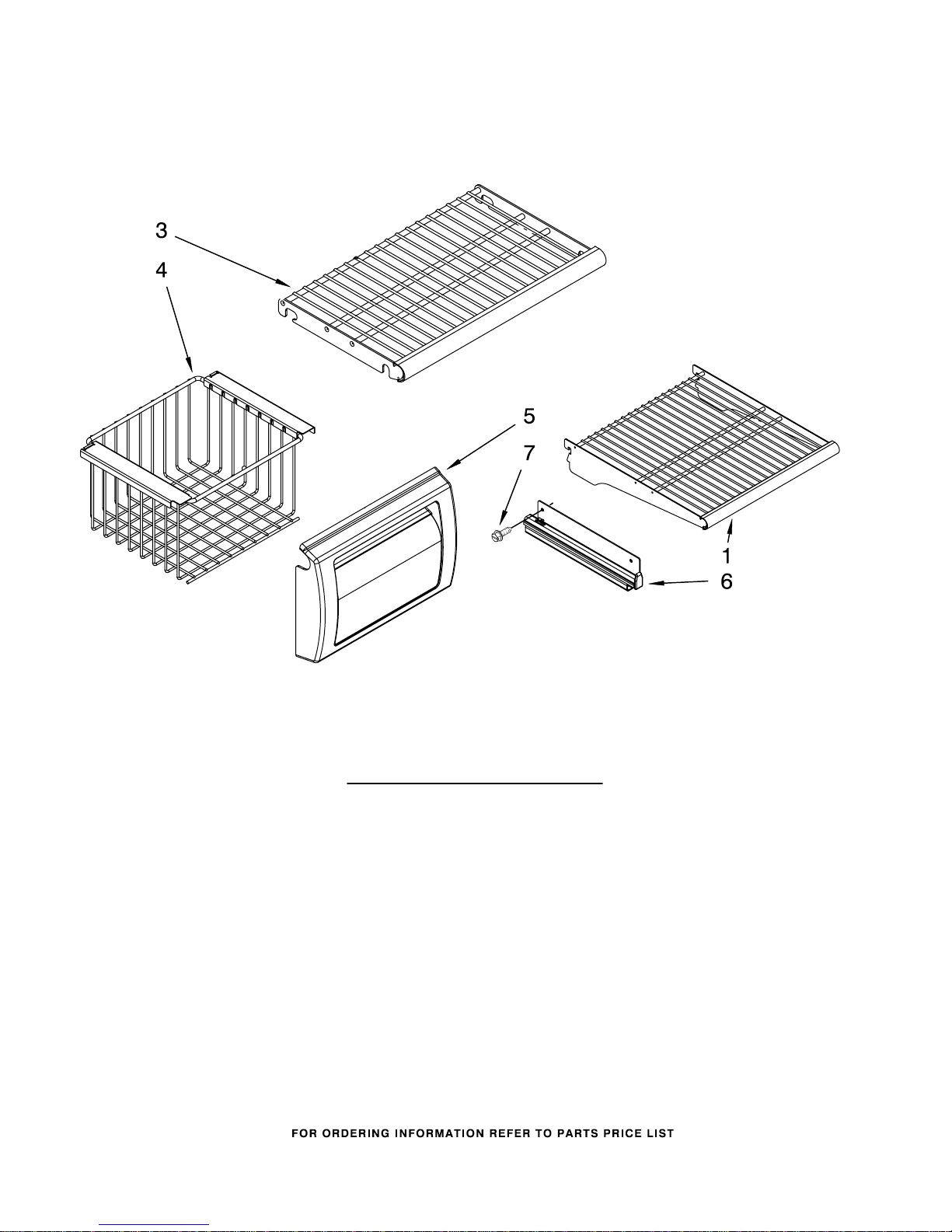

FREEZER SHELF PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1 2302868 Wire, Shelf
3 2302883 Shelf, Fixed (2)
4 2259082 Basket
5 2256270 Front, Basket
6 Slide, Basket
2259317 Right Side
2259318 Left Side
7 8533928 Screw
5
REFRIGERATOR LINER PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
6
REFRIGERATOR LINER PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2306010 Thermistor
3 2208970 Air Duct
4
W10159487
Diverter, Crisper
Cover
5 2259077 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 2006475 Screw
8 487539 Screw
9 2302937 Thermistor
10 2302986 Lid, Meat Pan
Baffle
11
W10169528
Baffle Control
Assembly
12 2171846 Release Valve
13 2310205 Jumper, Air Baffle
14 488357 Screw
15 486194 Screw
16 2003577 Guard, Air Return
17 2221296 Air Baffle
Assembly
18 2327509 Reservoir
19 488280 Screw
21 2309222 Diffuser Assembly
22 2317105 Cover, Thermistor
23 2188820 Thermistor
24 2302992 Spacer, Air−
Baffle
25 2309087 Cover, Diffuser
27 2259412 Seal, Air Duct
(Round Hole)
28 2259398 Seal, Air Duct
(Square Hole)
7
CONTROL PANEL PARTS
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1
W10151196
Control Box Assy
2 2317000 Clip, Box
4 2310390 Wire, Jumper
5 2307592 Bracket,
Control Box
6 2307595 Shield,
Control Box
7 487539 Screw (2)
8
W10151210
Display,
Ingredient Care
Center
9 2223857 Socket, Light
10 2326255 Light Bulb (2)
11 8281185 Screw
TOP GRILLE AND UNIT COVER PARTS
8
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1 Panel, Decorative
Assembly
W10150056
Stainless Steel
2
W10161693
Cover, Unit
3 486194 Screw
4 2256466 Back Panel
5
W10121229
Cover, Unit Front
6 487415 Screw
7 2310194 Wire Assembly
RC/FC Light Switch
8
W10159578
Badge, Jenn−Air
9 489348 Clamp
REFRIGERATOR SHELF PARTS
9
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
REFRIGERATOR SHELF PARTS
10
For Model: JS42SEDUDB00
(Stainless Steel)
W10180976
Illus. Part
No. No. DESCRIPTION
1
W10141494
Shelf Assembly
2 2179404 Rack, Wine
3
W10151215
Assembly, Meat Pan
Cover
4
W10151213
Assembly, Crisper
Cover
5 2257582 Trim, Glass Rear
6 2252412 Crisper Pan (2)
7 Slide, Meat Pan
2302954 Left Side
2302955 Right Side
8 2302831 Trim, Glass Front
9 2256254 Trim, Glass Rear
10 2256248 Front, Crisper
Pan
11 2252255 Trim, Glass Side
Crisper Pan
12 2256250 Trim, Glass Side
Meat Pan
13 Spacer, Crisper
2256222 Right Side (2)
2256223 Left Side (2)
14 Slide, Crisper
2302956 Right Side
2302957 Left Side
15 Spacer, Meat Pan
2256243 Left Side
2256244 Right Side
16 Screw
8533929 Right Side−
(8−18 x 1.375)
8533928 Left Side−
(8−18 x .750)
17 2256369 Pan Assembly
Meat
18 2256366 Front, Meat Pan
