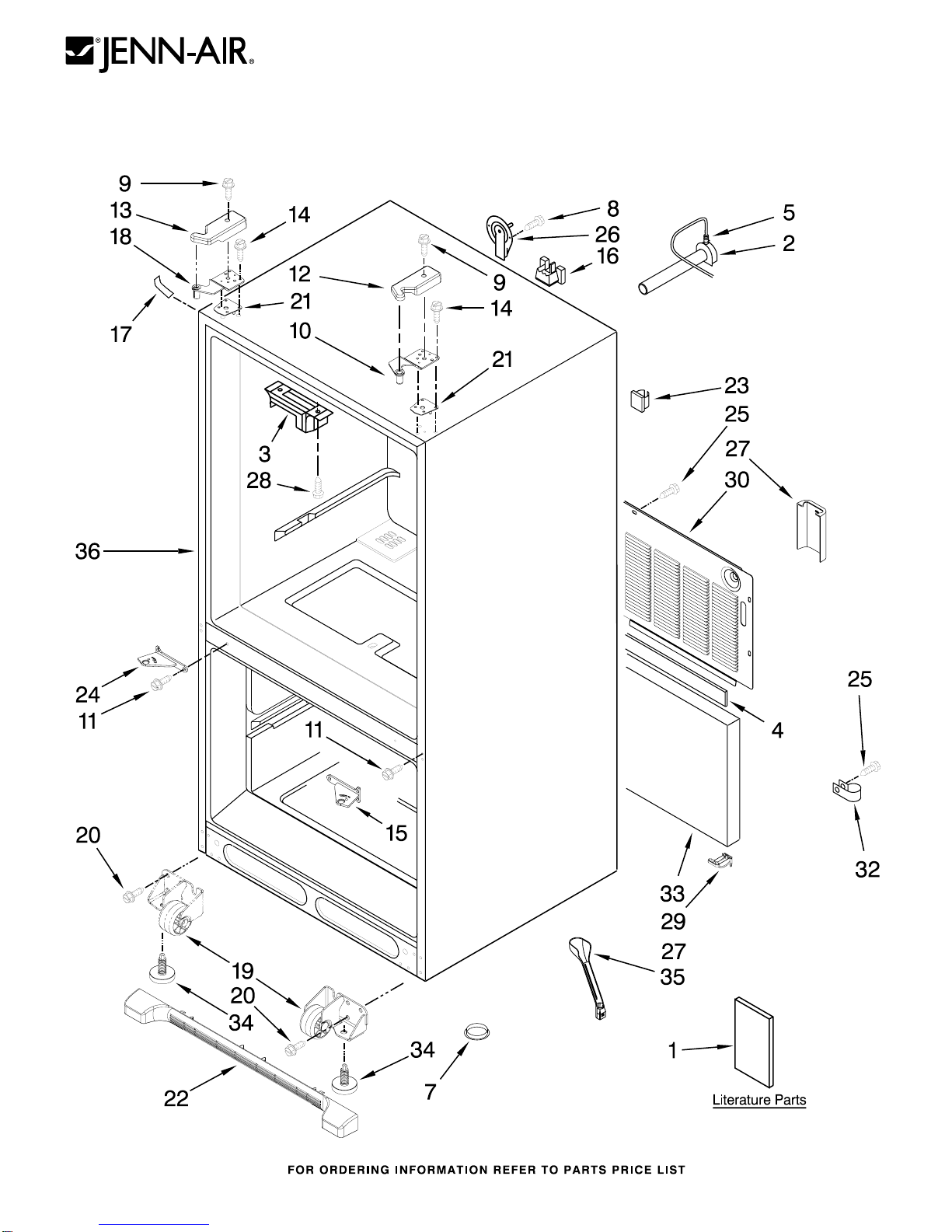

CABINET PARTS
1
REFRIGERATOR
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
10−11 Litho In U.S.A. (MMS)(bay) Part No. W10268073 Rev.C
REFRIGERATOR
CABINET PARTS
2
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10238853
Tech Sheet
12828196SP
Owners Manual
W10214832
Tag, Energy
2
10463203SP
Elbow, Fill Tube
3
W10120087
Block, Pivot
4 B5759655 Gasket
5
M0114003SP
Clip, Speed
7 A3076901 Plug, Button
8 12990504 Screw
9 12992603 Screw
10
W10210891
Hinge, Top Right
11 12992201 Screw (6)
12 Cover, Right Hinge
W10120103
Apollo Grey
13 Cover, Left Hinge
W10120102
Apollo Grey
14 12992403 Screw (6)
15 Hinge, Center (RT)
W10135097
Stainless
16 12777701 Block, Fill Tube
17 Cover, Corner (2)
12587703AP
Apollo Grey
18
W10210890
Hinge, Top Left
19 Roller Assy.
(Front)
W10212382
Right
W10212381
Left
20 12991302 Screw (8)
21 Shim, Hinge
12999501 Left
12999502 Right
22 Grille, Toe
W10244558
Black
23 M0104106 Clip (2)
24 Hinge, Center (LT)
W10135096
Stainless
25 12990511 Screw (10)
26 12726003 Cover, Water Line
27
W10208593
Guard, Water Valve
(Dual)
28 12990302 Screw (2)
29 12831101 Sweep, Dual Tube
30
W10211855
Cover, Unit
32 M0108105 Clamp, Tube
33 12820505 Insulation, Sound
34
W10141622
Brake, Foot
35
W10210988
Tube, Drain
36 Cabinet (Not a
Servicable Part)

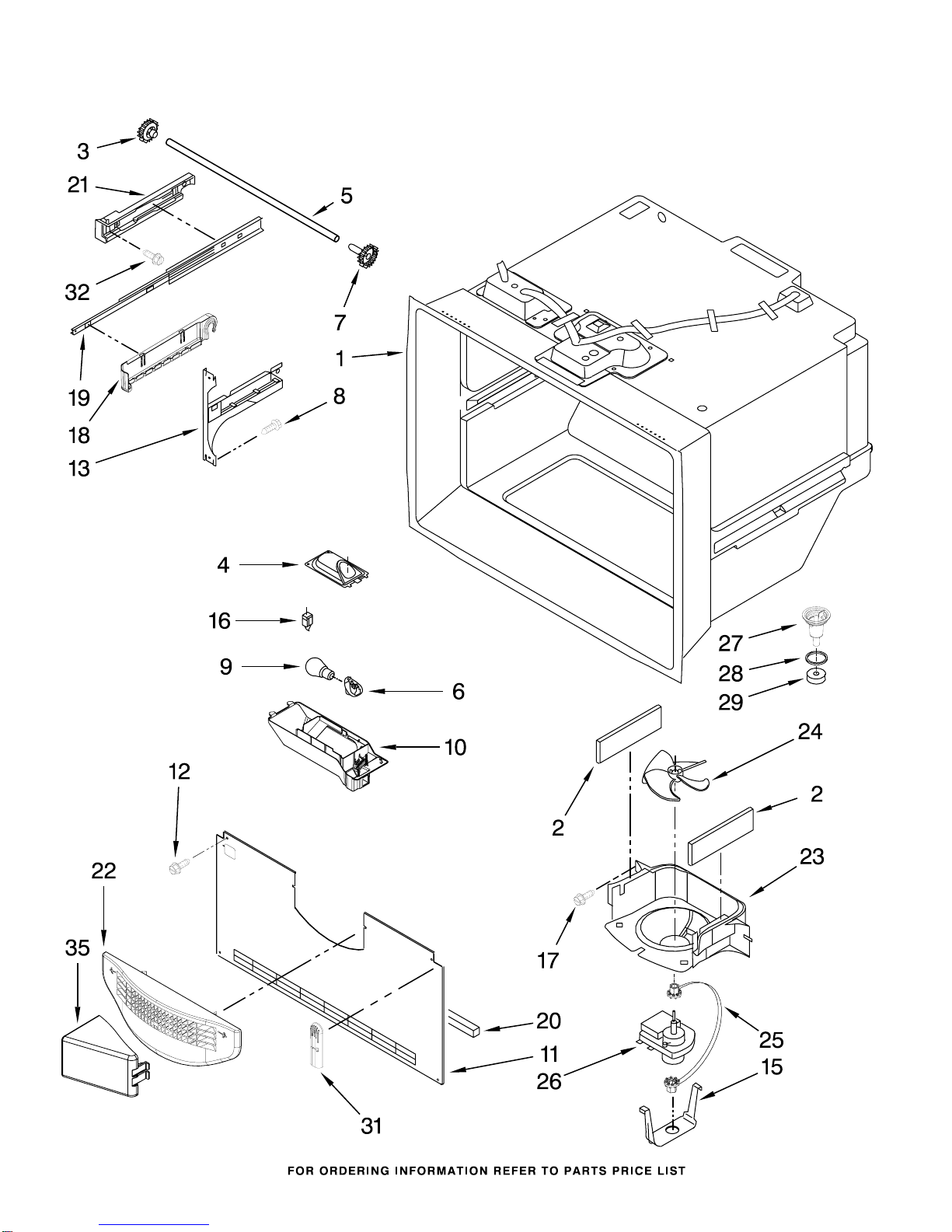

FREEZER LINER PARTS
3
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
FREEZER LINER PARTS
4
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189392 Gasket, Foam
3 12002497 Gear (Left)
(Includes Item 7)
4
12476401SP
Housing, Light
5
12812903WD
Shaft
6
12570701SP
Socket, Light
7 12002497 Gear (Right)
(Includes Item 3)
8 12990521 Screw (8)
9
W10194422V
Bulb, Light
10
W10119832
Module, Light
11 12226119 Cover, Evaporator
12 12990511 Screw (4)
13 Bracket, Door
W10119064
Left
W10119295
Right
15 13058002 Clip, Evap Motor
16
12466105SP
Switch, Light
17 12990504 Screw (2)
18 Cradle, Basket
W10119848
Left
W10119849
Right
19
W10165841
Slide, Drawer (2)
20 A3189396 Gasket, Bottom
21 Adapter, Slide
13042303 Left
13042304 Right
22 13024803 Grille, Fz Air
23 13057901 Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25
W10121318
Grommet
26
W10128551
Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
31 12815301 Cover, Thermistor
32 12990501 Screw (6)
35
W10157765
Diverter, Air
Following Parts Not Illustrated
W10196195
Harness, Fz Module
(Includes
Thermistor)

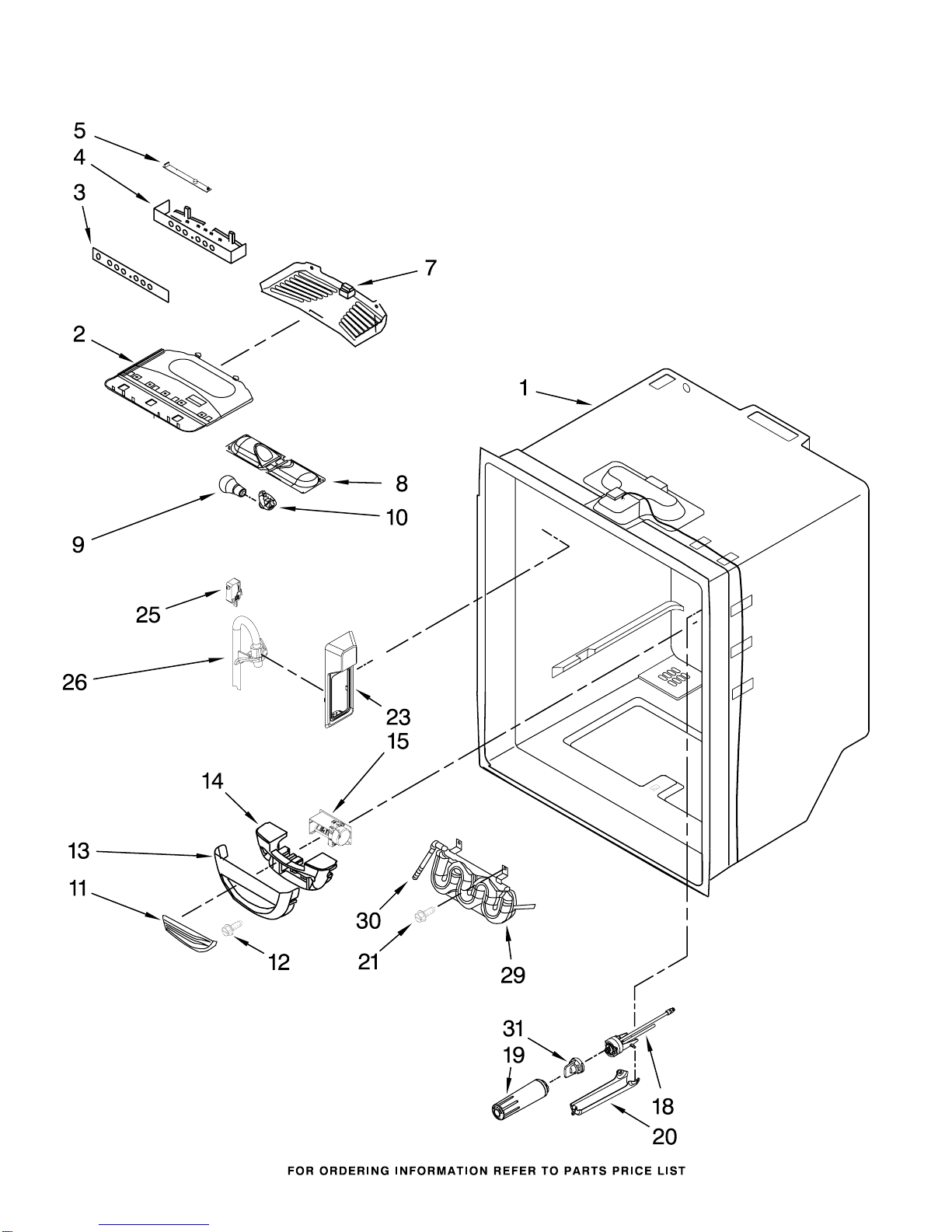

REFRIGERATOR LINER PARTS
5
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
REFRIGERATOR LINER PARTS
6
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806303 Module, Light
3
W10205847
Overlay
4 12806405 Housing, Control
5
W10116216
Board, Control
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light (2)
10
12570701V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10207517
Control, Damper
18 12590621 Head, Water Filter
19 UKF8001 Filter, Water
20 12568001 Cover, Filter
21 12990504 Screw (2)
23
W10204292
Facade, Dispenser
Assembly
25 12575502 Switch, Limit
26
W10117324
Waterline,
Dispenser
29 12706112 Tank, Water
30 61006182 Union
31
12664501SP
Plug, Bypass
Following Parts Not Illustrated
W10119821
Harness, Control
(Refrigerator)
(Includes
Thermistor)
REFRIGERATOR DOOR PARTS
7
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073

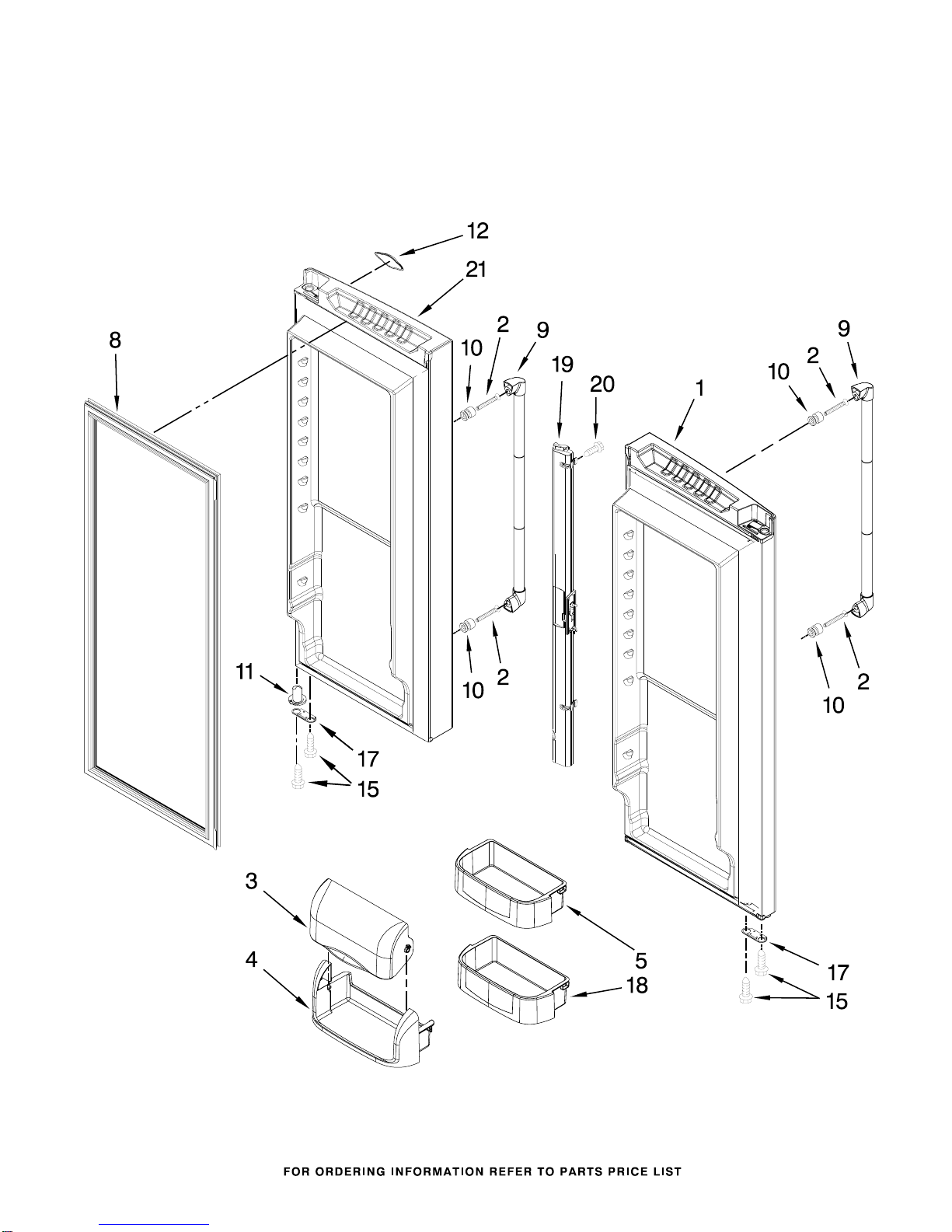

REFRIGERATOR DOOR PARTS
8
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
Illus. Part
No. No. DESCRIPTION
1 Door, Refrigerator
13094708SQ
Stainless, LH
2 12991703 Screw
3 12744905 Door, Dairy
4
12369502SP
Tray, Dairy
5
W10119841
Bucket, Medium (3)
8 Gasket, Door
W10163997
Apollo Grey
9 Handle, Door
W10210624
Stainless
10 13001201 Mount, Handle
11 Closure, Door
12028505AP
Apollo Grey
12 13062401 Nameplate
15 12990504 Screw
17 Stop, Door
W10120097
Apollo Grey
18
W10119846
Bucket, Gallon (2)
19 Mullion, Door
12732508AP
Apollo Grey
20 12990204 Screw
21 Door, Right
13094707SQ
Stainless

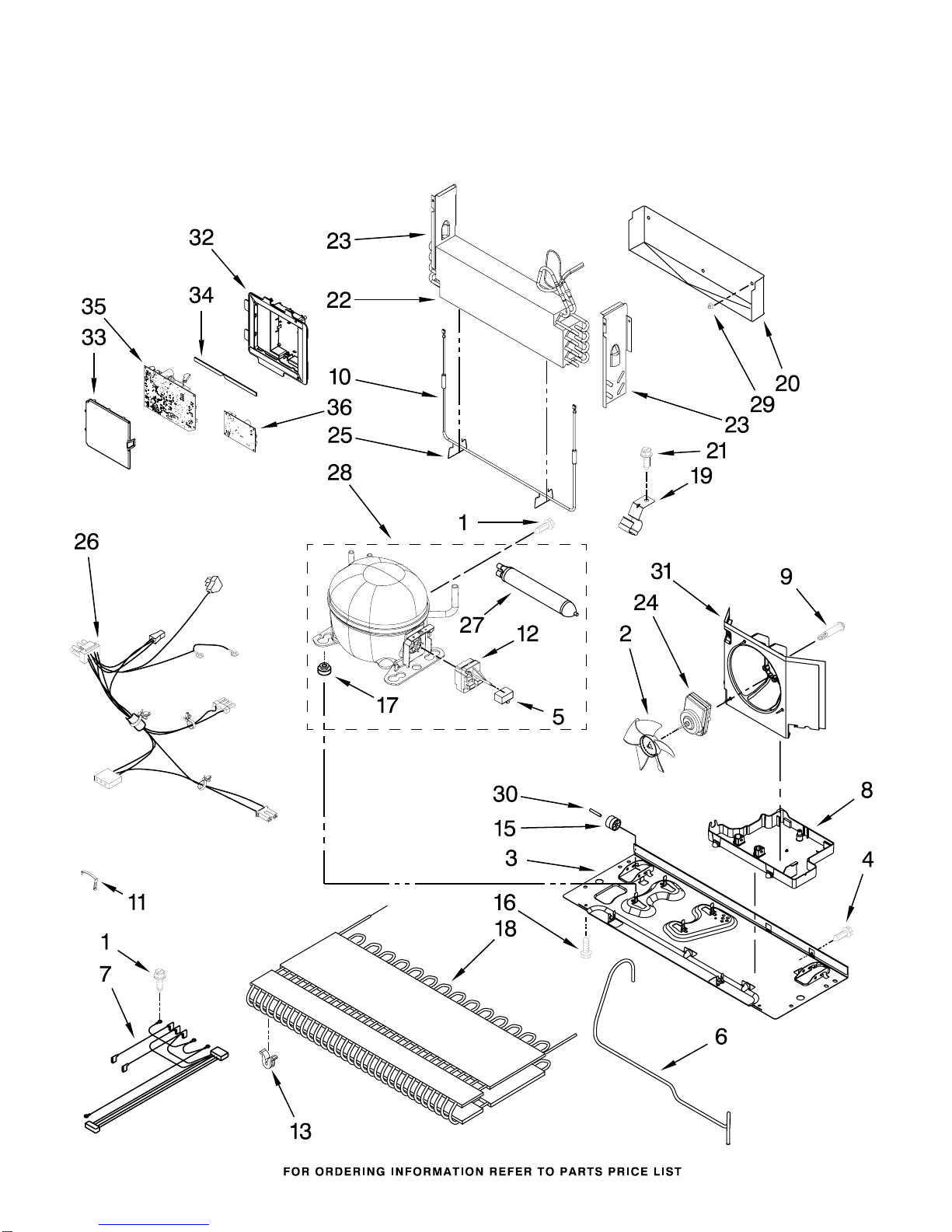

UNIT PARTS
9
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
UNIT PARTS
10
For Models: JFC2290VEP1, JFC2290VEM1
(Stainless Steel)(Monochromatic Stainless)
W10268073
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 12992301 Screw
2 12825803 Blade, Fan
3
W10210985
Basepan
4 12990511 Screw
5 2264017 Capacitor
6
W10233569
Tube, Discharge
7
W10211456
Harness, Evap.
Heater
8
W10215085
Pan, Drain
9
W10216919
Screw, Shoulder
10 12729129 Heater, Defrost
11
W10174384
Strap, Bale
12
W10194431
Start Device
13
W10137529
Grommet, Cond (4)
15 12477102 Roller (2)
16 12992101 Screw
17
10835903SP
Grommet (4)
18
W10135026
Condenser
19 10547003 Clip, Drier
20
12225403WD
Tray, Drip
21 12990701 Screw
22 12726403 Evaporator
23 Dam
12225702 Right Side
12225602 Left Side
24 12825101 Motor, Fan
25 10428101 Clip, Heater
26
W10256742
Harness, Unit
with Power Cord
27
W10143759
Drier
28
W10164016
Compressor
(Includes items
11,12,17,27)
29 10623002 Clip, Evaporator
30 12477202 Axle, Roller (2)
31
W10189184
Shroud
32
W10119790
Box, HV Control
33 12957702 Lid, HV Box
34 12957801 Gasket, HV Box
35
W10120827
Board, Control
36
W10120821
Board, Power
Supply
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)
