COOKTOP PARTS
1
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
11−11 Litho in U.S.A. (amd) (eeb) Part No. W10245806 Rev. B
30" FREE STANDING
RANGE WITH DUAL
FUEL CONVECTION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8101P729−60
Manual, Owners
8119P367−60
Wiring Diagram
8101P729−60
Instructions,
Installation
Brochure, Tips
Safe Cooking
9762761 English
W10065852
French
2 Grate, Double
7518P190−60
Black
7518P192−60
Gray
3 Cap, Burner
7504P202−60
Black,Small
7504P219−60
Black,Medium
7504P137−60
Black,Medium
7504P204−60
Black,Large
7504P139−60
Gray,Small
7504P205−60
Gray,Medium
7504P141−60
Gray,Medium
7504P140−60
Gray,Large
4 Base, Burner
8286181 6K, Center
8286182 17K, RF
7540P043−60
9.2K, LR,RR
8286183 12K, LF
5 Panel, Manifold
2616F328−81
White
2616F328−09
Black
2616N343−50
Stainless
6
7733P389−60
Knob, Valve
7 Cooktop
2001F287−81
White
2001F287−09
Black

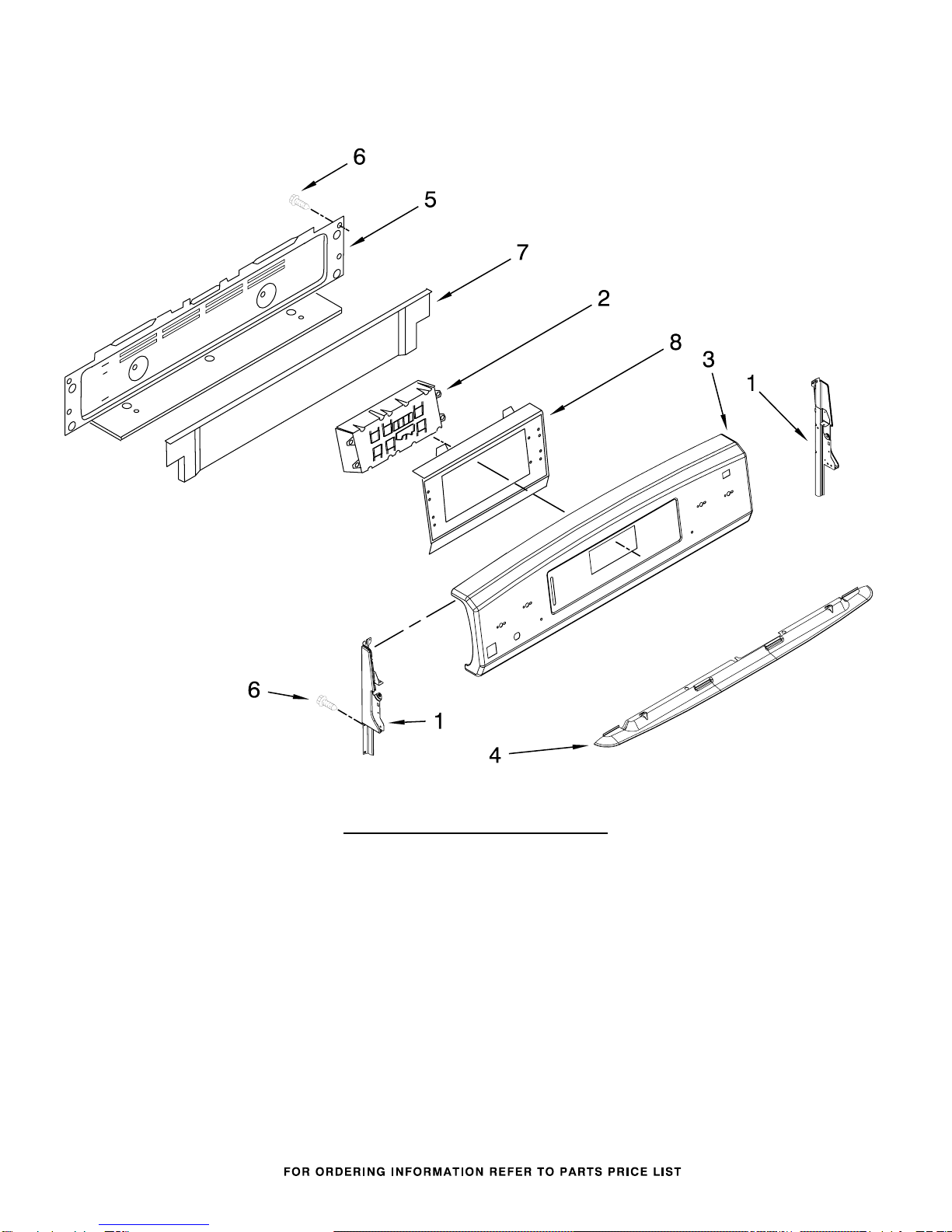

CONTROL PANEL PARTS
2
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
1 End Cap
3807F702−71
White (Right)
3807F703−71
White (Left)
3807F702−70
Black (Right)
3807F703−70
Black (Left)
2
8507P333−60
Control
3 Backguard Assy.
5751M719−60
White
5751M717−60
Black
5751M718−60
Stainless
4 Sheild, Heat Visor
3604F382−81
White
3604F382−09
Black
5
4005P711−51
Cover, Rear Wire
6
7101P388−60
Screw (8AB 1/2−NI)
7
3604F381−19
Shield, Vent
8
3801F945−51
Bracket, Control
OVEN PARTS
3
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806

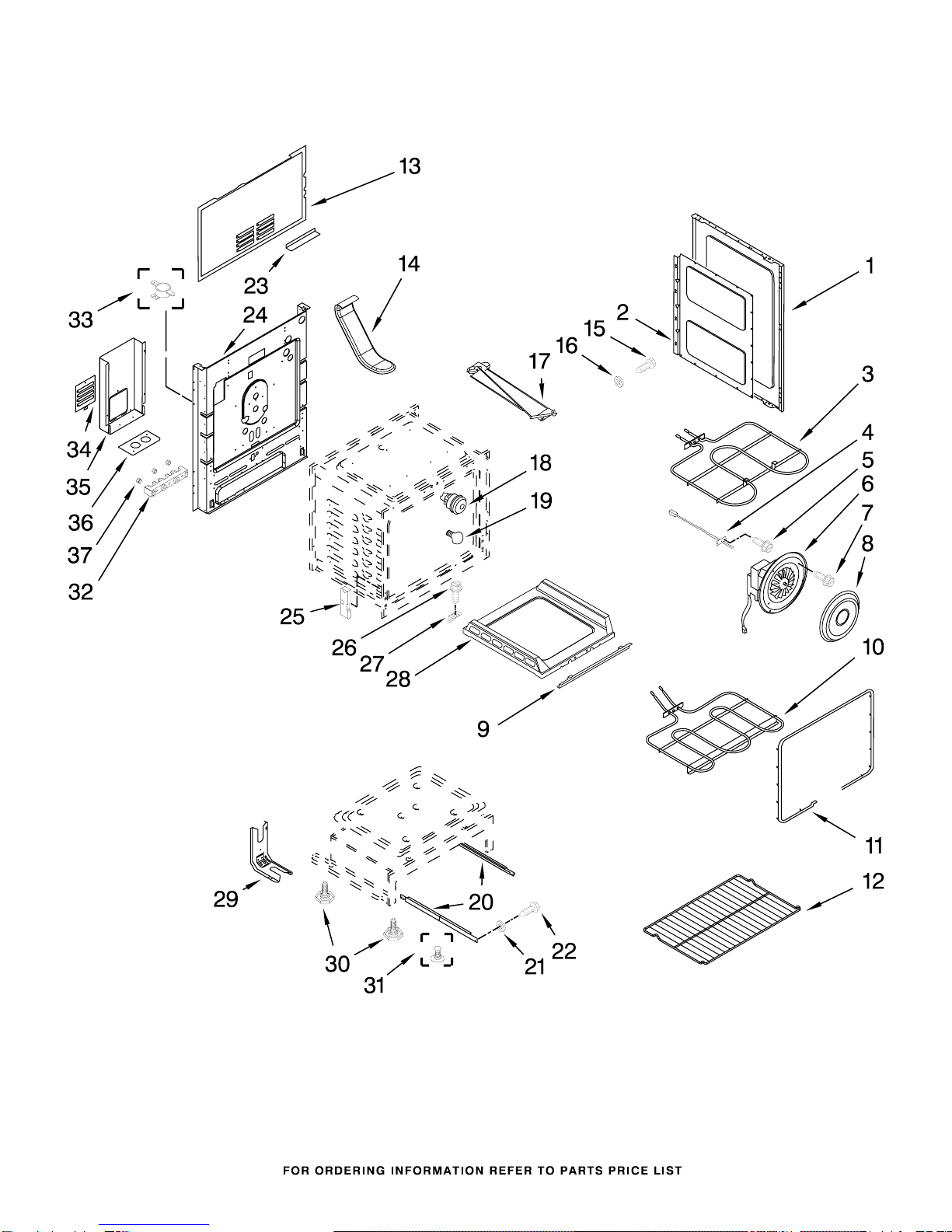

OVEN PARTS
4
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
1 Panel, Side
2618F172−58
White
2618F172−69
Black
2
3804F311−51
Retainer, Side
3
7406P493−60
Element, Broil
4 12001656 Oven Sensor
5 3196154 Screw
6
7427P109−60
Fan Assy. Convect
7
7101P385−60
Screw
8
4005P704−51
Cover, Convect Pl
9
3807P680−45
Support, Oven
10
7406P456−60
Element, Bake
11
W10162385
Gasket
12
W10179196
Rack, Oven
13
4005F754−51
Cover, Main Wire
14
8026P090−60
Smoke Eliminator
15
7101P618−60
Screw, Shoulder #8
16
8010P148−60
Spacer, Side Panel
17
8002P104−60
Latch, Door Lock
18
7407P181−60
Light, Oven
19
7407P103−60
Bulb, Oven Light
20
3406F034−51
Runner, Drawer
21
8014P022−60
Roller, Drawer
22
7118P032−60
Shaft, Drawer
23
4005F804−51
Bottom, Wire Cover
24
4002F347−51
Back, Main
25
7106P125−60
Receiver, Hinge
26
7101P500−60
Screw, Shoulder
27
3801P822−45
Support, Oven
28
2205F053−19
Bottom, Oven
29
3801F656−51
Anti−Tip Bracket
30
7101P507−60
Leg, Leveling
31
8038P037−60
Stop, Drawer
32
7401P039−60
Block, Terminal
33
7403P857−60
Switch, Limit
34
4005F704−51
Panel, Access
35
4005F703−51
Cover, Wire Lower
36
3605F146−51
Plate, Conduit
37
7103P027−60
Nut,Terminal Block
MANIFOLD PARTS
5
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
1
7431P053−60
Module, Spark
2
7513P499−60
Pipe, Manifold
3 Valve, Burner
7502P499−60
5K Copreci (1)
7502P501−60
16K Copreci (1)
7502P500−60
12K Copreci (3)
4
7403P983−60
Harness, Switch
5 Orifice Holder
7527P095−60
Right Front
7527P124−60
Right Rear
7527P097−60
Center
7527P125−60
Left Rear
7527P101−60
Left Front
6 74009958 Ignitor,Top Burner
7
7506P519−60
Tubing, Supply
8
7510P081−60
Regulator,
Pressure
DRAWER PARTS
6
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
1
8010P130−60
Spacer, Rubber
2
3405F037−80
Drawer, Service
3
3604P409−51
Sheild, Heat
4 Panel, Drawer
2416F104−71
White
2416F104−70
Black
5
7760P228−60
Panel, Drawer
(Stainless Models)
6
7103P082−60
Nut
7
7118P032−60
Shaft, Roller
8
8014P022−60
Roller, Drawer
9
7101P072−60
Screw
DOOR PARTS
7
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
DOOR PARTS
8
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
1
7002P246−60
Insulation, Door
2
7103P176−60
Nut
3
3823F017−45
Spacer, Handle
4
7760P218−60
Panel
(Stainless)
5
7701P467−60
Handle, Door
6 Trim, Side
3608F126−71
White
3608F126−70
Black
7 Glass, Door
7902P784−60
White
7902P792−60
Black
8 Trim, Bottom
3608F092−71
White
3608F092−70
Black
9 Tape,Double Sided
W10208308
White
W10208307
Black
10
3801F918−51
Bracket, Glass
11
4820F015−59
Insulation, Foil
12
7201P140−60
Gasket, Window
13
2402W297−19
Liner, Door
14
7902P463−60
Glass, Inner
15
3601F380−51
Baffle, Door
(Stainless Models)
16 Trim, Top
3608F139−71
White
3608F139−70
Black
17
7002P484−60
Insulation, Door
18 Bracket, Handle
3801P858−45
Left
3801P857−45
Right
19
W10208318
Tape, (White)
20
W10208311
Tape, Foil 3"
21
7101P282−60
Screw,(10−24x5/16)
22
7106P124−60
Hinge, Door
23
3801F886−51
Bracket, Glass
OPTIONAL PARTS (NOT INCLUDED)
9
For Models: JDR8880RDB1, JDR8880RDW1, JDR8880RDS1
(Black) (White) (Stainless)
W10245806
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 PT)
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
7002P492−60
Insulation, Back
7702P362−60
Insulation, Wrap
7002P494−60
Insulation,
Side Panel
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
511873 White Porcelain
(2 oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
359039 Black
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
799340 Black (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
12500100 Kit, Broiler Pan
7509P115−60
Kit,
LP Conversion
WIRING HARNESS PARTS
5171P889−60
Harness, Main
W10173438
Harness, Spark
74008759 Cord, Power
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
