Jeanneau Sun Odyssey 490 User manual
Information & operations manual for
Sun Odyssey 490 2019
‘Hakuna Matata IV’
Welcome
Welcome to Horizon Yacht Charters and your Sun Odyssey 490 “Hakuna Matata IV”. We hope
you had a pleasant journey and are looking forward to a fantastic holiday and some of the finest
sailing in the world here.
This manual is here to guide you through the in’s and out’s of your yacht. Please take the time
to read this manual and don’t hesitate to ask any of our professional, friendly staff if you have
any questions.
All the yachts in the Horizon fleet are maintained to the highest standards so that you may enjoy
a trouble-free vacation, on a beautiful yacht. Please remember that these yachts are all privately
owned, and we ask that you care for it like it was your own.
Best wishes for a great vacation,
Sylvia and Andrew
Directors
Office Hours:
Monday – Sunday 08:30 – 17:30
Telephone: (284) 494 8787
Duty Manager: (284) 542 8788 (Technical questions, damage reports and emergencies)
1. Yacht specifications
2. 12-volt panel
3. Voltmeter
4. Charging
5. Inverter
6. Breakers and Fuses
7. Engine Start
8. Daily engine checks
9. Generator
10. Air conditioning
11. Cockpit electronics
12. V.H.F procedures
13. Stereo
14. Anchoring and windlass
15. Electric Winches
16. In-Mast furling main
17. Picking up a mooring ball
18. Bilge pumps
19. Fresh water systems
20. Heads
21. Showers
22. Refrigeration
23. Using the stove and propane
24. Fire safety
25. BBQ grill
26. Dinghy and outboard
27. Swim platform
1. Yacht specifications
Length 49’
Beam 14’ 9”
Draft 5’ 5”
Fuel 63 Gallons
Water 169 gallons (Starboard aft 87 gal + Port Mid 53 gal)
Engine 80 hp Yanmar
Generator Onan MDKBJ/W
Location of:
Fresh water refills (1 Stbd aft and 1 port mid)
Diesel refill (Port aft quarters)
Manual bilge pump (Port helm)
Propane tank (Port transom locker)
Windlass Breaker (Port aft cabin bunk)
Diesel cut off valve (under port aft bunk)
Water tanks change over valve (Under stbd fwd saloon seat)
Generator (Port transom locker)
2. 12-Volt Panel
Top Row:
Electronics
Navigation Lights
Steaming Light
Deck Floodlight
Anchor Light
Lower Row:
Cabin Lights
Primary Bilge Pump (Press once for auto and twice for manual)
Aux (ALG Wi-Fi)
Fresh Water Pump (On when using heads)
Refrigerator
Switches on panel flash if there is a fault, resettable fuses behind panel.
ALGWI‐FI
3. Voltmeter
Main Menu: Display and owner settings (Do not adjust owner settings)
Water and Fuel
Batteries
(House, Engine
and Generator
Return
Main Menu
To
gg
le Left To
gg
le Ri
g
ht
4. Charging
Keeping your house batteries charged is essential to ensuring your 12volt systems will work.
Fridges, lights, fans, stereos, and Navigation instruments are some of the most important ones
and of course using them draws power from your house batteries. If you conserve energy, you
will not need to charge as often. If something is not being used, then turn it off. We often
explain that 12-volt power is like water; you need to replace what you use. You can recharge
your batteries with the auxiliary engine(s) or your 110-volt battery charger when running the
generator or on shore power.
Engines:
Motoring to a destination will automatically charge your batteries. When anchored or moored
you can run your engine(s) in neutral at 1400 RPMs to charge your batteries.
If your batteries get to 12.2 volts, then it is time to recharge your batteries. At 12.2 volts it
should take about 1.5 hours of charging to get them back to a good charge. It is important that
you recharge the batteries completely every day. This may take 2 or 3 charges per day. But you
can break this up into more charges for shorter periods of time. Once you think you have
charged enough or you just want to go for a sail, turn off the charging system. Wait about 15
minutes and then check the voltage of your house battery. A fully charged battery should come
to rest around 12.8 volts. If the batteries do not get to this level, then they need more charging.
Please note that you will see elevated voltage readings when charging and just after charging.
The latter is why you should wait 15 minutes before checking your voltage after charging.
Hold button and move shifter
to disengage transmission.
Charging with shore power and generator:
Using the 110volt charger via generator or shore power will charge your batteries; Just check
that the battery charger is turned on as this is not completely automatic. And check that you see
your house battery has an elevated charge level, 13 volts or more whilst charging.
There are two selector switches in the port aft cabin generator locker should stay in the auto
position (You can select shore or generator using the touch display at the nav desk). In the case
of a system failure, the switches can be operated manually. Call the manager on duty if there
is a system failure. On shore power you have air conditioning, 110v power to your outlets and
you are charging your batteries.
GE (Generator Battery
Charger)
2 (Main Battery
Char
g
er)
1 (Main Battery
Charger)
Battery Charger Breakers
Generator not charging batteries:
Check battery charger breakers are in the on position.
Check transfer switches. Ensure selector switches are turned to generator and not shore
power.
Check the main breaker on the left side of the generator. When this breaker is off the
generator will run but there is no power going to the chargers and air conditioning units.
Not Receiving Power from Shore:
1. Check selector switches are set to shore power and not generator.
2. Check the cable is plugged in all the way, you should be able to twist the cable clockwise
on both ends.
3. If you are still not receiving power from shore move the shore cable to another pedestal
and ensure the breakers on the pedestal are in the on position.

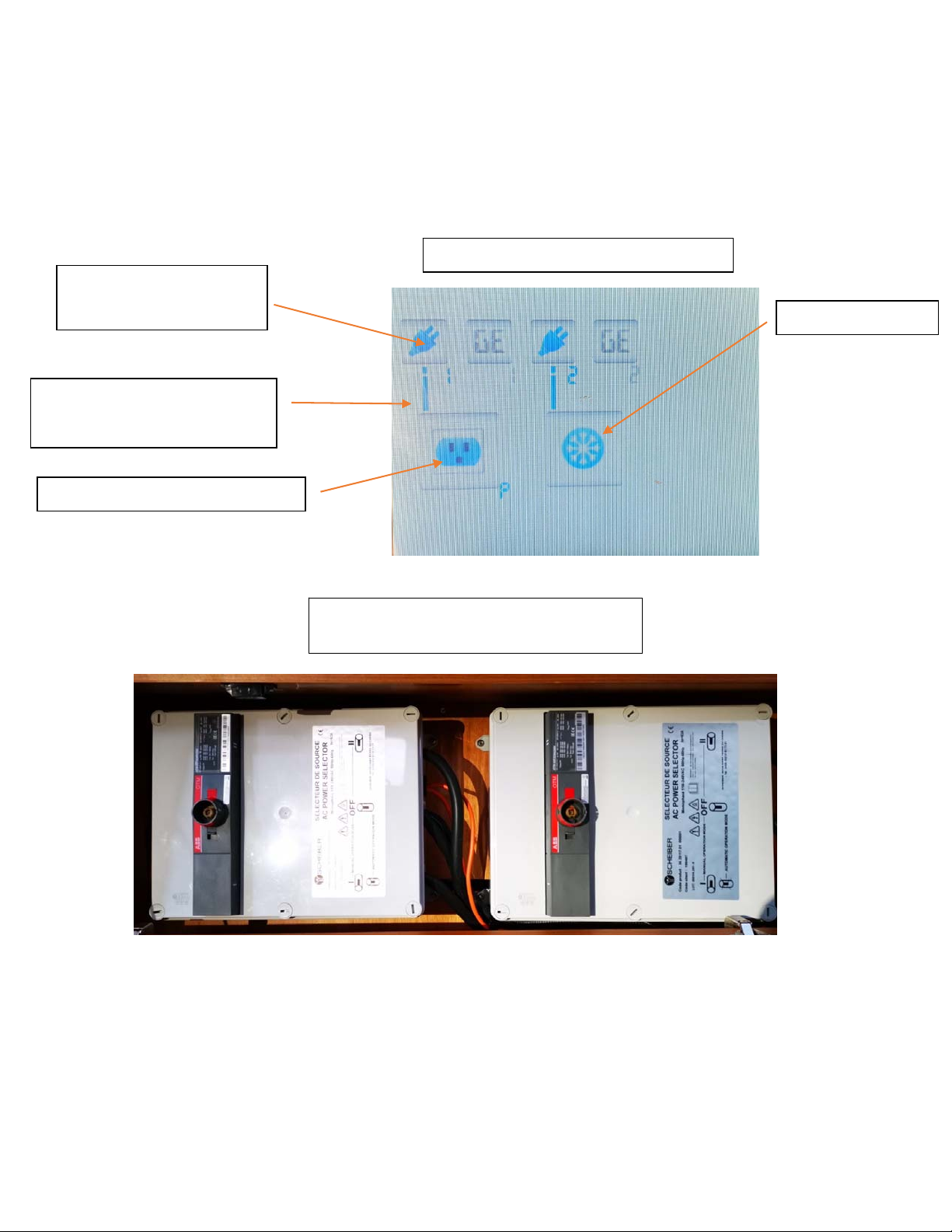

Selector Switches on Touch Display
Switched to shore
power
Blue Line indicates you are
receiving power from shore
Battery Charger and Outlets
Air Conditionin
g
Selector Switches and removable
handles in starboard aft cabin locker.
Batteries (Voltmeter and Switches)
Batteries
Domestic/Main Battery
En
g
ine Start Battery
Generator Start Battery
Domestic/Main
Battery En
g
ine start battery
Generators start
battery
Bow thruster
battery (Owner use
only)
Bow Thruster Battery
