JBL W10GTI Instruction manual

SPECIFICATIONS

DIAMETER: 10" (254.0 MM)

SENSITIVITY (2.83V @ 1M): 92 dB

POWER HANDLING: 600 WRMS, 3,000 WPK

FREQUENCY RESPONSE: 16 HZ~ 1 KHZ

NOMINAL IMPEDANCE:6OHMS (PER COIL)

VOICE-COIL DIAMETER: 3.0" (76.2 MM)

BASKET DISPLACEMENT: 0.090 FT3 (2.549 LITERS)

DIMENSIONS:

THIELE-SMALL PARAMETERS

VOICE COIL DCRESISTANCE:R

EVC (OHMS)*. . . . . 3.80

VOICE COIL INDUCTANCE @ 1 KHZ:L

EVC (MH)* . . . . . . 0.41

DRIVER RADIATING AREA:S

D(FT2). . . . . . . . 0.333

SD(M2) . . . . . . . . 0.031

MOTOR FORCE FACTOR: BL (TM)*. . . . . . . 12.12

COMPLIANCE VOLUME:V

AS (FT3) . . . . . . . . 1.25

VAS (LITERS) . . . . . 35.48

SUSPENSION COMPLIANCE:C

MS (µM/N) . . . . 253.41

MOVING MASS, AIR LOAD:M

MS (GRAMS). . . . 118.00

MOVING MASS, DIAPHRAGM:M

MD (GRAMS) . . . 114.80

FREE-AIR RESONANCE:F

S(HZ) . . . . . . . . 29.11

MECHANICAL Q: QMS . . . . . . . . . . . 7.67

ELECTRICAL Q: QES. . . . . . . . . . . . 0.56

TOTAL Q: QTS. . . . . . . . . . . . 0.52

MAGNETIC-GAP HEIGHT:H

AG (IN). . . . . . . . . 1.00

HAG (MM) . . . . . . . 25.40

VOICE-COIL HEIGHT:H

VC (IN). . . . . . . . . 2.40

HVC (MM) . . . . . . . 60.96

MAXIMUM EXCURSION:X

MAX (IN). . . . . . . . 0.70

(ONE-WAY LINEAR)X

MAX (MM) . . . . . . 17.78

*VOICE COILS CONNECTED IN PARALLEL

SEALED BOX VOLUME

(INCLUDES DRIVER DISPLACEMENT)

SEALED

FREQUENCY RESPONSE @ 2.83 V

SEALED

TRANSDUCER EXCURSION @ 1700 W

JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

W10GTi 10" Woofer – Technical Data

mounting depth

9.13" (231.78 mm)

cutout diameter

9.19"(233.38 mm)

outer diameter

10.00"(254.00mm)

VBOX = 0.75 ft3 (21.24 liters)

(all sides lined with 1-inch fiberglass or fiberfill)

W10GTi

(side view)

55 20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP@ 90Hz

Xd mM

20.0

17.5

15.0

12.5

10.0

7.5

5.0

2.5

0.0

20 Frequency 50 100Hz 200 500 1k 2k

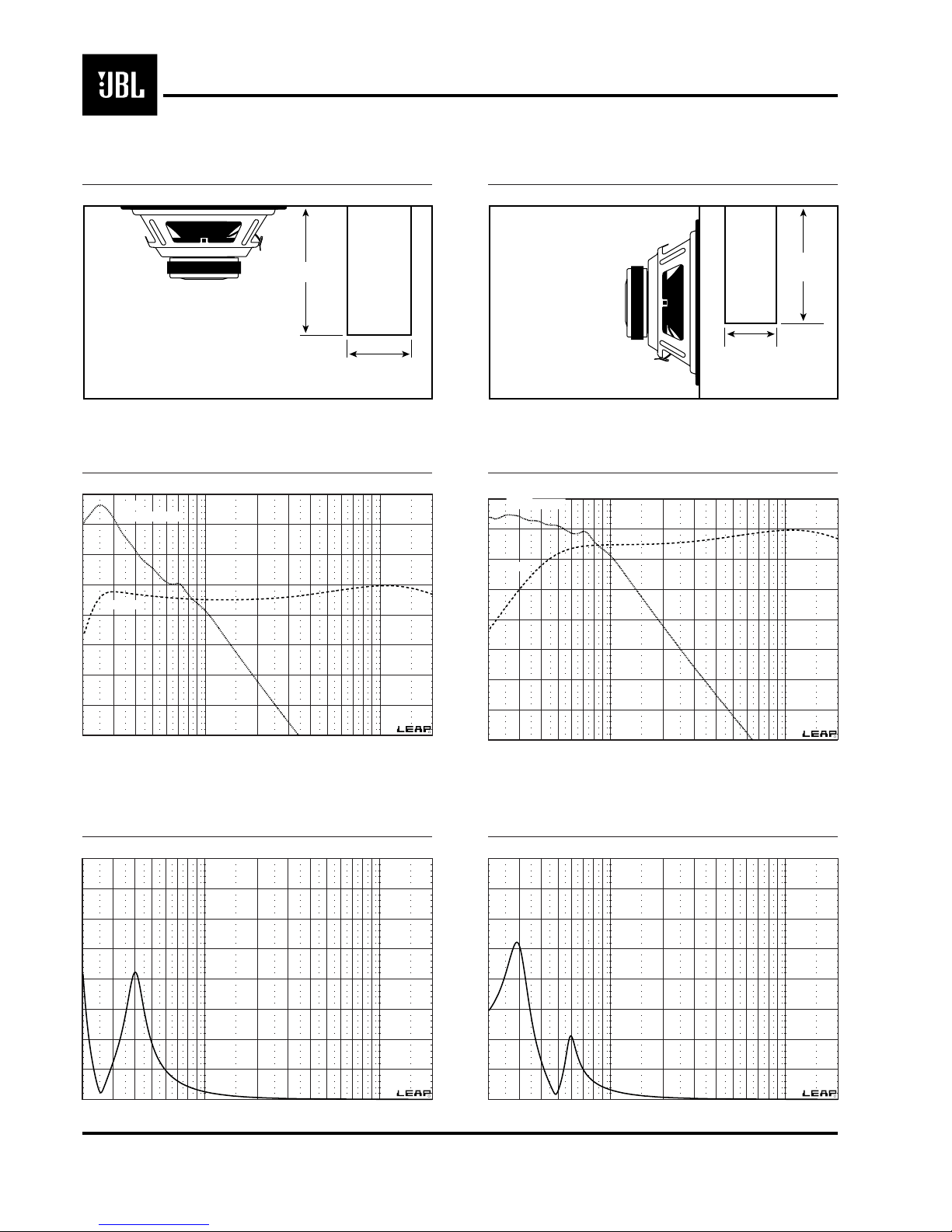

VENTED BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

VENTED

FREQUENCY RESPONSE @ 2.83 V

VENTED

TRANSDUCER EXCURSION @ 1900 W

SEALED BANDPASS BOX VOLUME

(INCLUDES DRIVER/PORT DISPLACEMENTS)

SEALED BANDPASS

FREQUENCY RESPONSE @ 2.83 V

SEALED BANDPASS

TRANSDUCER EXCURSION @ 1300 W

JBL, Incorporated • 250 Crossways Park Drive • Woodbury, NY 11797 • VOICE: 516-496-3400 • FAX: 516-496-4868 • www.jbl.com

W10GTi 10" Woofer – Technical Data

W10GTi

(side view)

Port

fo= 25.0Hz

diameter = 3.0"

length = 11.96"

VBOX = 1.75 ft3 (49.56 liters)

(all sides lined with 1-inch fiberglass or fiberfill)

105

100

65 20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP@ 90Hz

Xd mM

20 Frequency 50 100Hz 200 500 1k 2k

VREAR = 1.75 ft3 (49.56 liters)

(all sides lined with 1-inch fiberglass or fiberfill) VFRONT = 1.25 ft3

(35.40 liters)

W10GTi

(side view)

diam. = 4.0"

Port

fo= 47.0 Hz length =

6.81"

55 20 Frequency 50 100 Hz 200 500 1k 2k

Out-Of-Car

In-Car

12 dB LP@ 90Hz

Xd mM

20 Frequency 50 100Hz 200 500 1k 2k
