JBL SYNTHESIS S1S-EX User manual
Technical Manual
S1S-EX Synthesis One/Hercules
AURAL SWEEP TEST SPECIFICATIONS:
• L.F. Aural Sweep Test 15.0V Input 16Hz to 250Hz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions 34-1/2" x 21" x 22"
(H x W x D) (876mm x 533mm x 559mm)
plus knobs
• Weight 129 lb (58.5kg) Each
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will
ensure proper system headroom to allow for occasional
peaks. We do not recommend sustained operation at
these maximum power levels.
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance 8Ω
• Max Amp Power 800 watts*
• Frequency Response 20Hz – 200Hz
• Sensitivity 97dB @ 50Hz
SYSTEM COMPONENTS:
• Low-Frequency Transducer 2242HPL 18" (457mm)
Cone transducer
301361-003
DC Resistance 4.7 ohms ±10%
S1S-EX Synthesis One/Hercules
JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797
7/04
Legend on Page 2
2
1
2
4
X4
3

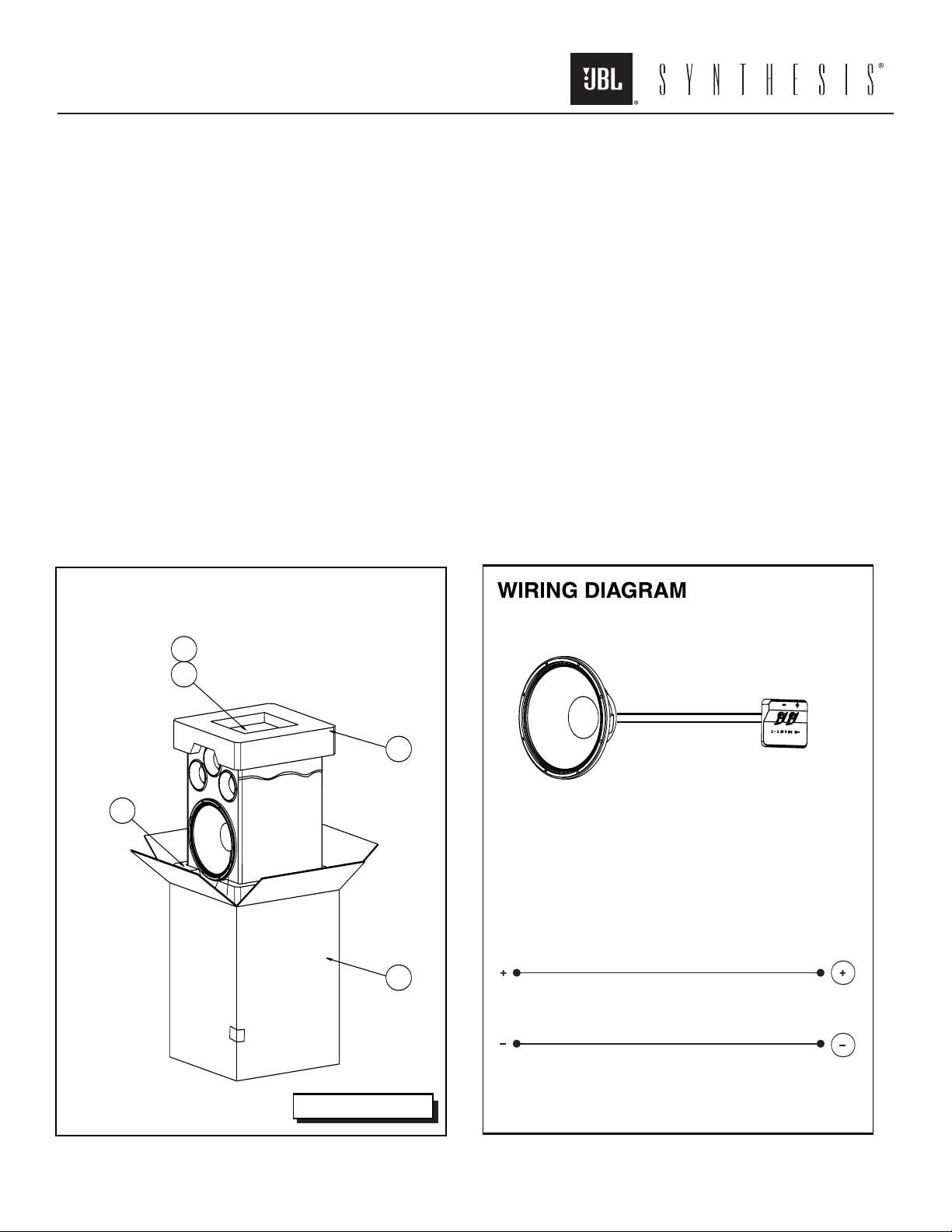

PACKAGING
L.F.
INPUT
27" GRN
27" GRN/BLK
S1S-EX SCHEMATIC
TERMINAL CUP
352303-001
GRN/BLK
GRN
—
+
LOW-FREQUENCY
TRANSDUCER
301361-003
Technical Manual
S1S-EX Synthesis One/Hercules

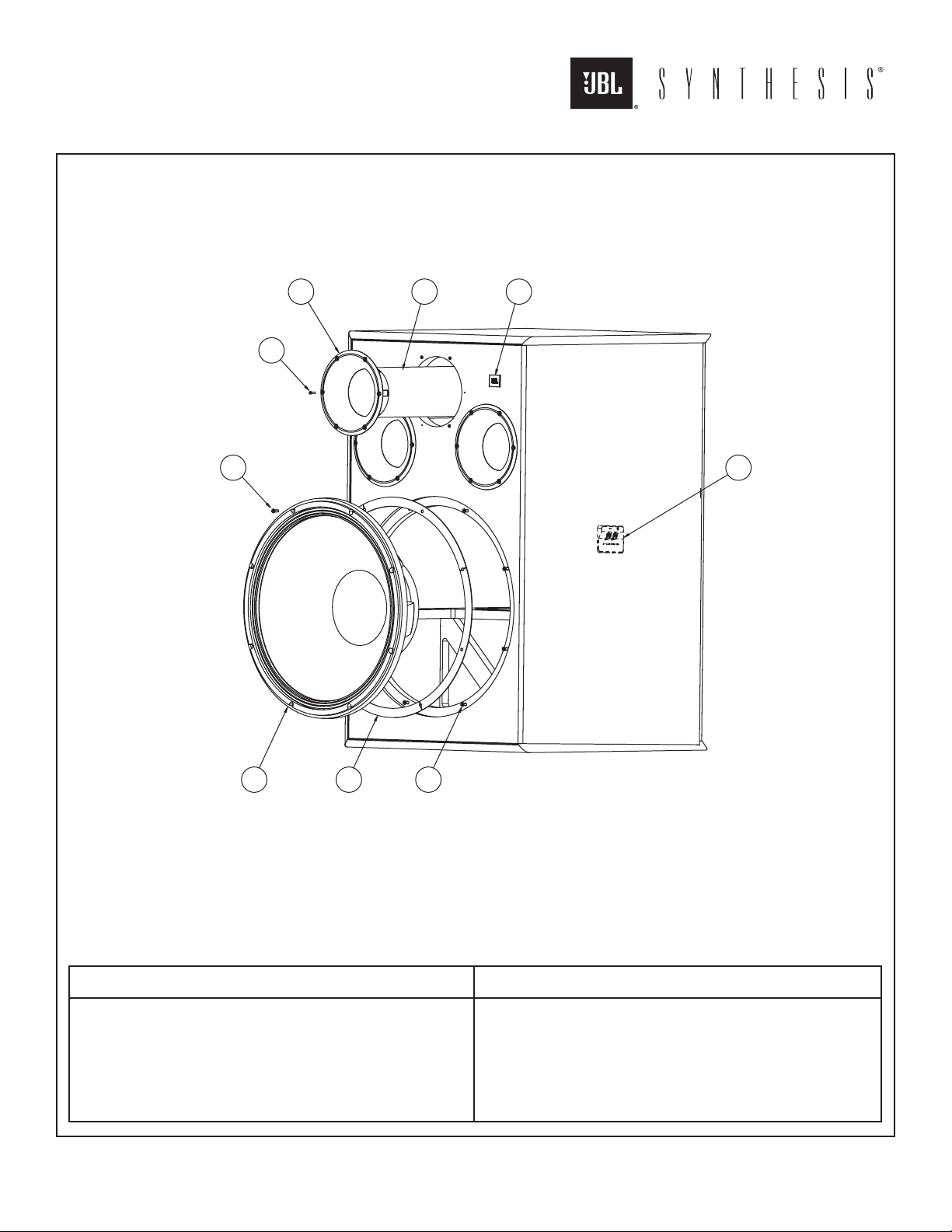

EXPLODED VIEW
ITEM
NO. DESCRIPTION QTY. PART NO.
1. Master Carton S1S-EX 1 352304-001
2. End Pad, Top and Bottom 2 352612-001
3. Glide, 3/4" Dia x 3/8"H Black 4 72370
4. 5 Year Warranty 1 338322-001
5. Terminal Cup Wire Assembly 12AWG 1 352303-001
6. Port, Flare 6 352336-001
7. Port Tube, Plstc 3 352337-001
8. Woofer 1 301361-003
ITEM
NO. DESCRIPTION QTY. PART NO.
9. Screw (woofer) 8 804-01110-20
10-32 x 1 1/4, FIL, PH, BLK ZINC, LCS
10. Screw (port tube/term cup) 22 903401-012
6 x 3/4, PAN, PH, PB, BLK ZINC, LCS
11. Woofer Gasket, 2240H 4 60578
12. JBL Logo Plate 1 48003-01
13. Woofer T-Nut 8 61861
10-32x7/16, Step Barrel
10
9 5
811 13
6 7 12
S1S-EX Synthesis One/Hercules
JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797
7/04
