JBL Project K2.S5500 User manual

Technical Manual

K2.S5500

JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 797 Rev 0 2/2000

TWEETER

73988

YEL

YEL/BLK

74713-01

71918

CONNECTOR

74713-02

GRN

GRN/BLK

WHT/BLK

WHT

WOOFER

74878

WOOFER

74878

00318

BI-AMP

SWITCH

INPUT

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 4 ohms

• Max Amp Power: 300 watts*

(2 x 300 for bi-amp)

• Frequency Response: 35Hz-20kHz (-6dB)

48Hz- 8kHz (+/-2.5dB)

• Sensitivity: 95dB

• Crossover Frequency: 800Hz

SYSTEM COMPONENTS:

• Cabinet: K2.S5500 (Not for Sale)

• Grille: G5500

• Lower frequency (2) LE 25S, Combination fiber-

glass/Aquaplas diaphragm with

300mm ( 2inch) diecast

aluminum chassis, Shielded

74878 (LE 25S- 2).

DC Resistance: 8 ohms ± 0%

• High frequency 275Nd compression driver with

titanium diaphragm, Shielded

73988.

DC Resistance: 3.2 ohms ± 0%

• Crossover Network:

Network, L.F. 747 3-02

Network, H.F. 747 3-0 or 7 9 8

PARTS LIST WIRING DIAGRAM

K2.S5500

HORN 750 5

BATTERY COVER 75033

PORT TUBE 705 5-03

GRILLE CUP (8) 72546

LOGO, JBL 747 4

GASKET, WOOFER 74062

OWNERS MANUAL 75075

CARTON 75296

TOP END PAD 75298

BOTTOM END PAD 75299

SPACER SCREW 7 885

BASE SPACER WHEEL 7 880

WOOFER CONE KIT C 2RLE 25

BATTERY HOLDER 2BH6 0

BINDING POST SET 9003 -C

BINDING POST (BLK) SCT-CLB35-B

BINDING POST (RED) SCT-CLB35-R

DESCRIPTION PART NO.

• Enclosure dimensions: ( 2.5 mm x 499mm x 4 0mm)

49- /4”h x 9-5/8”w x 6- /8”d

• Weight: 2 0 lb (95 kg)

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 30 Hz to 20 kHz

• L.F. Aural Sweep Test 5.0V Input 30 Hz to kHz

• H.F. Aural Sweep Test 2.83V Input 500Hz to 20 kHz

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will

ensure proper system headroom to allow for occasional

peaks. We do not recommend sustained operation at these

maximum power levels.

Transducer(s):

Transducer:

Technical Manual

K2.S5500

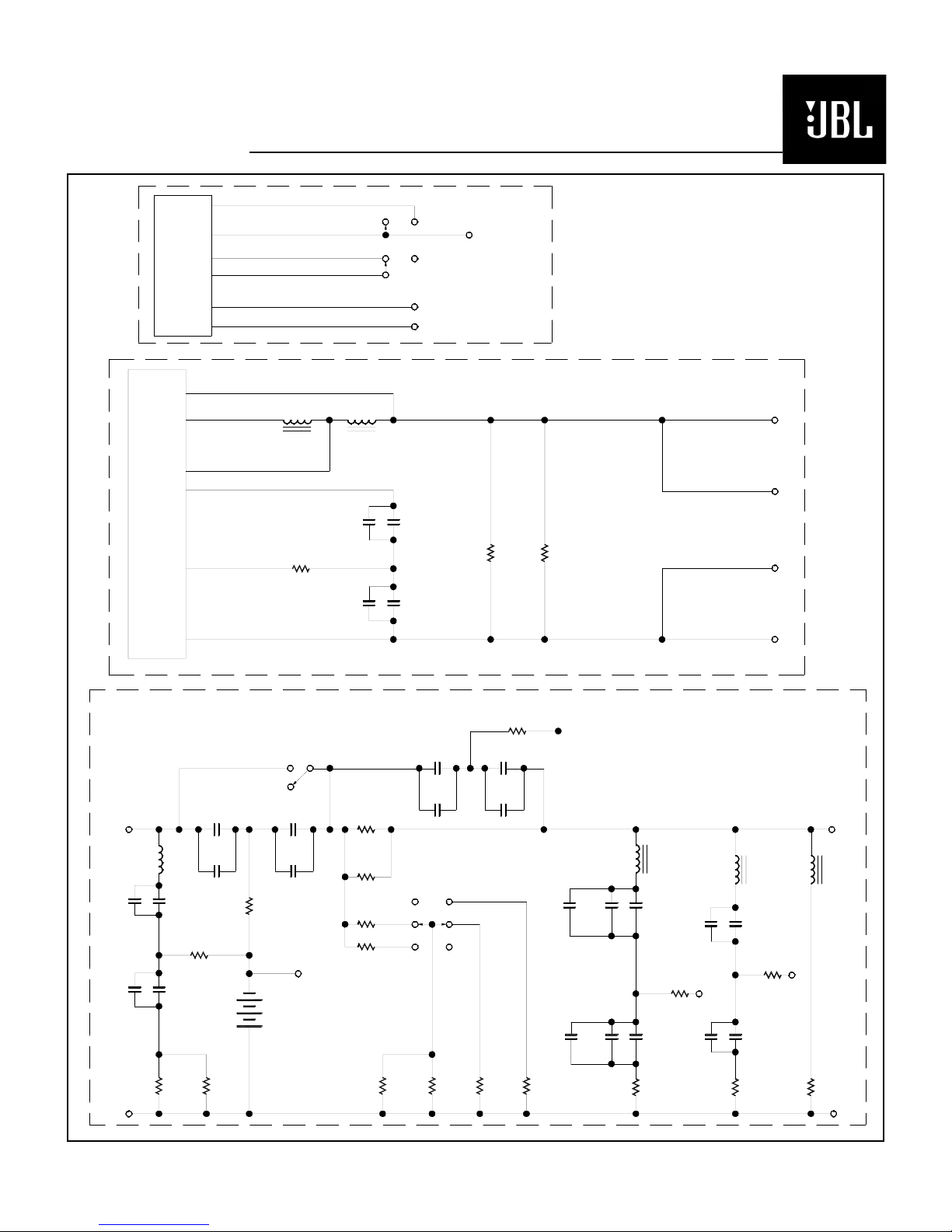

SCHEMATICS

Rev 0 2/2000

R104

2.2 meg ohm

1/4 W

C13

4.7uf C15

4.7uf

C16

0.01uf

C14

0.01uf

BI-AMP

C11

13uf

C12

0.01uf

16uf

C10

0.01uf

NORMAL

0.1mH

BI-AMP

SWITCH

0.01uf

72uf

100V

0.01uf

72uf

100V

R103

2.2 meg ohm

1/4W

R102

2.2 meg ohm

1/4W

15ohm

10W

15ohm

10W

100ohm

10W 0dB 0dB

-1dB -1dB

+dB +dB

51ohm

10W

LEVEL ADJ.

BATTERY

15ohm

10W

15ohm

10W

R10

39ohm

10W

39ohm

10W

R11

27ohm

10W

R12

12ohm

10W

C19

6uf

100V

C17

6uf

100V

C20

0.01uf

100V

C18

0.01uf

100V

R13

3.5ohm

10W

0.8mH

R105

2.2 meg ohm

1/4W

C21

6uf

R106

2.2 meg ohm

1/4W

C24

0.01uf

C22

0.01uf

C23

6uf

0.5mH

R14

9.7ohm

10W

1.0mH

R15

7.1ohm

10W

YEL 44"RED

YEL/BLK

44"

BLK

2.5mH L2

0.5mH

GRN

RED

ORN

0.01uf

130uf

100V

WHT

R101

2.2 meg ohm

1/4W

ORN/BLK

0.01uf

130uf

100V

BLK

82ohms

10W

82ohms

10W

GRN 20"

WHT 36"

WHT/BLK 36"

GRN/BLK 20"

6-PIN

MALE LF

BI-AMP

NORMAL

BI-AMP

NORMAL

BLK LF INPUT

6-PIN

FEMALE

00316

P/N 74713-01

P/N 74713-02

P/N 74713-01

GRN

RED

ORN

ORN/BLK

WHT

BLK

Bi-Amp Switch - Shared with L.F.

Bi-Amp Switch:

4 Section, 2 Position Rotary with Slot.

Connect 2 Sections in Parallel for

Inductor Bi-Pass Wiring (Higher Current)

RED LF INPUT

SCHEMATIC

10uf

100V

10uf

100V

K2.S5500

JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 797
