JBL VT4888DP-AN User manual
08-12
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBLVT4888DP-AN/CN/DA
REV R
PACKAGE
Technical Manual
JBLVT4888DP-AN/CN/DA
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• DP3 Internal Amplification 6000W Peak, 3000W Continuous
Output (at nominal load):
• DP3 Output Section: 3-Channel Class-I
Output (at nominal load): LF: 118V peak, MF: 118V peak,
HF: 118V peak
• Frequency Response: 60 Hz- 16 kHz (±3 dB)
• Frequency Range: 48 Hz -18 kHz (-10 dB)
• Max Peak Output: 139 dB SPL, 1m
Output (at nominal load): LF: 118V peak, MF: 118V peak,
HF: 118V peak
• Signal Processing: DSP based, resident in Input Module
• AC Power Operating Auto Select 90-132VAC/216-264VAC,
Range: 50/60 Hz
• AC Line Voltage: 50/60 Hz, Auto-Detect;120V/240V
(-15%, +10%)
• AC Current Requirement: 6A per system at 120V, 3A per system
at 240V
• Horiz Coverage Angle: 90°, 250 Hz - 16 kHz (-6dB)
• Vert Coverage Angle: Varies with size and configuration(-6dB)
• Crossover Frequency: 315 Hz LF/Mid
1.2 kHz MF/HF
SYSTEMS COMPONENTS:
• Cabinet: Enclosure Assembly C4888
• Grille: Left (350780-002) , Right (350780-001)
• Low Frequency (2) 2262H, 304 mm (12”) dia., 76 mm (3”)
Transducer: Dual Coil, Neodymium, Differential Drive
Direct Cooled
• Bandpass Nominal 4 ohms (wired in parallel)
SYSTEMS COMPONENTS (Cont):
• DC Resistance: 5.1 Ohms
• Mid Frequency (4) 2106HPL, 136 mm (5.5”) with 50 mm
Transducer: (2”)dia. voice coil
• Bandpass Nominal 8 Ohms (wired in parallel)
Impedance:
• DC Resistance: 4.3 Ohms
• High Frequency (2) x 2431H, 76 mm (3”) dia. Aluminium
Transducer: Diaphragm, 38mm (1.5”) Throat Dia.
Neodymium Drivers
• Bandpass Nominal 8 ohms (wired in series)
Impedance:
• DC Resistance: 4.0 Ohms
AURAL SWEEPTEST SPECIFICATIONS:
A. System Aural Sweep Test: 30mV, 20 Hz to 20 kHz
B. L.F. Woofer Aural Sweep Test (per ets): 6V, 40 Hz to 1 kHz
C. M.F.Woofer Aural Sweep Test (per ets): 3V, 400 Hz to 4 kHz
D. H.F. Driver Aural Sweep Test (per ets): 1.5V, 800 Hz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 355 mm x 1013 mm x 678 mm D
(14 x 39.9 x 26.7 in. D)
• Net Weight 67.2 (148 lb)
• Shipping Weight 74.0 (163 lb)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Carton
354871-001
Filler (2)
354872-001
Proective Jackets
(2) Drive Pack
360849-001
Microfoam (8)
49790P
Power Cord
355040-002
Spec Sheet
361486-001
Filler, Front
362085-001 JBL VT4888-AF
Carton
350484-001
Filler (2)
350486-001
Owner’s Manual
350485-001
JBL VT4888-SF
Carton
350706-001
Filler (2)
350713-001
Owner’s Manual
350485-001
Dolly Assembly
350519-002
Carton
360825-001
Insert (2)
360826-001
Tube (2)
336027-001
Soft Cover
360777-001
910-00035-01 (1)
Ferro fluid vial w/
blotter paper and
instruction sheet
910-00035-02 (12)
Ferro fluid vials w/
blotter paper and
instruction sheet
Warranty 59660
Operators Guide, DBX Module, DP3
360850-002
JBLVT4888DP-AN/CN/DA
JBLVT4888DP-AN/CN/DA
WIRING DIAGRAM
No. 1 No. 2
No. 1
No. 2
No. 3
No. 4
No. 1 No. 2
Input
Connector
Assembly
352817-001
Wire
Harness
350989-001
Driver, Low Freq (2)
2262H
(338312-001X)
Cone Repl
C8R2262
RED
BLACK
GREEN GREEN/BLK
Driver, High Freq (2)
2431H
(339894-002X)
Diaph Repl
D8R2431
Driver, Mid Freq (4)
2106HPL
(339485-001X)
WHITE
WHITE
WHITE/BLACK
WHITE
WHITE WHITE/BLACK
YELLOW/BLACK
YELLOW
YELLOW
++
__
JBLVT4888DP-AN/CN/DA
JBLVT4888DP-AN/CN/DA
SCHEMATIC DIAGRAMS
4–
4+
3–
3+
2–
2+
1–
1+
4–
4+
3–
3+
2–
2+
1–
1+
10
9
8
7
6
5
4
3
2
1
Input Connection Assembly P/N 350988
Wire Harness Assembly P/N 350989
COMPONENT EXPLODEDVIEW
RBI (2)
350779-001
Screw (16)
804-72110-24
SKT,TOR, BLK
ZINC, LCS
Driver, Mid Freq (4)
2106H
(339485-001X)
Gasket (2)
350819-001
Flare, HF (2)
351486-001
Screw (8)
881-11110-08
4 x 1/2
FLT,PH,PB,
BLK ZINC, LCS
Grille, Right
350780-001
Grille, Left
350780-002
Grille, Trim (2)
351526-001
Screw (16)
803-32011-04
8-32 x 1/4
TRUSS, TORX,
BLK ZINC, LCS
Standoff (16)
885-00082-01
8-32,
3/8 HEX X 1/4,SS
Driver, Low Freq (2)
2262H
(338312-001X)
Cone Repl
C8R2262
Screw (16)
804-72110-24
10-32 x 1 1/2
SKT, TOR,
BLK ZINC, LCS
Gasket (2)
339391-001
Dolly Lock Pin (2)
351797-002
2.98L
Nut (20
836-36110-00
3/8-24
NYLON, BLK ZINC,
LCS, RIGHT
Dolly Retainer Pin (2)
351696-001
Front Rigging Tube (2)
350572-002
Screw (8)
338885-001
1/4 x 1”
FLTHD,SCT GRD8,
PATCH
Front Hinge Assembly (2)
364136-001
Slider Knob (2)
350839-001
10-32 x 5/8
PATCH
R.A.P
354965-001
Rear Hinge Assembly (2)
364137-001
Horn Bracket, HF (2)
350782-001
Screw (6)
804-11110-16
10-32 x 1,
FLT, PH, BLK
ZINC, LCS
Quick Release Pin (8)
361343-001
1.75” L
Rear Rigging Tube (2)
350573-002
Input Cup Assembly (1)
352817-001
Wire Harness
350989-001
Screw (8)
804-41110-20
10-32 x 1 1/4
PAN, PH, PB,
BLK ZINC, LCS
Driver, High Freq (2)
2431H
(339894-002X)
Diaph Repl
D8R2431
Screw (8)
705-90002-14
1/4-20 x 7/8
SCT SET,
CUP POINT
Nut (8)
834-30010-00
1/4-20
KEPS, BLK ZINC,
LCS, RIGHT
Horn (2)
337055-001
Gasket,Horn Side (2)
350841-001
Gasket,Horn (2)
Top/Bottom
351415-001
Gasket,HF Horn
359-00225-00
Bolt (8)
854-00003-08
1/4-20 x 1/2
HEX,CLK ZINC,
MCAS
Washer, Horn (8)
844-100100-06
1/4 x .06
EXTTH, REG, CLR
ZINC, CS
Washer, Horn (8)
844-01110-07
1/4,SAE, REG,
BLK ZINC,LCS
Grille, HF
350827-001
Hande (6)
923-00022-07
Gasket (6)
382-00337-00
Screw (24)
804-42110-12
10-32 x 3/4
PAN, TORX, BLK
ZINC, LCS
Screw (36)
884-42110-12
10 x 3/4
PAN,TORX,PB,
BLK ZINC, LCS
Rigging Bracket (16)
351922-001
Screw (16)
802-11010-10
6-32 x 5/8
FLT, PH, BLK
ZINC, LCS
Rigging Pad (8)
351001-001
1 1/4”
T-Nut (8)
352214-001
10-32 x 1/4
ZINC PLATED
72266
AHD, SICOMET 5181
Enclosure Assembly
C4888
(Available to VerTec
Dealers and Service
Centers)
Amplifier Assembly
354344-002X (DP)
354344-007X (AN)
354344-008X (CN)
354344-009X (DA)
Connect Assembly
352270-001
Wire Harness
352087-001
Input Cup
352271-001
Gasket
352818-001
JBL VT4888DP-AN/CN
JBLVT4888DP-AN/CN/DA
PLEASE see the next
page for the JBL PWA
individual part numbers
DP3 AMPLIFIER ASSEMBLY REFERENCE
DP3 AMPLIFER ASSEMBLY REFERENCE
DP3
Note: Amplifier asembly includes the input module.
Part No. Description
354344-001 Amplifier Assembly,Base Model, VT-Series
354344-002X Amplifier Assembly,VT4888DP
354344-003X Amplifier Assembly,VT4882DP
354344-004X Amplifier Assembly,VT4882DP-AN
354344-005X Amplifier Assembly,VT4882DP-CN
354344-007X Amplifier Assembly,VT4888DP-AN
354344-008X Amplifier Assembly,VT4888DP-CN
354344-010X Amplifier Assembly,VT4880ADP
354344-011X Amplifier Assembly,VT4880ADP-AN
354344-012X Amplifier Assembly,VT4880ADP-CN
354344-014X Amplifier Assembly, VT4889ADP
354344-015X Amplifier Assembly, VT4889ADP-AN
354344-016X Amplifier Assembly, VT4889ADP-CN
354344-017X Amplifier Assembly, VT4889ADP-DA
354344-006X Amplifier Assembly, VT4882DP-DA
354344-009X Amplifier Assembly, VT4888DP-DA
354344-013X Amplifier Assembly, VT4880ADP-DA
Note: If ordering an input module you must order 1 of the tuning files below
depending on the system model number.
DP-dbx DP-AN DP-CN DP-DA
361541-001X 361092-001X 361093--001X 444668-001X
Model Numbers Tuning File Part Numbers
VT4888DP 355059-001 361885-001 361886-001 444729-001
VT4882DP 361282-001 361887-001 361888-001 444728-001
VT4889ADP 365137-001 365113-001 365136-001 444731-001
VT4880ADP 365139-001 365114-001 365138-001 444730-001
Amplifier Assemblies Input Modules
AC
Module
Screw (4)
873-33014-10
8-32 x 5/8
SCKT, CAP
DBX, BLK ZINC
Riser, DP
353829-001
Gasket, Riser
353830-001 Badge, Center
354382-001
Screw (4)
873-33014-10
8-32 x 5/8
SCKT, CAP,
DBX, BLK ZINC
Riser, DP
353829-001
Gasket, Riser
353830-001
Label, Overlay
354380-002
Module
354446-003
Knob, Volume, Vert
355039-002
(dbx Only)
End cap
353901-001
Screen (2)
354290-001
Gasket, Cabinet (2)
354341-001
Foam Pad
382-00325-00
Screw (4)
354379-002
1/4-20 x 3/4, 5/16
SHLDR,BLKLUBE
End cap
353901-001
Screw (4)
354379-001
1/4-20 x 1 1/2, 5/16
SHLDR,BLKLUBE
AMPLIFIER ASSEMBLY
354344-001
NOTE: These (7) individual PWA’s are out of the main panel:
PWA, DP3 Main
137338-4BJBL
PWA, DP3 SMPS
137338-4CJBL
PWA, DP3 LVPS
137338-4DJBL
PWA,DP3 LF MOD
137338-4EJBL
PWA,DP3 MF MOD
137338-4FJBL
PWA, DP3 HF MOD
137338-4GJBL
PWA, DP3 SPKR INTER
FACE
137338-4HJBL
PWA,DP3 PANEL
137338-5JBL
PWA,DP3 OUTPUT
140193-1JBL
JBLVT4888-ACC
JBLVT4888-ACC
REV B

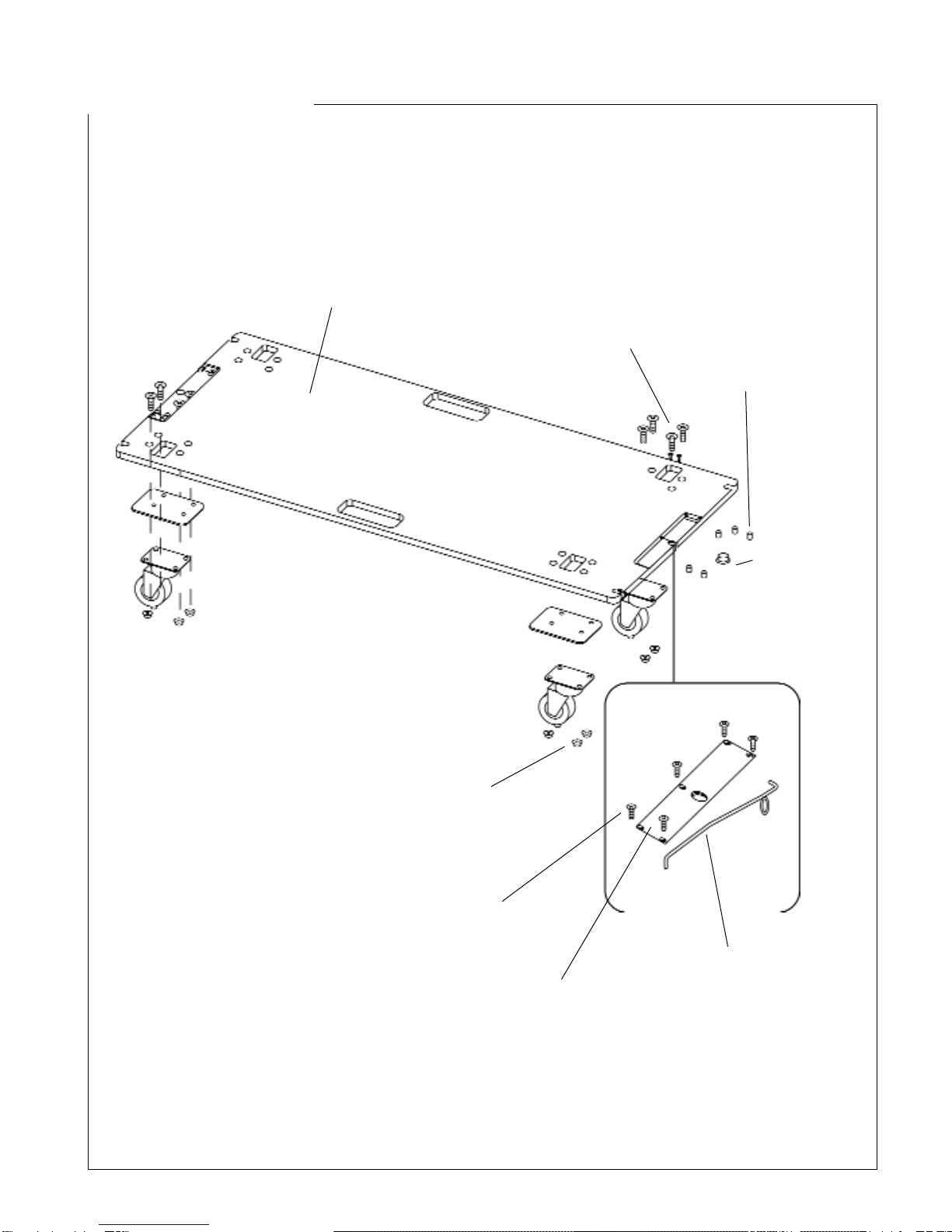

DOLLY ASSEMBLY
Dolly Platform
351896-002
350519-002
Caster Wheels (4)
924-00005-00
Caster Plate (4)
909-0052-01
Nut (16)
Nylock Special
352018-001
Spring Assembly (2)
351899-001
Cover (2)
Dolly Housing
351893-001
Screws (12)
803-11000-08
8-32 x 1/2
FLT, PH, CLR ZINC, UNC
Insert (10)
8161207-001
8-32 x 4mm
HXS, KNIFE32608C10ZC
Screws (16)
807-13000-20
5/16-18 x 1 1/4
FLT, HEX,CLR
ZINC, LC
T NUT (2)
21749
CP, 8-32 x 1/4
JBLVT4888-SF
JBLVT4888-SF
ARRAY FRAME ASSEMBLY
Front Hinge Block (4)
339896-004
Frame Array
350648-001
Front Hinge Block (4)
339896-004
Washer (32)
846-00410-08
3/8 x .80
FLTPL,EX DT,
BLK ZINC, CS
Nut (16)
836-36113-00
3/8-16
Nylon Lock, BLK
ZINC,MCAS,RT
Bolt (16)
856-00013-40
3/8-16 x 21/2
HEX,CAP,
BLK ZINC,
MCA
Pin,Ball Locking Assembly (4)
361345-001
4 in.
JBL Label
955-00154-00
Screws (4)
804-31110-08
10-32 x 1/2
TRUSS, PH, BLK,
ZINC,LCS
Bolt (16)
856-00013-40
3/8-16 x 1/2
HEX,CAP,BLK
ZINC,MCA
JBLVT4888-AF
ARRAY FRAME ASSEMBLY
JBLVT4888-AF
Front Hinge Block (4)
339896-004
Pin, Ball Locking Asembly (4)
361345-001
4 in.
Screws (4)
804-31110-08
10-32 x 1/2
TRUSS, PH, BLK,
ZINC, LCS
Frame Array
339897-001
JBL Label
955-00154-00
Washer (32)
846-00410-08
3/8 x .08
FLTPL, EX DT,
BLK ZINC, CS
Nut (16)
836-36113-00
3/8-16 Nylon Lock,
BLK ZINC,
MCAS,RT
Bolt, (16)
856-00013-48
3/8-16 x 2-1/2
HEX, CLR, BLK
ZINC,MCA
This manual suits for next models
2
Table of contents
Other JBL Amplifier manuals
JBL
JBL GTO-3EZ User manual
JBL
JBL GTQ240 User manual
JBL
JBL Synthesis S5160 User manual
JBL
JBL Grand touring series User manual
JBL
JBL SA750 User manual
JBL
JBL SYNTHESIS SDA8300 User guide
JBL
JBL Eon206P User manual
JBL
JBL GTX500 User manual
JBL
JBL GX-A602 User manual
JBL
JBL Grand Touring Series GTO1004 User manual
