Jandy AquaPure Operation instructions

Jandy AquaPure, PureLink

& Nature² Fusion Soft

Workbook

Zodiac Pool Systems, Inc.

1-800-822-7933

www.ZodiacPoolSystems.com

Instructor___________________________________________________ ext._________

Sales Representatives________________________________________ ext._________

__________________________________________________________ ext._________

Service Manager_____________________________________________ ext._________

__________________________________________________________ ext._________

Table of Contents

MODELS AND MODEL NUMBERS.................................................................................. 4

SIZING AND GENERATION PROCESS .......................................................................... 5

COMPONENTS .............................................................................................................6-7

NATURE² .......................................................................................................................... 8

INSTALLATION-

- PLUMBING ................................................................................................................9-11

- ELECTRICAL...........................................................................................................12-13

- CHEMISTRY............................................................................................................14-15

OPERATION ................................................................................................................... 16

TROUBLESHOOTING-

- TRANSFORMER VOLTAGE ...................................................................................17-18

- POWER INTERFACE BOARD (PIB) DC VOLTAGE .................................................... 19

- SENSOR INSPECTION................................................................................................ 20

- PIB SENSOR READINGS TEST .................................................................................. 21

- CELL INSPECTION ...................................................................................................... 22

- CELL VOLTAGE AND CURRENT ................................................................................ 23

- SERVICE CODE........................................................................................................... 24

- SERVICE CODE FLOW CHARTS...........................................................................25-28

ORIGINAL AQUAPURE, PURELINK, AND CM3 TEST POINTS-

- BACK BOARD TRANSFORMER AND CELL VOLTAGE TESTS................................. 29

- FRONT BOARD VOLTAGE TESTS ............................................................................. 30

- FRONT BOARD SENSOR READNGS TEST............................................................... 31

TABLE OF CONTENTS

CHLORINE GENERATION

Jandy PureLink, APureM,

& Nature² FusionM

(Require Cell Kit or Nature² Fusion Soft)

AquaPure

Chlorine Generation

Current Models:

COM 25

Discontinued Models:

ClorMatic II

ClorMatic III

Parts Still Available!

Fusion

MODEL:

FUSIONM

Finished Goods Part Numbers

“Chlorine Generators”

6613AP

PLC1400

Power Pack Model:

6614AP-L= Sub Panel Power Center PureLink for AL-RS/PDA

6613AP= Standard Power Center PureLink Generator for AL-RS/PDA

AquaPureM or Nature² FusionM = Stand Alone AquaPure/Nature² Fusion

Cell Model:

PLC= Cell Kit

FSOFT= Cell Kit with Nature2 Vessel

Size:

1400= 14 Plate Cell

700= 7 Plate Cell

CHLORINE GENERATION

H20

Sodium Chloride

(Salt - NaCl)

Sodium Hypochlorite

(Liquid Chlorine)

Sodium Chloride

(Salt - NaCl)

Bubbles Off

ANODE

Hypochlorous Acid

Hydrochloric Acid

CATHODE

Sodium Hydroxide

Hydrogen Gas

Hypochlorous Acid

Sodium Hydroxide

Hydrochloric Acid

Sodium Hydroxide

At a pH of 7.4, one half of

the Sodium Hypochlorite

goes into:

Hydrochloric Acid

Sodium Hydroxide

Hypochlorous Acid oxidizes soil,

dirt, algae, (organic material)

leaving:

7Hydrochloric Acid

Sodium Hydroxide

Salt Recycled

Liquid Chlorine

Salt - NaCl

Notes:

_____________________________________________________________________

Chlorine Production and Process

1.9 lbs.1.38 lbs1.25 gallons1.25 lbs

0.95 lbs..69 lbs..625 gallons.625 lbs.

Calcium

Hypochlorite

90% Tri-Chlor

Tabs

Liquid Chlorine

(12.5%)

Gas Chlorine

700

1400

CHLORINE GENERATION

ORP

OPEN - AP700

SHORTED - AP1400

M-S

Green Black & W hite

(+) (-)

ORP

POS - 2

POS - 1

BUZZER

OFF ----

ON -----

ADDR ES S

A B Dev ic e

0 0 # 1

1 0 # 2

0 1 # 3

1 1 # 4

DBI

INTERFACE

Mechanical

Sensor

ENB

DIS

FLOW SENSOR

H - Temp

R - Temp Salinity

1 Amp FUSE

Salinity = 2.8

R Temp = 75

H Temp = 9 1

TES T POIN TS

ORP

OPEN - AP700

SHORTED - AP1400

M-S

Green Black & W hite

(+) (-)

ORP

POS – 2

POS - 1

BUZZER

OFF ----

ON -----

ADDRESS

A B Device

0 0 # 1

1 0 # 2

0 1 # 3

1 1 # 4

DBI

INTERFA CE

Mechanical

Sensor

ENB

DIS

FLOW SENSOR

H - Temp

R - Temp Salin ity

1 Amp FUSE

Salinity = 2.8

R Temp = 75

H Temp = 91

TEST POINTS

19 VAC

VAC 1

VAC 2

120 mVDC

65 VAC 75 VAC

15 Amp FUSE

+24 VDC

+5 VDC

COMMON

GROUN D

HEATER RESTING

CELL ON

FLOW

SER V IC E

ORP

LOW SALT

+12 VDC

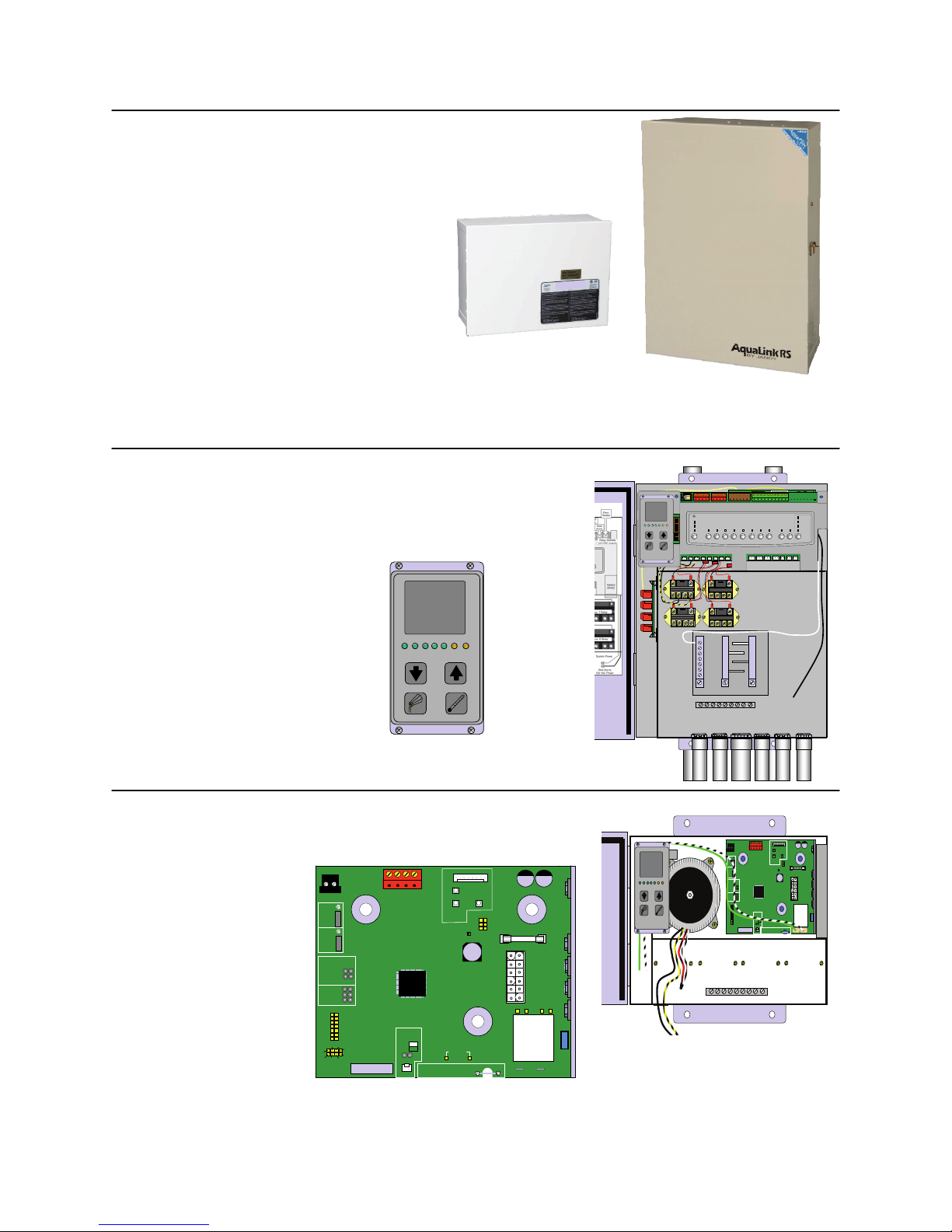

USER INTERFACE BOARD (UIB)

Replacement P/N: R0467400

POWER INTERFACE BOARD (PIB)

Replacement P/N: R0467600

PureLink

AquaPure/

Nature² Fusion Soft

Power Pack

AQUAPURE AND NATURE² FUSION POWER

PACKS

STAND ALONE POWER PACK

APUREM

NATURE² FUSIONM

PURELINK POWER CENTERS

STANDARD POWER CENTER

6613AP

SUB-PANEL POWER CENTER

6614AP-L

CHLORINE GENERATION

Low Voltage

Cord

Flow/Temp/Salinity

Sensor

Cell – 3 Port

Low Voltage

Cord

Flow/Temp/Salinity

Sensor

Nature² Fusion Soft

(Cell and Start Up Cartridge Included)

Nature²

Cartridge

NATURE² FUSION SOFT KITS

16’ CORDS

FSOFT700 (Up to 12,000 Gallons)

FSOFT1400 (Up to 40,000 Gallons)

NATURE² CARTRIDGES

W28000 = Single Cartridge for FSOFT700

W26000 = 4 Pack of Cartridges for FSOFT700

W28002 = Single Cartridge for FSOFT1400

W26002 = 4 Pack of Cartridges for FSOFT1400

CELL KITS

16’ CORDS

PLC700 (Up to 12,000 Gallons)

PLC1400 (Up to 40,000 Gallons)

25’ CORDS

PLC700-25

PLC1400-25

NATURE²

Notes:

_____________________________________________________________________

Nature² Benefits

• The Bactericidal qualities of silver reduce the amount of chlorine required to maintain the

pool. The copper inhibits algae growth.

• By Lowering the output of the chlorine generator, the pool water quality dramatically im-

proves and the life of the electrolytic cell is extended.

The Minerals

• Copper– inhibits algae growth, regularly sold as algaecides

• Silver– known bactericide, used for thousands of years to bacteria in water, milk, and on

skin

• Porous Alumina– releases silver and copper, assists in trapping nuisance metals, algae,

and bacteria

The Facts

• Copper is released into the pool at low levels (.02 - .06 ppm)

• Silver is maintained throughout the cartridge life (6 months at .01 - .05 ppm)

• Minimum pump run time is 6 hours, and can be run up to 24 hours

Nature²

Nature² Fusion Inground

• Nature² with Chlorine Tab Feeder

• Up to 45,000 Gallons

• 3 Cartridge Sizes

Professional G

• Stand Alone Nature²

• Up to 45,000 Gallons

• 3 Cartridge Sizes

Nature² Express

• Stand Alone Nature²

• After Market, Easy Install

• Up to 25,000 Gallons

Additional Nature² Products

CHLORINE GENERATION INSTALLATION – PLUMBING

3 Port Cell and Sensor

Preferred Plumbing

The “T” for the Flow/Temp/Salinity Sensor should

be pointed down to prevent air entrapment which

could cause false readings.

3 Port Cell and Sensor

OK Plumbing

The 3 Port Cell can be located so the sensor is

mounted to the side of the cell.

3 Port Cell and Sensor

OK Plumbing

The 3 Port Cell can be located so the sensor is

mounted to the top of the cell.

13 7/8” Cut Out

CHLORINE GENERATION INSTALLATION - PLUMBING

Wrong

3 Port Cell and Sensor

Wrong Plumbing

If the 3 Port Cell is plumbed as shown, the cell

may not produce chlorine, and the sensor will pro-

vide inaccurate readings.

3 Port Cell and Sensor

Wrong Plumbing

If the 3 Port Cell is plumbed as shown, the sensor

may provide inaccurate readings.

Notes:

_____________________________________________________________________
