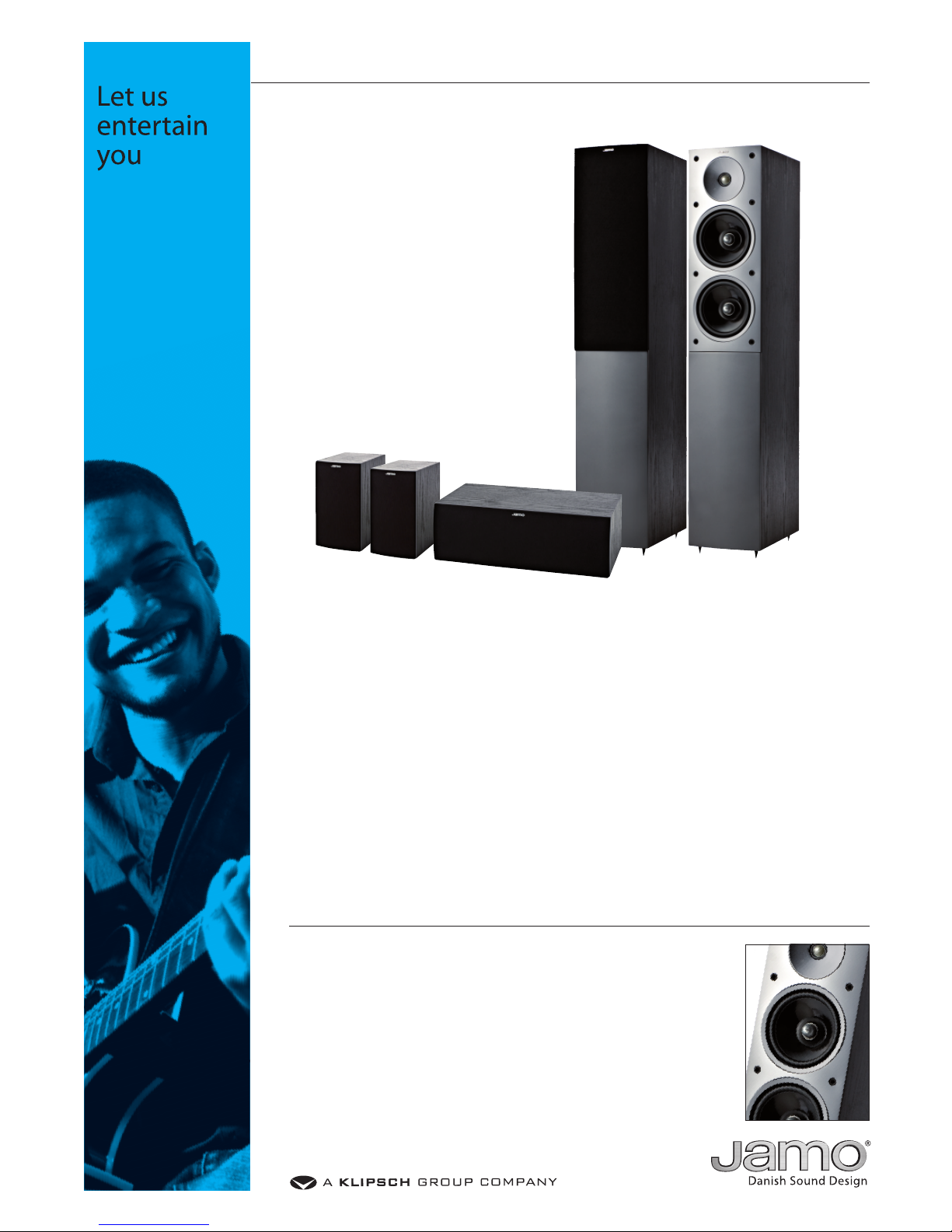

JAMO S 502 User manual

Jamo S 506 HCS 3

With more than 750 watts of music power the Jamo

S 506 HCS 3 system offers excellent value for money

without compromises in design or sound. Give these

speakers a listen and compare them to our competitors’

products – we promise you will be surprised!

If adding a SUB 250 you will get a total music power of

1000 watts.

The S 506 has a wave-guide-coupled 1” tweeter, and 2

x 6½” midrange/woofers ensure strong and clear vocals

and instruments as well as stromg, well-deﬁned bass.

The 2 midrange/woofers are mounted in separate,

fully isolated enclosures in order to minimize negative

interferences, and further the individual tuning of each

of the cavities eases the load of the ampliﬁer and result

in a more tunefull, low-distortion bass.

A very thick bafﬂe provides a solid foundation for

the best possible performance from the 2 carefully

engineered mid-woofers, and further increases the

stiffness of the already very strong enclosure.

The easily adjustable spikes ensure that the speakers

always stand securely,and the good mechanical contact

to the listening-room-ﬂoor enhances the acoustic

experience.

The S 506 is fully equipped for optional bi-wiring and

bi-ampliﬁcation, and will thus allow the enthusiast to

“tweak” the sound-performance to his or hers needs.

We should also mention that the S 506 HCS 3 system

comes with removable front fabric grilles.

You have the choice of leaving them on or off, but,just as

importantly, it also show that we have nothing to hide

with these beauties….quite the opposite!

The centre and satellites speakers come with supplied

wall mounts, allowing versatility when it comes to

placement options.

S 506 HCS 3

Speciﬁcations S 506 S 502 S 500 CEN

System 2-way bassreﬂex 2-way bassreﬂex 2-way bassreﬂex

Woofer (mm/in) 2 x 165 / 6½ 102 / 4 2 x 102 / 4

Tweeter 25 / 1 25 / 1 25 / 1

Power W long/shortterm 130 / 180 80 / 130 100 / 140

Frequency Range (Hz) 45-20.000 80-20.000 75-20.000

Sensitivity (db/2.8V/1m) 89 86 87

Impedance (Ohm) 6 6 6

Weight (kg/lb) 15,2 / 33,1 4,7 / 11,0 2,7 / 6,6

Dimensions (mm) HxWxD 1000x195x301 240x134x202 134x400x207

Dimensions (in) HxWxD 39.4x7.7x11.9 9.4x5.3x7.9 5.3x15.7x8.1

Other manuals for S 502

1

This manual suits for next models

3
