Jacuzzi HD85000 User manual

TECHNICAL SPECIFICATIONS MANUAL

HD85000

Jacuzzi®Luxury Bath

14525 Monte Vista Avenue

Chino, CA 91710

1-800-288-4002

www.jacuzzi.com

WHIRLPOOL BATH SERIES

Technical Speciﬁcations Manual

Page 2 www.jacuzzi.com Technical Speciﬁcations

English

Technical Speciﬁcations Manual

Technical Speciﬁcations www.jacuzzi.com Page 3

English

Product Information

Technical Speciﬁcations

Save these instructions for future use. Use the form below to record your model and serial number for future

reference.

Date Purchased

Purchased From

Installed By

Serial Number

Model

Installer: Leave the manual for the homeowner.

Homeowner: Read this manual and keep for future reference.

Read complete instructions before beginning installation.

Each bathtub arrives ready for installation, completely equipped with blower motor, pump/motor assembly, heater, and

plumbing necessary for operation.

Remove the bathtub from the carton. Retain the shipping carton until satisfactory inspection of the product has been

made. Do not lift the bathtub by the plumbing or wiring at any time; handle by the shell only.

Immediately upon receipt, inspect the shell before installing. Should inspection reveal any damage or defect in the

ﬁnish, do not install the bathtub. Damage or defect to the ﬁnish claimed after the bathtub is installed is excluded from

the warranty.

Jacuzzi Luxury Bath's responsibility for shipping damage ceases upon delivery of the products in good order to the

carrier. Refer any claims for damage to the carrier. For deﬁnitions of warranty coverage and limitations, refer to the

published warranty information packed with the product.

All bathtub units are factory tested for proper operation and watertight connections prior to shipping.

Prior to installation, the bathtub must be ﬁlled with water and operated to check for leaks that may have resulted

from shipping damage or mishandling. Jacuzzi Luxury Bath is not responsible for any defect that could have

been discovered, repaired, or avoided by following this inspection and testing procedure.

Technical Speciﬁcations Manual

Page 4 www.jacuzzi.com Technical Speciﬁcations

English

Acero™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 6636 and 7242

Letter Description English Metric English Metric

-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor

-Cutout Template Provided P/N HQ06000

64" x 34" Drop-In Cutout

Template Provided P/N HQ46000

70" x 40" Drop-In Cutout

-Total Weight 1042 lbs 474 kg 1266 lbs 574 kg

-Floor Loading 63.4 lb/ft2309 kg/m260.3 lb/ft2294.4 kg/m2

-Operating Gallons (Min/Max) 44G/ 78G 166.7L / 295L 57G/104G 216L/394L

-Product Weight 142 lbs 65 kg 150 lbs 68 kg

LOuter Length 65¾" 1670mm 72" 1829mm

WOuter Width 36" 914mm 42" 1067mm

HOverall Height 25" 635mm 25" 635mm

AOverﬂow Height 17⅞" 454mm 17⅞" 454mm

BLong Edge to Drain Center 11

"303mm 11

"303mm

CShort Edge to Drain Center 33" 838mm 36" 915mm

DDrain Shoe Length 7⅞" 200mm 7⅞" 200mm

EDeck Height 2" 51mm 2" 51mm

FDeck Width 4" 102mm 4" 102mm

GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm

IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 356mm x 102mm

6636 7242

Side View End View Drain/Overﬂow

Control Panel

Overﬂow

Motor

Suction

Fitting

Heater

(G) Service

Access

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

(Heater)

(Motor)

(Heater)

Note: Drain installation

is non-standard. Vertical

overﬂow connection

requires offset.

Technical Speciﬁcations Manual

Technical Speciﬁcations www.jacuzzi.com Page 5

English

Side View End View Drain/Overﬂow

Allusion™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 6636, 7236 and 7242

Letter Description English Metric English Metric English Metric

-Drain/Motor Location Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor

-Cutout Template Template provided P/N BY20000 Template provided P/N BY20000 Template provided P/N BY20000

-Total Weight 1015 lbs 461 kg 1138 lbs 517 kg 1251 lbs 588 kg

-Floor Loading 61.5 lb/ft2300 kg/m263.2 lb/ft2308 kg/m259.6 lb/ft2301.1 kg/m2

-Operating Gallons (Min/Max) 56G / 75G 208L / 284L 61G / 83G 231L / 314L 74G / 95G 280L / 360L

-Product Weight 140 lbs 64 kg 147 lbs 67 kg 160 lbs 73 kg

LOuter Length 66" 1676mm 72" 1829mm 72" 1829mm

WOuter Width 36" 914mm 36" 915mm 42" 1067mm

HOverall Height 26" 660mm 26" 660mm 26" 660mm

AOverﬂow Height 17⅜" 441mm 17⅜" 441mm 17⅜" 441mm

BLong Edge to Drain Center 11

"302mm 11

"305mm 11

"305mm

CShort Edge to Drain Center 33" 838mm 36" 914mm 36" 914mm

DDrain Shoe Length 6" 152mm 6" 152mm 6" 152mm

EDeck Height 4" 102mm 4" 102mm 4" 102mm

FDeck Width 3⅞" 97mm 3⅞" 97mm 3⅞" 97mm

GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm

IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm

6636 7236 7242

(G) Primary

Service Access

Suction Fitting

(G) Secondary

Service Access

Heater

Control

Panel

Overﬂow

Motor

(Motor)

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

4" C

(Motor)

(Heater)

Motor Extends

2" Beyond Lip

Technical Speciﬁcations Manual

Page 6 www.jacuzzi.com Technical Speciﬁcations

English

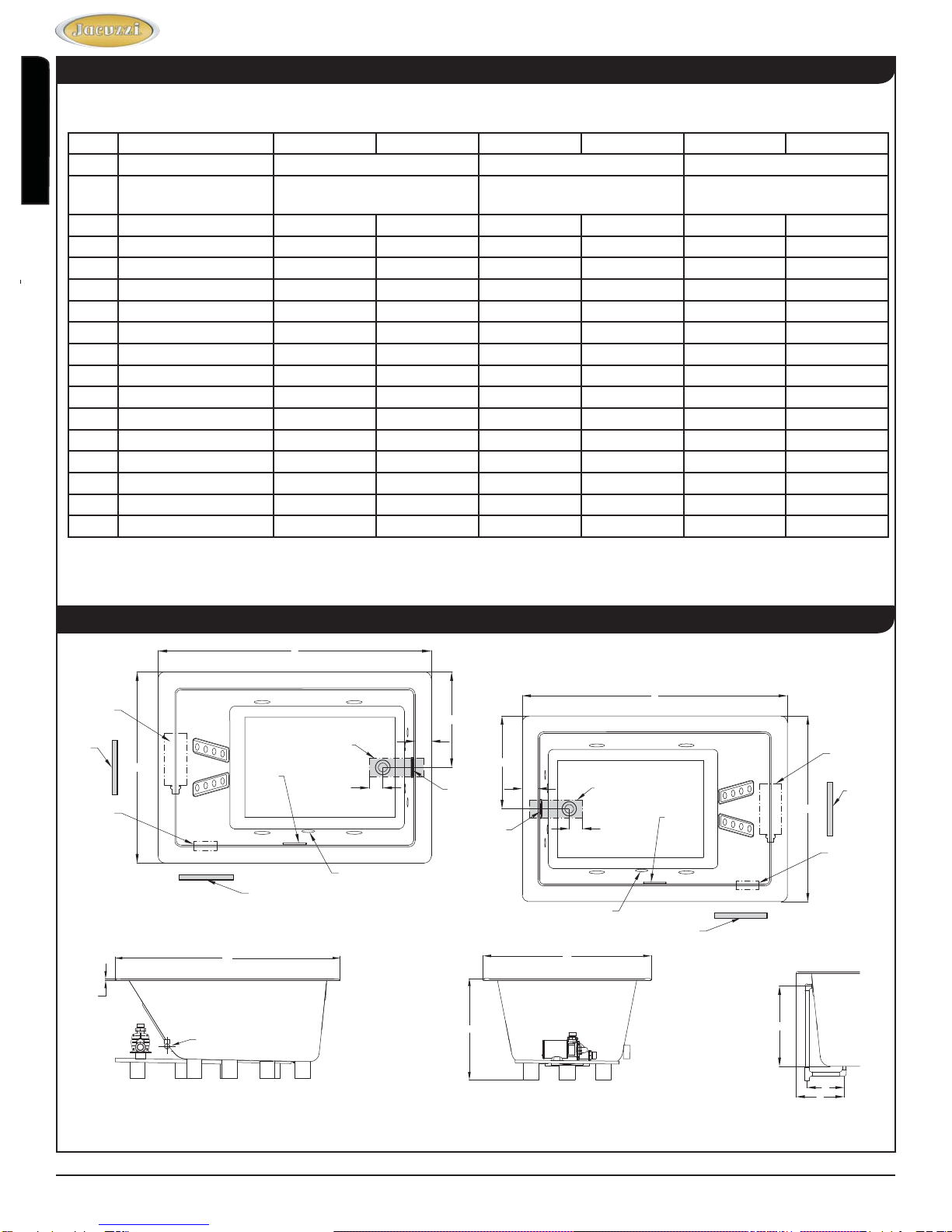

Side View End View Drain/Overﬂow

Bellavista™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 6042, 6642 and 7242

Letter Description English Metric English Metric English Metric

-Drain/Motor

Location

Center drain/Right end motor Center drain/Right end motor Center drain/Right or Left end motor

-Cutout Template Template Provided P/N P187000 Template Provided P/N P187000 Template Provided P/N P187000

-Total Weight 1041 lbs 473 kg 1113 lbs 506 kg 1233 lbs 560 kg

-Floor Loading 60.1 lb/ft2293 kg/m257.8 lb/ft2282 kg/m258.7 lb/ft2286 kg/m2

-Operating Gallons

(Min/Max)

63G / 78G 238.5L / 295L 69G / 88G 261.2L / 333L 84G / 95G 318L / 360L

-Product Weight 141 lbs 64 kg 130 lbs 59 kg 142 lbs 65 kg

LOuter Length 59¾" 1518mm 66" 1676mm 72" 1829mm

WOuter Width 41¾"1060mm 42" 1067mm 42" 1067mm

HOverall Height 26"660mm 26" 660mm 26" 660mm

AOverﬂow Height 20"508mm 20"508mm 20"508mm

BLong Edge to

Drain Center

11¾"298mm 11¾"298mm 11¾"298mm

CShort Edge to

Drain Center

32½"826mm 35½" 902mm 36" 914mm

DDrain Shoe Length 6"152mm 6"152mm 6"152mm

EDeck Height 2"51mm 2"51mm 2"51mm

FDeck Width 3"76mm 3"76mm 3"76mm

GService Access

Dimensions

12"x 18"305mm x 457mm 12"x 18"305mm x 457mm 12"x 18"305mm x 457mm

IFloor Cutout for

Drain

17"x 4"432mm x 102mm 17"x 4"432mm x 102mm 17"x 4"432mm x 102mm

6042 6642 7242

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

Overﬂow

Motor

Suction Fitting

(G) Primary

Service Access

(G) Secondary

Service Access

Control

Panel

Heater

3" I

10.5"

(Heater)

(Motor)

Side View End View Drain/Overﬂow

Bellavista RH 7242

Bellavista LH 7242

Overﬂow

Motor

Heater

Suction Fitting

(G) Primary

Service

10.5" C

Control

Panel

Overﬂow

Motor

Heater

Suction

Fitting 3" I

(G) Secondary

Service Access

(G) Primary

Service Access

Control

Panel 10.5"

(Heater)

(Motor)

(Heater)

(Motor)

H(Motor)

Bellavista RH 6042 & 6646

Bellavista LH 7242

Bellavista RH 7242

Access

(G) Secondary

Service

Access

Bellavista RH 6042 & 6646

Technical Speciﬁcations Manual

Technical Speciﬁcations www.jacuzzi.com Page 7

English

Front View Side View Drain/Overﬂow

Bellavista™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 60606060

(Heater)

(Motor)

(Heater)

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

Letter Description English Metric

-Drain/Motor

Location

Center drain/Right or Left side motor

-Cutout Template Template Provided P/N P654000

-Total Weight 1226 lbs 557 kg

-Floor Loading 49.5 lb/ft2242 kg/m2

-Operating Gallons

(Min/Max)

80G / 92G 302.8L / 348L

-Product Weight 160 lbs 73 kg

LOuter Length 59¾" 1518mm

WOuter Width 59¾" 1518mm

HOverall Height 25" 635mm

AOverﬂow Height 18⅞"479mm

BLong Edge to

Drain Center

14"356mm

CShort Edge to

Drain Center

34 " 879mm

DDrain Shoe Length 7½"191mm

EDeck Height 2"51mm

FDeck Width 6"152mm

GService Access

Dimensions

12"x 18"305mm x 457mm

IFloor Cutout for

Drain

12"x 4"305mm x 102mm

Suction

Motor

Overﬂow Heater

3" I

Fitting

BDrain/Overﬂow

H(Heater)

(Motor)

(Motor) H

(Heater)

(Motor)

Bellavista RH 6060 Bellavista LH 6060 Bellavista RFM 6060

Bellavista LH 6060

Bellavista RH 6060

Bellavista RFM 6060

Control

Panel

(G) Secondary

Service Access

(G) Primary

Service Access

Control

Panel

Suction

Fitting

Heater

Overﬂow

(G) Service Access

Motor

Heater

Suction

Fitting

Control

Panel

Overﬂow

Technical Speciﬁcations Manual

Page 8 www.jacuzzi.com Technical Speciﬁcations

English

Cortina™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 7272

Letter Description English Metric

-Drain/Motor

Location

Center drain/Right motor

-Cutout 70" Dia. Drop-In Cutout

-Total Weight 1485 lbs 674 kg

-Floor Loading 41.2 lb/ft2201.1 kg/m2

-Operating Gallons

(Min/Max)

87G / 117G 329L / 443L

-Product Weight 210 lbs 95 kg

LOuter Length 72" 1829mm

WOuter Width 72" 1829mm

HOverall Height 22¼" 565mm

AOverﬂow Height 16¾" 425mm

BLong Edge to

Drain Center

19¼" 489mm

CShort Edge to

Drain Center

24½" 622mm

DDrain Shoe Length 5" 127mm

EDeck Height 2½" 64mm

FDeck Width 6½" 165mm

GService Access

Dimensions

12" x 18" 305mm x 457mm

IFloor Cutout for

Drain

14" x 4" 356mm x 102mm

7272

Side View End View Drain/Overﬂow

(Motor)

(Heater)

(Motor)

(Heater)

Heater

Overﬂow

(G) Service

Access

Motor

Control

Panel

Suction

Fitting

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

Technical Speciﬁcations Manual

Technical Speciﬁcations www.jacuzzi.com Page 9

English

Duetta™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 6042, 6636, 6642 and 7242

Letter Description English Metric English Metric English Metric English Metric

-Drain/Motor

Location

Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor

-Cutout Template Template Provided P/N DA09000 Template Provided P/N DA08000 Template Provided P/N DA07000 Template Provided P/N DA06000

-Total Weight 1077 lbs 490 kg 1044 lbs 475 kg 1195 lbs 543 kg 1293 lbs 588 kg

-Floor Loading 61.6 lb/ft2301 kg/m263.3 lb/ft2309 kg/m262.1 lb/ft2303 kg/m261.6 lb/ft2301 kg/m2

-Operating Gallons

(Min/Max)

70G / 83G 265L / 314L 75G / 79G 283.9L / 299L 90G / 97G 340.7L / 367L 97G / 108G 367.2L / 409L

-Product Weight 136 lbs 62 kg 136 lbs 62 kg 137 lbs 62 kg 143 lbs 65 kg

LOuter Length 60" 1524mm 66" 1676mm 66" 1829mm 72" 1829mm

WOuter Width 42" 1067mm 36" 915mm 42" 1067mm 42" 1067mm

HOverall Height 26" 660mm 26" 660mm 26" 660mm 26" 660mm

AOverﬂow Height 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm

BLong Edge to

Drain Center

11" 279mm 11" 279mm 11" 279mm 11" 279mm

CShort Edge to

Drain Center

30" 762mm 33" 838mm 33" 838mm 36" 915mm

DDrain Shoe Length 7¼" 183mm 7¼" 183mm 7¼" 183mm 7¼" 183mm

EDeck Height ½" 13mm ½" 13mm ½" 13mm ½" 13mm

FDeck Width 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm

GService Access

Dimensions

12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm

IFloor Cutout for

Drain

13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm

6042 6636 72426642

Heater

Suction Fitting

Control

Panel

(G) Service

Access

Motor

(G) Service

Access

Motor

Heater

Overﬂow

Suction Fitting

Control

Panel

Side View End View Drain/Overﬂow Side View End View Drain/Overﬂow

(Heater)

(Motor)

(Heater)

(Motor)

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

Overﬂow

Motor Extends

3" Beyond Lip

Motor Extends

3" Beyond Lip

(Heater)

(Motor)

(Heater)

Duetta 6042 & 6642 Duetta 6636 & 7242

Note: Drain installation

is non-standard. Vertical

overﬂow connection

requires offset.

Technical Speciﬁcations Manual

Page 10 www.jacuzzi.com Technical Speciﬁcations

English

Elara™ Whirlpool Bath

KEY DIMENSIONS

Speciﬁcations for 6042, 6636 and 7242

Letter Description English Metric English Metric English Metric

-Drain/Motor Location End drain/Right or Left end motor End drain/Right or Left end motor End drain/Right or Left end motor

-Cutout Template Provided P/N DQ50000

58" x 40" Drop-In Cutout

Template Provided P/N DQ51000

64" x 34" Drop-In Cutout

Template Provided P/N BZ50000

70" x 40" Drop-In Cutout

-Total Weight 1168 lbs 531 kg 1133 lbs 515 kg 1388 lbs 631 kg

-Floor Loading 66.7 lb/ft2325 kg/m268.7 lb/ft2335 kg/m266.1 lb/ft2323 kg/m2

-Operating Gallons (Min/Max) 83G/ 94G 314.2L / 356L 78G/ 89G 295.3L / 337L 107G/ 117G 405L / 443L

-Product Weight 135 lbs 61 kg 142 lbs 65 kg 163 lbs 74 kg

LOuter Length 60" 1524mm 66" 1676mm 72" 1829mm

WOuter Width 42" 1067mm 36" 915mm 42" 1067mm

HOverall Height 26" 660mm 26˝660mm 26˝660mm

AOverﬂow Height 18½" 470mm 18½" 470mm 18½" 470mm

BLong Edge to Drain Center 10⅝" 269mm 10⅝" 269mm 10⅝" 269mm

CShort Edge to Drain Center 21" 533mm 18" 457mm 21" 533mm

DDrain Shoe Length 6" 152mm 6" 152mm 6" 152mm

EDeck Height ½" 13mm ½" 13mm ½" 13mm

FDeck Width 4¼" 107mm 4¼" 107mm 4¼" 107mm

GService Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm

IFloor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm

6636 7242

6042

Side View Drain/OverﬂowEnd View

Overﬂow

Suction Fitting

Control

Panel

(G) Primary

Service

Motor

(Heater)

(Motor)

Electrical Speciﬁcations Each component requires a seperate, dedicated GFCI protected circuit

Motor/Pump 120V 20A 60HZ

Heater 120V 15A 60HZ

Heater

(G) Secondary

Service Access

Access

Overﬂow

Control

Panel

Suction Fitting

Motor

(G) Primary

Service

Access

Heater

Elara RH

Elara LH

(G) Secondary

Service Access

(Motor)

(Heater)

This manual suits for next models

Table of contents

Other Jacuzzi Hot Tub manuals

Jacuzzi

Jacuzzi Tara N820 User manual

Jacuzzi

Jacuzzi J Series User manual

Jacuzzi

Jacuzzi Experience ALIMIA Parts list manual

Jacuzzi

Jacuzzi Luxury/Designer Bath Series K339000X Installation instructions

Jacuzzi

Jacuzzi fresco BM85 User manual

Jacuzzi

Jacuzzi Signa 6 Whirlpool Bath and Soaking Bath C100 User manual

Jacuzzi

Jacuzzi AIR BATHS LUXURY SERIES User manual

Jacuzzi

Jacuzzi J - 375 User manual

Jacuzzi

Jacuzzi Finestra 6030 User manual

Jacuzzi

Jacuzzi Gallery R235-LH pump User manual

Jacuzzi

Jacuzzi Select Series User manual

Jacuzzi

Jacuzzi Riva 6 User manual

Jacuzzi

Jacuzzi Flow User manual

Jacuzzi

Jacuzzi Delos User manual

Jacuzzi

Jacuzzi Mito 5 User manual

Jacuzzi

Jacuzzi J-300 Series Instruction manual

Jacuzzi

Jacuzzi SKYLINE 190 User manual

Jacuzzi

Jacuzzi Pure Air Whirlpool Salon Spa User manual

Jacuzzi

Jacuzzi NOVA 536 User manual

Jacuzzi

Jacuzzi J-300 J-315 User manual

Jacuzzi

Jacuzzi Corian Aura Corner 140 User manual

Jacuzzi

Jacuzzi Premium J-315 User manual

Jacuzzi

Jacuzzi nova 636 User manual

Jacuzzi

Jacuzzi Riva 5 User manual

Popular Hot Tub manuals by other brands

Bestway

Bestway Lay-Z-Spa 54189 manual

Morphy Richards

Morphy Richards Essentials PC4006 user manual

Softub

Softub PRESTIGE Owners Manual Water Treatment Guide

JNJ SPAS

JNJ SPAS SPA-318 Programming instructions

KIRAMI

KIRAMI Comfort Family Instructions for use

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) owner's manual

HoMedics

HoMedics FB-655HJ-GB manual

Everyday Hot Tubs

Everyday Hot Tubs 530 owner's manual

anko

anko SS-601A user manual

Pooli

Pooli OS030979B product manual

ab Solares Smart Spa operating manual

CalderaSpas

CalderaSpas CalderaSpas Utopia Series owner's manual

Outsunny

Outsunny 848-047V70 Assembly guide

Aquatic

Aquatic INFINITY 1 Specifications

Master Spas

Master Spas MP Force owner's manual

Asteria

Asteria 5630 owner's manual


Image IMSB61610, IMSG61610 user manual

ViSAGE

ViSAGE FM-588D user manual
