Jacuzzi Z1 00 Instruction Manual

The

00/MODEL 300

Whirlpool Spa

PARTS CATALOG

MODEL

#J200000

ISSUE

DATE

:6/97

CATALOG

#J866000A

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

CONTENTS

Z100/Model300 Reference

DischargePlumbing

SuctionPlumbing

AirLinePiping

SensorMountFitting

SkirtAssembly

OtherItemsAvailable

TO ORDER

Orderbypartnumberunless otherwisenoted.Quantities showninthiscatalog

indicatethenumberofitemsrequired.Whenordering,specifythequantity

needed.

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

REPAIRASSEMBLIESARESHOWN/REFERENCEDBELOW

AMHJets

(4)

Suction

Cover

1-PositionControlPanel

DuplexControl

Panel

SensorMountFitting

SkimmerAssembly

SafetySuction

DrainLine

fromSkimmer

toDischarge

Plumbing

SensorMount

Fitting

SuctionPlumbing

Discharge

Plumbing

AirLine

Piping

In-LineFilterSerialNumber/

ProductSpecification

Plate

ElectronicControl

Box

J-Pump/MotorAssembly

See GeneralSpa PartsCatalogforinformationonthefollowing:

AMHJet

One-PositionControlPanel

ElectronicControlBox

SuctionCover

J-Pump/MotorAssembly

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

DISCHARGEPLUMBING

ITEMP/N DESCRIPTIONQTY

9250000

9231000

0955000

0239000

0167000

3044000

7266000

6460000

RepairKit,UnionAdapter

O-Ring,Union

Ell,90,1 1/2",StreetxSlip

Ell,90,1 1/2",SxS

Tee,1 1/2",SxSxS

CompressionFtng,90 Ell, .25"

DrainTube, .25"x46.00"L.

Grommet,Drain

*To2HPJ-PumpDischarge

1 1/2"Flex

x8.50"L.

1 1/2"x9.50"L.

*ToHeater

1 1/2"x3.50"L.

1 1/2"x10.75"L.4

1 1/2"x5.00"L.6*ToJet

1 1/2"Flex

x49.00"L.

Drill 5/16"dia.through hole

andtap for1/8NPT.

*ToJet

ToSkimmer

1 1/2"Flex

x18.00"L.

Spa Shell Shownfor reference

1 1/2"Flex

x28.50"L.

1 1/2"Flex

x44.00"L.

*See GeneralSpa PartsCatalog

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

SUCTIONPLUMBING

ITEMP/N DESCRIPTIONQTY

9250000

9231000

0828000

0426000

0239000

2488000

3044000

4649000

3054000

3064000

4330000

0473000

7355000

6933000

4657000

6187000

6185000

6186000

5475000

5472000

RepairKit,UnionAdapter

O-Ring,Union

Tee,2"SxSxS

Ell,90,2"SxS

Ell,90,1 1/2"SxS

Tee,Rdcng,2x2x1 1/2,SxSxS

CompressionFtng,90 Ell, .25"

Tube, .25"O.D.FlexNylonx96.00"L.

CompressionFtng,Straight, .25"

Bushing,Rdcng,1/2x1/8SPIGxFIPT

CheckValve, .5PVC,3PSI

Bushing,Rdcng,2x1 1/2SPIGxS

Bushing,Rdcng,1 1/2x3/4SPGxS

Adapter,3/4"SlipxFPT

HoseBibb

Plug,Vent/Drain

O-Ring, .487 I.D.x.693 O.D.

O-Ring,5.850 I.D.x6.270 O.D.

FilterCartridge,25 Sq.Ft.

Filter,In-Line25 Sq.Ft.

*To2HP

J-PumpSuction

42"x3.00"L.

1 1/2"x10.50"L.

3/4"Flex

x22.00"L.

1 1/2"x19.00"L.

1 1/2"x3.00"L.

Drill 5/16"dia.through

holeandtap for1/8NPT.

2"Flex

x29.00"L.

2"Flex

x51.50"L.

10 11 1 1/2"Flex

x28.00"L.

ToSkimmer*ToSuction

Fitting

51 1/2"x2.50"L.

12 42"x2.50"L.

*See GeneralSpa PartsCatalog

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

AIRLINEPIPING

*ToJet

#2*To1-Position

ControlPanel

1/2"Flex

x46.00"L.

1/2"x1.50"L.1

1/2"Flex

x46.00"L.

1/2"x1.50"L.

1/2"Flex

x8.25"L.

1/2"Flex

x46.00"L.

ITEMP/N DESCRIPTIONQTY

20455000

7164000 Tee,1/2",SxSxS

Ell,Street,1/2"90 3

*See GeneralSpa PartsCatalog

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

SENSORMOUNTFITTING

ElectronicControl

BoxTempSensor

PushElectronicControlBoxTempSensor

throughO-RingandNutintoThrough-The-Shell

Fitting.TightenNut to captureO-Ringbetween

FittingandNut.

Inside ofShell

Applybead

ofSiliconeSealant

Nutisleft-handedthread

ITEMP/N DESCRIPTIONQTY

1J827000 Fitting,SensorMount1

PLEASENOTE:Item1containsalargeandsmall plasticnut,anO-ring

and a through-the-shell fitting.

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

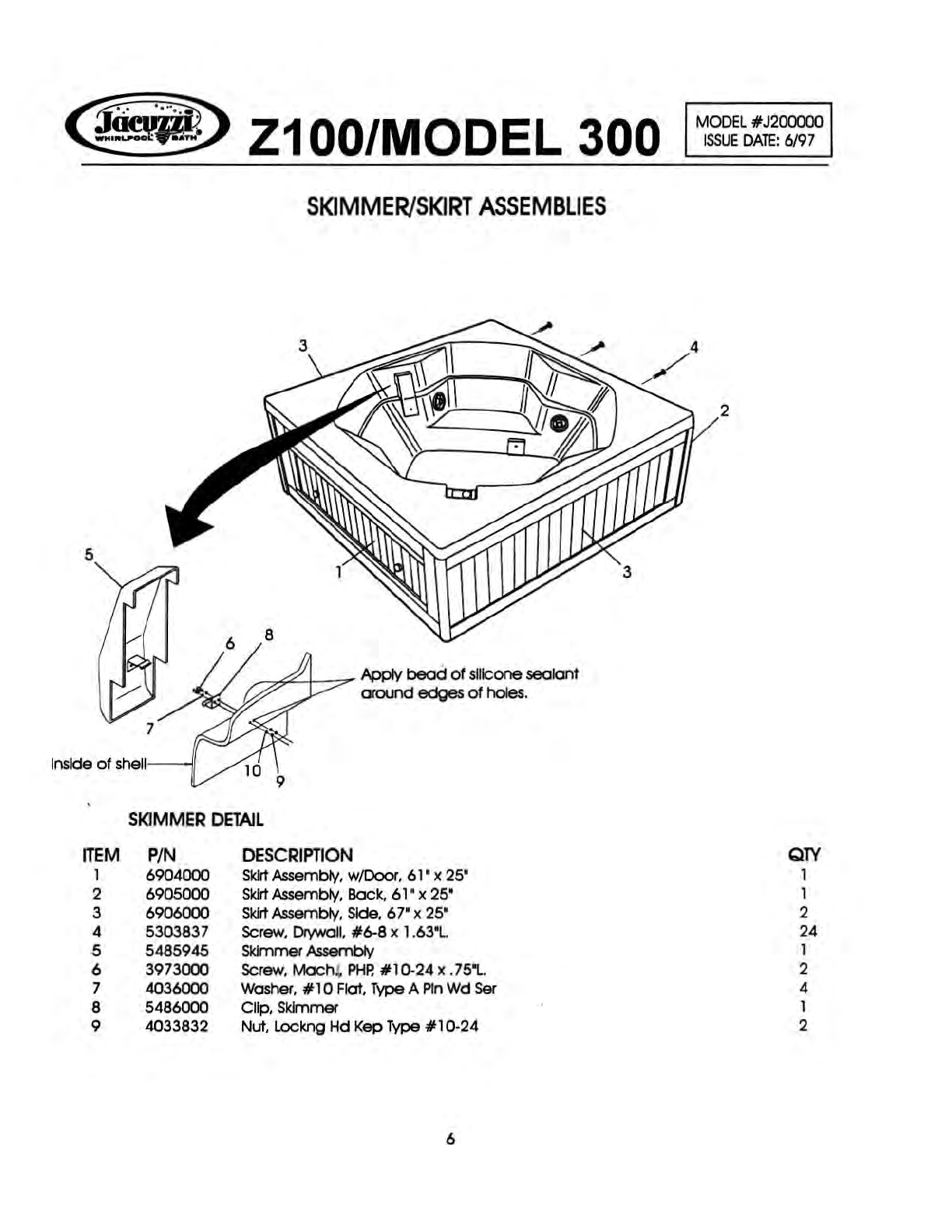

00/MODEL

300

SKIMMER/SKIRT

ASSEMBLIES

lnslde

shell

-u

SKIMMER

DETAIL

ITEM

P/N

1 6904000

2 6905000

3 6906000

4 5303837

5 5485945

6 3973000

7 4036000

8 5486000

9 4033832

DESCRIPTION

Skirt

Assembly,

w/Door,

61" x

25"

Skirt

Assembly, Back,

"X 25"

Skirt

Assembly, Side, 67" X

25"

Screw.

Drywall

#6-8

x 1.63"L

Skimmer

Assembly

Screw.

Mach

PHP,

# 1

0-24

x.75"l.

Washe

r. # 10

Flat,

Type A

Clip, Skimmer

Nut, Lockng Hd K

Type

#10-24

MODEL

#J200000

ISSUE

DATE:

6/97

QTY

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

OTHERITEMSAVAILABLE

6334000 ThermalCover

Z100/MODEL300

Guillen's Enterprises, inc

jacuzziparts.com

800-222-7855

www.guillens.com - (800) 222-7855

PRODUCTSPECIFICATIONSARE SUBJECT TOCHANGEWITHOUTNOTICE.

USE INSTALLATIONINSTRUCTIONS SUPPLIEDWITHPRODUCT.

JacuzziWhirlpoolBath hasobtained applicable code(standards)listingsgenerallyavailable ona

nationalbasisforproductsofthistype.Itistheresponsibilityoftheinstaller/ownertodeterminespecifc

localcode compliance priortoinstallationoftheproduct.JacuzziWhirlpoolBathmakesno

representationorwarrantyregarding,andwill notberesponsibleforanycode compliance.

JACUZZIWHIRLPOOLBATH

JacuzziWhirlpoolBathNationalHeadquarters

ServiceSupport:(800)288-4002

P.O.DrawerJ,WalnutCreek,CA94596 (510)938-7070

PrintedintheU.S.A.
