J-Tech Digital® H.264 HDMI 2x2 Wireless Extender
Model: JTECH-WEX-22
Thank you for purchasing the JTECH-WEX-22. J-Tech Digital products offer cost effective AV solutions to
any scenario, including security, home, commercial and live applications. The J-Tech Digital® 2x2 Wireless
HDMI Extender is the perfect component for any home entertainment system. This wireless extender allows
you to connect two HDMI source and send that signal to two different displays simultaneously, with a
purchase of second receiver. Perfect for connecting your media players, a Blu-ray player, or other HDMI
source to multiple HD displays.
JTD-ID: 35
Introduction
Required for Operation
Pairing Procedure
HDMI transmits on 5GHz WIFI frequency, up to 50 meters/164 Feet.
Resolution up to 1920x1080 @ 60 Hz.
Uses H.264 compression and decompression algorithms which effectively improves the transfer
efficiency. This ensures a stable signal.
Able to automatically identify and configure a variety of display modes.
Simple and convenient installation. Transmitter and receiver come paired together, so just plug and
play.
1 x HDMI transmitter
1 x HDMI receiver
1 x Remote control
2 x Power adapters DC 5V/1.5A
2 x IR TX/RX terminal cables
1 x User manual
Pairing the Transmitter & Receiver:
1. Plug the power supply into the transmitter.
2. Plug the power supply into the receiver.
3. The transmitter and the receiver WIFI tuned to the same frequencies, suggested the 53 spectrum, such
as STA scintillation communication is normal
Unpairing the Transmitter & Receiver:
1. Plug the power supply into the receiver.
2. The transmitter and receiver WIFI are tuned to different frequencies, which is to disconnect the
transmitter and receiver.
Features
Transmitter: Receiver：
Port name Description
IN
PUT
/ OUT
PUT
HDMI
signal input/output
IR IN / OUT
IR signal input/output;
TX/RX
have
matching
connectors
IR
R
emote
control receiver
DC 5V
Power adapter socket
Channel Digital display tube 50-59 5G band
Back
;
Down
;
UP
;
OK
Key Used to adjust the WIFI frequency
LED indicator Description
STA Static Light-Device has booted up
STA Flashing Light-Data is being transmitted and
received
PWR Static Light-Power on
1. Plug in the power supply for the transmitter and receiver. Once the transmitter and receiver has
booted up, you will have a blue static “STA” light. Once the transmitter and receiver has made a
good connection, you will have a blue static “LINK” light.
2. Connect the source to the HDMI transmitter input port.
3. Connect the HDMI receiver to a display device (such as high-definition TV or projector).
4. Connect the 3.5mm standard IR cable to transmitter “IR OUT” port and receiver “IR IN” port.
5. Make sure the transmitter and the receiver are placed in the final positions, clear of any walls.
6. If you see a consistent flashing blue “STA” light, then data is being transmitted and received properly.
Panel Descriptions
Installation
Parameter
Description
Video
Standards
HDMI 1.
3
; HDCP 1.
2
Compressed format
H.264
Maximum
pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
Max:
1920X1080
p
@60
Hz
Connector
HDMI
-
A
Impedance
100
Ω
Recommend HDMI
maximum
input/output range
Less than 5 meters, when 1920 x1080p @ 60 Hz
IR
Interface
3.5mm
IR port
Signal
direction
Un
idirectional
Signal type
Digital
IR frequency
20
-
60kHz
WIFI
Radio Frequency
power
13dbm
Wireless standards
802.11ac
signal direction
Un
idirectional
Radio frequency
Ch 124
-
5.620GHz
Transmission distance
50 meters/164 Feet
Other
Power
Adapter
:
DC
5
V/1.5A
Power dissipation
MAX
9
W
Temperature
Operating
：
-5
℃
~ +70
℃
Humidity
Operating
：
5% ~ 90%
Size
119
*
82
*
2
3
mm
Warranty
1
-
year warranty
Specifications

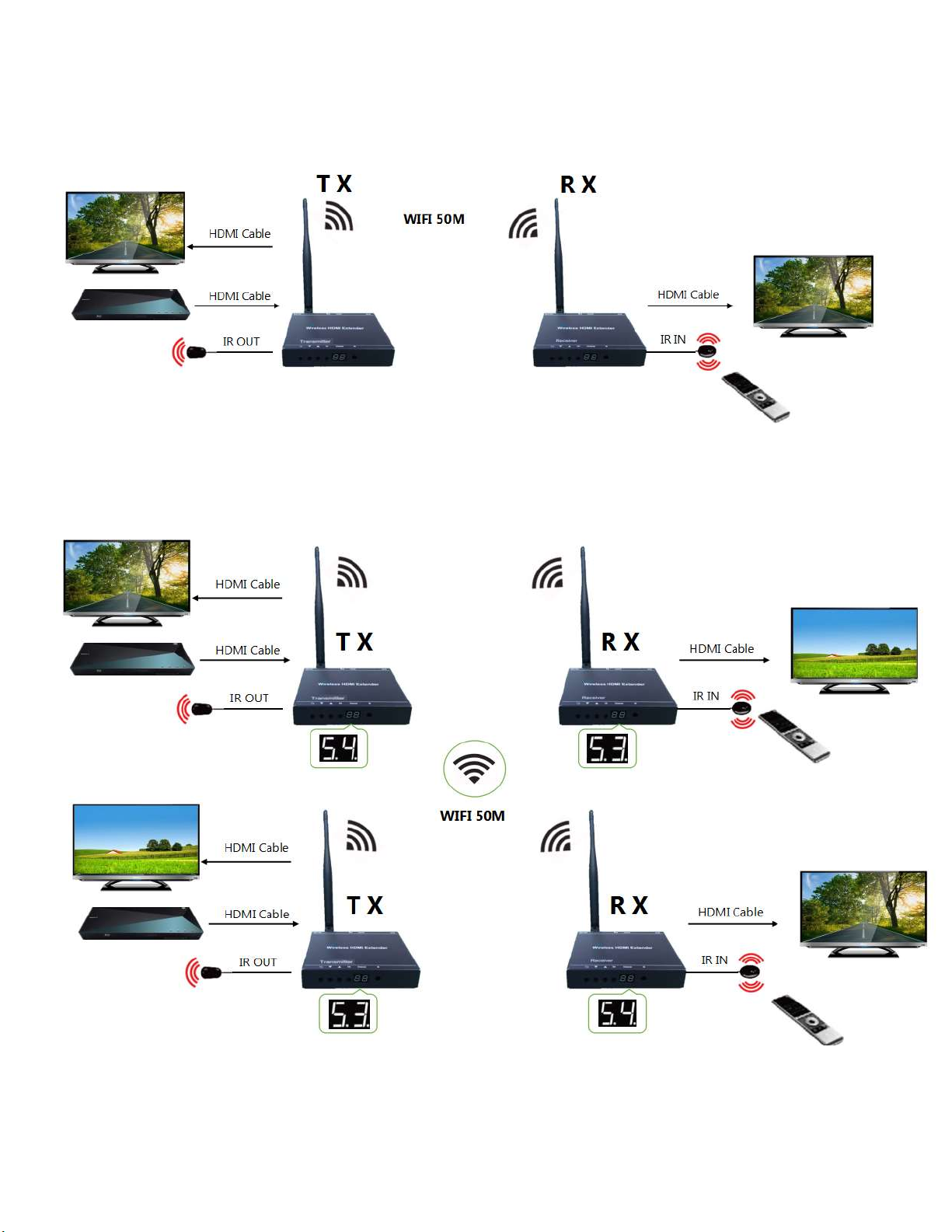

One transmitter to one receiver diagram:
Two transmitter to two receivers diagram
**Need to purchase second receiver and pair it to the transmitter
Have more questions? Scan this QR code using your
smartphone to contact us!
Scan this QR code using your smartphone to view the
full J-Tech Digital Product Lineup!
www.jtechdigital.com
J-Tech Digital®
12803 Park One Drive
Sugarland, TX 77478
Product pictures are for reference only.
Specifications, pictures & software described herein are subject to change without prior notification.
Only use the provided power supply when operating this unit. J-Tech Digital® is not responsible for any damage due to customer neglect.
All trademarks are the sole property of their respective companies.
Copyright ©J-Tech Digital, Inc. All rights reserved.
