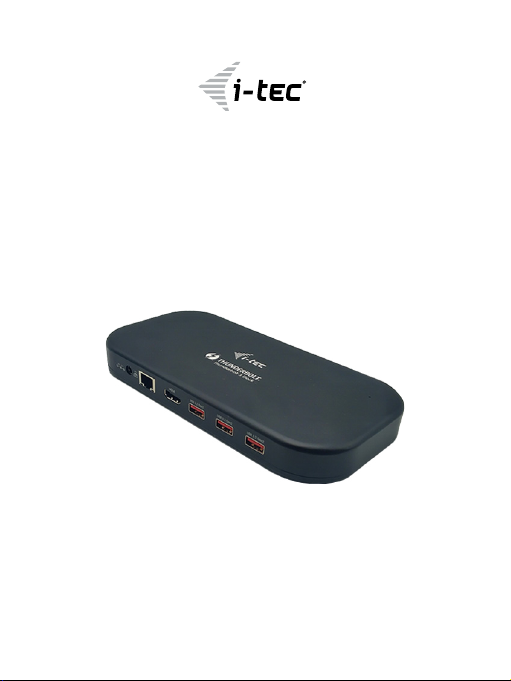

Itec TB3HDMIDOCKPD User manual

P/N: TB3HDMIDOCKPD

User guide • Gebrauchsanweisung • Mode d’emploi

Manual de instrucciones • Manuale • Uživatelská příručka

Instrukcje obsługi • Užívateľská príručka • Vartotojo vadovas

Handleiding

i-tec Thunderbolt 3/USB-C Dual 4K

Docking Station

+ USB-C to DisplayPort Cable (1,5 m)

+ Power Delivery 60W

EN Please read the entire instruction manual carefully. Detailed manual is available

on our website www.i-tec.pro/en in the tab „Manuals, drivers“. In case of any issues,

please contact our technical support at:

[email protected]

DE Bitte lesen Sie das gesamte Handbuch sorgfältig durch. Die ausführliche Geb-

rauchsanweisung ist auch auf unserer Webseite www.i-tec.pro/de unter „Benut-

zerhandbücher, Treiber“ bei diesem Produkt zu nden. Wenn Sie Probleme haben,

kontaktieren Sie bitte unser Support-Team unter:

[email protected]

FR Veuillez lire attentivement le manuel dans son intégralité. Un manuel détaillé

est disponible sur notre site www.i-tec.pro/fr sous l’onglet “Manuels, pilotes”.

Si vous avez des problèmes, veuillez contacter notre équipe support à

[email protected]

ES Por favor, lea atentamente todo el manual. El manual detallado está disponible

en nuestro sitio web,www.i-tec.pro/es bajo la pestaña “Manuales y controladores”

de este producto. Si tiene algún problema, póngase en contacto con nuestro equipo

de soporte en [email protected]

IT Leggere attentamente tutto il Libretto d’uso. Il Libretto d’uso è a disposizione

anche sulla scheda “Manuali e strumenti” del nostro sito web: www.i-tec.pro/it.

In caso di problemi rivolgersi al supporto tecnico:

[email protected]

CZ Prosíme o pečlivé přečtení celého manuálu. Podrobný manuál je k dis pozici

na našem webu www.i-tec.pro v zá ložce „Manuály, ovladače“ u tohoto produktu.

V pří padě problémů se můžete obrátit na naši technickou podporu:

[email protected]

PL Upewnij się, że uważnie przeczytałeś instrukcji obsługi. Szczegółowy

podręcznik jest dostępny na naszej stronie internetowej www.i-tec.pro/pl

w zakładce „Instrukcje, sterowniki”. W razie jakichkolwiek problemów, skontaktuj się

z naszym serwisem pod adresem: [email protected]

SK Prosíme o dôkladné prečítanie celého manuálu. Podrobný manuál je k dis pozícii

tiež na našom webe www.i-tec.pro v záložke „Manuály, ovladače“ pri tomto produkte.

V prípade problémov sa môžete obrátiť na našu technickú podporu:

[email protected]

LT Prašome įdėmiai perskaityti visą vadovą. Išsamų vadovą galite rasti mūsų sve-

tainėje www.i-tec.pro/en šio produkto skyrelyje „Manuals, drivers“. Iškilus proble-

moms galite susisiekti su mūsų technine pagalba:

[email protected]

NL Wij vragen u vriendelijk om de volledige handleiding zorgvuldig door te lezen.

Een gedetailleerde handleiding van dit product is beschikbaar op onze web-

site www.i-tec.pro/nl onder het tabblad “Handleidingen en drivers”. Mochten

er zich problemen voordoen kunt u contact opnemen met ons supportcenter via

[email protected].

i-tec Thunderbolt 3/USB-C Dual 4K

Docking Station

+ USB-C to DisplayPort Cable (1,5 m)

+ Power Delivery 60W

ENGLISH........................................................... 05–18

DEUTSCH..........................................................19–32

FRANÇAIS......................................................... 33–46

ESPAÑOL ..........................................................47–60

ITALIANO .......................................................... 61–74

ČESKY...............................................................75–88

POLSKI............................................................89–102

SLOVENSKY..................................................103–116

NEDERLANDS...............................................117–130

WEEE.............................................................132–133

Declaration of Conformity ...........................134–135

FCC.........................................................................136

5EN |

Quick Start / TB3HDMIDOCKPD / English

SPECIFICATIONS

• 1x Thunderbolt™ 3 port for connection to Thunderbolt 3/4, USB4 or USB-C*

devices

• Docking station technology: Thunderbolt™ 3

• Power Delivery: 60W

• 1x Thunderbolt™3 port

- Data transfer*

- Video Port*

• Video ports:

- 1x HDMI

• Resolution

- Thunderbolt™ 3/4:

- 1 monitor - 1x HDMI → up to 4K/60Hz

- 1 monitor - 1x TB3 → up to 8K/30Hz**

- 1 monitor - 1x TB3 → up to 5K/60Hz

- 2 monitors - 1x HDMI + 1x TB3 → up to 2x 4K/60Hz

- 2 monitors - 1x HDMI + 1x TB3 →up to 2x QHD/144Hz

- USB-C* (DP Alt mode):

- 1 monitor - 1x HDMI → up to 4K/30Hz

• Compatible with G-Sync/Freesync, HDR 400 - 1000 via Thunderbolt™3 output only

• 2x USB-A 3.2 Gen 1 with fast charging support (B.C 1.2)

• 3x USB-A 3.2 Gen 2 with fast charging support (B.C 1.2)

• 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)

• 1x SD slot

• 1x microSD slot

• 1x 3.5mm Audio combo connector

• Support for Kensington lock

• Thunderbolt 3 cable (70 cm)

• Product dimensions: 198 x 98 x 22 mm

• Product weight: 340 g

• Package dimensions: 260 x 130 x 80 mm

• Package weight: 1242 g

* When connected to a laptop with a USB-C/USB4 port, the data transfer rate on the

Thunderbolt™ 3 port will drop to USB 2.0 speed and video will not be active through

this port

** 8K resolution must be supported by a connected laptop or tablet.

6EN |

Quick Start / TB3HDMIDOCKPD/ English

Important notice regarding 8K resolution: The dock supports up to 8K resolution

(7680x4320/30Hz), but this resolution can only be set if your laptop supports it -

USB4/ Thunderbolt™ 3 / Thunderbolt™ 4 must support DisplayPort 1.4.

Contents of the package

• Product

• Power adapter (DC cable 160 cm, power cord 170 cm)

• ThunderboltTM 3 Connection Cable (70 cm)

• USB-C to DP cable

• Manual

DESCRIPTION

Front panel:

1. 2x USB 3.2 Gen. 2 port with fast charging support (BC 1.2)

2. 1x Thunderbolt™ 3 port for connection to Thunderbolt 3/4,

USB4 or USB-C* devices

3. 1x Thunderbolt™3 port

4. SD

5. microSD slot

6. 3.5mm Audio combo connector

7EN |

Quick Start / TB3HDMIDOCKPD / English

Back panel:

7. 1x power input (24V/5.6A)

8. 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)

- supports 10/100/1000 Mbps

9. HDMI 2.1 port

10. 3x USB-A 3.2 Gen 2 with fast charging support (B.C 1.2)

SYSTEM REQUIREMENTS

Hardware requirements:

• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port.

Requirements for the Power Delivery function:

• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port with “Power Deliv-

ery” support

Video output requirements:

• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port.

• To use refresh rates higher than 60 Hz, you need a monitor that supports these

refresh rates.

• To use HDR, G-Sync/Freesync, the monitor and graphics card need to support

these technologies.

Operating system:

OS: Windows 10/11, macOS, iPadOS, and Linux with the latest updates.

8EN |

Quick Start / TB3HDMIDOCKPD/ English

INSTALLING DRIVERS

The docking station can be connected directly, the drivers are included in the oper-

ating system.

For Windows 10, please make sure you have the latest Thunderbolt™ 3 drivers in-

stalled on your computer, as provided by your laptop manufacturer.

In Windows, the LAN port appears in Start →Control Panel (View Small Icons) →

Device Manager→Network Adapters as “Realtek RTL8153”. Audio ports can be

found in Start →Control Panel (View Small Icons) →Device Manager →Audio, Vid-

eo and Game Controllers as “USB Advanced Audio Device” and/or according to the

connected monitor (e.g. in Fig. “LG Ultra HD (Intel® Display Audio)”).

View LAN and audio ports in Device Manager

9EN |

Quick Start / TB3HDMIDOCKPD / English

HARDWARE INSTALLATION (CONNECTING THE DOCKING STATION TO THE

LAPTOP/TABLET)

Turn on your laptop/tablet and connect the power adapter to the docking station.

Plug the power adapter of the docking station into a 110 V / 230 V AC mains supply.

Plug the Thunderbolt™ 3 cable into the Thunderbolt™ 3 port on the front panel of

the dock.

Plug the other end into a free Thunderbolt™ 3/4 or USB-C* port on your laptop/tablet.

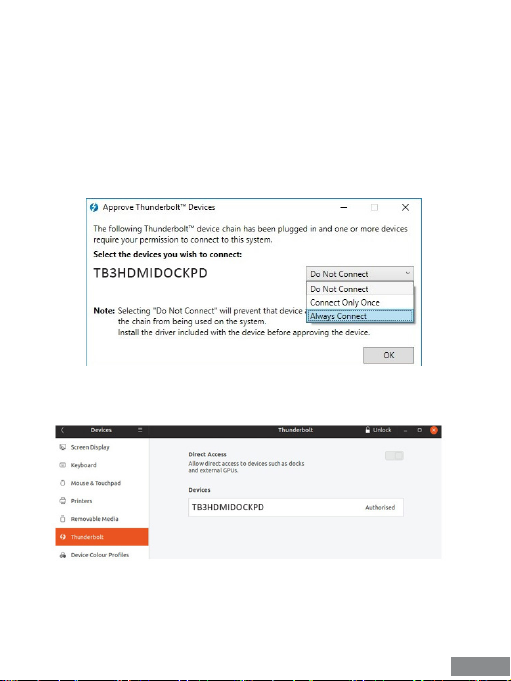

Enable a new Thunderbolt™ 3 device in Windows OS - see image

On Linux, enable new Thunderbolt™ 3 devices. It must be displayed with the descrip-

tion Enabled

The automatic installation of ports on each system is then started.

After the installation is complete, we recommend restarting your laptop/tablet.

10EN |

Quick Start / TB3HDMIDOCKPD/ English

HDMI / DP MONITOR CONNECTION

Use HDMI / Thunderbolt™ 3 to connect the monitor to the dock (for HDMI, we recom-

mend a version 2.0 or higher cable). The monitor on your laptop/tablet may icker

during installation of the additional monitor, which is a standard condition.

The dock supports connection of up to two monitors. Graphics interface: 1x HDMI

and Thunderbolt™ 3. Resolution:

1 monitor connected via Thunderbolt™3 port

- up to 8K 7680x4320/30Hz resolution

8K resolution is only supported if your laptop’s Thunderbolt™

connector supports DisplayPort 1.4.

1 monitor connected via HDMI port - resolution up to 4K 3840x2160/60Hz

2 monitors connected simultaneously 1x Thunderbolt™

3 port and 1x HDMI,

resolution max. 4K 4096x2160@60Hz

Video resolution and repetition rate depends

on the capabilities of the host PC/NB
