IOGear GCS1644 User manual

GCS1642/GCS1644

PART NO. M1087 / M1088

Installation

Installation Guide

2/4-Port Dual View Dual Link DVI KVMP Switch with Audio

IOGEAR, the IOGEAR logo, MiniView®, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and

Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business

Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. IOGEAR makes no warranty

of any kind with regards to the information presented in this document. All information furnished here is for informational

purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any inaccuracies or

errors that may appear in this document.

Package Contents

1 x 2/4-Port Dual View Dual Link DVI KVMP Switch with Audio–

2/4 x Dual Link DVI KVM Cables (2 for GCS1642 / 4 for GCS1644)–

2/4 x Dual Link DVI Cables (2 for GCS1642 / 4 for GCS1644)–

1 x USB to PS/2 Converter–

1 x Firmware Upgrade Cable–

1 x Power Adapter–

1 x Installation Guide–

1 x Warranty Card–

System Requirements

Console

Two displays with DVI inputs–

A Keyboard and Mouse–

Computer

Computers with DVI outputs–

An open USB port–

Optional Audio

Analog audio connections for speakers and mic.–

Table of Contents

GCS1642 Overview 7

GCS1644 Overview 9

Installation 12

LED Indication 17

Port Switching via Front Panel

Pushbutton

Port Switching via Hotkeys 19

Auto Scanning 21

Hotkey Setting Mode (HSM) 22

Mac Keyboard Emulation 24

Sun Keyboard Emulation 25

Factory Default Hotkey Settings 26

Firmware Upgrade 27

Upgrade Fail 32

FCC Statement 34

CE Statement 36

Limited Warranty 37

Contact 38

GCS1642

Dual Link Dual View

DVI KVMP SWITCH

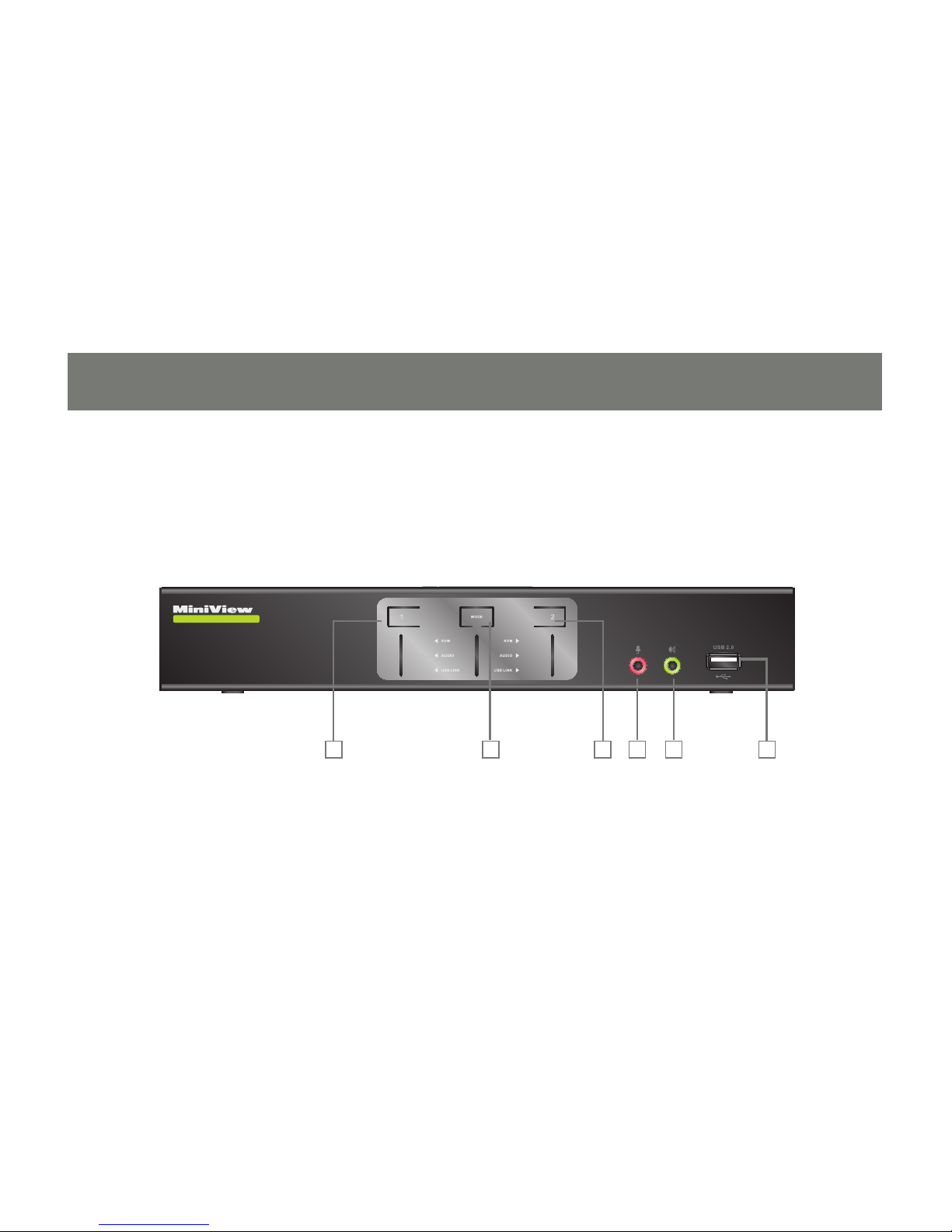

GCS1642 Overview

Front View

Port 1 Pushbutton1.

Mode Button2.

Port 2 Pushbutton3.

Front Panel Console Mic. Connection4.

Front Panel Console Audio connection5.

Front Panel USB 2.0 Peripheral Sharing Port6.

32 4 5

Rear View

1913 18

10 14 19

12 17

3 6 8

4 5 7 11 16

Firmware Upgrade Port1.

DC Power Jack2.

Console USB Mouse Port3.

Console USB Keyboard Port4.

Console DVI Video Port B5.

Console DVI Video Port A6.

USB 2.0 Peripheral Sharing Port7.

Console Mic. Connection8.

Console Audio Connection9.

CPU2 DVI Video Port 2B10.

CPU2 DVI Video Port 2A11.

CPU2 USB Connection12.

CPU2 Mic. Connection13.

CPU2 Audio Connection14.

CPU1 DVI Video Port 1B15.

CPU1 DVI Video Port 1A16.

CPU1 USB Connection17.

CPU1 Mic. Connection18.

CPU1 Audio Connection19.

GCS164 4

Dual Link Dual View

DVI KVMP SWITCH

GCS1644 Overview

Front View

2 43 5 6 7

Port 1 Pushbutton1.

Port 2 Pushbutton2.

Mode Button3.

Port 3 Pushbutton4.

Port 4 Pushbutton5.

Front Panel Console Mic. Connection6.

Front Panel Console Audio connection7.

Front Panel USB 2.0 Peripheral Sharing Port8.

Rear View

Firmware Upgrade Port1.

DC Power Jack2.

Console USB Mouse Port3.

Console USB Keyboard Port4.

Console DVI Video Port B5.

Console DVI Video Port A6.

USB 2.0 Peripheral Sharing Port7.

Console Mic. Connection8.

Console Audio Connection9.

CPU4 DVI Video Port 4B10.

CPU4 DVI Video Port 4A11.

CPU4 USB Connection12.

CPU4 Mic. Connection13.

CPU4 Audio Connection14.

CPU3 DVI Video Port 3B15.

CPU3 DVI Video Port 3A16.

CPU3 USB Connection17.

CPU3 Mic. Connection18.

CPU3 Audio Connection19.

CPU2 DVI Video Port 2B20.

CPU2 DVI Video Port 2A21.

CPU2 USB Connection22.

CPU2 Mic. Connection23.

CPU2 Audio Connection24.

CPU1 DVI Video Port 1B25.

CPU1 DVI Video Port 1A26.

CPU1 USB Connection27.

CPU1 Mic. Connection28.

CPU1 Audio Connection29.
