Involight LEDRX550 User manual

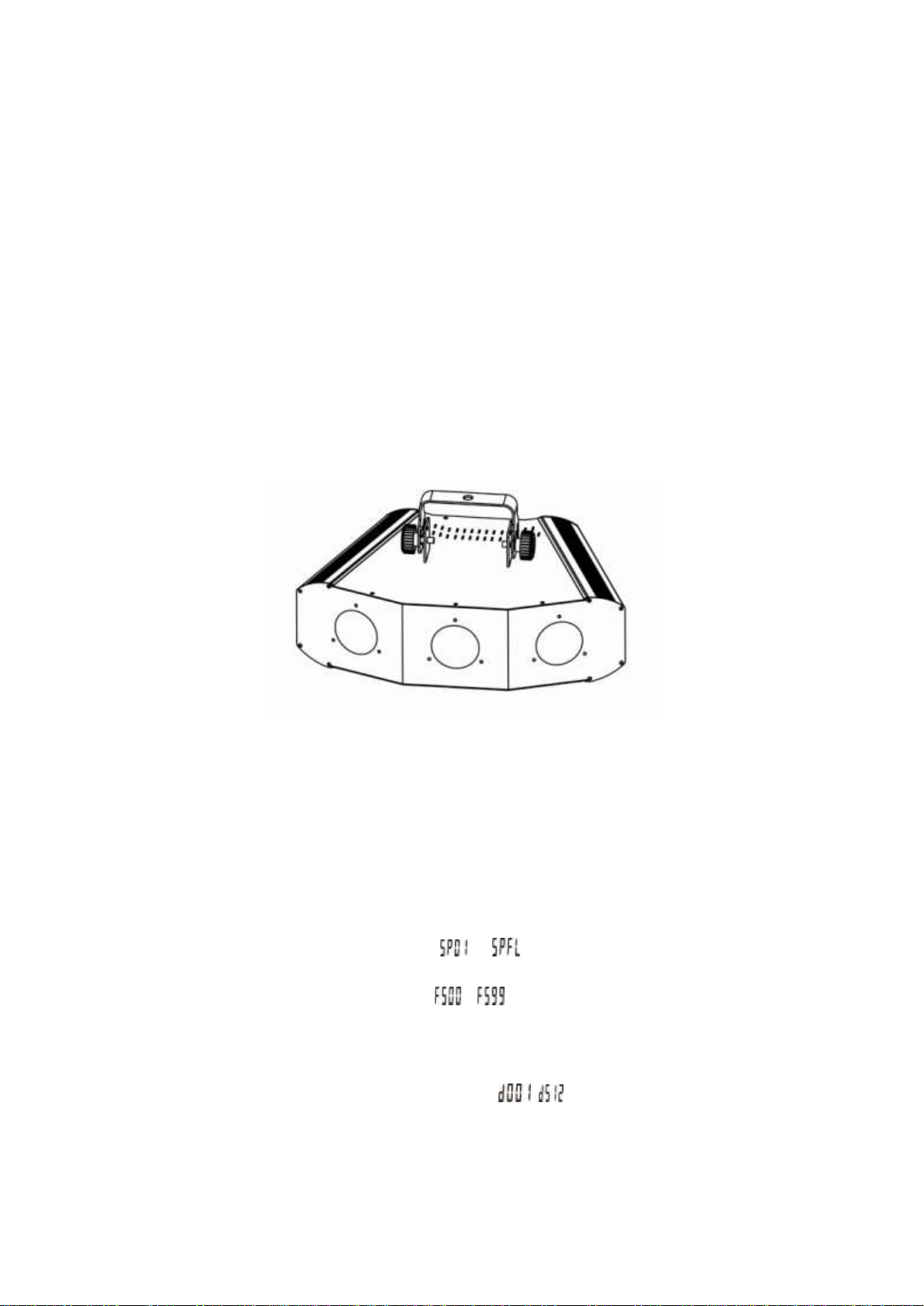

DMX LED Triple Moon, 12*3W RGBW

Our DMX LED Triple Moon offers many wonderful effects which are very magic. It is designed for professional

places, such as stages, disco, night clubs etc. Please read the manual before operation.

A. SPECIFICATION

1. Power input: 110V-240V, 50Hz/60Hz

2. Wattage: 36W

3. LEDs: 12*3W LEDs (R: 3, G: 3, B: 3 W: 3)

4. Built-in Program, DMX mode, Auto Run, M/S Mode, Sound Active

5. Selectable 3 CH

6. LED display for easier operation

7. Weight: 4.0kgs

8. Size: 450*265*242mm

B. OPERATION

There are five working modes: Auto running, DMX mode, Built-in programs, Slave mode, and Sound active.

1. Auto Running

1) Press the “MODE”, enter the auto running mode “AUTO”.

2) Press the “SETUP”, enter the menu to set up the running time “n×××”.

3) Press the “UP” or “DOWN” to set up the times from n001~n100.

4) Press the “SETUP”, enter the speed menu of the auto running mode “SP××”.

5) Press the “UP” or “DOWN” set up the speed value ~ (SP100).

6) Press the “SETUP”, enter the flash menu of the auto running “FS××”.

7) Press the “UP” or “DOWN” set up the flash value ~ .

2. DMX Mode

1) Press the “MODE”, enter the DMX mode “d×××”.

2) Press the “UP” or “DOWN”, set up the DMX address value ~ .

3) Press the “SETUP”, enter the DMX working mode 3CH.

DMX Agreement:

CH1

CH2

CH3

NO.

DMX value

LEDs

Programs

LEDs running

speed

LEDs flash

frequency

OFF

NO USE

1--10

PROGRAM01

SPEED 0--255

FLASH 0--255

11--21

PROGRAM02

22--32

PROGRAM03

33--43

PROGRAM04

44--54

PROGRAM05

55--65

PROGRAM06

66--76

PROGRAM07

77--87

PROGRAM08

88--98

PROGRAM09

99--109

PROGRAM10

110--120

PROGRAM11

121--131

PROGRAM12

132--142

PROGRAM13

143--153

PROGRAM14

154--255

Sound Mode

3. Built-in Programs

1) Press the “MODE”, enter the built-in program mode “Pr××”.

2) Press the “UP” or “DOWN” to choose the effect program ~

3) Press the “SETUP”, enter the speed menu of the program “SP××”.

4) Press the “UP” or “DOWN” to set up the speed value ~ (SP100).

5) Press the “SETUP” enters the flash menu of the program “FS××”.

6) Press the “UP” or “DOWN” to set up the flash value ~ .

4. Slave Mode

Press the “MODE”, enter the slave mode “SLAV”.

5. SoundActive Mode

1) Presses the “MODE” enter the sound active mode “SoUn”.

2) Press the “SETUP” enter sound sensitivity menu “So××”.

3) Press the “UP” or “DOWN” to set up sound sensitivity value from So00~So31.

C. TURN ON OR OFFTHE LED DISPLAY

1. Press the “MODE” enters the turn on or off the LED display mode “LED”.

2. Press the “SETUP” enters the LED display turn on or off.

3. Press the “UP” or “DOWN”, set up the LED display stay on or off.

Remarks: when it is on, the LED display will light up all the way. When it is off, the LED display will turn off

after 20 seconds.

D. LED INVERSION DISPLAY

1. Press the “MODE”, enter the mode of the LED inversion display menu “dISP”.

2. Press the “SETUP” to choose the LED standard display “dISP” or inversion display “dSIP”

E. VERSION DISPLAY

1. Press the “MODE” to enter the menu of the version display.

2. Press the “SETUP”, it will shows the version No. as V10.
