Invacare®Rehab Seating & Positioning Products

Invacare®

Rehab

Seating &

Positioning

Products

Invacare®Rehab Seating & Positioning Products

Innovative. Integrated. Intelligent.

When it comes to Seating and Positioning, Invacare offers the most advanced technology.

Our rehab seating products provide optimal solutions for your most complex clients

and are easily integrated with any of our mobility bases.

Invacare®Infinity™Backs

The Infinity Backs are designed to provide outstanding support

for individuals with a wide range of clinical needs.

Invacare®Infinity™Cushions

The Infinity Cushions offer three contour choices combined

with three choices of pressure reduction support media.

Invacare®Personal Back™10

The Personal Back™10 and Personal Back™10 Plus provide

comfort, postural support, and spinal alignment.

Invacare®Rehab Seating & Positioning Products

Rehab Seating Solutions to Meet Every Client Need

Invacare Rehab Seating and Positioning Products

Infinity™Backs

Features aluminum panels, choice of

lateral and pelvic stabilizer contour, and

Quick Set™hardware (DualFlex™10 &

UniBack™10).

Infinity™Cushions

Features a choice of postural support

and pressure reduction media,

Adjustable Pelvic Obliquity

(ViscoFoam & FloGel®), and moisture-

proof antimicrobial inner cover.

Personal Back™10

Personal Back™10 Plus

Features aluminum shell, pre-drilled

headrest pattern, and Quick Set™

hardware.

With all the seating products available today, it can be difficult to select the right solution for your

clients. Invacare offers a complete line of rehab seating and positioning products and accessories

to simplify the selection and fitting process.

Deep lateral contour of the Personal Back10

Plus provides increased midline support

without interfering with upper extremity

range of motion.

Invacare®Personal Back™10 and Personal Back™10 Plus

The newly re-designed

Invacare®Personal Back™10

and Personal Back™10 Plus

combine simplicity of design with

effectiveness of application. The

highly popular Personal Backs

continue to provide the comfort,

postural support, and spinal

alignment that you have come to

expect. However, the new backs

are now more easily installed and

adjusted. Some of the features

include:

•Lightweight aluminum shell

•Pre-contoured shell provides

excellent contact and support

•Pre-drilled headrest pattern

•Quick Set™hardware with increased

adjustability

Personal Back™10

The Personal Back10 is an excellent choice for clients

who require comfort and stability with moderate

midline support.

Personal Back™10 Plus

The Personal Back10 Plus is an excellent choice for

clients who require comfort and stability with increased

midline support. It often is recommended when using

the foam-in-place kit.

Pre-drilled headrest mounting pattern accommodates most

major manufacturers’ headrest systems.

Lightweight, durable, aluminum shell is pre-contoured to

provide excellent contact and support.

Invacare®Personal Back™10 and Personal Back™10 Plus

Comfort and Support

Easy-to-use Foam-in-Place kit provides

custom foam mold insert in minutes.

Increase sacral support with standard

foam insert.

Optional viscoelastic foam lining is available

for increased comfort.

Hardware and Adjustments

Dimensions

All measurements in inches; R=Regular Height, T=Tall Height.

The self-adjusting cane clamps

accommodate 7/8" or 1" cane tubing

Each Quick Set™hardware kit

includes:

•(2) mounting plates

•(4) cane clamps

•(2) sets of carriage bolts

- (4) 1" setting

- (4) 7/8" setting

•(4) capped nut fasteners

•(1) 7/16" wrench

13R 13T 14R 14T 15R 15T 16R 16T 17R 17T 18R 18T 19R 19T 20R 20T

A 12.13 12.13 13.13 13.13 14.13 14.13 15.13 15.13 16.13 16.13 17.13 17.13 18.13 18.13 19.13 19.13

B 9.50 9.50 10.50 10.50 11.50 11.50 12.50 12.50 13.50 13.50 14.50 14.50 15.50 15.50 16.50 16.50

C 14.20 16.20 14.20 16.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20

D 5.00 5.00 5.25 5.25 5.25 5.50 5.50 5.50 5.75 5.75 5.75 5.75 6.00 6.00 6.00 6.00

E 7.50 9.50 7.50 9.50 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00

13R 13T 14R 14T 15R 15T 16R 16T 17R 17T 18R 18T 19R 19T 20R 20T

A 13.00 13.00 14.00 14.00 15.00 15.00 16.00 16.00 17.00 17.00 18.00 18.00 19.00 19.00 20.00 20.00

B 9.50 9.50 10.50 10.50 11.50 11.50 12.50 12.50 13.50 13.50 14.50 14.50 15.50 15.50 16.50 16.50

C 14.20 16.20 14.20 16.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20 16.20 19.20

D 6.50 6.75 6.75 7.00 7.00 7.25 7.00 7.25 7.25 7.50 7.25 7.50 7.50 7.75 7.50 7.75

E 7.50 9.50 7.50 9.50 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00 9.50 11.00

Personal Back™10

Personal Back™10 Plus

Personal Back™10 Angle Measurements

(Straight Back Canes)

123

A12˚6˚0˚

B18˚12˚6˚

C24˚18˚12˚

A B C

1 2 3

front

Personal Back™10 Personal Back™10 Plus

Invacare®Infinity™Cushions

The Invacare®Infinity™

Cushions are designed

to meet not only an

individual’s clinical needs, but also

accommodate personal seating

preferences and lifestyle needs.

The cushions offer three contour

choices combined with three

choices of pressure reduction

support media. Some of the

features include:

•Lo, Gentle and Max Contour postural

support layers

•ViscoFoam, FloGel®and AirFlo™

pressure reduction support media

•Standard Adjustable Pelvic Obliquity

•Molded, visco-elastic foam pelvic

support layer (ViscoFoam and

FloGel®)

ViscoFoam

ViscoFoam is an excellent choice for

clients who:

•Are at high risk of skin breakdown

•Require excellent support and stability

•Require a lightweight cushion

FloGel®

FloGel®is an excellent choice for

clients who:

•Are at high risk of skin breakdown

•Require excellent support and stability

•Require good dynamic shear reduction

Lo Contour

Lo Contour is an excellent choice for

clients who:

•Have good postural control

•Have low to normal muscle tone

•Laterally transfer

•Foot propel

AirFlo™

AirFlo is an excellent choice for

clients who:

•Have a history of or are considered to

be at very high risk of skin breakdown

•Require an air flotation insert for

immersion of bony prominences

•Require a postural support base

for stability

Gentle Contour

Gentle Contour is an excellent choice

for clients who:

•Have moderate postural instability

•Require gentle control of tone

•Need moderate control of

abduction/adduction tendency

Max Contour

Max Contour is an excellent choice for

clients who:

•Require high level of postural control

•Need maximum control of tone

•Require optimal pressure reduction

and redistribution

Invacare®Infinity™Cushions

Adjustments and Modifications

Seat Accessories

ContourThickness

All measurements in inches

Adjustable Pelvic Obliquity (APO)

The standard APO allows accom-

modation of pelvic obliquities, increasing

pelvic stability.

Removable Leg Wedges (RLW)

The optional RLW are easily removed

to accommodate hamstring tightness,

hip flexion limitations, or foot

propulsion.

Leg Length Discrepancy (LLD)

The LLD option accommodates up to a

two-inch leg length discrepancy.

Cushion Rigidizer

•Lightweight plastic seat insert

•Securely attaches to bottom of

cushion inside cover

•Fits between seat rails for level

support

•Eliminates hammock effect of seat

upholstery

Infinity™Drop Base

•Width adjustable:Three sizes fit

wheelchairs from 14" to 22" wide

•Height angle adjustable: Up to 2" of

drop provided

•Portable quick-release hardware

allows easy removal of base from

wheelchair

Lo Contour Gentle Contour Max Contour

A 2.75 3.00 4.00

B 2.25 3.00 4.50

C 2.25 2.25 2.75

A= height at adductor

B= height at abductor

C= height at leg trough

Lo Contour Gentle Contour Max Contour

Invacare®Infinity™Backs

Infinity™Backs can be configured

a vast number of ways to

provide support, stability, and

precise fit for a wide range of body

sizes and types. They feature a

highly modular design that allows a

myriad of options to be created

using only a few components.The

backs are designed for individuals

with a wide range of clinical needs,

and are very easily adaptable for

growth and change. Some of the

features include:

•Choice of mild, max, and mixed

contour Laterals and Pelvic Stabilizers

•Width-, depth-, height-, and angle-

adjustable hardware

•Standard spinal relief column on

UniBack™10 and DualFlex™10

UniBack™10

The UniBack10 offers excellent comfort and stability

for clients who require a straight back support.

DualFlex™10

The DualFlex10 provides optimal support for active

clients who require a back support with bi-angular

accommodation.

The DualFlex™10, with biangular hinge, can accommodate

a moderate lordotic curve.

The biangular hinge of the DualFlex10 also can

accommodate a moderate kyphotic curve.

Both the DualFlex10 and Uniback10 accommodate

prominent spinous processes with the spinal relief column.

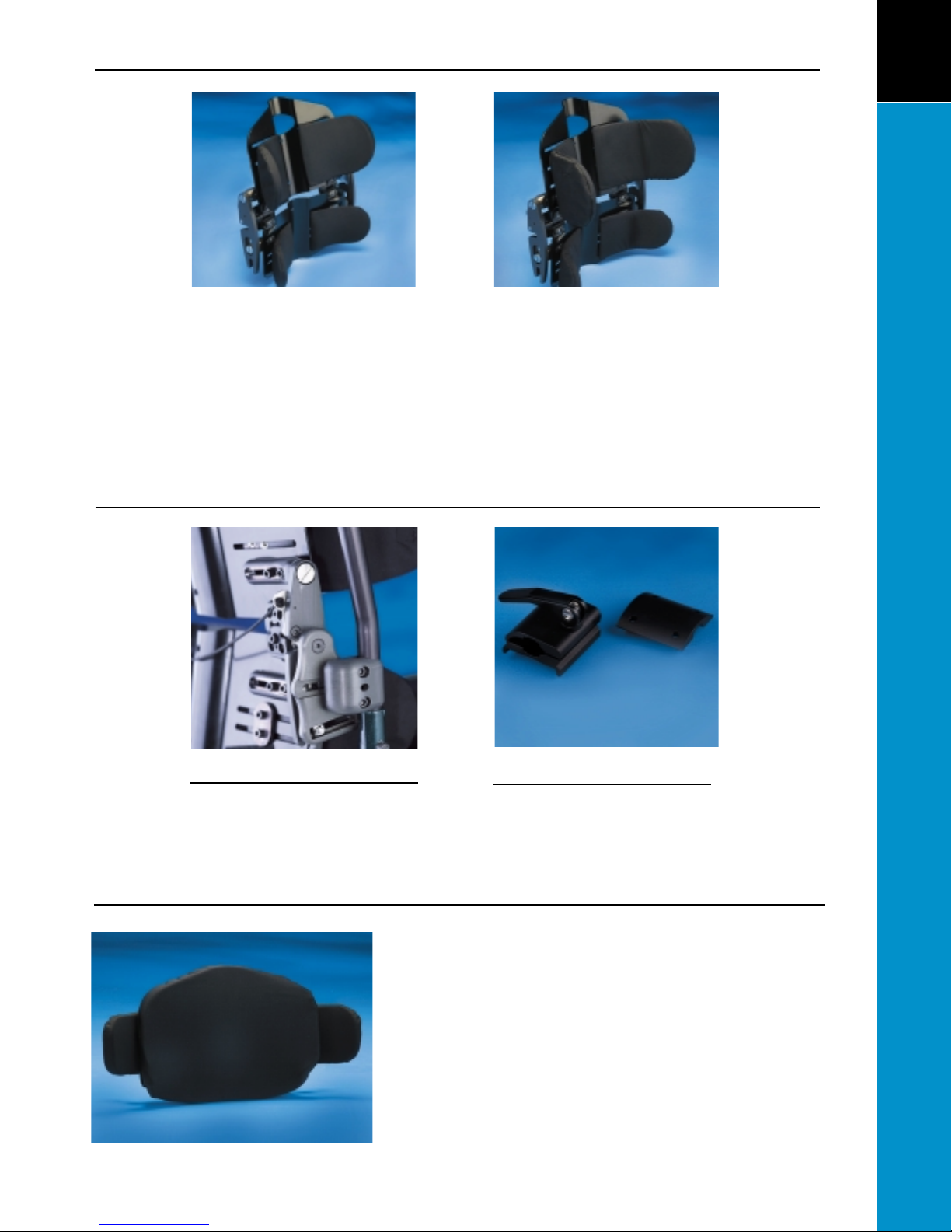

Invacare®Infinity™Backs

Hardware and Attachments

•UniBack™10 and DualFlex™10 backs come standard with width, height and angle-adjustable

Pelvic Stabilizers and Lateral Supports

•Choice of Mild Contour for gentle support, deeper Max Contour for more aggressive

midline positioning, or Mixed Contour for a combination of Mild and Max Contour supports

•Adjustable Laterals and Pelvic Stabilizers provide an intimate fit to the shape of each

individual, even those with postural asymmetries

•Growth and change are easily accommodated through repositioning of Laterals and Pelvic

Stabilizers

Quick Set™Hardware

The Quick Set hardware allows installa-

tion and adjustment of the UniBack10

and DualFlex10 in minutes.

Universal Headrest Clamp

The Universal Headrest Clamp is avail-

able to provide easy attachment of

Invacare headrests to the UniBack10

and DualFlex10.

Invacare®LoBack

The LoBack is designed for highly active clients requiring freedom of

upper body movement. Some of the features include:

•Lightweight, attractive and portable

•Depth-, height- and angle-adjustable hardware allows precise place-

ment within the wheelchair frame, optimizing the client’s center of

gravity and complimenting their active lifestyle

•9" high back support complete with mild or max contour pelvic stabi-

lizers gives outstanding support to the lower pelvis for comfortable,

balanced posture

•Includes removable “modesty flap”which helps keep the seat cushion

securely in place

Mild, Max and Mixed Contour

Mild Contour Max Contour

Accessories and Options

FullTray - Slide-on Mount

•Break-resistant clear polyester resin tray

surface

•Width adjustable mounting hardware secure-

ly fastens tray to chair arm pads

•Molded-in rim helps keep items on tray

FullTray - Hook and Loop Mount

•Break-resistant clear polycarbonate tray

surface

•Easily attaches to chair armrest with hook

and loop straps

•Removable trim allows thorough cleaning

Half Tray - Swingaway

•Break-resistant clear polycarbonate tray

surface

•Tray securely bolts to wheelchair armrest

•Tray easily swings away when not in use Belts and Straps

•Three sizes of shoulder supports fit child,

junior and adult

•Three sizes of padded lap belts fit child, junior

and adult - pinch release buckles

•Push-button style release provides secure

attachment

•Three sizes of four-point lap belt to fit child,

junior and adult - push button release buckle

This manual suits for next models

Table of contents

Other Invacare Mobility Aid manuals

Invacare

Invacare Silencio P256 User manual

Invacare

Invacare 6264P Assembly instructions

Invacare

Invacare 6291E Adult User manual

Invacare

Invacare SEAT RIGIDIZER Assembly instructions

Invacare

Invacare V18PFR User manual

Invacare

Invacare Matrx MX1 User manual

Invacare

Invacare TRHD22HR User manual

Invacare

Invacare Camlock Upgrade Kit 1052250 User manual

Invacare

Invacare Color Collection User manual

Invacare

Invacare Dolomite Jazz 510 User manual

Invacare

Invacare Aquatec Marine User manual

Invacare

Invacare H140 User manual

Invacare

Invacare Dolomite Gloss 450 User manual

Invacare

Invacare Growth Bracket User manual

Invacare

Invacare DOLOMITE Legacy User manual

Invacare

Invacare Banjo P452E/3 User manual

Invacare

Invacare Discontinued 1/00 Instruction Manual

Invacare

Invacare Comfort-Mate Extra / Comfort-Mate Extra Base User manual

Invacare

Invacare H335 User manual

Invacare

Invacare RPS350-1E Operation manual

Invacare

Invacare DOLOMITE Futura User manual

Invacare

Invacare ProntoTM R2TM Instruction Manual

Invacare

Invacare Lynx L-3 User manual

Invacare

Invacare STORM4MAX User manual

Popular Mobility Aid manuals by other brands

Alber

Alber Scalamobil iQ operating instructions

Ferno

Ferno CCT-PX user manual

HEPRO

HEPRO Gripo user manual

Otto Bock

Otto Bock Pheon 3R62 Instructions for use

NRS Healthcare

NRS Healthcare M11090 User instructions

Medline

Medline MDS86835DSHEC User Instructions & Warranty

Guldmann

Guldmann Twin Turner II user manual

Drive

Drive ROOMBA Operation manual

Gate

Gate Balder operating instructions

Decon wheel

Decon wheel TNS Notos Assembly instructions

ExoAtlet

ExoAtlet ExoAtlet-II user manual

Rhythm Healthcare

Rhythm Healthcare B3800F manual

AMF-BRUNS

AMF-BRUNS PROTEKTOR installation manual

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Instructions for use

Rhythm Healthcare

Rhythm Healthcare C500U Assembly and Fitting Instructions

Lumex

Lumex RJ4200A manual

Rebotec

Rebotec Jumbo user manual

Rehaforum MEDICAL

Rehaforum MEDICAL PR50548 manual
