OWNER’S MANUAL

Ladder with

Removable Steps

Owner’s Manual For:

42in (107 cm) & 52in (132 cm) models

IMPORTANT

SAFETY RULES

Read, Understand, and Follow all

Instructions Carefully before

Installing and using this Product.

Don’t forget to try these other fine Intex products: Pools, Pool Accessories,

Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine

retailers or visit our website.

165IO-A0-1109

- Intex Recreation Corp.

Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.

®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous

licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen

Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O

Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European

Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union

durch/Intex Trading B.V., P.O. Box nr. 1075 – 4700 BB Roosendaal – The Netherlands

For illustrative purposes only. 52 in (132cm) Shown

165

SAVE THESE INSTRUCTIONS Page

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

TABLE OF CONTENTS

Warnings............................................................................. 3

Parts List & References..................................................... 4-6

Setup Instructions............................................................. 7-12

Long Term Storage............................................................. 13

General Aquatic Safety..................................................... 13

Intex Service Center Locations........................................ 14

SAVE THE CARTON FOR STORAGE AND THE INSTRUCTIONS

FOR RE-ASSEMBLY

165

SAVE THESE INSTRUCTIONS Page 3

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

SAFETY RULES

IMPORTANT SAFETY RULES

Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.

• Supervise children and those with disabilities at all times.

• Always assist children when they use the ladder to avoid falls and/or

serious injury.

• Never dive or jump from this ladder.

• Locate the ladder on a level, solid base.

• One person on this ladder at a time.

• Maximum load: 336 lbs (153 kg).

• Face the ladder at all times for entry/exit of pool.

• Remove and secure ladder when pool is not occupied.

• Do not swim under, through or behind ladder.

• Check all nuts and bolts regularly to ensure ladder stays sturdy.

• If swimming at night use artificial lighting to illuminate all safety

signs, ladders, pool floor and walkways.

• Assembly and disassembly by adults only.

• This ladder is designed and manufactured for a specific pool wall

height and/or deck of the pool. Do not use with other pools.

•The non-respect of the maintenance instruction may result in huge

risk for health, particularly for children.

• Only use this ladder for the purposes described in this manual.

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

BROKEN BONES, ENTRAPMENT, PARALYSIS, DROWNING OR

OTHER SERIOUS INJURY.

These product warnings, instructions and safety rules provided with the

product represent some common risks of water recreation devices and

do not cover all instances of risk and danger. Please use common

sense and good judgment when enjoying any water activity.

WARNING

165

SAVE THESE INSTRUCTIONS Page 4

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

PARTS LIST

1 2

PARTS LIST

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to

scale.

4 5 6

7 8 9

10 11 12

13 14 15

Estimated assembly time 30-60 minutes. (Note the assembly time is only

approximate and individual assembly experience may vary.)

165

SAVE THESE INSTRUCTIONS Page 5

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to

scale.

52in (132 cm) model

42in (107 cm) model

165

SAVE THESE INSTRUCTIONS Page 6

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

PARTS REFERENCE

REF. NO.

DESCRIPTION

LADDER SIZE &

QUANTITIES

SPARE PART NUMBER

42in (107cm)

52in (132cm) 42in (107cm) 52in (132cm)

U-SHAPED TOP RAIL

2 2

11334 11346

TOP PLATFORM

1 1

11336 11348

SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)

5 5

10228 10810

LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)

10810 10227

STEP MOUNTING PIN (WITH 2 EXTRA)

26 34

10913 10913

STEP

10914 10914

A SIDE - UPPER SIDE LEG (MARKED “A1 & B1”)

11341 11353

A SIDE - LOWER U- LEG (MARKED “A1” )

11342 11354

A SIDE - LOWER U- LEG (MARKED “B1” )

11343 11355

B SIDE - UPPER SIDE LEG (MARKED “A2 & B2”)

11339 11351

B SIDE - LOWER SIDE LEG (MARKED “A2 & B2”)

11340 11352

C SIDE - UPPER SIDE LEG (MARKED “C”)

2 2

11337 11349

C SIDE - LOWER J-SHAPED SIDE LEG (MARKED “C”)

11338 11350

SUPPORT BASE

11344 11356

CLASP

11345 11345

IMPORTANT

IT IS VERY IMPORTANT TO LAY OUT THE PARTS CORRECTLY AND IDENTIFY WHICH

PARTS CONNECT TOGETHER BEFORE STARTING THE ASSEMBLY. ALTHOUGH SOME

PARTS LOOK ALIKE, THEY ARE NOT ALWAYS INTERCHANGEABLE. REFER TO THE

PARTS LIST.

165

SAVE THESE INSTRUCTIONS Page 7

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

SETUP INSTRUCTIONS

LADDER SETUP

These assembly instructions are the same for the 3-step and 4-step

ladders. The assembly drawings show the 4-step ladder.

TOOLS REQUIRED: One (1) Phillips screwdriver

One (1) pair of pliers or a small adjustable wrench

IMPORTANT: Do not fully tighten fasterners until last assembly operation.

WARNING

ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS.

FAILURE TO ASSEMBLE THE LEGS BEFORE INSTALLING THE

STEPS MAY ALLOW THE LEGS TO SEPARATE FROM THE LADDER

DURING USE, POSSIBLY RESULTING IN SERIOUS INJURY OR

DEATH.

INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE

LADDER OR LADDER FAILURE WHICH CAN CAUSE FALLING AND

PERSONAL INJURY OR DEATH.

1. SIDE C LEGS ASSEMBLY (refer to figures 1.1 through 1.4):

IMPORTANT: Make sure the legs are securely connected and locked. Check

the spring pins have snapped out before proceeding to the next step.

Spring pin

1.1 1.2

Press,

hold and

insert

1.3 1.4

165

SAVE THESE INSTRUCTIONS Page 8

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

SETUP INSTRUCTIONS

LADDER SETUP (continued)

2. SIDE A LEGS ASSEMBLY (refer to figures 2.1 through 2.4):

A1 B1

Press,

hold and

insert

$

%

$

%





2.1

2.2

Spring pin

IMPORTANT: Make sure the legs are securely connected and locked. Check

the spring pins have snapped out before proceeding to the next step. Ensure

the J-shaped legs are pointing outwards before installing the steps.

A1 B1

2.4

2.3

IMPORTANT: Make sure all pins are securely locked.

165

SAVE THESE INSTRUCTIONS Page 9

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

SETUP INSTRUCTIONS

LADDER SETUP (continued)

3. SIDE B LEGS ASSEMBLY (refer to figures 3.1 through 3.4):

Press,

hold and

insert

$

%



$

%

3.1

3.2

Spring pin

3.3 3.4

IMPORTANT: Make sure the legs are securely connected and locked. Check

the spring pins have snapped out before proceeding to the next step.

165

SAVE THESE INSTRUCTIONS Page 10

(165IO) 42”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 09/16/2010

English

SETUP INSTRUCTIONS

LADDER SETUP (continued)

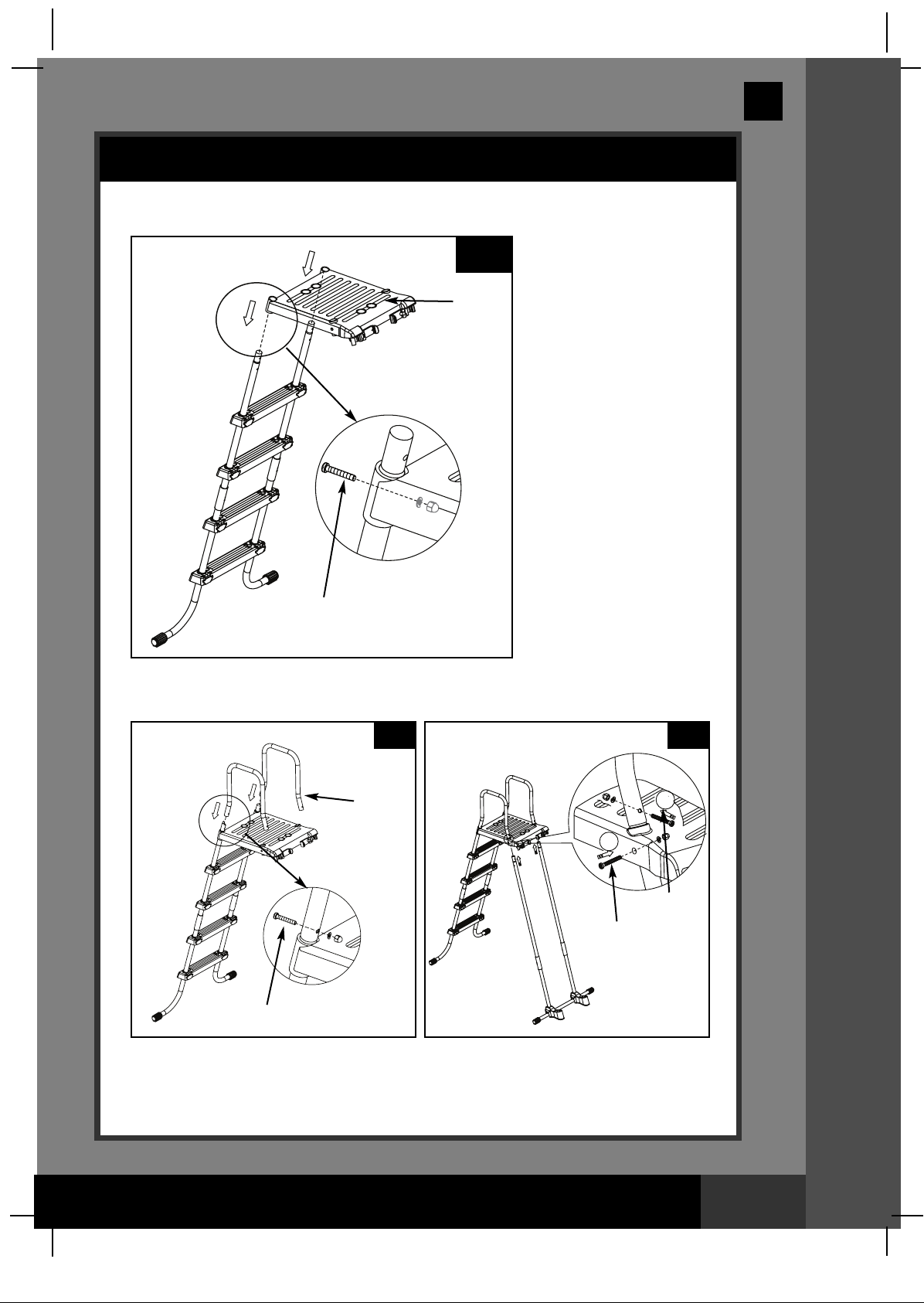

4. TOP PLATFORM INSTALLATION (refer to figure 4):

5. U-SHAPED TOP RAIL INSTALLATION (refer to figure 5.1 through 5.2):

5.1





5.2

B1 A1

IMPORTANT: One side at a time. Do not attach the other side of the ladder

until the U-shaped top rail is installed. Make sure all nuts and bolts are

securely tightened.
