Intermec PB42 User manual

AC10

4-Bay Charging Dock

Socle de charge à 4 logements AC10

Ladedock AC10 mit vier Ladesteckplätzen

Carregador de 4 compartimentos AC10

4-гнездовая зарядная стойка AC10

Acoplador de carga de 4 compartimientos

Instructions

Anleitungen

Instruções

Инструкции

Instrucciones

说明

四槽充电底座

Contents

AC10 4-Bay Charging Dock Instructions . . . . . . . . . . . . . . .1

AC10 四槽充电底座说明 . . . . . . . . . . . . . . . . . . . . . . . . . .5

Instructions pour le socle de charge à 4 logements AC10 . . .9

Anleitung für das Ladedock AC10 mit vier

Ladesteckplätzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Instruções de uso do carregador de 4 compartimentos

AC10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Инструкции по эксплуатации 4-гнездовой

зарядной стойки AC10 . . . . . . . . . . . . . . . . . . . . . . . .21

Instrucciones para el acoplador de carga de 4

compartimientos AC10 . . . . . . . . . . . . . . . . . . . . . . . . .25

AC10 4-Bay Charging Dock Instructions

The AC10 4-Bay Charging Dock (P/N 270-049-001) can charge

the batteries in up to four PB42 printers at one time. It takes less

than 8 hours to fully charge the batteries.

Shipping Box Contents

• AC10 4-Bay Charging Dock

• AC10 4-Bay Charging Dock Instructions

•ComplianceInsert

• Intermec 12 VDC power supply (P/N 851-082-003)

Items Not Provided

• AC power cord. You need to purchase the appropriate power

cord for your location. For help, contact your Intermec sales

representative.

Installing the AC10

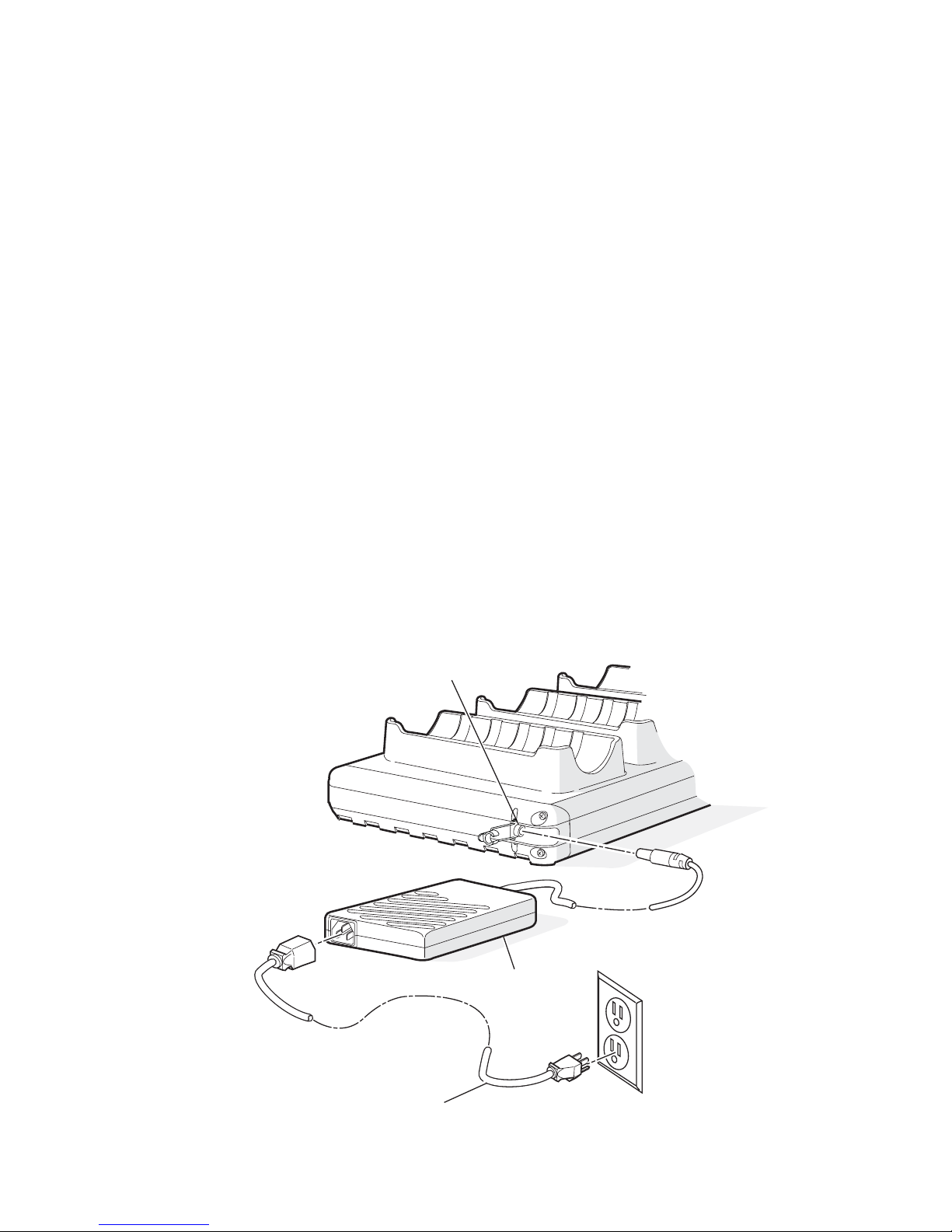

1Connect the power supply to the DC power connector on the

charging dock.

DC power

connector

AC power

adapter

Power

supply

2Secure the power supply cable to the AC10 with the retaining

clip.

3Connect one end of the power cord to the power supply and

then plug the other end into an AC outlet. The green Power

light turns on, showing that the charging dock is ready to

charge.

Retaining

clip

Power

light

Charging the Batteries

• Insert the PB42 with batteries installed into any of the four

bays on the charging dock. The printer makes the Power

sound.

If you do not hear the Power sound, make sure the printer is

properly inserted into the bay of the charging dock.

Battery Recycling Information

Understanding the Battery Lights on the PB42

State of Light Description

Solid red The batteries are charging.

Solid green The battery charging is complete.

This product contains lithium-ion batteries. When

the batteries reach the end of their useful life, have a

qualified recycler or hazardous materials handler

dispose of the spent batteries. If you are unsure of how

to properly dispose of these batteries, contact your

local Intermec sales representative for disposal

information.

Note: In the U.S.A., the EPA does not consider spent

Li-ion batteries hazardous waste.

PB42

4-Bay charger

Where to Find More Information

Visit the Intermec web site at www.intermec.com to download

our current manuals (in PDF). To order printed versions of the

Intermec manuals, contact your local Intermec representative or

distributor.

Visit the Intermec support services knowledge base (Knowledge

Central) at intermec.custhelp.com to review technical

information or to request technical support for your Intermec

product. You can also telephone them at 1-800-755-5505.

Electrical Rating: 12 VDC 4A

See Compliance Insert for use restrictions

associated with this product.

AC10

四槽充电底座说明

AC10 四槽充电底座 (P/N 270-049-001) 一次可对多达四台

PB42 打印机进行充电。电池充满电的时长不超过 8 小时。

包装箱内容

• AC10 四槽充电底座

• AC10

四槽充电底座说明

• 遵守规定

• Intermec 12 VDC 电源 (P/N 851-082-003)

未提供的物件

• AC 电源线。您需要根据您的所在地购买合适的电源线。

要寻求帮助，请与您的 Intermec 销售代表联系。

安装

AC10

将电源连接到充电底座上的 DC 电源连接器。

AC ⬉⑤

䗖䜡఼

DC ⬉⑤

䖲᥹఼

⬉⑤

用固定夹将电缆固定到 AC10 上。

将电源线的尾端连接到电源，然后将另一端插入 AC 接

口。绿色的电源灯亮起，表明充电底座准备开始充电。

೎ᅮ།

⬉⑤♃

电池充电

• 将已安装电池的 PB42 插入到充电底座上四槽中任意一

处。打印机将发出通电声音。

如果您没有听到通电声，请确保打印机已正确插入到充电

底座的槽位中。

电池回收信息

PB42

上电池灯的含义

灯的状态说明

稳定红色电池正在充电。

稳定绿色电池充电完成。

本产品含锂离子电池。电池使用寿命结束后，请

将其交给合格的回收者或危险物材料处理者进

行处理。如果您不确定如何正确地处理电池，请

与当地 Intermec 销售代表联系获取处理信息。

注意：在美国，美国环保署 (EPA) 不认为用尽

的锂电池是有害废弃物。

PB42

ಯῑܙ⬉఼

如何获取详细信息

访问 Intermec 网站 www.intermec.com 下载最新手册（PDF

格式）。若想订购 Intermec 手册的印刷版本，请与当地

Intermec 代表或发行商联系。

访问 intermec.custhelp.com 上的 Intermec 支持服务知识库

（知识中心），查看技术信息或为您的 Intermec 产品申请

技术支持。您也可致电：1-800-755-5505。

额定电压及电流：12 VDC 4A

⊼ᛣ

请查看 “遵守规定”了解与本产品相关的使用

限制。
