Insportline 14168 User manual
USER MANUAL –EN
IN 14168 Exercise Bike inSPORTline Salenas
2
CONTENTS
SAFETY INSTRUCTIONS....................................................................................................................... 3
PARAMETERS........................................................................................................................................ 3
ASSEMBLY ............................................................................................................................................. 4
Package contents ................................................................................................................................ 5
Assembly steps.................................................................................................................................... 6
CONTROL PANEL ................................................................................................................................ 12
TURNING ON .................................................................................................................................... 13
PROGRAM SELECTION................................................................................................................... 14
CORRECT WORKOUT POSITION....................................................................................................... 18
EXPLODED DRAWING......................................................................................................................... 19
PARTS LIST.......................................................................................................................................... 20
ENVIRONMENT PROTECTION ........................................................................................................... 21
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS................................................. 21
3
SAFETY INSTRUCTIONS
Read carefully the entire manual before using this product. Retain the manual for future reference.
•Exercise of a strenuous nature, as is customarily done on this equipment, should not be
undertaken without first consulting a physician. No specific health claims can be made or
implied as they relate to the equipment. Measurements made by the equipment are believed
to be accurate, but only measurement taken by a medical professional should be relied upon.
•Make sure all the bolts, screws and nuts are tightened and that there are no damaged or worn
parts. If some parts of the machine are worn or damaged, do not use it and replace the part
immediately.
•Consult the tools and parts list before assembly and make sure nothing is missing.
•Only use original parts that are part of the machine’s package.
•Make sure children don’t have access to the machine. Children cannot use this product, nor
should they be in its vicinity while the machine is turned on.
•Do not wear loose clothing while exercising. The loose parts could get stuck in parts of the
machine.
•Always wear sports shoes with rubber soles.
•Place the machine on a flat and even surface. It is not recommended to use or store the
machine in damp environment. Some parts of the machine can be corroded.
•Make sure there is at least 0.6 m of free space all around the device.
•No part of the machine should protrude and limit the movement of the user.
•Regularly checking the machine for damage helps to ensure the product’s safety.
•This device is not designed for therapeutic use.
•Do not move from the saddle during exercising. Only pedal while sitting.
•The brake system is depended on the speed of exercise.
•The brake mechanism is the most likely to wear. Always make sure it is functional.
•Weight limit: 150 kg
•Category: HA (according to EN957 norm) suitable for home use
•WARNING! The heart rate frequency monitoring may not be completely accurate.
Overexertion during training can lead to a serious injury or even death. If you start to feel faint,
stop the exercise immediately.
PARAMETERS
Dimensions after assembly
101 x 51 x 128 cm
Weight
25.8 kg
Flywheel weight
6 kg
Total training area
98 x 65 x 180 cm
Weight limit
150 kg
4

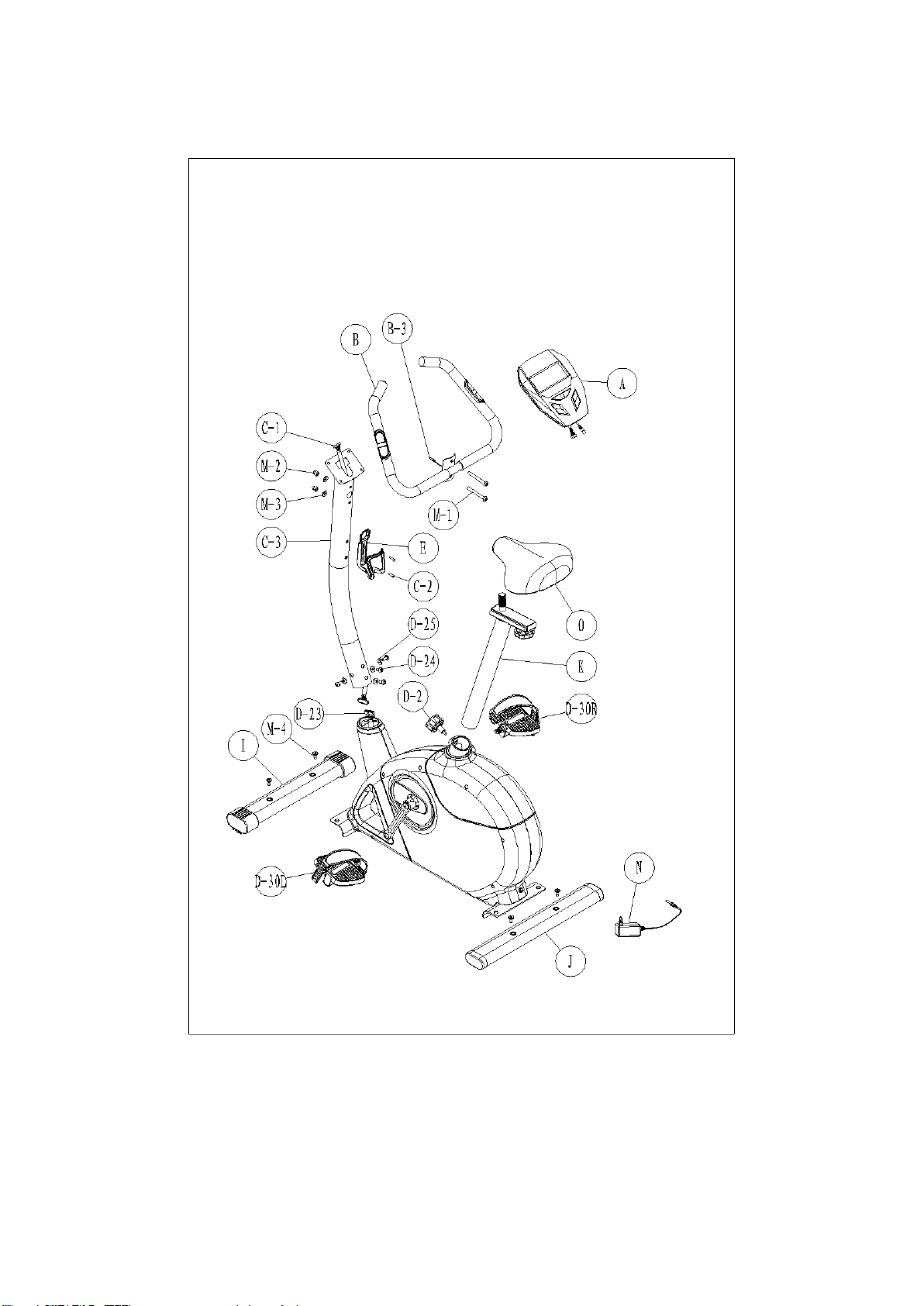

ASSEMBLY
5

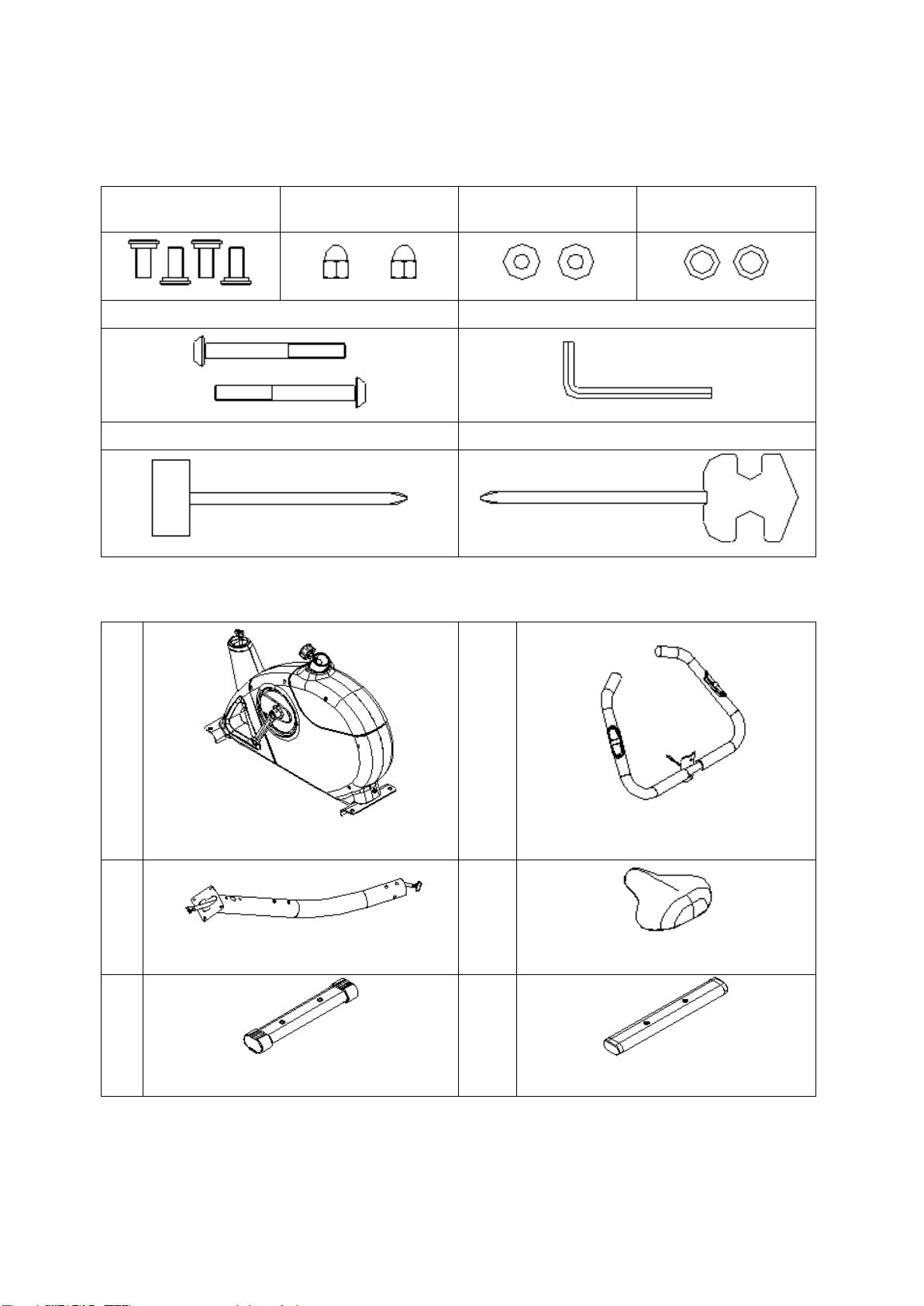

Package contents
Tools:
Allen bolt M8*16L (4)
M-4
Acorn nut for M8 bolt
(2) M-2
Curved washer
Φ8*Φ19*2T (2) M-3
Washer Φ12*Φ19*1T
(4) M-5
Carriage bolt M8*75L (2) M-1
Allen Key (1)
Box spanner (1)
Screwdriver (1)
Parts:
D
B
Main frame
Handlebars
C
O
Handlebar post
Saddle
I
J
Front stabilizer
Rear stabilizer
6
K
E
Seat post
Bottle holder
A
D-30
Control panel
Pedals
M
N
Tools
Adapter
Assembly steps

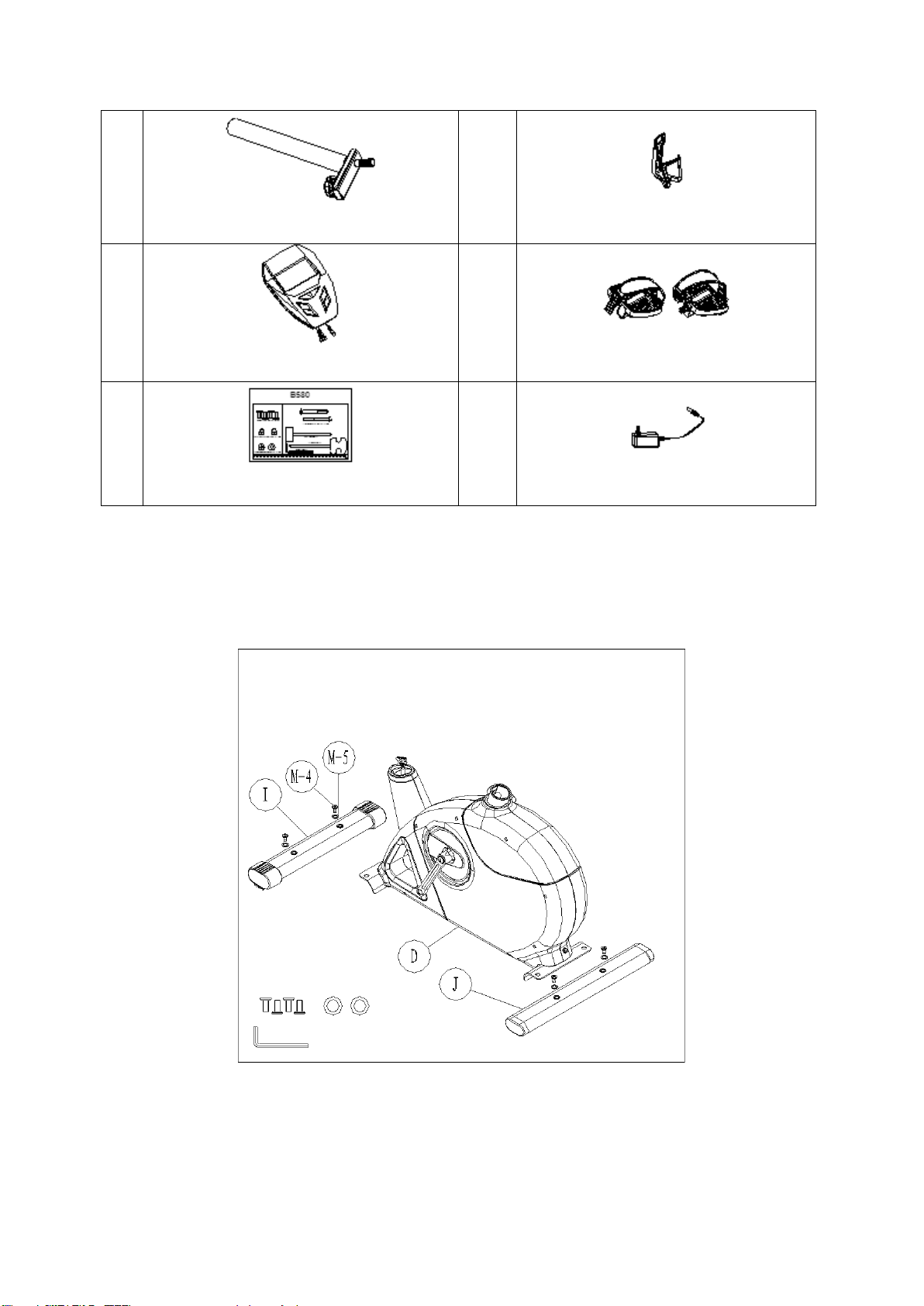

STEP 1
1. Attach the front stabilizer (I) to the main frame (D) using two screws & washers (M-4, M-5).
2. Attach the rear stabilizer (J) to the main frame (D) using two screws & washers (M-4, M-5).

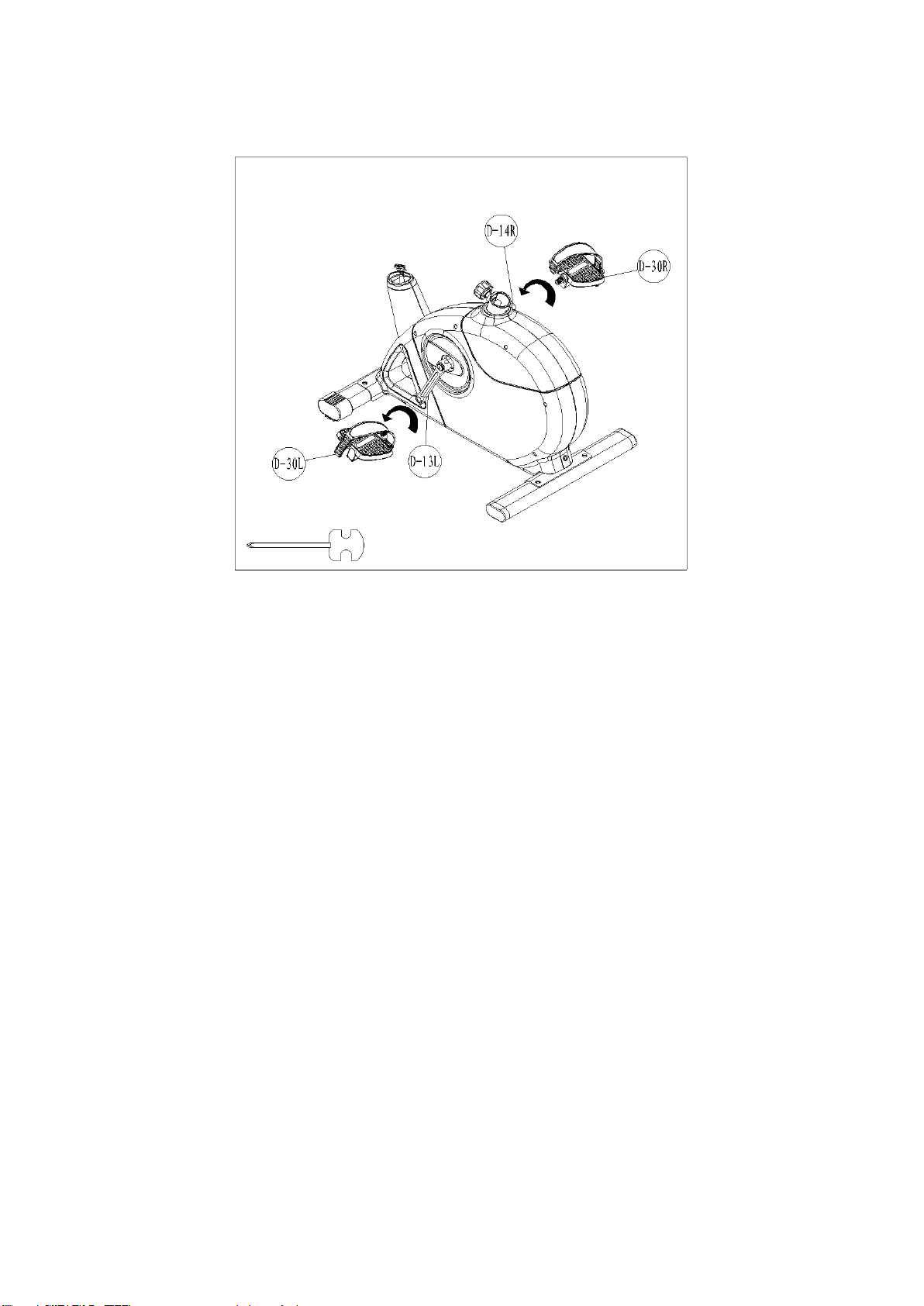

STEP 2
Screw the two pedals (D-30L + D-30R) onto the cranks (D-13L, D-14R) with a screw driver.
7
NOTE: Screw the left pedal’s spindle counter-clockwise and the right pedal’s spindle clockwise. Use a
wrench (or a screwdriver) to screw the two spindles completely.

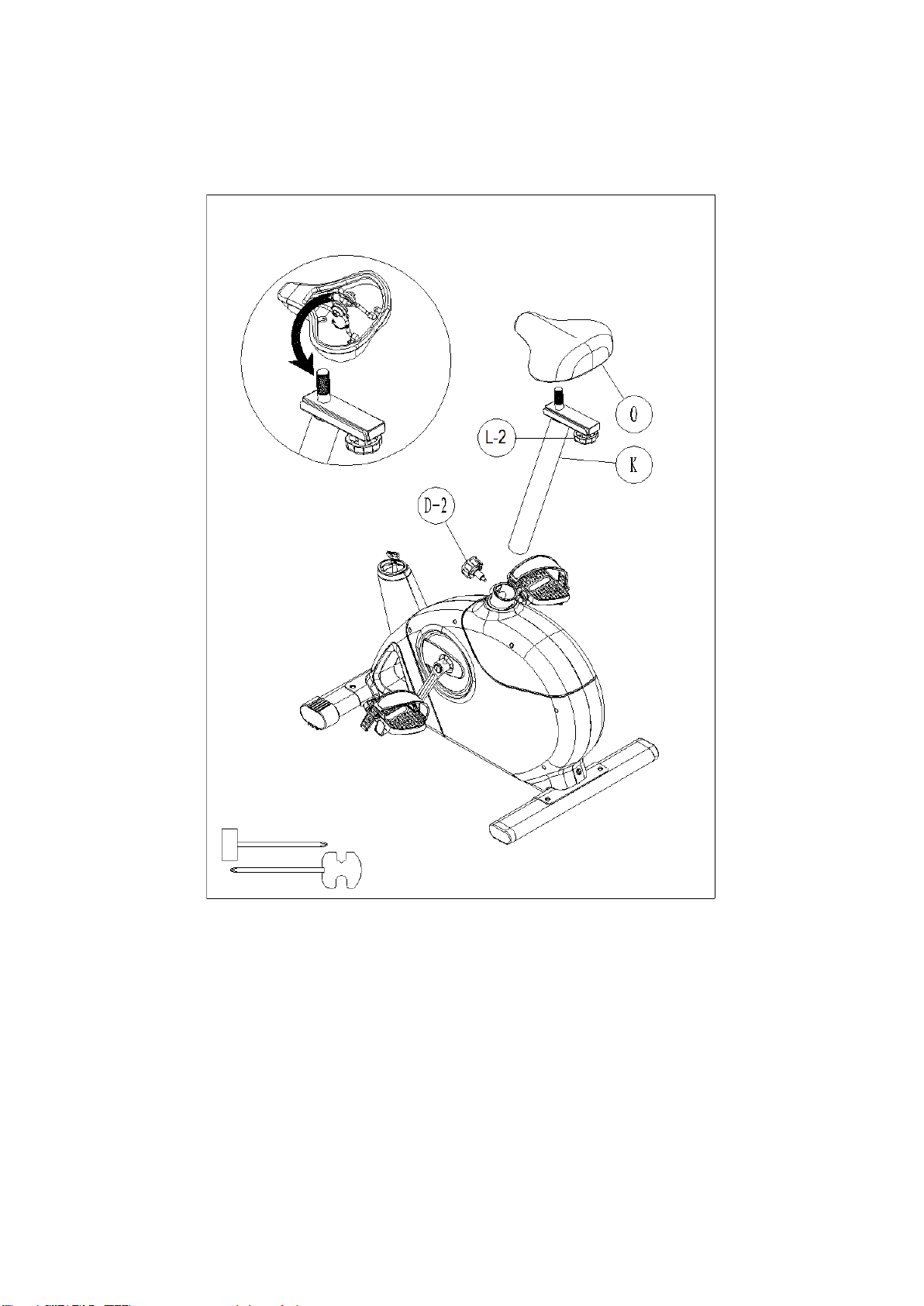

STEP 3
1. Affix the seat (O) onto the seat slider. The slider can be adjusted to different angles. Tighten
the two nuts under the seat using a screwdriver. Additionally, the slider can be adjusted
horizontally by loosening the knob (D-2).
2. Insert the seat post (K) into the main frame (D), choose the desired position and tighten the
knob (D-2). Make sure the knob is always tightened.
8
NOTE: Adjust the height of the seat so that the holes on the knob and the seat post align. If you
loosen the knob and move the seat post up and down, the knob should lock into a hole in the seat
post. The maximum extension height is marked on the seat post. Do not extend the seat post beyond
this mark.
9

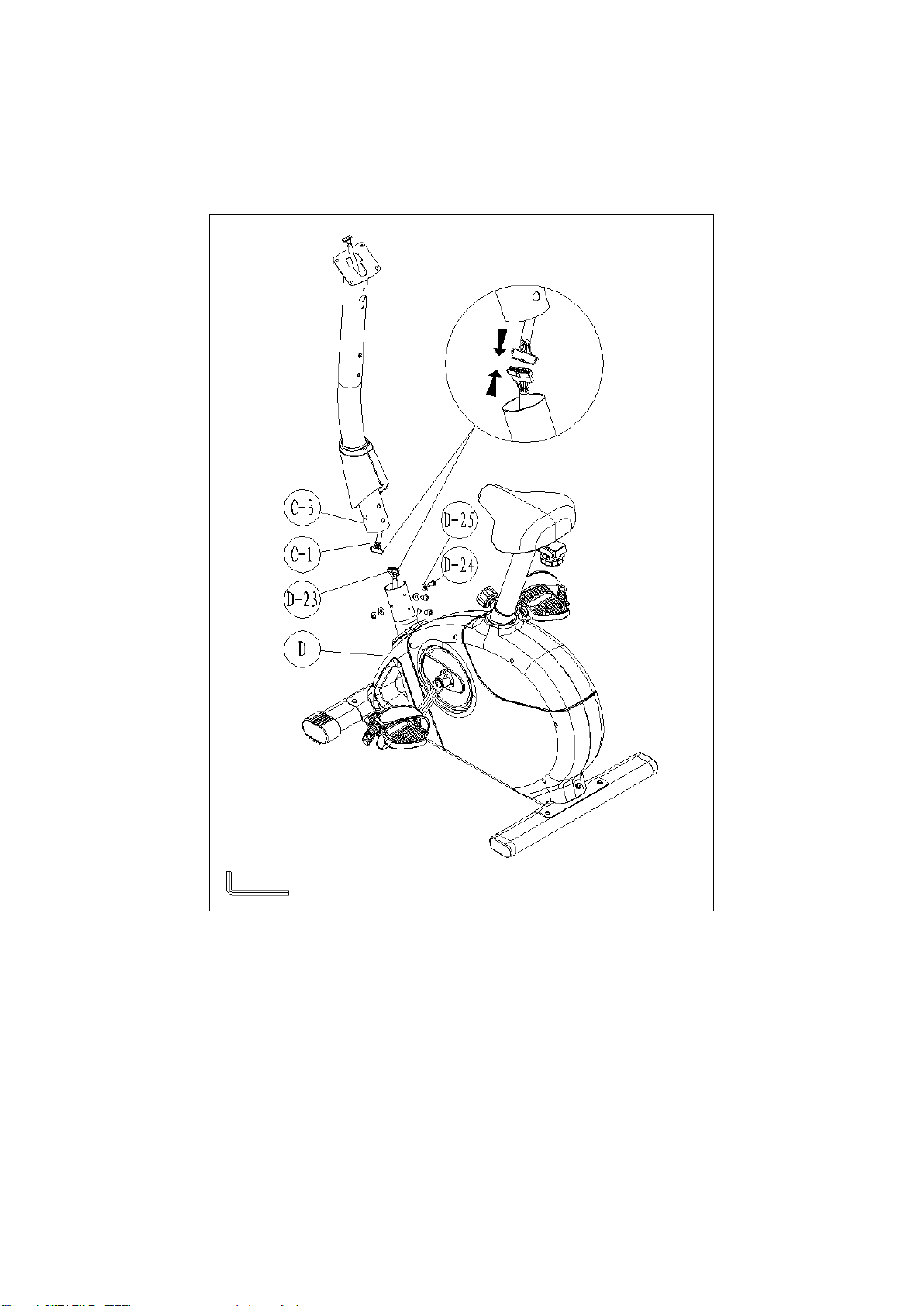

STEP 4
1. Connect the upper and lower sensor wire (C-1, D-23).
2. Insert the handlebar post (C-3) into the main frame with screws (D-24) and semi-circular
washers (D-25) using an Allen wrench.
10

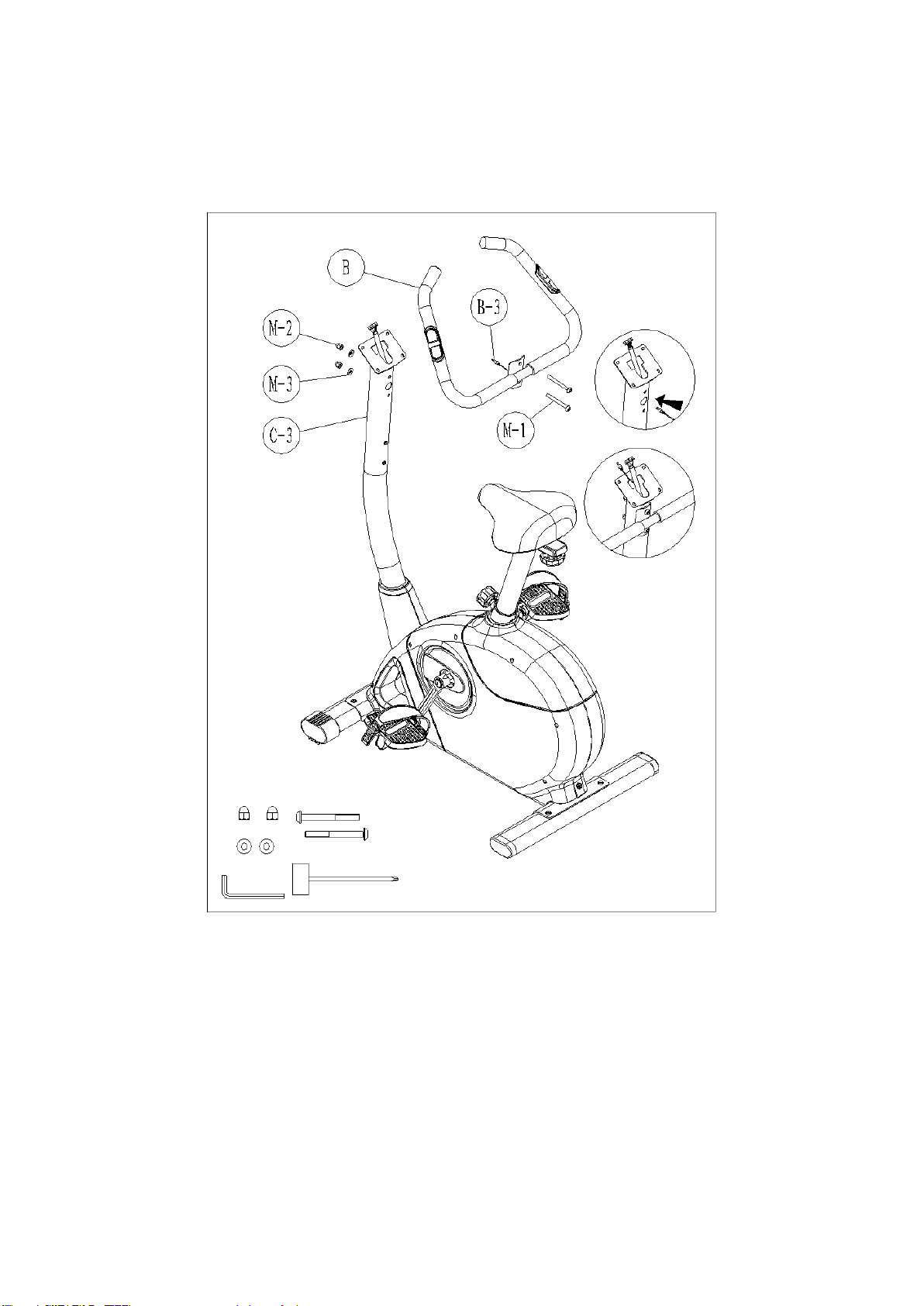

STEP 5
1. Pass the hand-pulse wire (B-3) through the hole.
2. Affix the handlebar (B) onto the handlebar post (C-3) using screws (M-1), nuts (M-2) and semi
washers (M-3).
