InSinkErator Evolution Compact Guide

Perfect for small households or

restricted cabinet space.

Evolution

Series®

Grind More. Hear Less.®

Evolution

Compact®

Perfect for small households or

restricted cabinet space.

• SoundSeal®technology reduces

disposer noise by at least

30% vs. standard disposers.

• MultiGrind®technology delivers

2 stages of grind vs. 1 stage

in standard disposer.

• Includes Quiet Collar®sound

reducing sink baffle.

Submittal Sheet

Job Specifications

Specifications

Type of Feed Continuous

On/Off Control Wall Switch

Motor Single Phase

HP 3/4

Volts 120

HZ 60

RPM 1725

Amp. (Avg. Load) 8.1

Time Rating Intermittent

Lubrication Permanently

Lubricated Upper &

Lower Bearings

Shipping

Weight (Approx.) 19.5 lbs.

Unit Finish Black Enamel

Gray

Overall Height 12-1/8”

SoundSeal Anti-Vibration Mount®

Technology Anti-Vibration

Tailpipe Mount™

Quiet Collar®Sink Baffle

SoundLimiter™Insulation

MultiGrind GrindShear Ring®

Technology

Grind Chamber

Capacity 34.6 oz.

Motor Manual Reset

Protection Overload

Average Approx. 1 Gallon Per

Water Usage Person Per Day

Average

Electrical Usage 3-4 KWh Per Year

Drain 1-1/2” Anti-Vibration

Connection (Hose Clamp)

Dishwasher

Drain Connection Yes

Food Waste Disposers

Food Waste Disposer(s) shall be

InSinkErator Model Evolution Compact®

with MultiGrind®and SoundSeal®

technologies, 3/4 HP motor, Stainless

Steel Grind components.

Warranty:

4-Year parts and in-home service.

Sample Specification

The complete InSinkErator warranty is included in the Care & Use

Booklet packed with each unit.

1-800-558-5700

www.insinkerator.com

Dimensions

* Add 1/2” when stainless steel sinks are used.

8"

53/4"



121/8"

The Emerson logo is a trademark and service mark of

Emerson Electric Co. The mounting collar configuration

is a trademark of Emerson Electric Co.

InSinkErator may make improvements and/or changes

in the specifications at any time, in its sole discretion,

without notice or obligation and further reserves the

right to change or discontinue models.

Hecho en los EE.UU.

Food waste disposers can provide an environmentally responsible alternative to

transporting food waste to landfills. And they can help reduce greenhouse gas

emissions. At capable wastewater treatment plants, food waste can be recycled

to produce renewable energy. Additionally, capable wastewater treatment plants

can process food waste into fertilizer. (Check the plant in your area.)

Other manuals for Evolution Compact

Table of contents

Other InSinkErator Garbage Disposal manuals

InSinkErator

InSinkErator EVOLUTION COVER CONTROL User manual

InSinkErator

InSinkErator Badger 1 User manual

InSinkErator

InSinkErator Badger 15ss User manual

InSinkErator

InSinkErator Evolution Excel Guide

InSinkErator

InSinkErator PRO Series User manual

InSinkErator

InSinkErator WASTEXPRESS 14481 User manual

InSinkErator

InSinkErator Badger 100 User manual

InSinkErator

InSinkErator Model SS-50 User manual

InSinkErator

InSinkErator Model SS-1000 User manual

InSinkErator

InSinkErator Badger1 User manual

InSinkErator

InSinkErator Evolution Series User manual

InSinkErator

InSinkErator Evolution PRO Series User manual

InSinkErator

InSinkErator AnswerLine EVOLUTION SEPTIC ASSIST User manual

InSinkErator

InSinkErator Badger 444 Installation manual

InSinkErator

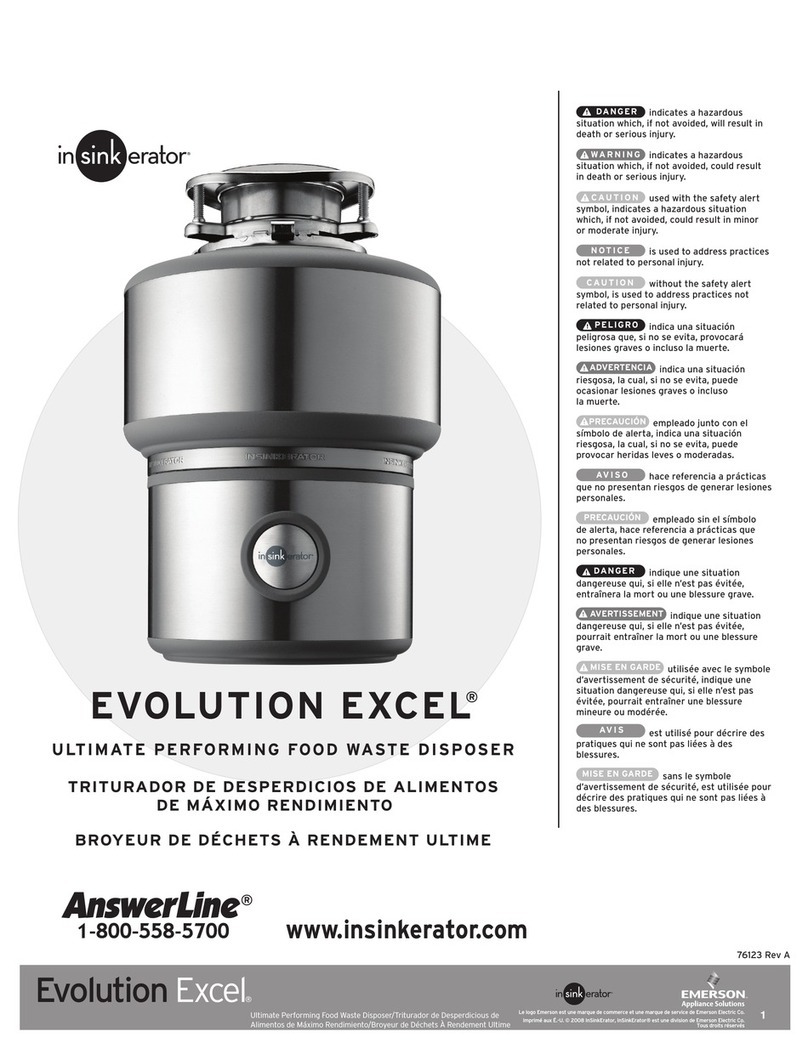

InSinkErator Evolution Excel User manual
