Insignia NS-L42Q120-10A Technical manual

Firmwareupdate:Download/InstallinstructionsforTVModel:NS‐L42Q120‐10A

Systemrequirements:acomputerwithanopenUSBport,USB2.0flashdrive(stick),broadband

internetaccessandoperatingsoftwareofWindowsXP,WindowsVista,Windows7orMacOS10.3or

newer.Thisoptionisnotrecommendedwithdial‐uporDSLservicewithabitratelowerthan256kbps.If

theinstructionsprovidedbelowdonothelp,callInsigniaCustomerSupportat(877)467‐4289for

assistance.

First:Downloadtheupdatefile

1. InsertUSBflashdriveintotheopenUSBportonyourcomputer.

2. Downloadfirmware(ZipFile);ifapop‐upwindowopenstellingyoutoopen,saveorcancel,click

SaveandsavethefiletoyourUSBflashdrive.Note:Fileneedstobesavedontherootdirectory.

Note:Filesizeisapproximately3.5MB.Estimateddownloadtimeis1‐2minutes(witha1.5

Mbpsbroadbandconnection).

3.UnzipthefileandsaveastwoseparatefilesonyourUSBdrive.

4.DeletethezipfilefromyourUSBdrive.

5.AftersavingthefirmwaretoyourUSBflashdrive;removetheUSBflashdrivefromyour

computer.

Second:UpgradingtheTVSoftwarewithaUSBFlashDrive(Stick)

1. MakesureyouTV’sACcordissecurelypluggedintoawalloutletandtheunitisturnedoff.This

canbeverifiedbyaredindicatorlightonthebottomfrontoftheTV.

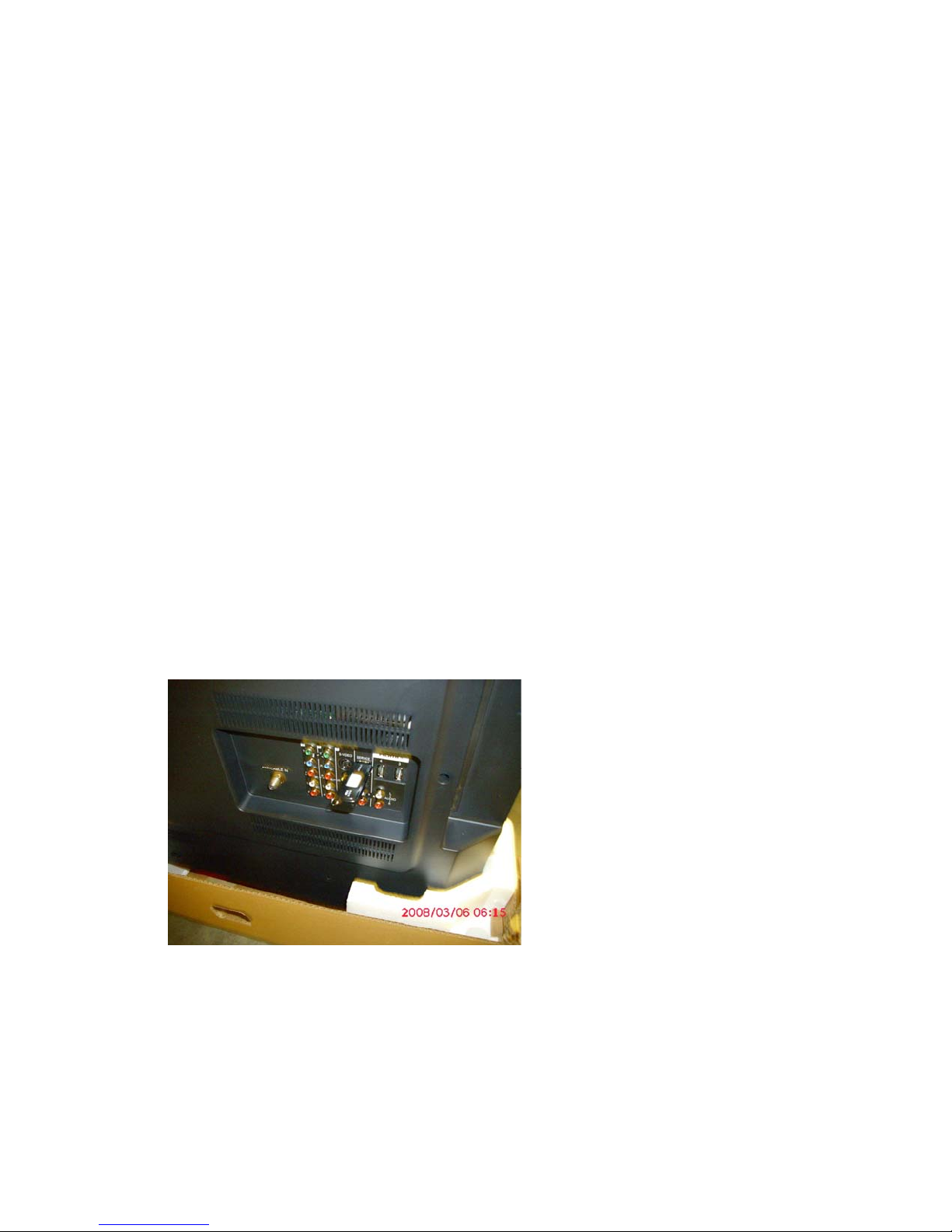

2. InserttheUSBflashdrivecontainingthefirmwarethatwasdownloadedintotheTV’sUSB

serviceportlocatedonthebackoftheTV.Note:Thisportmaybecoveredbyarubberflap,you

mayneedtoflipopentherubberflap(Seephotobelow).



3. TurntheTVonusingtheremotecontrolorpowerbuttononthesideoftheTV.

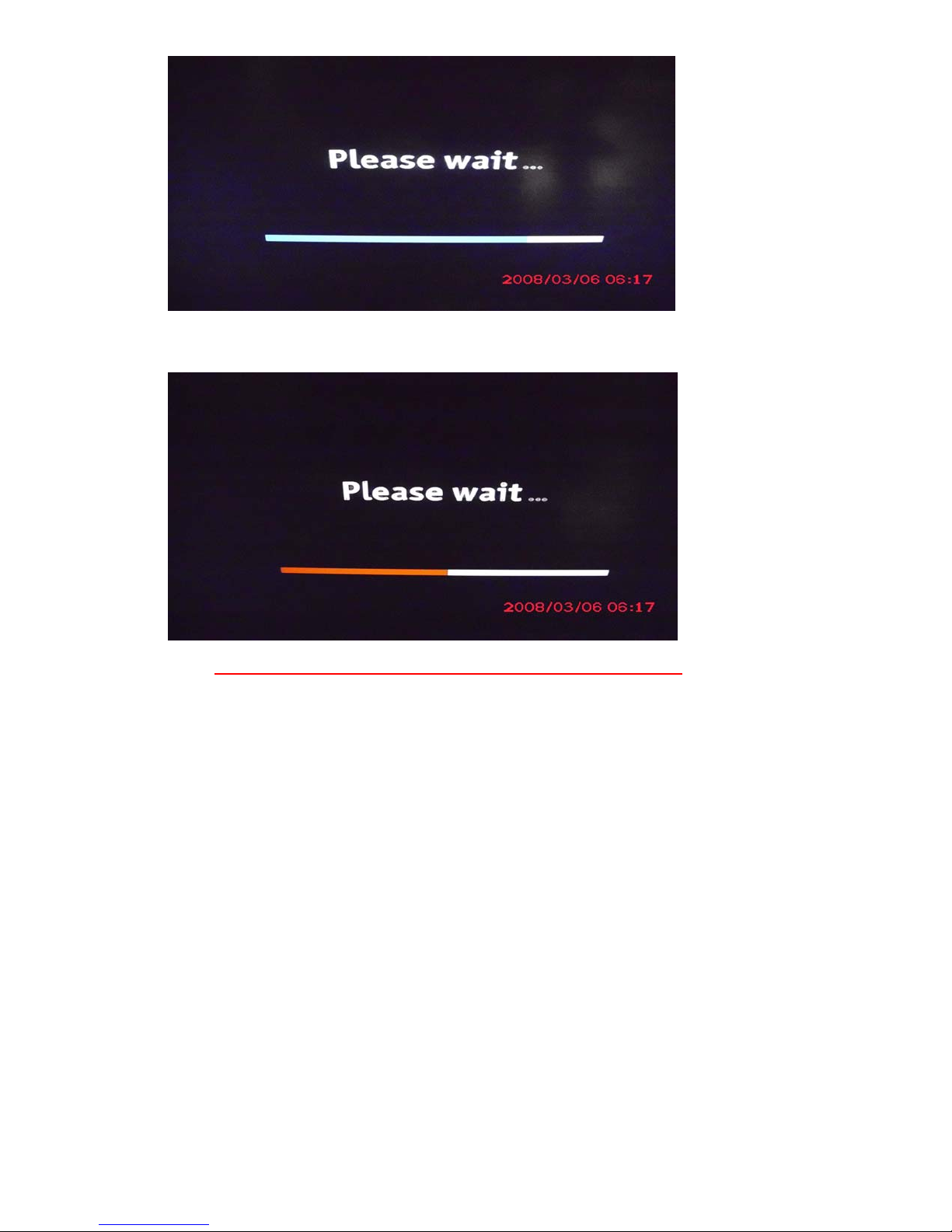

4. Ascreensimilartotheonebelowwillappear(Note:ifthereisno“Pleasewait…”menu

displayed;youcanturnyourTVoff,thenturntheunitbackon):



5. Thesoftwareupdatewillthenbeginautomatically;theprogressbarwillfilltwotimes.Thefirst

timethebarwillbeblue;thesecondtimeitwillbered/orange.Seeimageofsecondprogress

barbelow:



Note:DONOTTURNTHEPOWEROFFORUNPLUGDURINGTHEUPDATE

Note:Duringthesoftwareupdate,aprogressbarwillappeardisplayingtheprogressofthe

update;thisupdatetakesapproximatelyone(1‐2)minutes.

6. Oncetheupdatehascompleted,ascreenaskingyouto“ChooseyourmenuLanguage”will

appear.Whenyouseethisscreendonotselectalanguagepleasemovetostep7.

7. TurnoffyourTVviatheremotecontrolorthepowerbuttononthesideoftheTV.

8. RemovetheUSBflashdrive(stick)fromtheTV.

9. PoweryourTVbackon.OncetheTVispowereduptheprocessiscompleteandyouwillseethe

same“Chooseyourmenulanguage”screenandrefertoyouruser’smanualforTVsetup.

Note:Itisrecommendedthatyouerase/deletetheupdatefilefromtheUSBflashdriveusing

yourcomputerpriortousingtheUSBflashdriveagain.

Note:Youwillneedtoreprogramyourfavoritechannelsandanycustomsettingsthatyoumay

havesetup.

Note:Ifyouexperienceanyissueswhileperformingthisupgrade,callInsigniaCustomerSupport

at(877)467‐4289forassistance.



May2010
