Firmwareupdate:Download/InstallinstructionsforTVModels:NS‐46E570A11

Systemrequirements:acomputerwithanopenUSBport,USB2.0flashdrive(stick),broadband

internetaccessandoperatingsoftwareofWindowsXP,WindowsVista,Windows7orMacOS10.3or

newer.Thisoptionisnotrecommendedwithdial‐uporDSLservicewithabitratelowerthan256kbps.If

theinstructionsprovidedbelowdonothelp,callInsigniaCustomerSupportat(877)467‐4289for

assistance.

First:Downloadtheupdatefile

1. DeterminetheModelnumberandManufactureDateofyourTVfromthelabellocatedonthe

backofyourTV(seeexamplephotosbelow)anddocumentthisinformationforlateruseinthis

process.





ModelNumberManufactureDate

2. InsertUSBflashdriveintotheopenUSBportonyourcomputer.

3. Verifythatyouareonthesupporttabofyourproductmodelnumber;thenclickonthe

firmwarelinkforyourTVfromthechartbelow:

ManufactureDateFirmwaretoUse:

January–May2010FirmwareAJan_May2010

June–PresentFirmwareBJune_Present



4. Downloadfirmware;ifapop‐upwindowopenstellingyoutoopen,saveorcancel,clickSave

andsavethefiletoyourUSBflashdrive.Note:Fileneedstobesavedontherootdirectory.

a. Note:Filesizeisapproximately3MB.Estimateddownloadtimeis1‐2minutes(witha

1.5Mbpsbroadbandconnection).

5. AftersavingthefirmwaretoyourUSBflashdrive;removetheUSBflashdrivefromyour

computer.

Second:UpgradingtheTVSoftwarewithaUSBFlashDrive(Stick)

1. MakesureyouTV’sACcordissecurelypluggedintoawalloutletandtheunitisturnedoff.This

canbeverifiedbyaredindicatorlightonthefrontoftheTV.

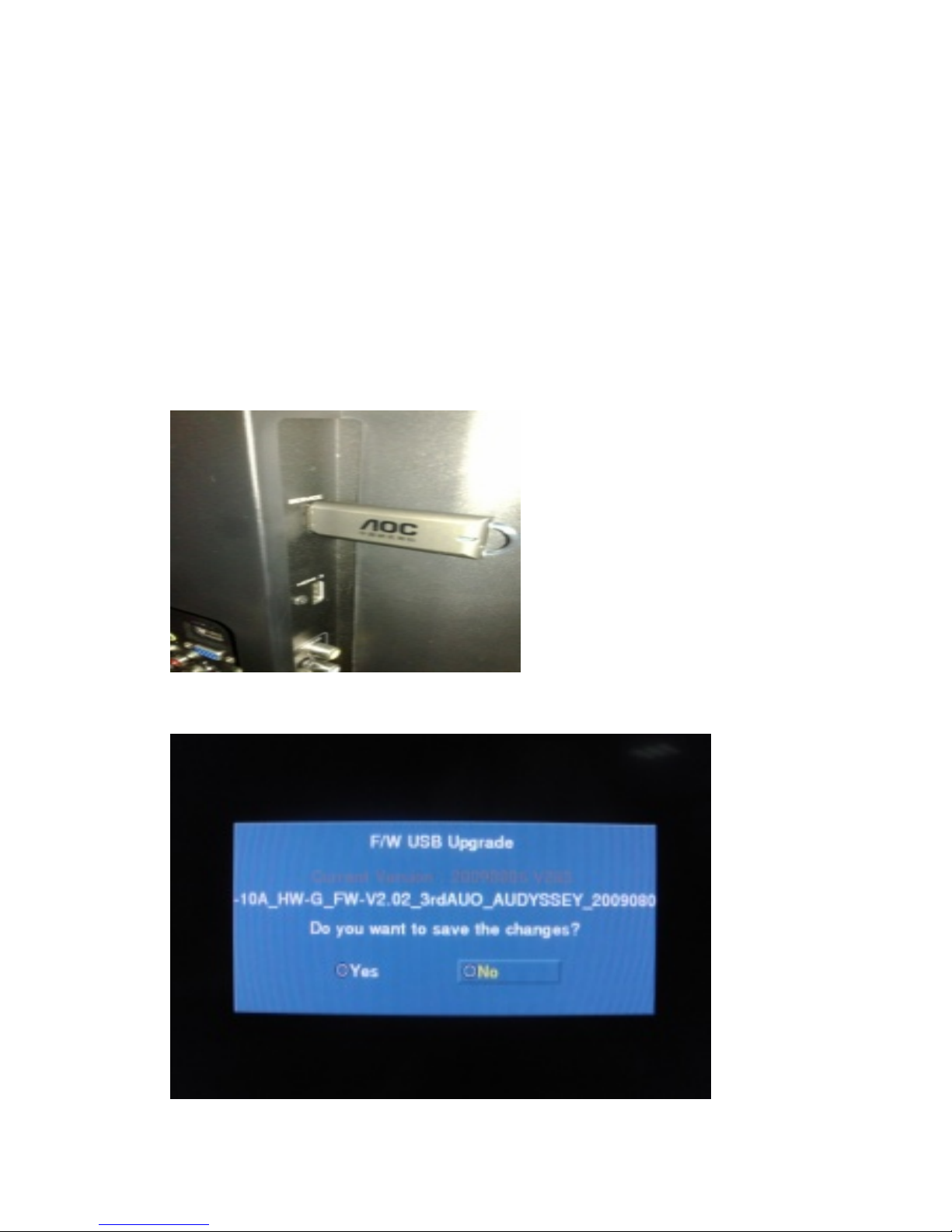

2. InserttheUSBflashdrivecontainingthefirmwarethatwasdownloadedintotheTV’sUSB

serviceportlocatedonthesideoftheTV.Note:Thisportmaybecoveredbyarubberflap,you

mayneedtoflipopentherubberflap(Seephotobelow).



3. TurntheTVonusingtheremotecontrolorpowerbuttononthesideoftheTV.

4. Ascreensimilartotheonebelowwillappear(Note:ifthereisnoupgrademenudisplayed;you

canturnyourTVoff,thenturntheunitbackon):



5. Usingyourremotecontrolarrowkeys,makesurethe“Yes”buttonishighlightedandpress

enter/OKontheremote.Thesoftwareupdatewillthenbegin

Note:DONOTTURNTHEPOWEROFFORUNPLUGDURINGTHEUPDATE

Note:Duringthesoftwareupdate,aprogressbarwillappeardisplayingtheprogressofthe

update;thisupdatetakesapproximatelyone(1)minute.

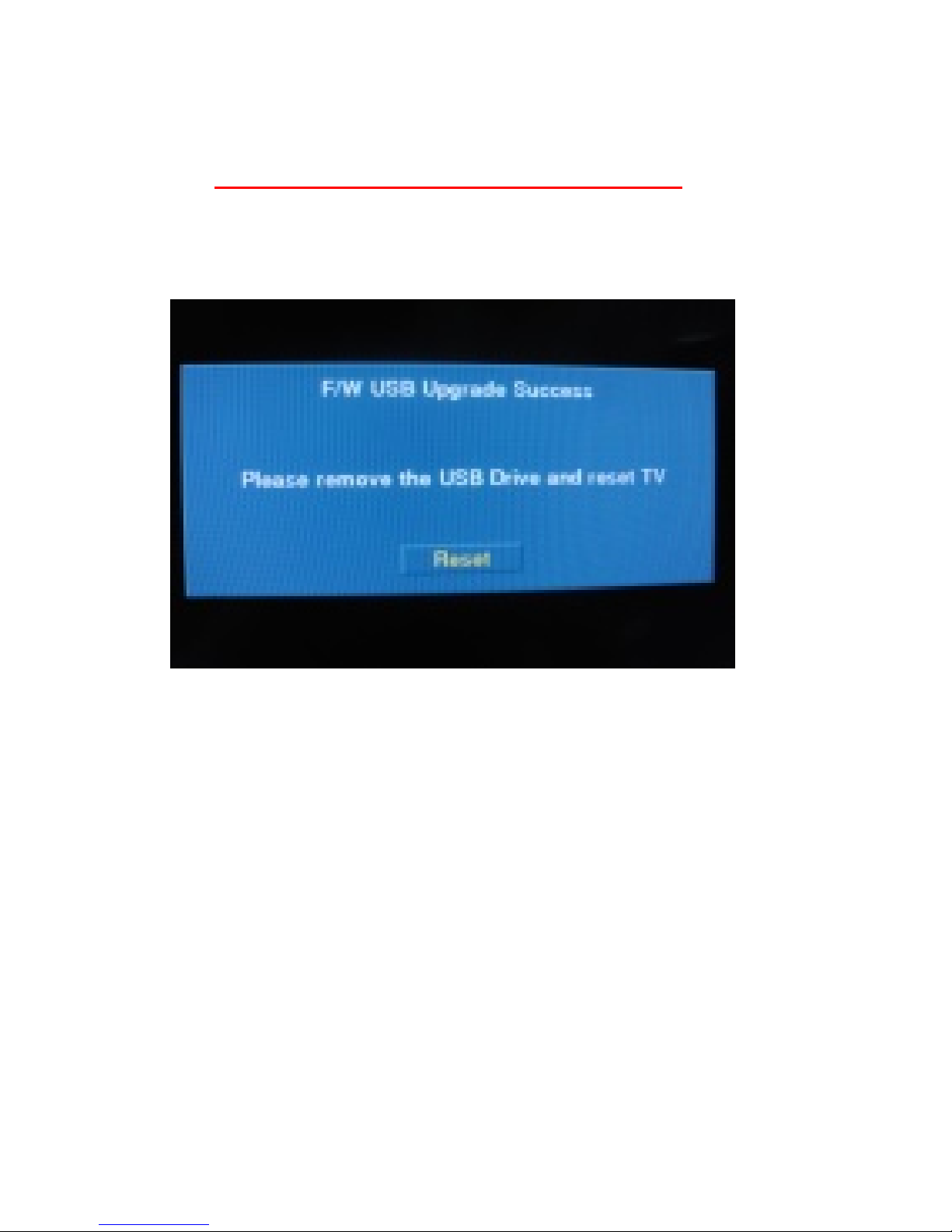

6. Oncetheupdatehascompleted,ascreensimilartotheoneshownbelowwillappear:





7. RemovetheUSBflashdrive(stick)fromtheTV.

8. PoweroffTV,andthenunplugTVfromwallsocket(keepTVunpluggedfor5‐10seconds).

9. PlugTVbackintowallsocket,wait5to10secondsthenpoweronTV.

10. OncetheTVispowereduptheprocessiscomplete.

Note:Itisrecommendedthatyouerase/deletetheupdatefilefromtheUSBflashdriveusing

yourcomputerpriortousingtheUSBflashdriveagain.

Note:Youwillneedtoreprogramyourfavoritechannelsandanycustomsettingsthatyoumay

havesetup.

Note:Ifyouexperienceanyissueswhileperformingthisupgrade,callInsigniaCustomerSupport

at(877)467‐4289forassistance.







January2011
